PB4AH

Availability: Call for Availability
G1 4-channel Analog Mounting Rack

Please call (800) 321-6786 to order.

PB4AH

Production Specification

G1 I/O family

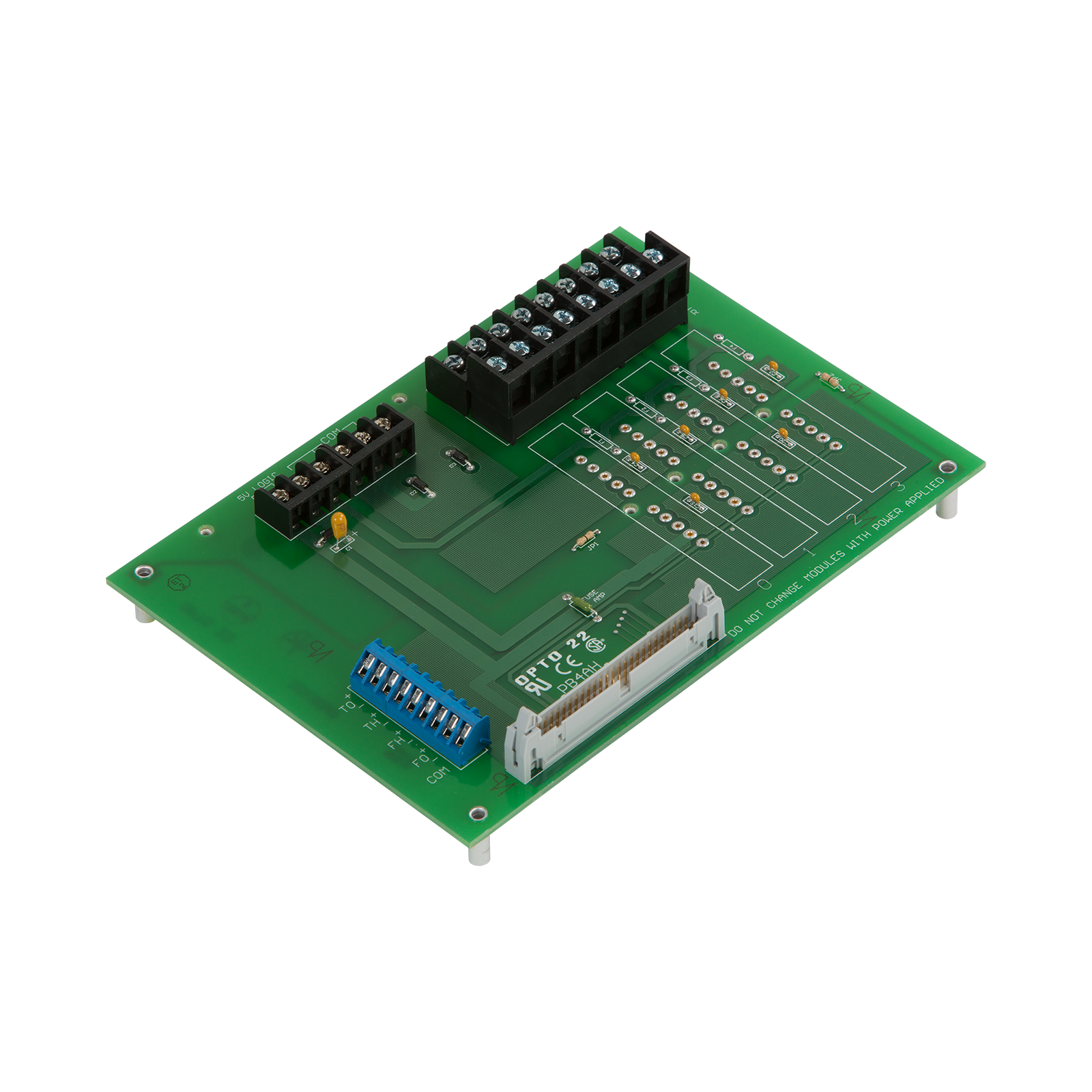

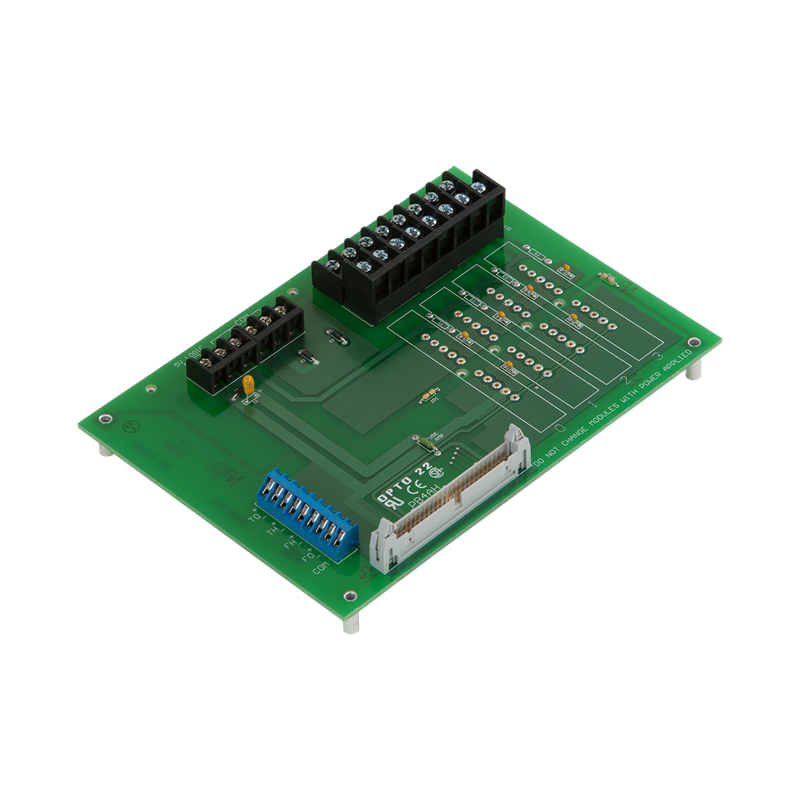

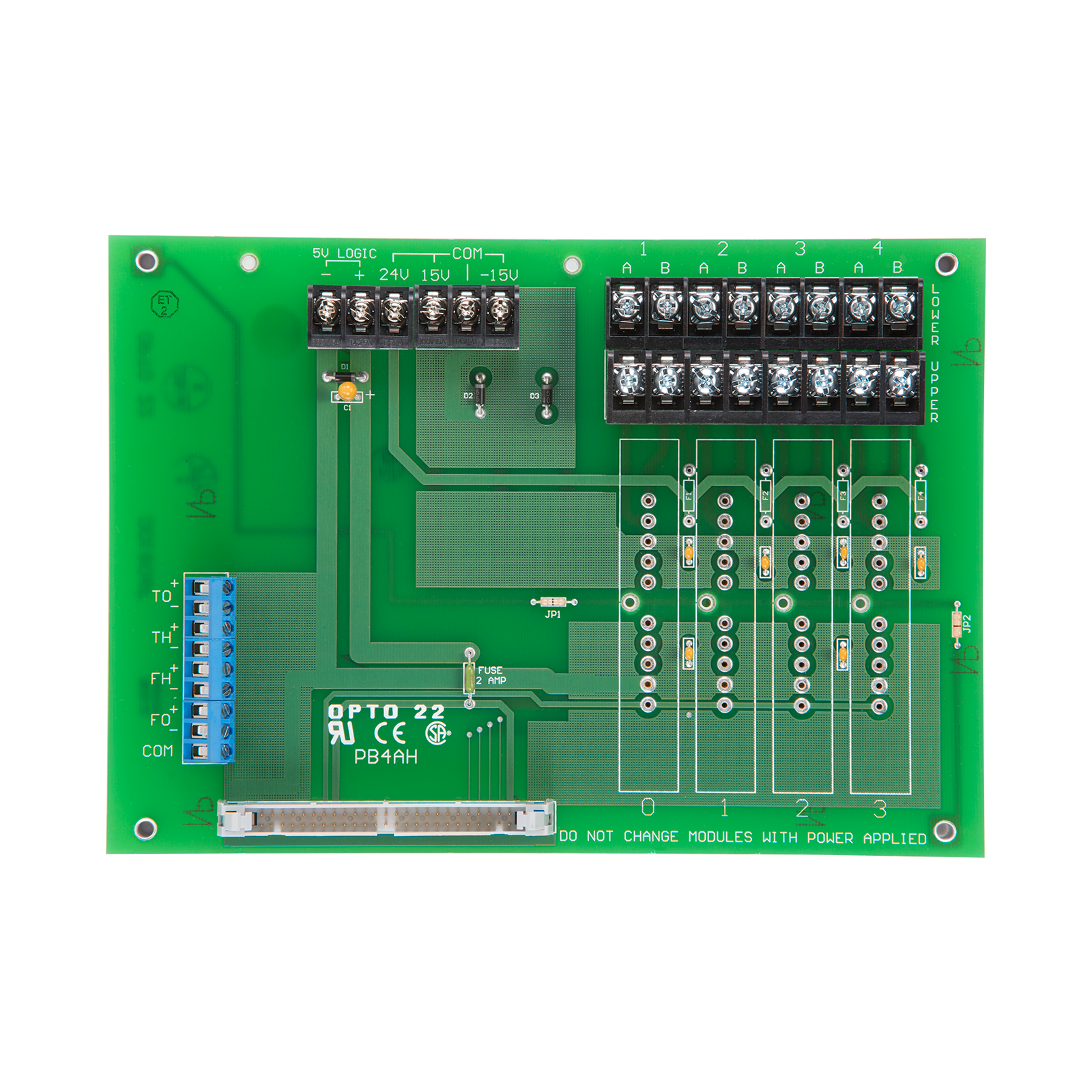

The PB4AH mounting rack holds four G1 analog I/O modules.

The rack uses a 50-pin header connector to interface with Optomux E2 brain boards. It is also compatible with obsolete Optomux B2, Pamux B6, and mistic B200 brain boards.

Operating Temperature

0 to 70 °C

Relative Humidity

95%, Non-condensing

Field Interface Connector

6-32 Screw Terminals

Logic Interface Connector

50-pin Male Header Connector

Power Interface Connectors

2-position Screw Terminals to Supply 5 Volts to Brain Board.
3-position Screw Terminals to Supply ±15 Volts to Analog Modules.
Screw Terminal for Optional 24-Volt Loop Supply for Current Loop Modules.



Standard 4-Channel Analog Mounting Rack Data Sheet

The PB4AH I/O mounting rack can accommodate up to four standard analog I/O modules in any combination.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PB Rack Strap in-the-box

Shows the use of STRAP8 and STRAP2 on PB mounting racks.
