PB16T

$136.00 (USA and Canada only)

Availability: In stock
G1 16-channel I/O Module Rack with 2 Barrier Strips

Please call (800) 321-6786 to order.

PB16T

Production Specification

G1 I/O family

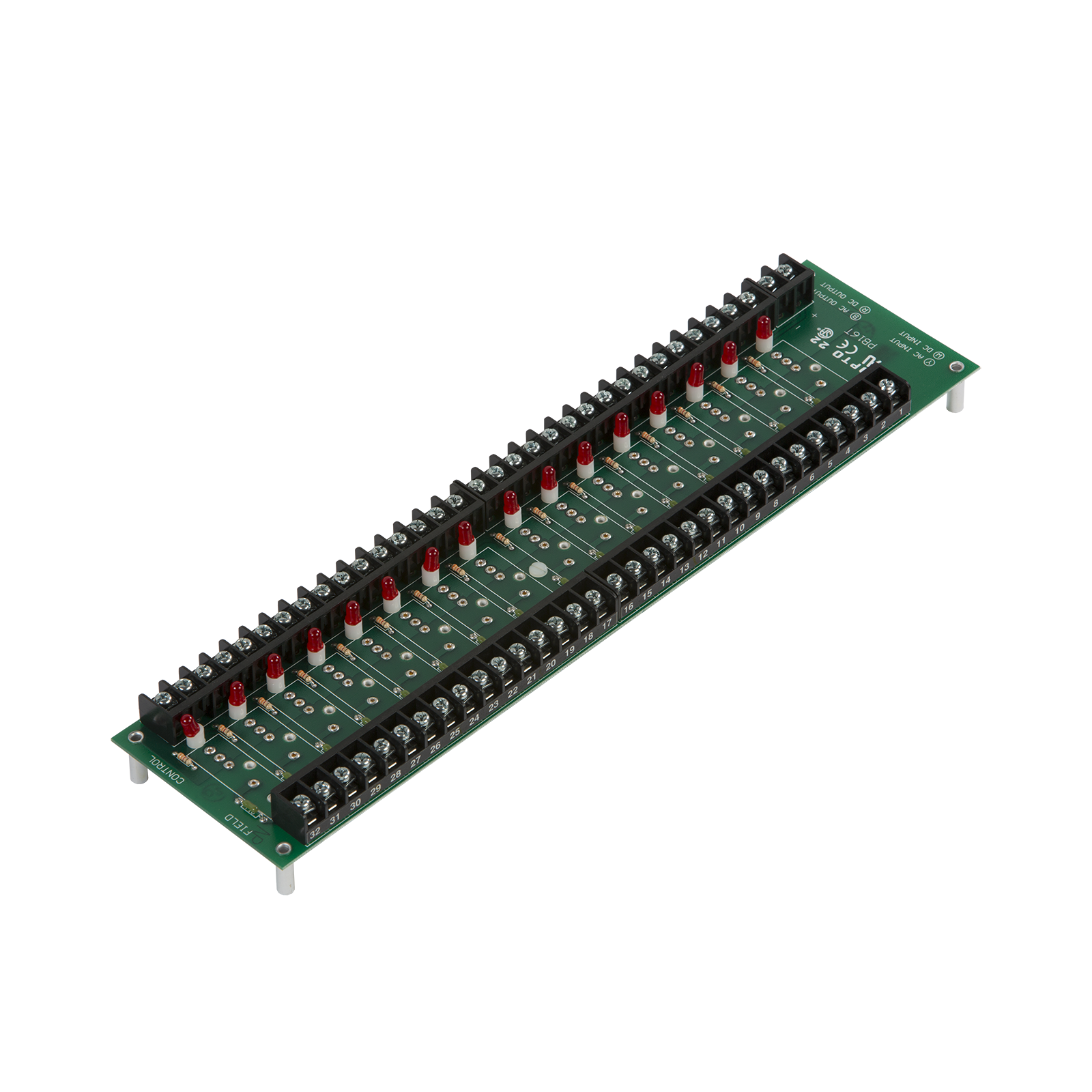

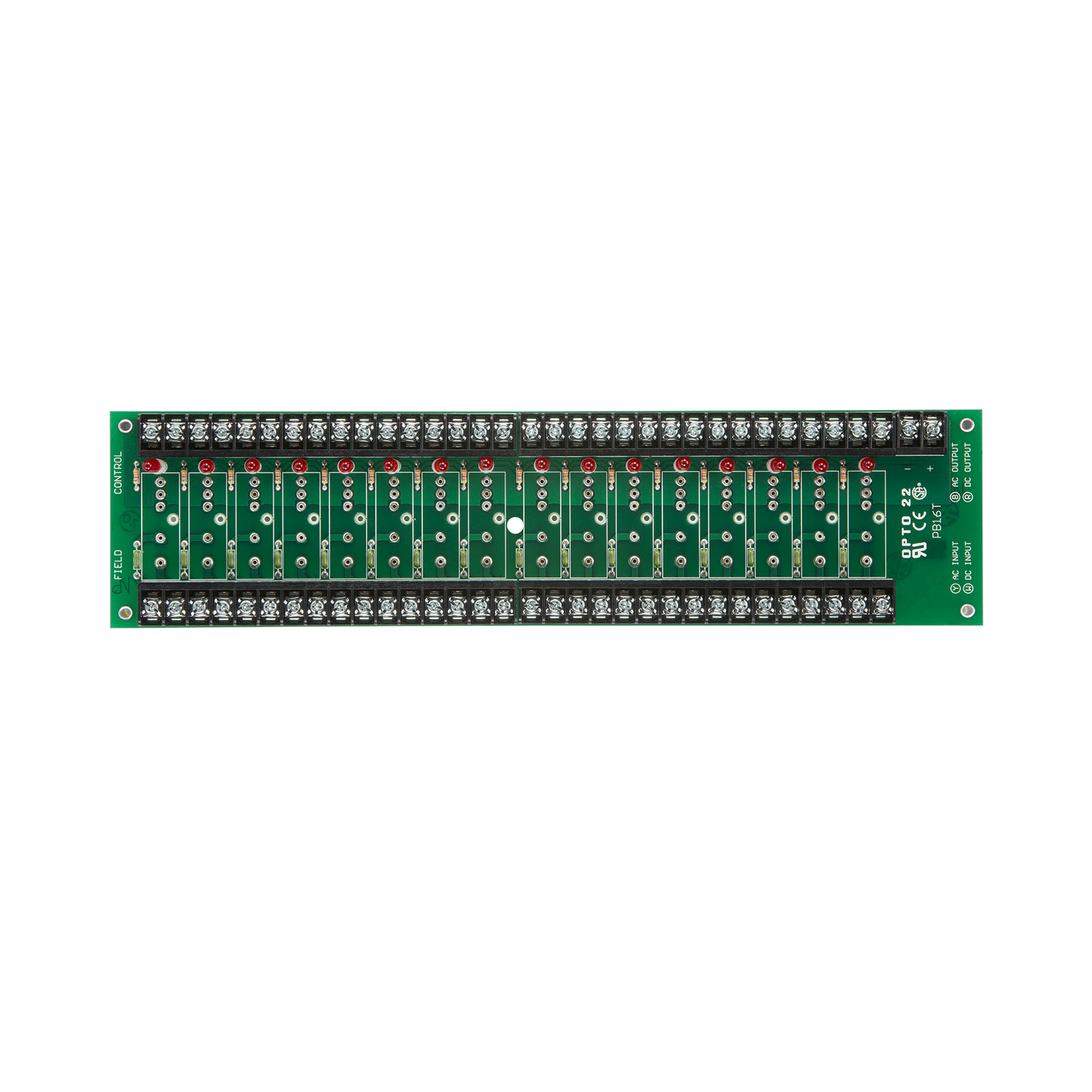

The PB16T mounting rack holds 16 G1 digital I/O modules and is designed for applications that require barrier strips on both the field and the logic sides.

The rack accepts both input and output modules and can be used with 5 volt, 15 volt, and 24 volt modules. Each module position features a replaceable fuse and a status LED.

Operating Temperature

0 to 70 °C
95% Relative Humidity
Non-condensing

Interface Connector Field

6-32 Screw Terminals

Logic

6-32 Screw Terminals

Compatible I/O Module Family

Standard (Generation 1)



Standard Digital 16-Channel (with Barrier Strips) Rack Data Sheet

The PB16T I/O mounting rack accommodates up to 16 single-channel standard I/O modules.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 2 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2011/65/EU, Restriction of Hazardous Substances (RoHS 2). This document lists Opto 22 products that comply with the substance restrictions of the RoHS2 directive.

Standard Digital I/O Wiring Diagrams

Wiring diagrams for Standard digital modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PB Rack Strap in-the-box

Shows the use of STRAP8 and STRAP2 on PB mounting racks.
