PB16HQ
Hover over image to zoom in

PB16HQ

$162.00 (USA and Canada only)

Availability: In stock
Quad Pak 4-module Position Mounting Rack

Production Specification

Quad Pak I/O family

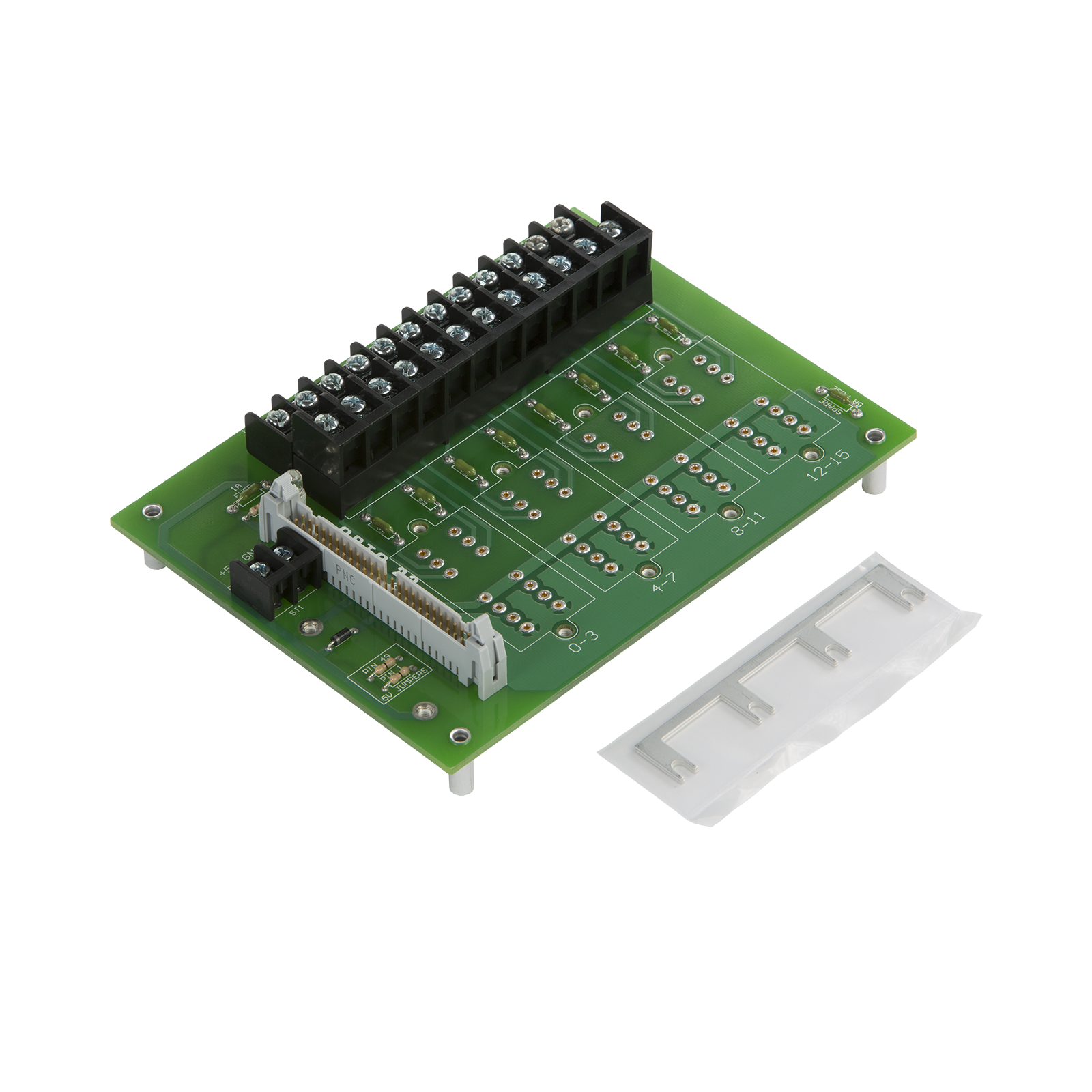

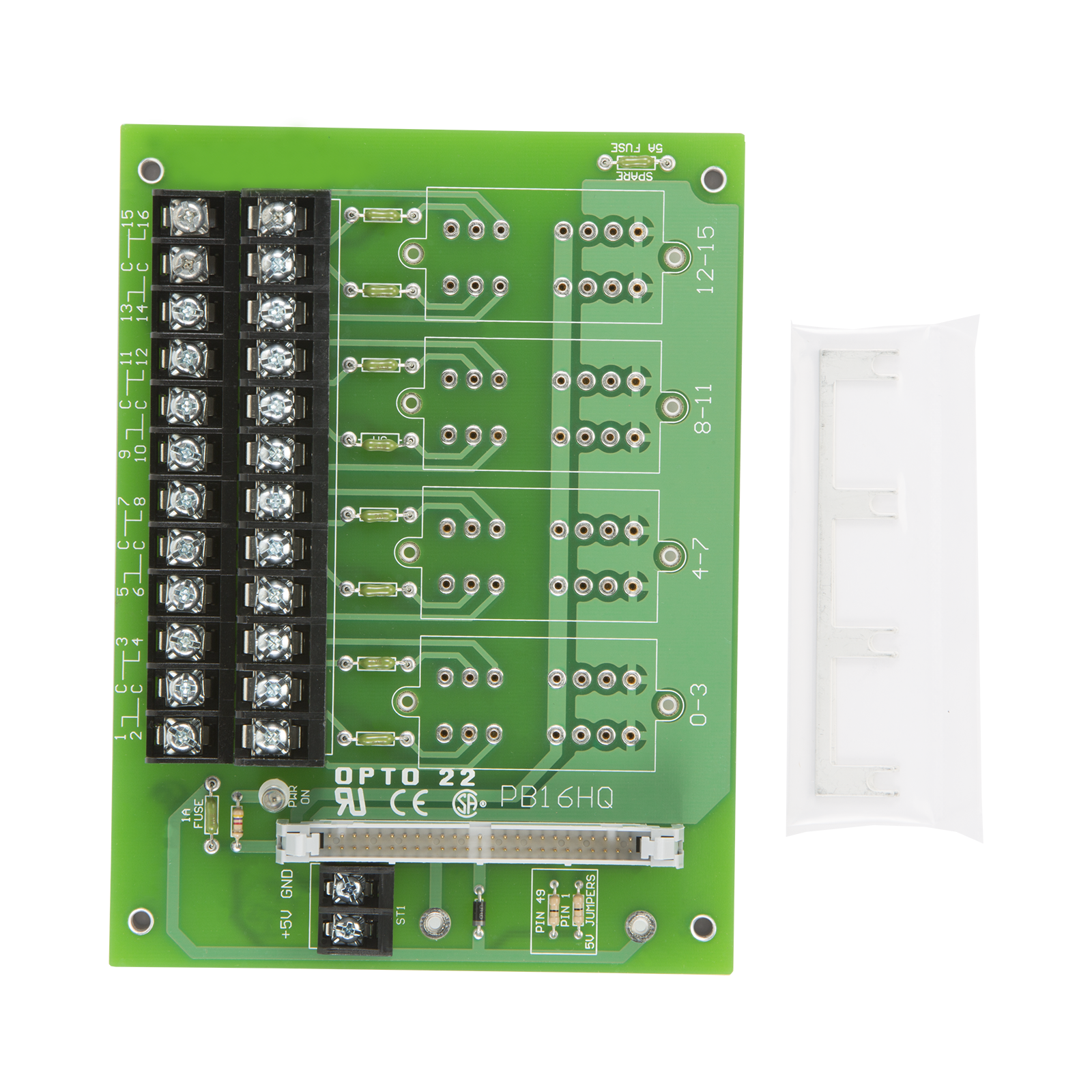

The PB16HQ I/O mounting rack can accommodate up to four Quad Pak I/O modules for a total of 16 I/O channels. This rack features a 50-pin header connector for easy interface to computer parallel I/O ports via 50-conductor ribbon cables. The 50-pin connector also allows direct connection to Optomux, Pamux, and Mistic protocol brain boards.

This rack and its modules can also be used with a Raspberry Pi and the Digital I/O Carrier Board (part number OPTO-P1-40P).

Operating Temperature

- 0 to 70 °C
95% Relative Humidity
Non-Condensing

Interface Connector
  Field
  Logic



6-32 Screw Terminals
50-pin Male Header Connector

Agency Approvals UL, CSA, CE; UKCA



Quad Pak Digital 16-Channel Rack Data Sheet

The PB16HQ I/O mounting rack can accommodate up to four Quad Pak I/O modules for a total of 16 I/O channels.
