PACMANAGER

$0.00 (USA and Canada only)

Availability: In stock
PAC Manager Utility Software

Please call (800) 321-6786 to order.

PACMANAGER

Production Specification

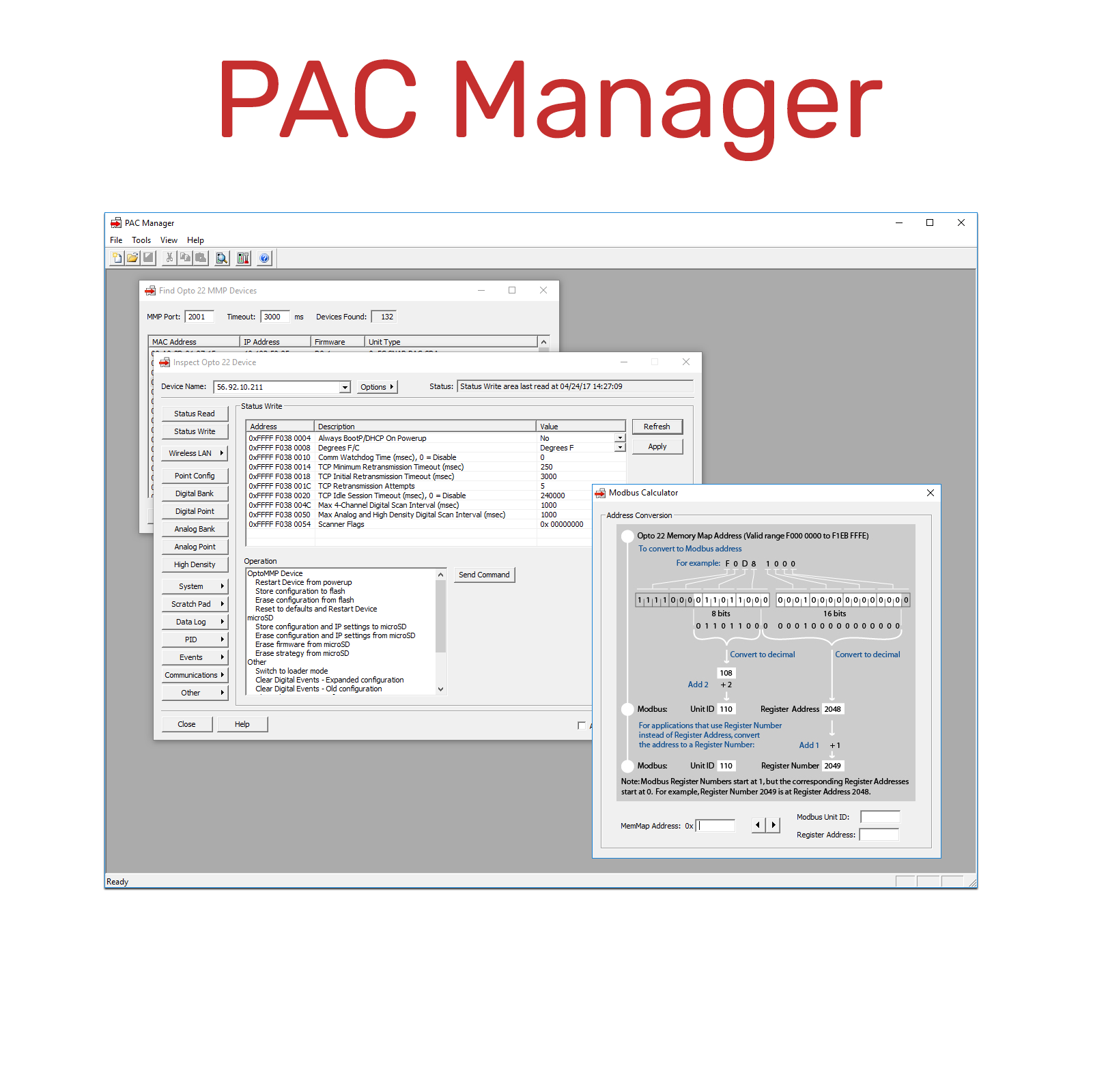

PAC Manager is a configuration and maintenance utility used with all SNAP PAC System controllers and brains. It is used to assign and change IP addresses, load new firmware, configure points and features, and for one-time reads and writes to I/O points. (NOTE: For groov EPIC, do not use PAC Manager. Instead, use the groov Manage software that comes pre-installed in your groov EPIC processor.)

PAC Manager is included in the PAC Project Basic and PAC Project Professional software suites. If you have already downloaded PAC Project, you do not need this download. It is provided as a separate download for convenience.

If you are using older (non-SNAP PAC) controllers or brains with PAC Manager, see the SNAP PAC System Migration Technical Note (Form 1688) for important information.

If you use an Apple or Android-based smartphone or tablet, Opto iPAC and Opto aPAC software apps give you a simplified subset of PAC Manager's features right on your mobile device. See Opto iPAC and Opto aPAC for more information.

Installation requirements:
  • A computer with at least the minimum processor and memory required for your version of Microsoft® Windows®, and Ethernet capability. Additional memory may be required for some configurations.
  • Any of the following operating systems:
    • Microsoft Windows 10 Professional (32-bit or 64-bit)
    • Microsoft Windows 7 Professional (32-bit or 64-bit)
Note: Other versions of Windows operating systems and embedded Windows operating systems are not supported.
  • VGA or higher resolution monitor (Super VGA recommended). Minimum size: 800x600 with small fonts.
  • Mouse or other pointing device.
  • (Optional) Installed Windows printer.
  • Available hard disk space required: 39.3 MB

PAC Project Data Sheet

The PAC Project software suite is one of the four components of the SNAP PAC System. PAC Project comes in two forms: Basic and Professional.

PAC Project Basic is included free in your purchase of a SNAP PAC controller. It includes everything you need for most automation or monitoring applications: control programming, HMI development, and I/O configuration software.

PAC Project Professional is available for purchase as a suite or as individual software components. It includes everything in Basic and adds OPC communication, database connectivity, additional features, and support for legacy Opto 22 hardware.

SNAP PAC System Specification Guide

This guide is a comprehensive introduction to the SNAP PAC System. The guide describes the system's four components (software, controllers, brains, and I/O); shows how to build a basic system and how to expand it; and includes installation instructions, wiring diagrams, dimensional drawings, and specifications for parts.

PAC Project Basic and Professional Comparison Chart

This chart compares the features included in PAC Project Basic and Professional. These software suites provide automation software for the groov EPIC system and the SNAP PAC System.

SNAP PAC System Product Guide

This document lists and describes all Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, SNAP PAC brains, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

PAC Project Readme Notes

Latest Readme for PAC Project Basic and Professional. Includes information on new features, enhancements, and bug fixes for each PAC Project application: PAC Control, PAC Display, OptoOPCServer, PAC Manager, and Tools.

PAC Project R10.0 Release Notes

Release Notes for PAC Project Software Suite, version 10.0.

PAC Project Basic provides control programming, HMI development and runtime, and configuration and utility programs.

PAC Project Professional adds a robust OPC server, database connectivity, multiple PAC Display seats, controller redundancy, legacy hardware support, and a software-based controller for PC-based control.

These release notes include new features and enhancements for PAC Control, PAC Display, and PAC Manager, as well as important notes on installation and use. For information about bug fixes in this release, see the PAC Project Readme Notes.

Legacy Edition, PAC Manager User's Guide

This document is the Legacy Edition of the PAC Manager User's Guide. It includes information about both SNAP PAC hardware and older hardware.

Use this guide if you are using any legacy hardware (SNAP Ultimate, SNAP Ethernet, and SNAP Simple I/O, E1 and E2 brain boards) with PAC Manager.

If you are using SNAP PAC controllers and SNAP PAC brains only, use Form 1704, PAC Manager User's Guide instead of this guide.

PAC Manager User's Guide

This guide shows you how to use PAC Manager, part of the the PAC Project Software Suite, to assign IP addresses, configure I/O, and inspect and maintain Opto 22 SNAP PAC hardware.

NOTE: If you are using older Opto 22 hardware in addition to SNAP PAC controllers and brains, use the Legacy Edition of this guide, form #1714.

Wireless Ad-Hoc Mode Configuration Technical Note

OptoEMU Sensor energy monitoring units and Opto 22 Wired+Wireless™ SNAP PAC controllers and brains can communicate wirelessly with other wireless devices in either infrastructure or ad-hoc mode.

In ad-hoc mode, wireless devices communicate directly with each other, peer-to-peer. Ad-hoc mode is less secure but useful for temporary wireless connections, because it can be set up quickly.

This technical note shows you how to configure ad-hoc mode on the OptoEMU Sensor, controller, or brain using PAC Manager. It also includes steps for configuring ad-hoc mode on a smart phone.

Use this technical note with the AdHocConfig.zip download, which includes a file to make configuration in PAC Manager easier.

Firmware for SNAP-SCM-PROFI module

Firmware for the SNAP-SCM-PROFI module for Profibus communication.

AdHocConfig.zip

The included AdHocSettings.ciw file makes ad-hoc wireless configuration in PAC Manager easier.

The included technical note, form 1970, shows you how to configure ad-hoc mode on the OptoEMU Sensor, controller, or brain using PAC Manager. It also includes steps for configuring ad-hoc mode on a smart phone.

OptoEMU Sensor energy monitoring units and Opto 22 Wired+Wireless™ SNAP PAC controllers and brains can communicate wirelessly with other wireless devices in either infrastructure or ad-hoc mode.

In ad-hoc mode, wireless devices communicate directly with each other, peer-to-peer. Ad-hoc mode is less secure but useful for temporary wireless connections, because it can be set up quickly.

Before you download, read the Legal Agreement.

PAC Manager

PAC Manager is a configuration and maintenance utility used with all SNAP PAC System controllers and brains. (NOTE: If you're using groov EPIC products, you should use the groov Manage software that comes pre-installed in your groov EPIC processor.)

This product is a free download that includes software and documentation in Adobe Acrobat PDF format.

PAC Project Software - MSI for Command Line Installation

Use this .msi (Microsoft® Installer) installation file to install PAC Project software from the command line in Microsoft Windows®.

A command line installation of PAC Project in silent mode requires no user input once installation has begun. This is useful if you are an OEM machine builder who makes many copies of the same machine, or if you are an integrator or someone at a large company who wants to use an installation script. An .msi installation file is designed for a network-wide installation, and it works with Microsoft network features such as Active Directory.

Video: SNAP PAC System Overview

This overview describes the four integrated components of the SNAP PAC system: software, controllers, brains and I/O. This hardware and software system is designed for industrial control, remote monitoring and data acquisition.

Video: PAC Project Software Suite

A quick overview of the PAC Project Software Suite.

Video: PAC Manager Introduction

Learn how to use PAC Manager for a variety of system commissioning and maintenance tasks.
