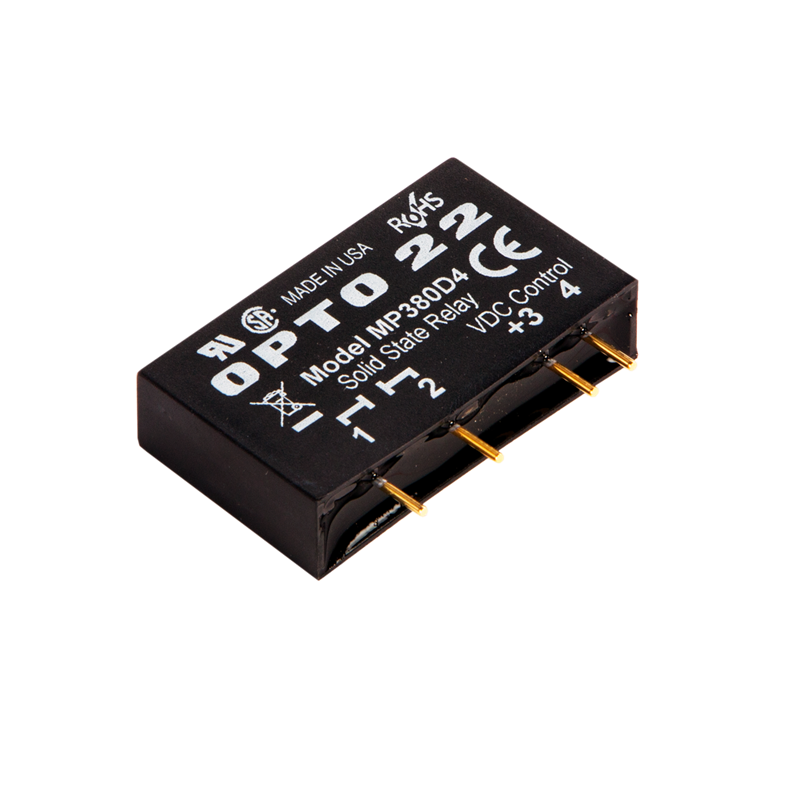

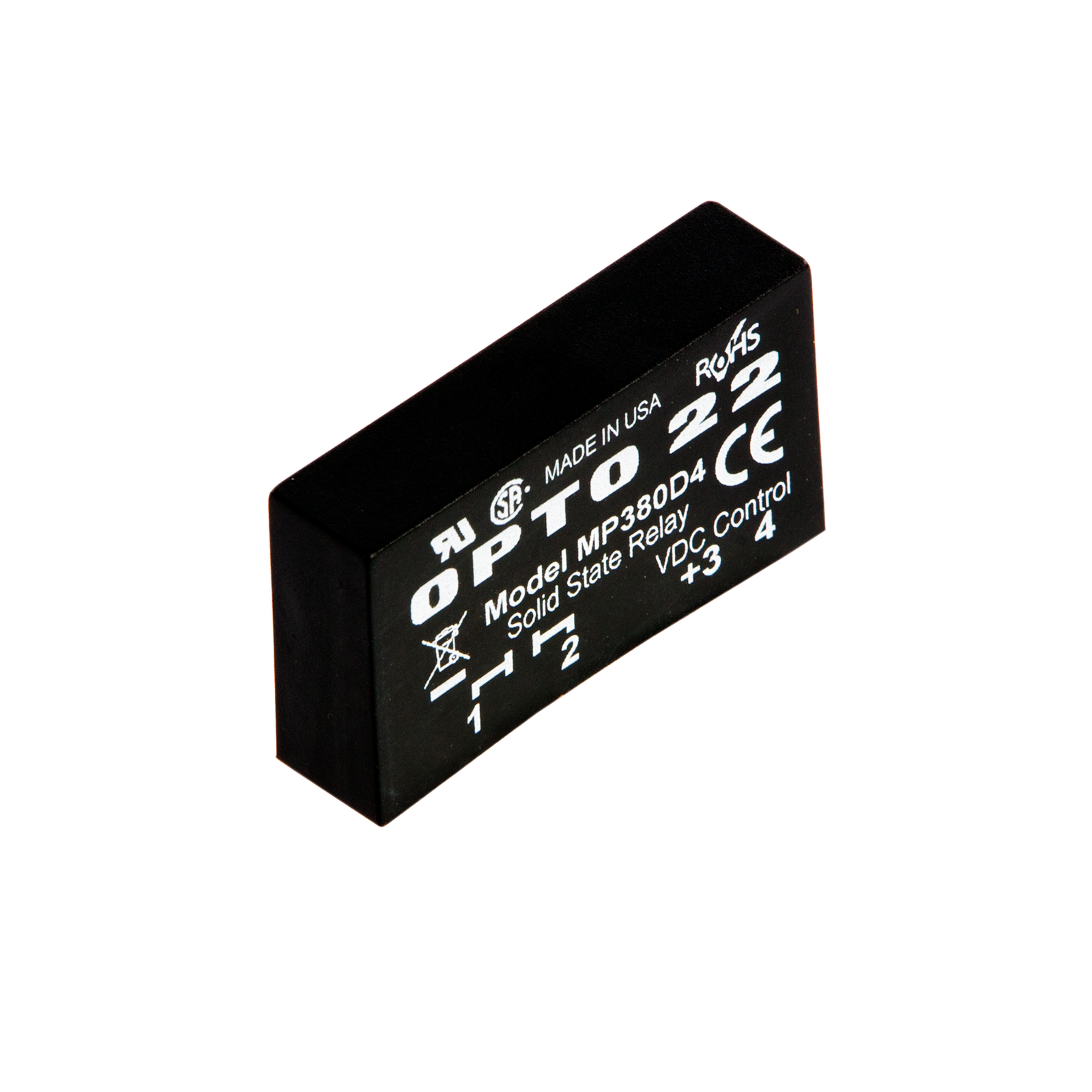

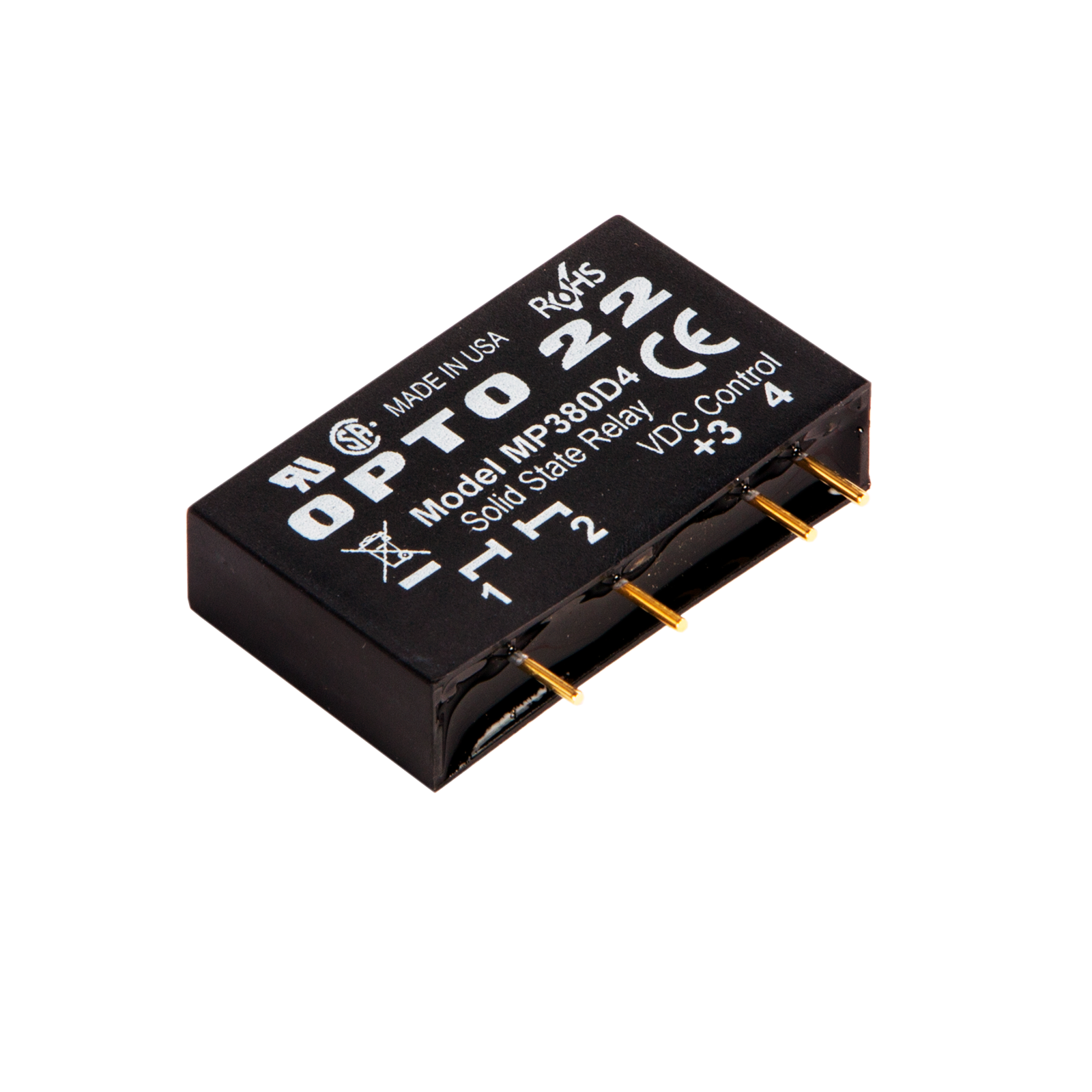

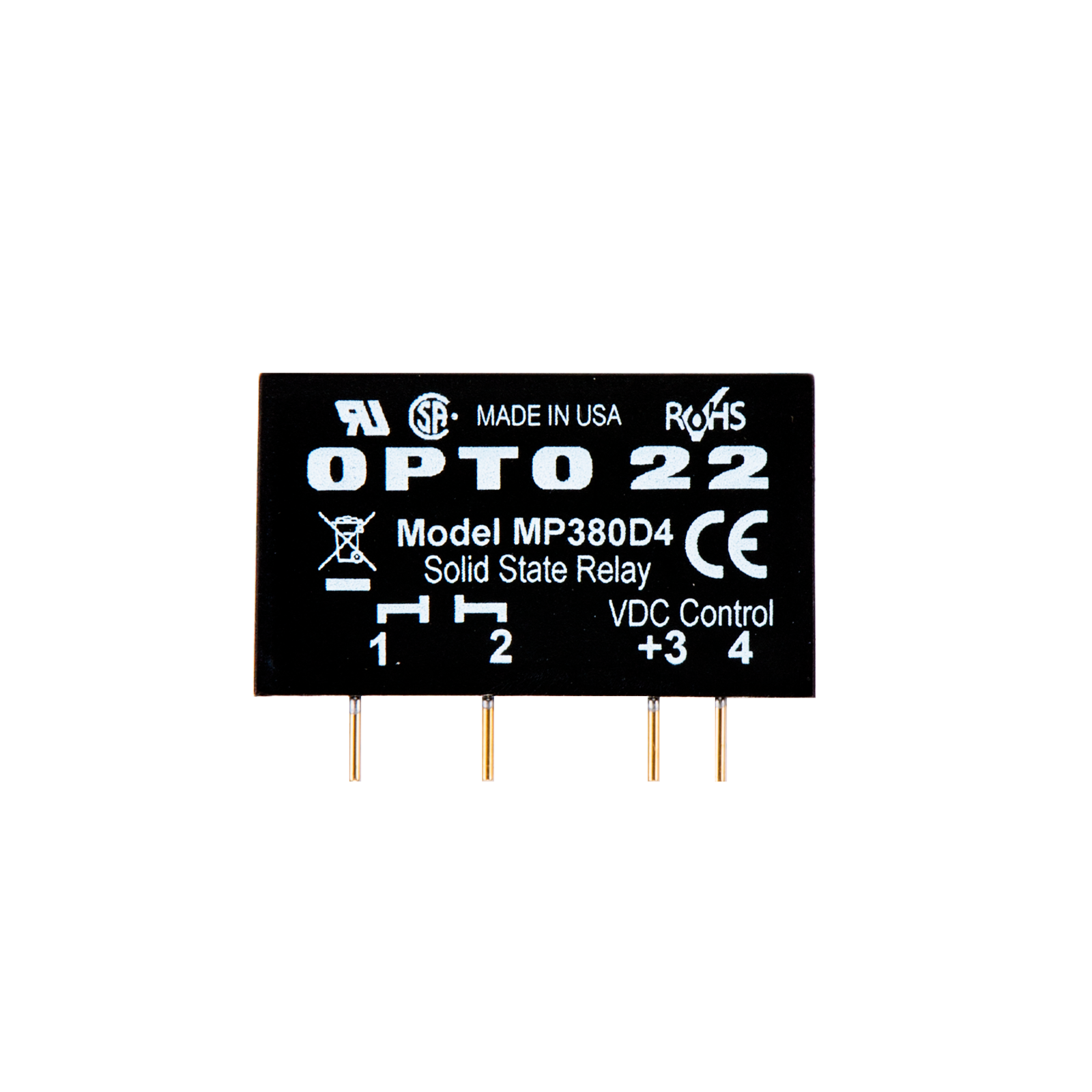

MP380D4
Hover over image to zoom in

MP380D4

$29.00 (USA and Canada only)

Availability: In stock
MP Model, 380 VAC, 4 Amp, DC Control Solid State Relay (SSR)

Production Specification

The MP380D4 is a DC-controlled MP Series relay that switches 380 VAC at up to 4 A.

MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list

This SSR carries a lifetime warranty.



MP120D2
or P120D2

MP120D4
or P120D4

MP240D2
or P240D2

MP240D4
or P240D4

MP380D4

Nominal AC Line Voltage

120

120

240

240

380

Nominal Current Rating (Amps)

2*

4*

2*

4*

4*

1 cycle Surge (Amps) Peak

20

85

20

85

85

Nominal Signal Input
Resistance (Ohms)

1000

1000

1000

1000

1000

Signal Pick-up Voltage

3VDC**
(24V allowed)

3VDC**
(24V allowed)

3VDC**
(24V allowed)

3VDC**
(24V allowed)

3VDC**
(24V allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

1 VDC

1 VDC

1 VDC

Peak Repetitive Voltage Maximum

600

600

600

600

800

Maximum Output Voltage Drop

1.6 volts

1.6 volts

1.6 volts

1.6 volts

1.6 volts

Off-State Leakage mA Maximum***

5 mA

5 mA

5 mA

5 mA

5 mA

Operating Voltage Range (Volts AC)

12–140

12–140

24–280

24–280

24–420

I2t Rating t=8.3 (ms)

2

30

2

30

30

Isolation Voltage

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

θjc**** °C/Watt

20

6.5

20

6.5

6.5

Dissipation Watts/Amp

1.2

1.2

1.2

1.2

1.2

Rating (Motor Load)

1 FLA at 120 VAC
6 LRA at 120 VAC

2.5 FLA at 240 VAC
6 LRA at 240 VAC

1 FLA at 120 VAC
15 LRA at 120 VAC

2.5 FLA at 240 VAC
15 LRA at 240 VAC

2.5 FLA at 380 VAC
15 LRA at 380 VAC

Agency Approvals UL, CSA, RoHS, CE; UKCA UL, CSA, RoHS, CE; UKCA UL, CSA, RoHS, CE; UKCA UL, CSA, RoHS, CE; UKCA UL, CSA, RoHS, CE; UKCA

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** = P Series 32 volts maximum.
*** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
****θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
