MP120D2

$17.00 (USA and Canada only)

Availability: In stock

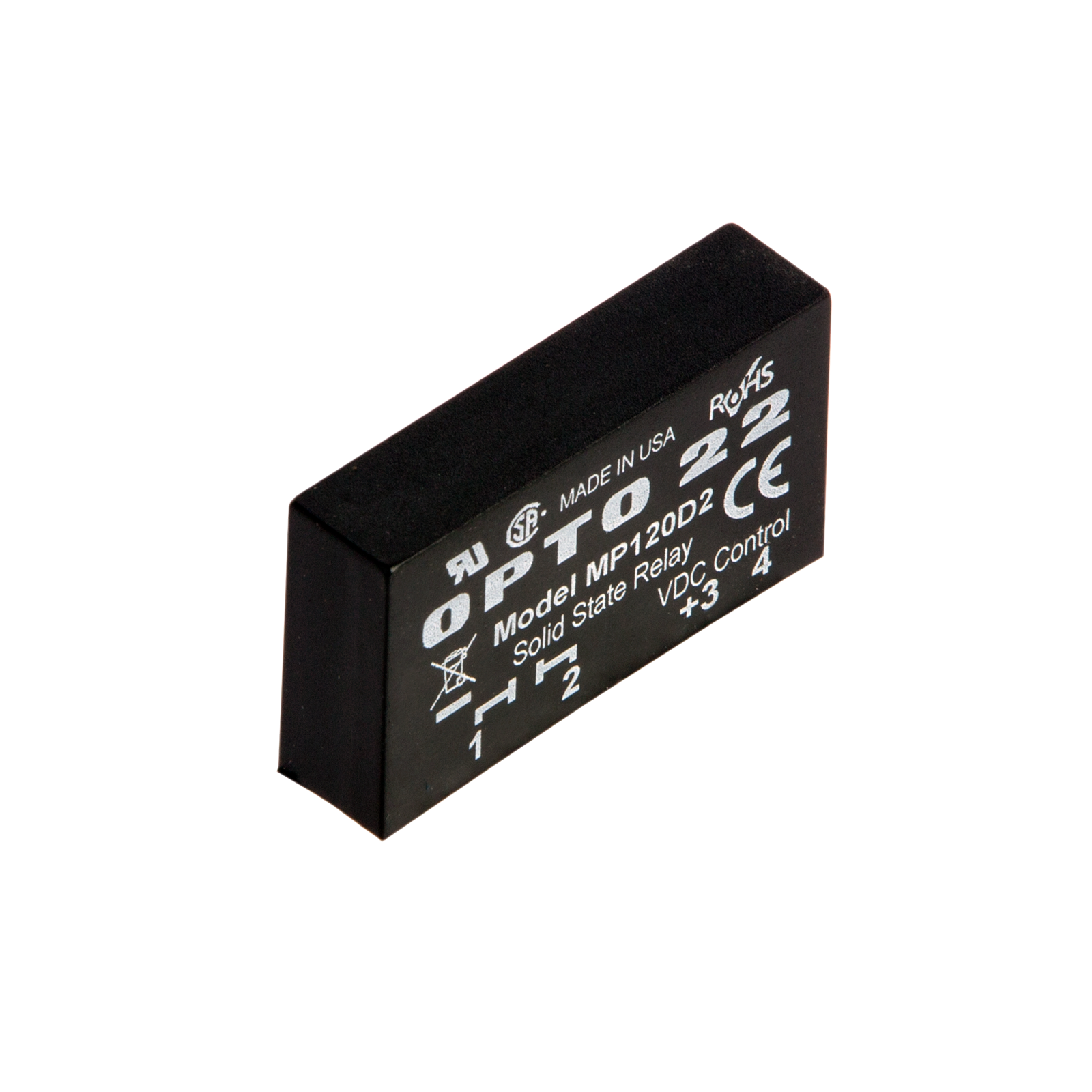

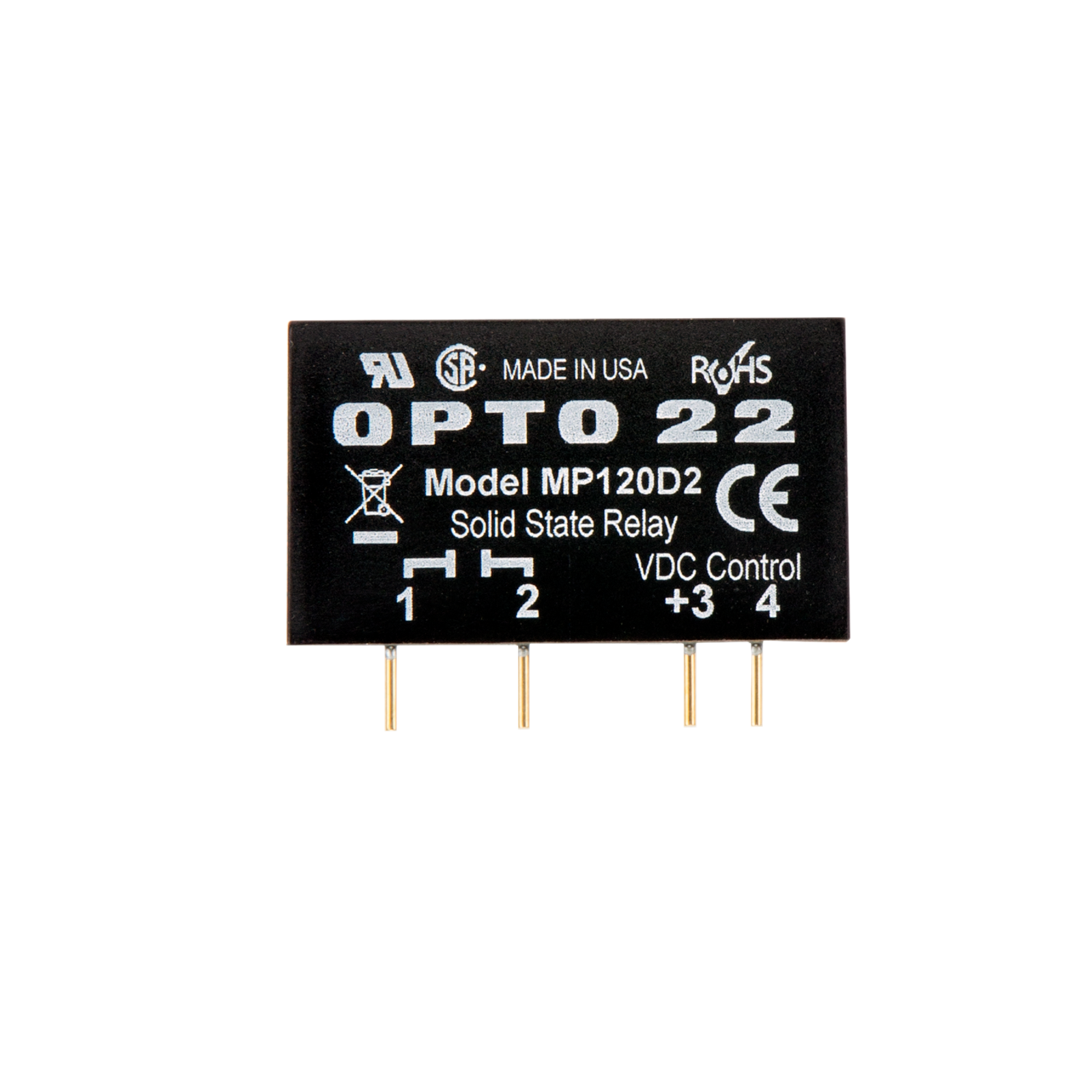

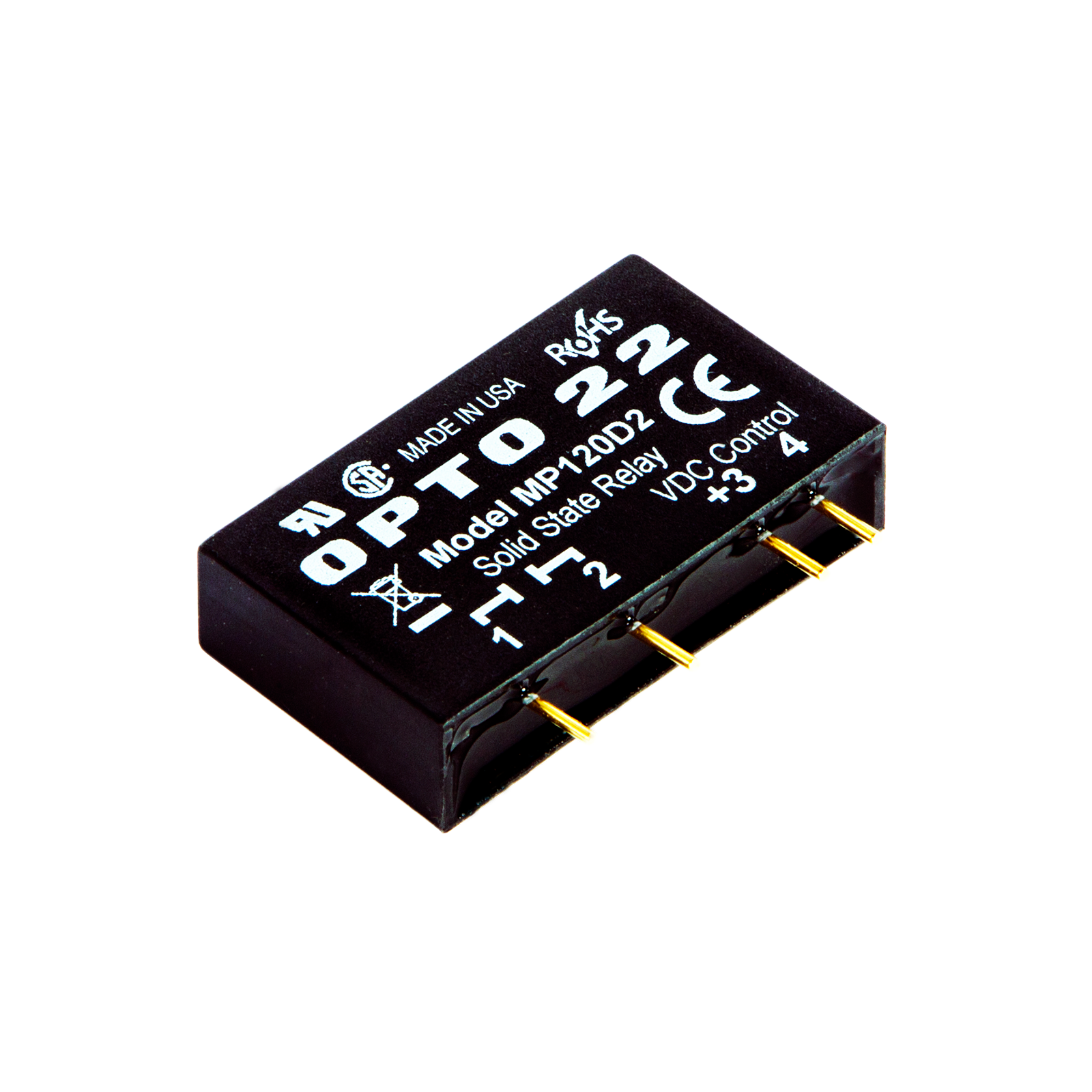

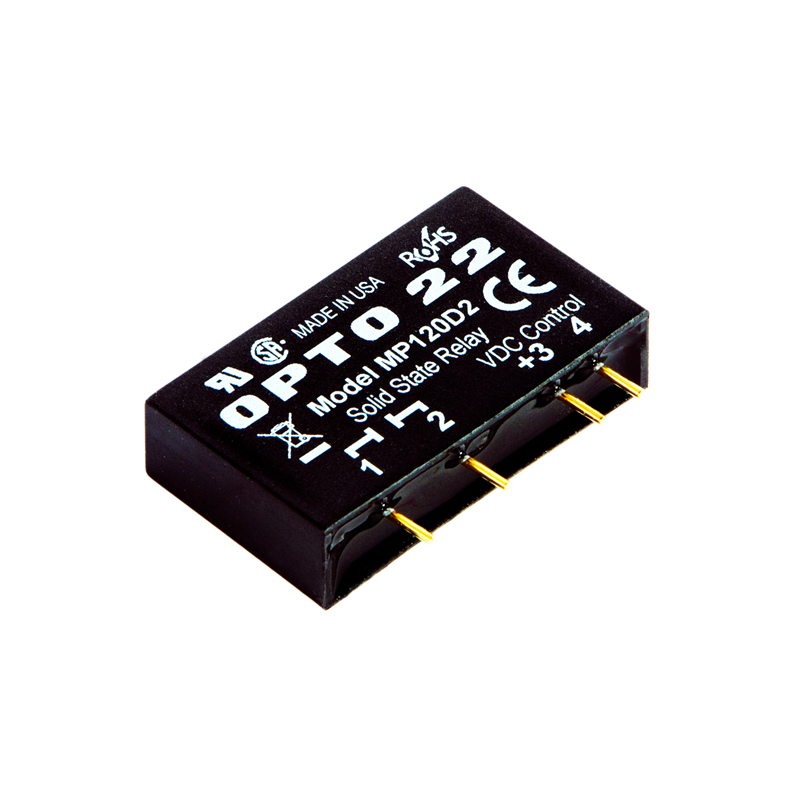

MP Model, 120 VAC, 2 Amp, DC Control Solid State Relay (SSR)

Please call (800) 321-6786 to order.

MP120D2

Production Specification

The MP120D2 is a DC-controlled MP Series relay that switches 120 VAC at up to 2 A.

MP Series power relays are designed for OEMs. They offer a minimum footprint to allow maximum relay density on a printed circuit board.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list

This SSR carries a lifetime warranty.



MP120D2
or P120D2

MP120D4
or P120D4

MP240D2
or P240D2

MP240D4
or P240D4

MP380D4

Nominal AC Line Voltage

120

120

240

240

380

Nominal Current Rating (Amps)

2*

4*

2*

4*

4*

1 cycle Surge (Amps) Peak

20

85

20

85

85

Nominal Signal Input
Resistance (Ohms)

1000

1000

1000

1000

1000

Signal Pick-up Voltage

3VDC**
(24V allowed)

3VDC**
(24V allowed)

3VDC**
(24V allowed)

3VDC**
(24V allowed)

3VDC**
(24V allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

1 VDC

1 VDC

1 VDC

Peak Repetitive Voltage Maximum

600

600

600

600

800

Maximum Output Voltage Drop

1.6 volts

1.6 volts

1.6 volts

1.6 volts

1.6 volts

Off-State Leakage mA Maximum***

5 mA

5 mA

5 mA

5 mA

5 mA

Operating Voltage Range (Volts AC)

12–140

12–140

24–280

24–280

24–420

I2t Rating t=8.3 (ms)

2

30

2

30

30

Isolation Voltage

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

θjc**** °C/Watt

20

6.5

20

6.5

6.5

Dissipation Watts/Amp

1.2

1.2

1.2

1.2

1.2

Rating (Motor Load)

1 FLA at 120 VAC
6 LRA at 120 VAC

2.5 FLA at 240 VAC
6 LRA at 240 VAC

1 FLA at 120 VAC
15 LRA at 120 VAC

2.5 FLA at 240 VAC
15 LRA at 240 VAC

2.5 FLA at 380 VAC
15 LRA at 380 VAC

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** = P Series 32 volts maximum.
*** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
****θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
