GRV-ITM-12
Hover over image to zoom in

GRV-ITM-12

$825.00 (USA and Canada only)

Availability: In stock
Analog input, 12 channels, thermocouple or mV
Data Sheet

Production Specification

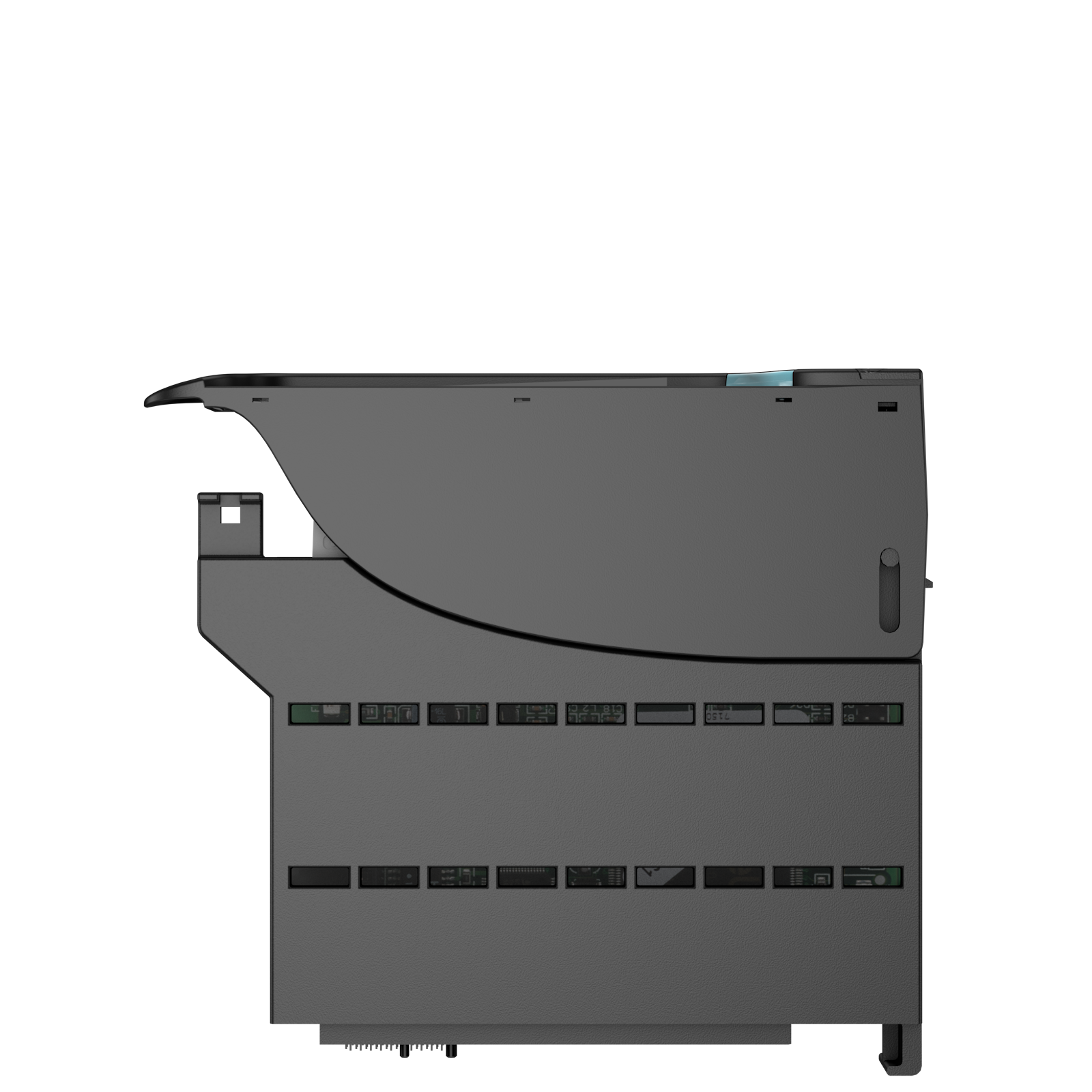

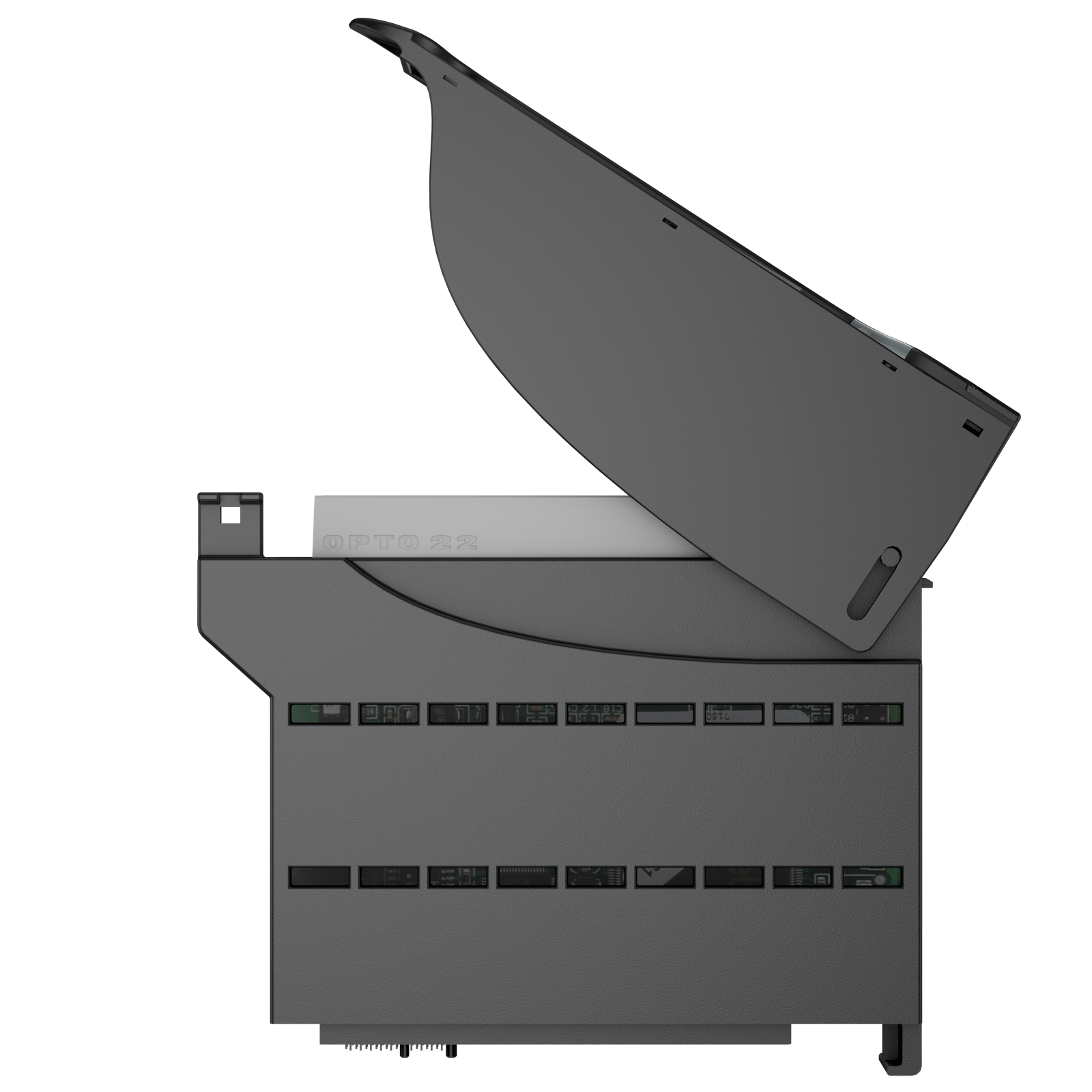

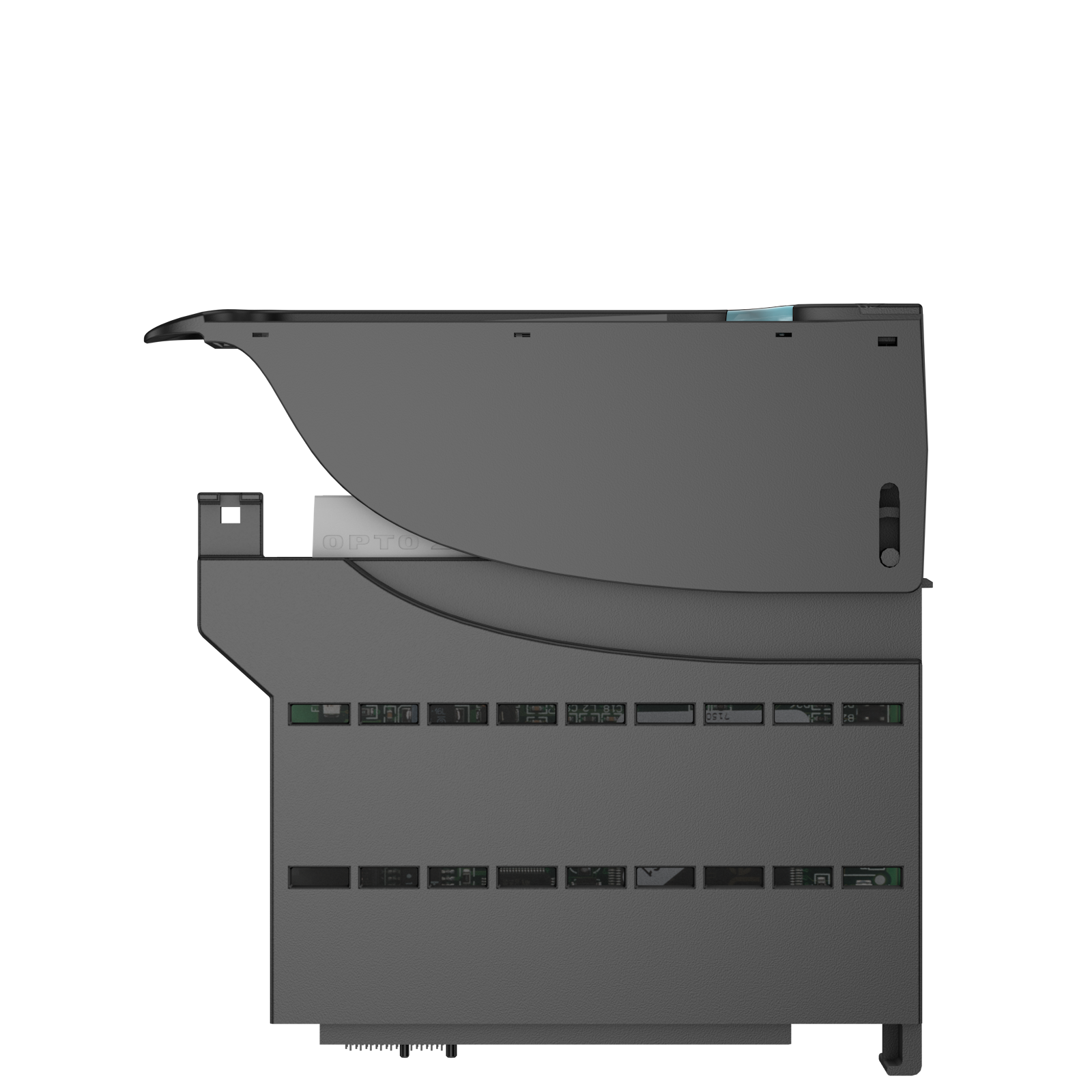

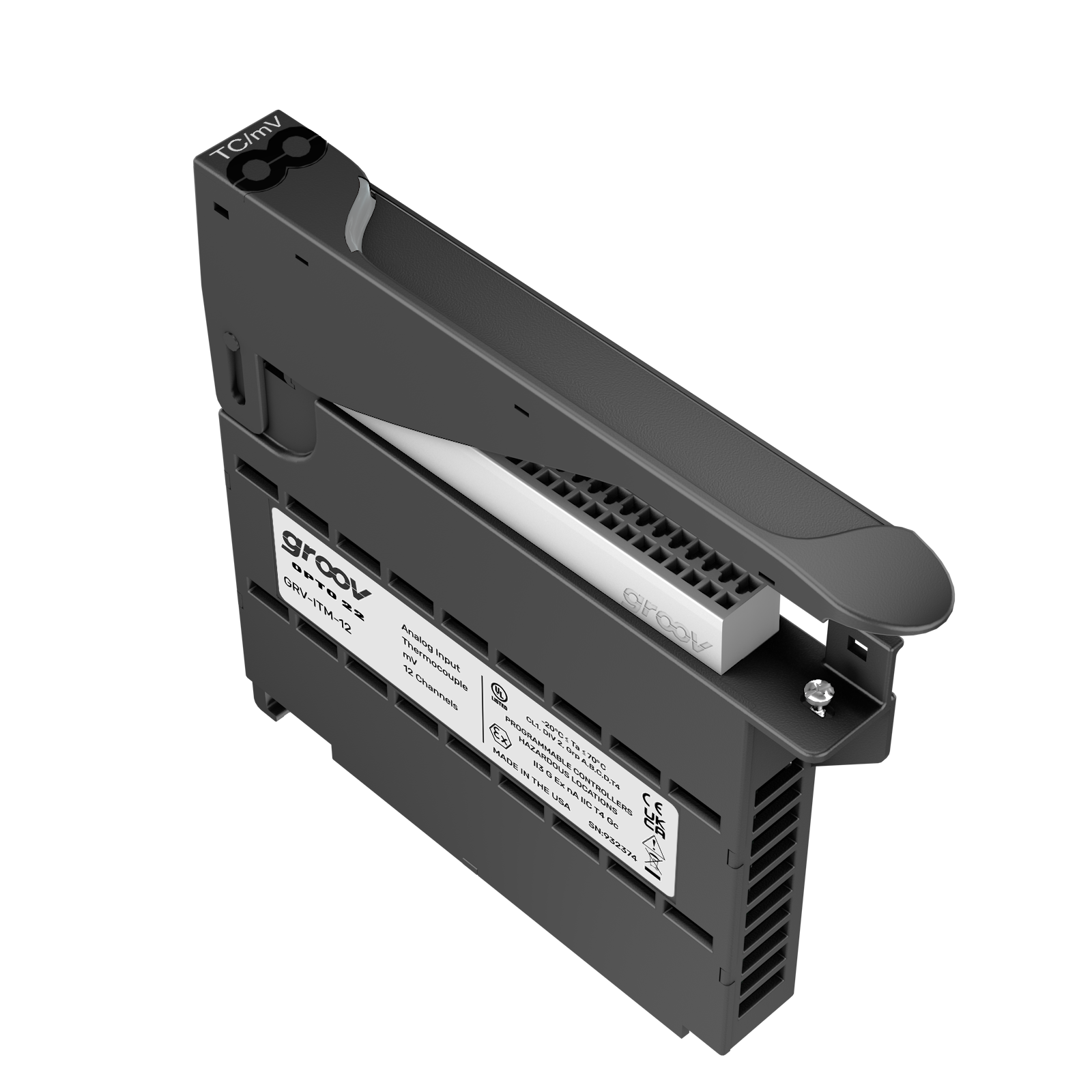

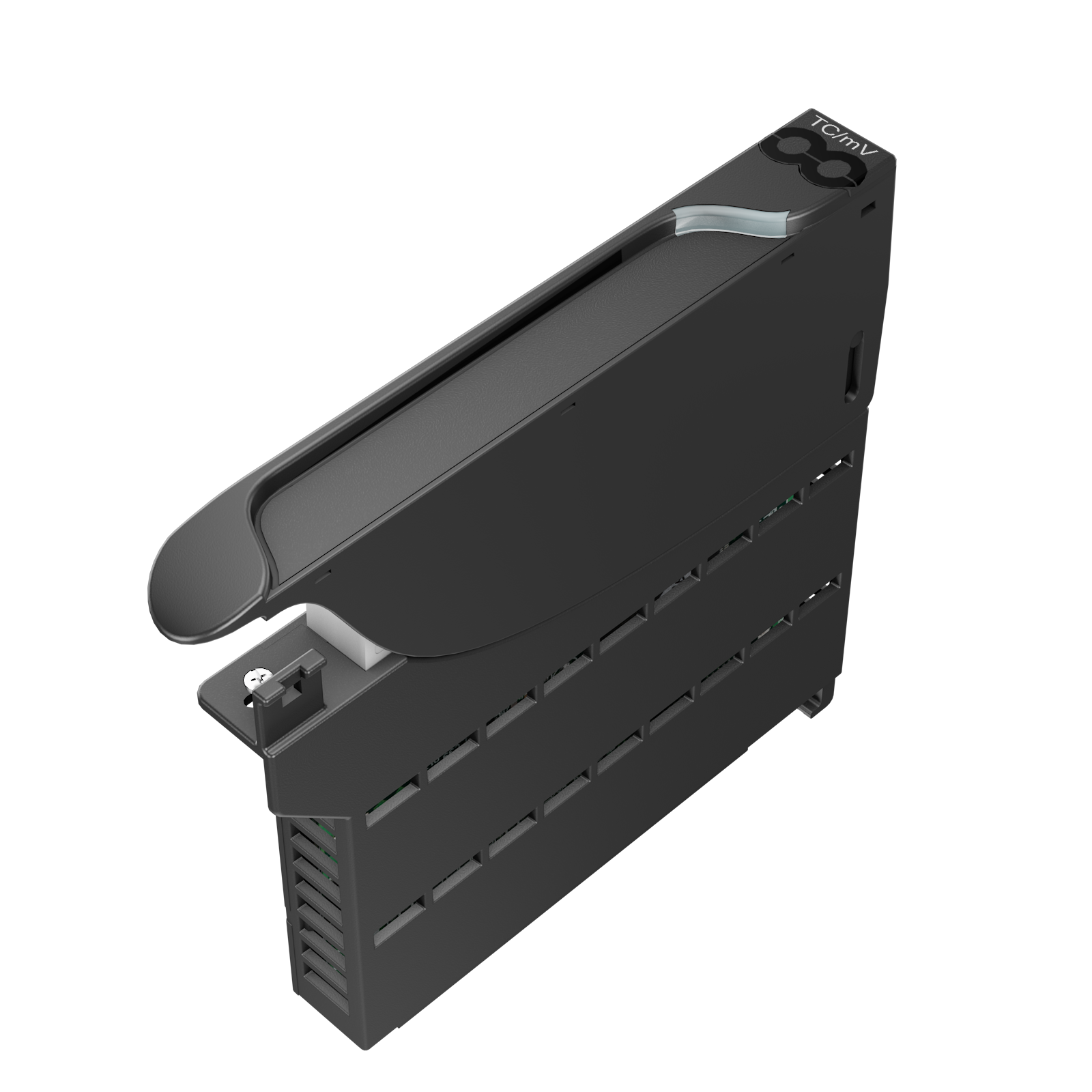

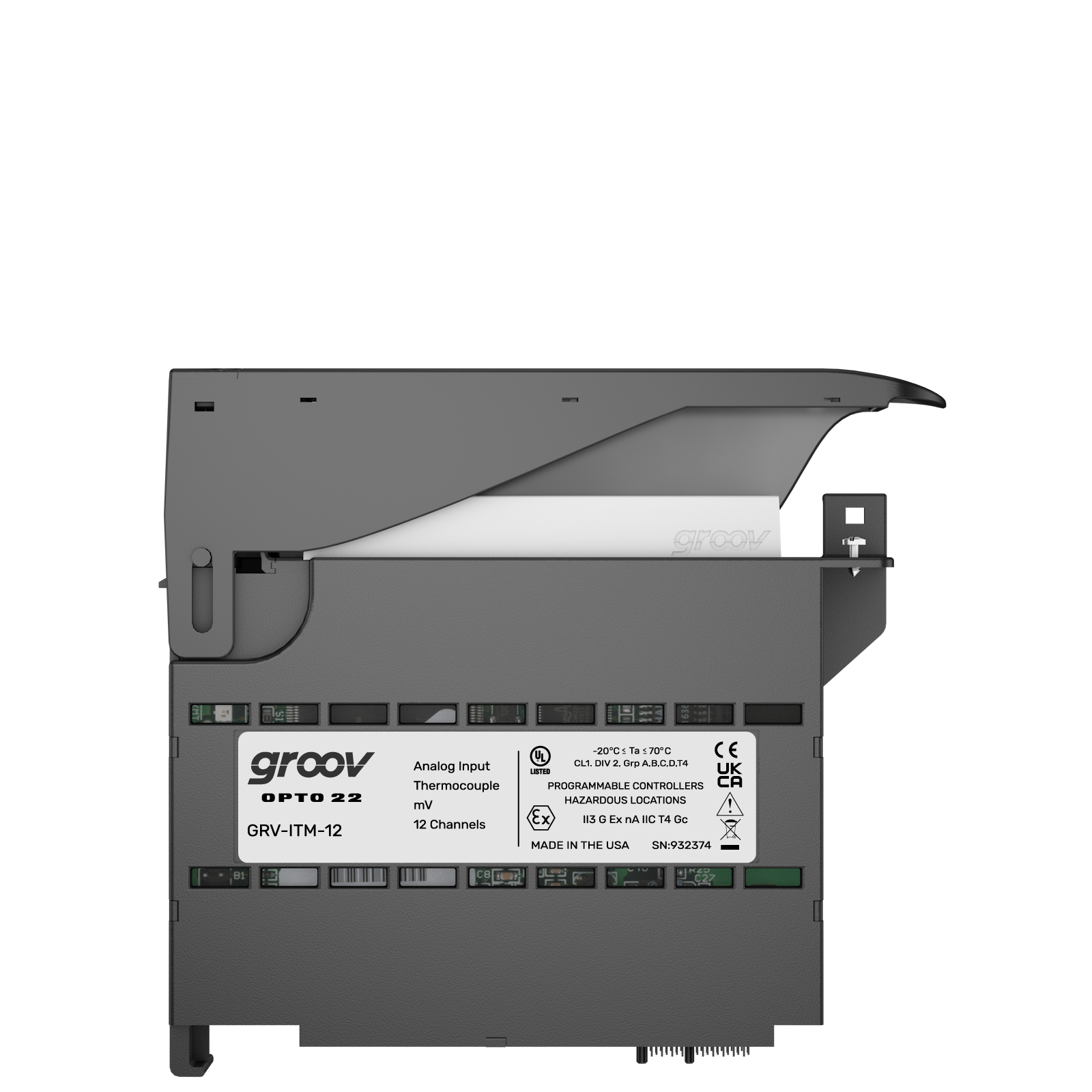

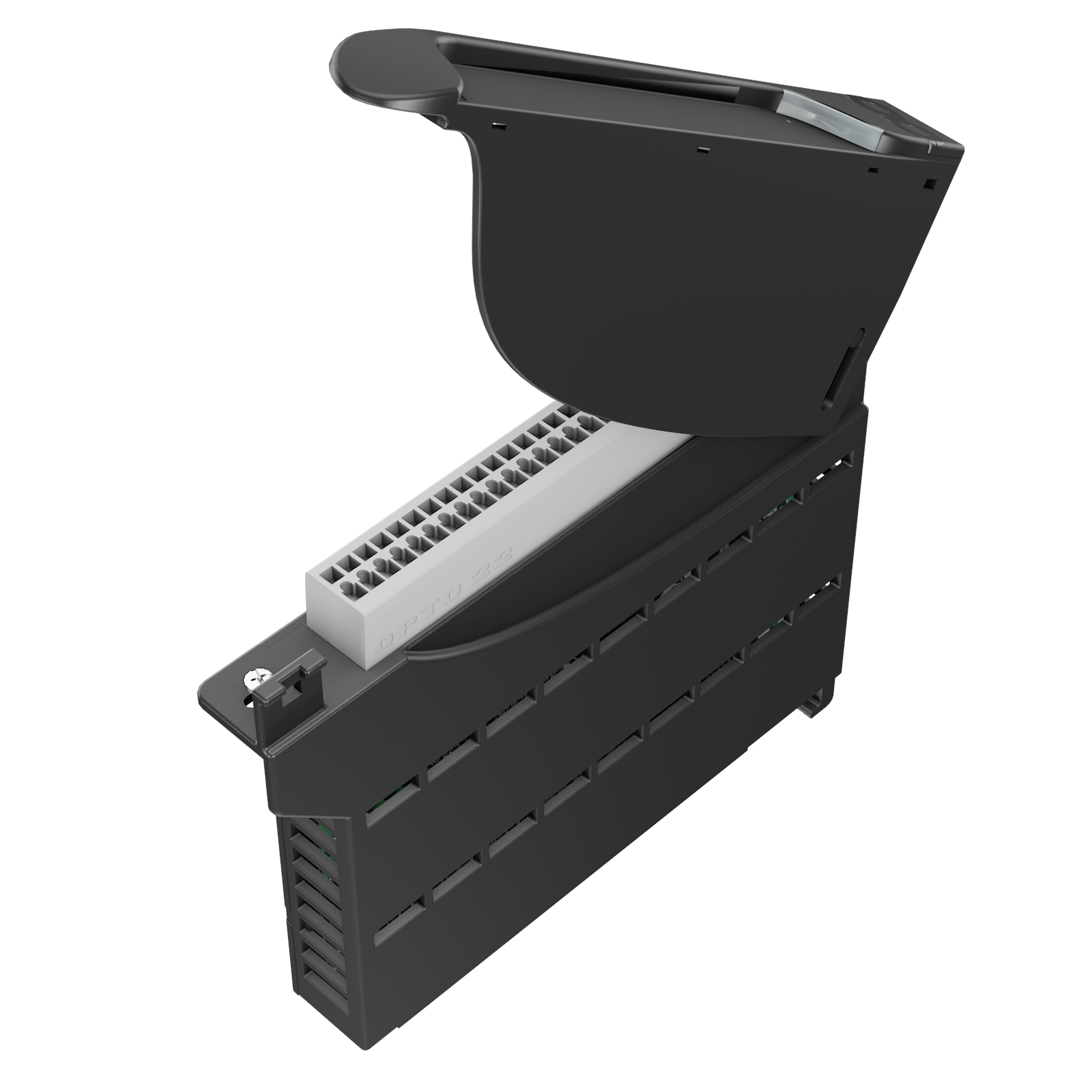

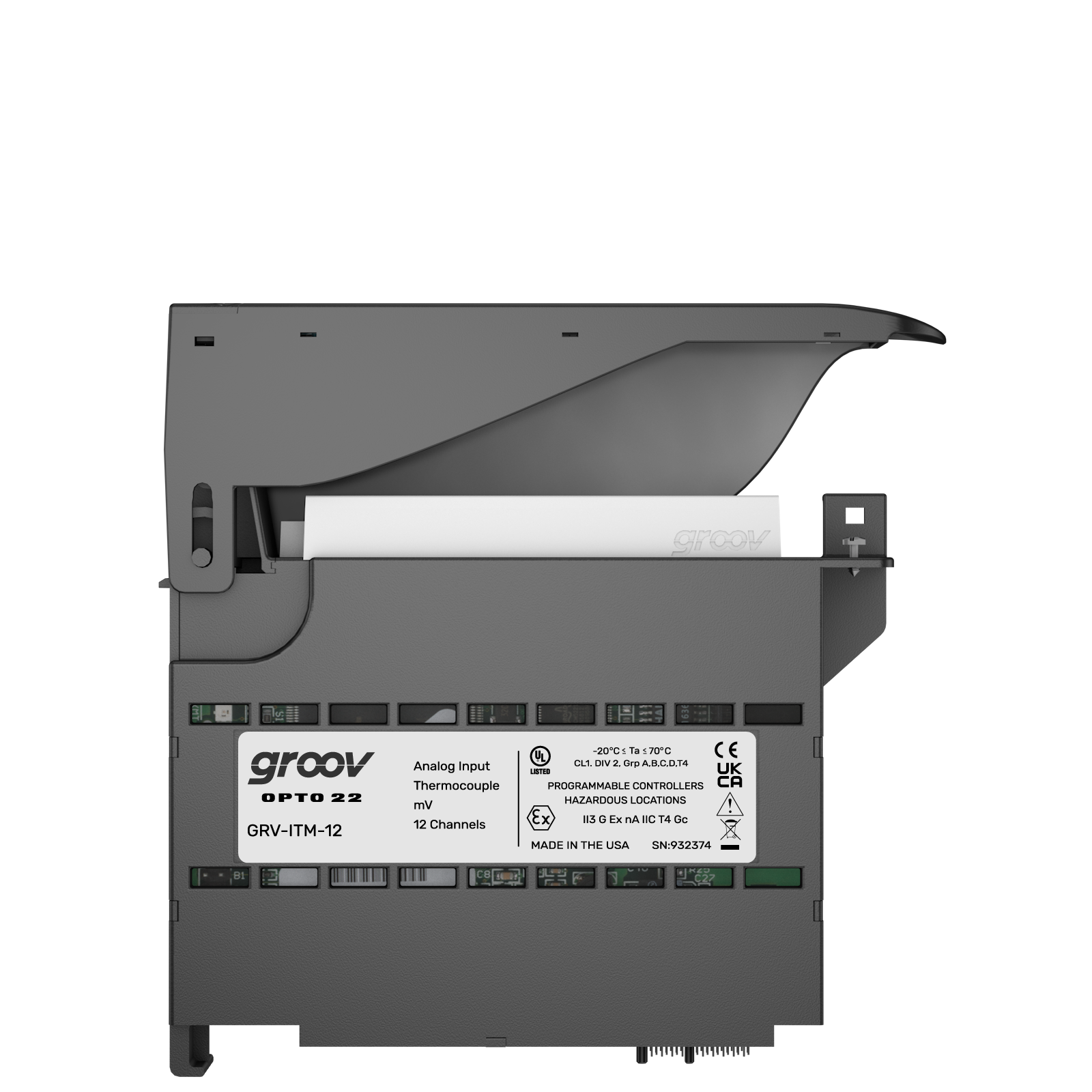

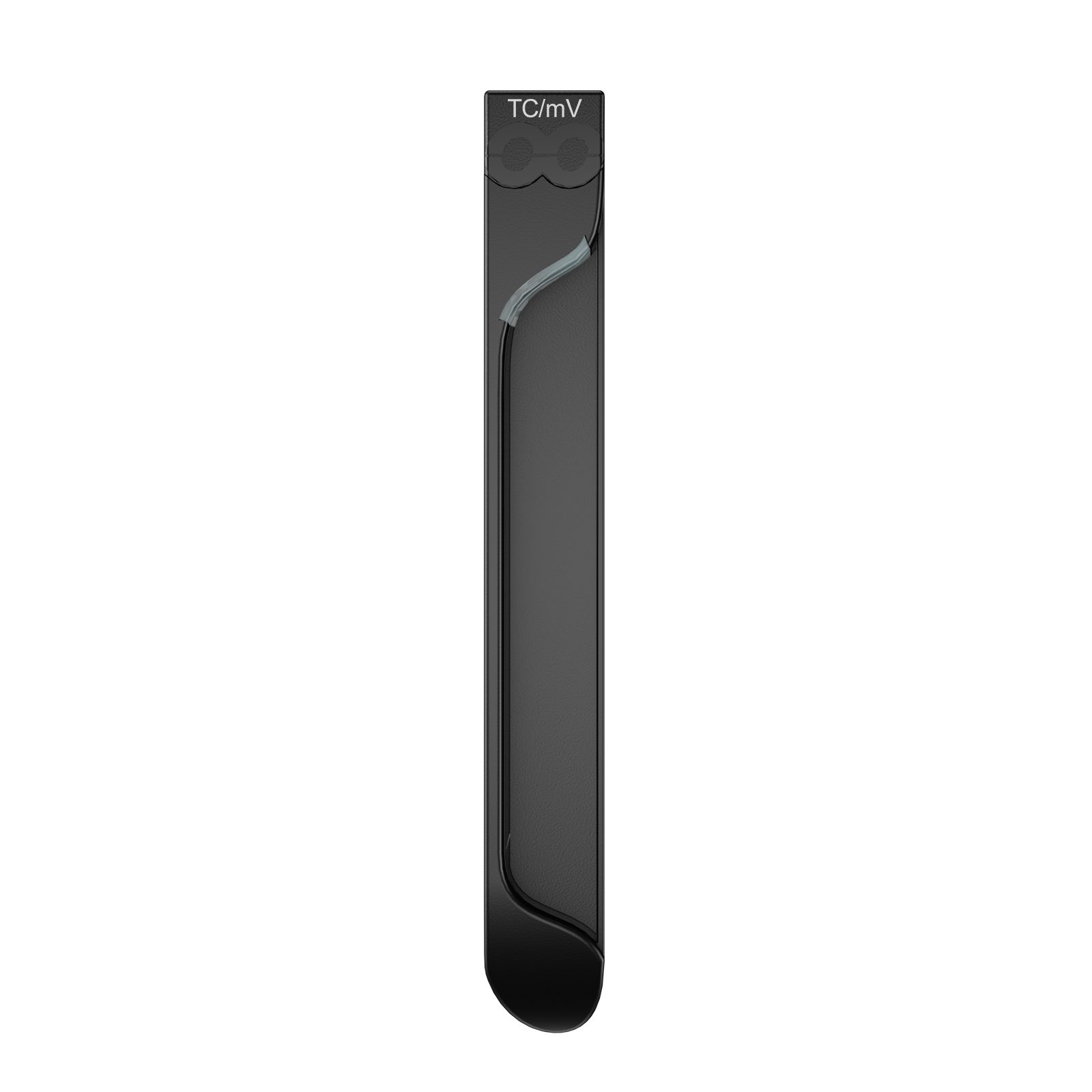

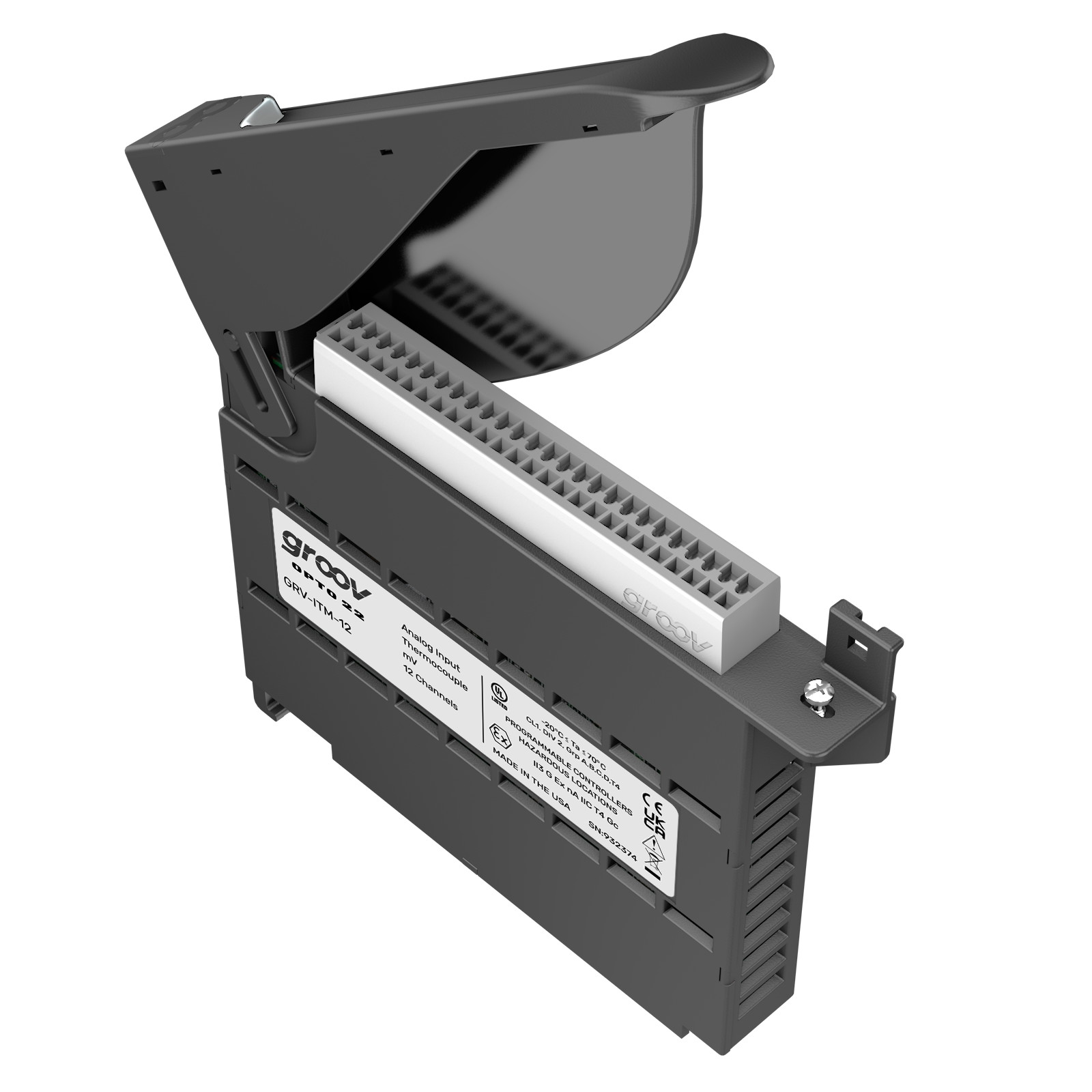

Part of the groov EPIC® system, the GRV-ITM-12 analog module iprovides 12 channels of input from millivolt or thermocouple field devices. There is no isolation between channels; however, the 12 channels are divided into two zones, with one zone isolated from the other zone. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

The GRV-ITM-12 mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and additional analog, discrete, and serial groov I/O modules, to provide the mix of signals you need at any location.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.
Features
GRV-ITM-12
GRV-ITMI-8
Number of Channels
12
8
Channel-to-Channel Isolation

⬤
Analog Totalizing
⬤
⬤
Average Filter Weight
⬤
⬤
Minimum/Maximum Values
⬤
⬤
Offset and Gain
⬤
⬤
Quality Indication
⬤
⬤
Scaling
⬤
⬤
Simple Moving Average
⬤
⬤



Specification GRV-ITM-12 and GRV-ITMI-8
Millivolt Input Ranges ±1200.0 mV, ±600.0 mV, ±300.0 mV, ±150.0 mV, ±75.0 mV, ±50.0 mV, ±25.0 mV
Over-range Limits (± 10%) ±1320.0 mV, ±660.0 mV, ±330.0 mV, ±165.0 mV, ±82.5 mV, ±55.0 mV, ±27.5 mV
Resolution mV Range / 1,048,576 (20 bits)
Accuracy 0.1% of Range ±1200 µV, ±600 µV, ±300 µV, ±150 µV, ±75 µV, ±50 µV, ±50 µV
Thermocouple ITS90 Types Accuracy (Default) / Accuracy (User-Calibrated) / Resolution
B: 90 °C to 1,820 °C 5.0 °C / 3.0 °C @ 250 °C / 0.05 °C
E: -270 °C to 1,000 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
J: -210 °C to 1,200 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
K: -270 °C to 1,372 °C 2.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
N: -270 °C to 1,300 °C 3.0 °C / 0.8 °C @ 0.0 °C / 0.05 °C
R: -50 °C to 1,768 °C 5.0 °C / 2.5 °C @ 250 °C / 0.05 °C
S: -50 °C to 1,768 °C 5.0 °C / 3.0 °C @ 250 °C / 0.05 °C
T: -270 °C to 400 °C 3.0 °C / 0.5 °C @ 0.0 °C / 0.05 °C
Specification GRV-ITM-12 GRV-ITMI-8
Cold Junction Compensation Automatic Automatic
Analog Data Filtering -3 dB @ 14 Hz
-25 dB @ 60 Hz		 -3 dB @ 14 Hz
-25 dB @ 60 Hz

Software Data Filtering:

  • Simple Moving Average (SMA)

  • Weighted Average

  • 1 to 32 readings

  • 1 to 4096

  • 1 to 32 readings

  • 1 to 4096
Data Refresh Time mV Ranges = 0.9 s
T/C Ranges = 1.2 s		 mV Ranges = 100 ms
T/C Ranges = 200 ms
Step Input Response Time 1.2 s x SMA value
(38.4 s @ 32 SMA, Default SMA = 6)		 16.5 ms x SMA value
(0.53 s @ 32 SMA, Default SMA = 8)
Common Mode Rejection > -120 dB > -120 dB
Input Resistance 100 megohm 100 megohm
Quality Indications out of range, open thermocouple out of range, open thermocouple
Isolation (field-to-logic) 300 V working, 1500 V transient (1 minute) 300 V working, 1500 V transient (1 minute)
Isolation (channel-to-channel) 300 V between channel group 0-5 & channel group 6-11.
None within a group.		 300 V working, 1500 V transient (1 minute)
Number of Channels 12 8
Chassis Power Consumption 1.3 W 1.4 W
Minimum groov EPIC Firmware Version 1.4.2 1.0.0
Minimum PAC Project Version 10.2003 10.0000
Minimum Library Package for CODESYS Version 1.0.2.0 1.0.0.0
Wire Size 28–14 AWG 28–14 AWG
Wire Strip Length 0.315-0.354 inches (8-9 mm) 0.315-0.354 inches (8-9 mm)
Torque, connector screw 2.5 in-lb (0.28 N-m) 2.5 in-lb (0.28 N-m)
Torque, hold-down screw 3.5 in-lb (0.4 N-m) 3.5 in-lb (0.4 N-m)
Temperature (operating) -20 °C to +70 °C -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C -40 °C to +85 °C
Relative Humidity (non-condensing) 5–95%  5–95%
MTBF (minimum, 25 °C) 1.2 Mhrs 1.2 Mhrs
Agency Approvals UL/cUL (Class 1, Div 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA
Warranty Lifetime Lifetime

a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
