G4 I/O family

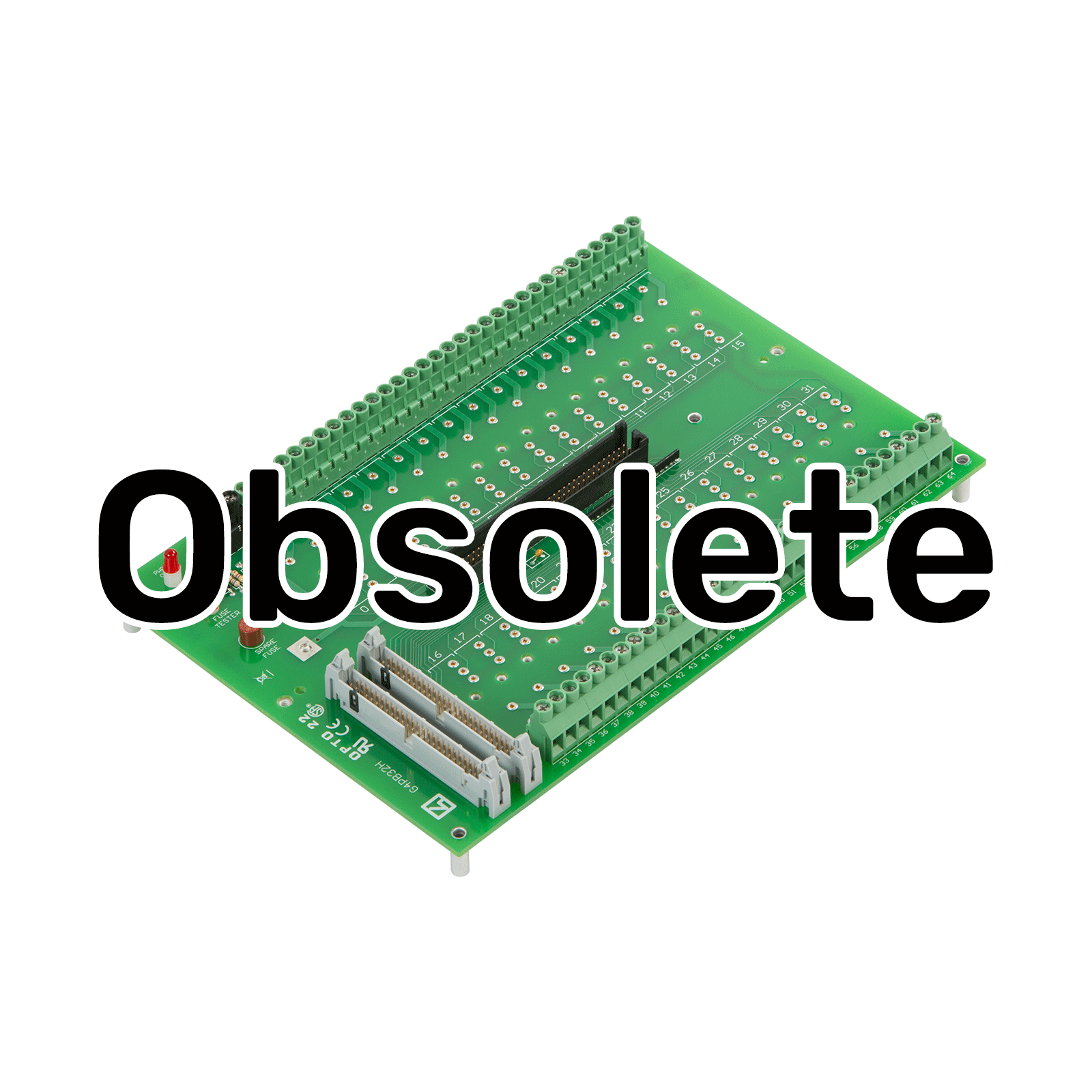

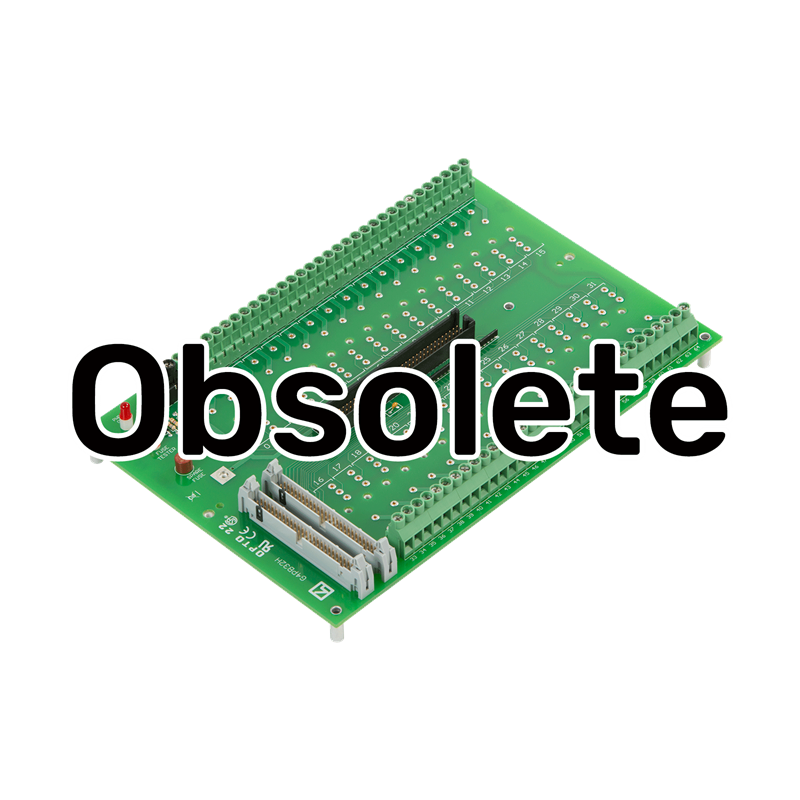

The G4PB32H I/O mounting rack accommodates up to 32 G4 I/O modules. This I/O rack has a header connector and is designed to be used with one of the following brain boards:
- G4EB2—Connects to an Ethernet network and uses the OptoMMP protocol
- B4—Connects to a serial network and uses the Pamux protocol
This rack requires 5 VDC logic I/O modules and supports negative-true logic only (zero voltage = ON, and Vcc = OFF).
Barrier strips with screw terminals provide the field connections. A two-position screw terminal for 5 VDC connects to a power supply. For easier wiring, use the
G4STRAPB.
*** NOTE: The G4PB32H is OBSOLETE and no longer available. ***
Please contact Opto 22 Pre-Sales engineers to discuss options for your specific application.
|
Operating
temperature:
|
0 to 70 °C
95% humidity, non-condensing
|
|
Interface connectors:
Field
Control
Power
|
Screw-type terminal strip accommodates up to 10 AWG wire
Boxed header accepts a PAMUX B4 brain board
Screw-type terminals accommodate up to 10 AWG wire
|
|
Communications
|
Two 50-pin header on connectors for the PAMUX bus
|
|
Agency approvals:
|
UL, CSA, CE, RoHS, DFARS; UKCA
|
|
Warranty:
|
30 months from date of manufacture
|
*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.
The G4PB32H I/O mounting rack can accommodate up to 32 Generation 4 digital I/O modules. It has a header connector and is typically used with a PAMUX B4 Brain Board.
The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.
