G4ODC5R5FM
Hover over image to zoom in

G4ODC5R5FM

Availability: Obsolete

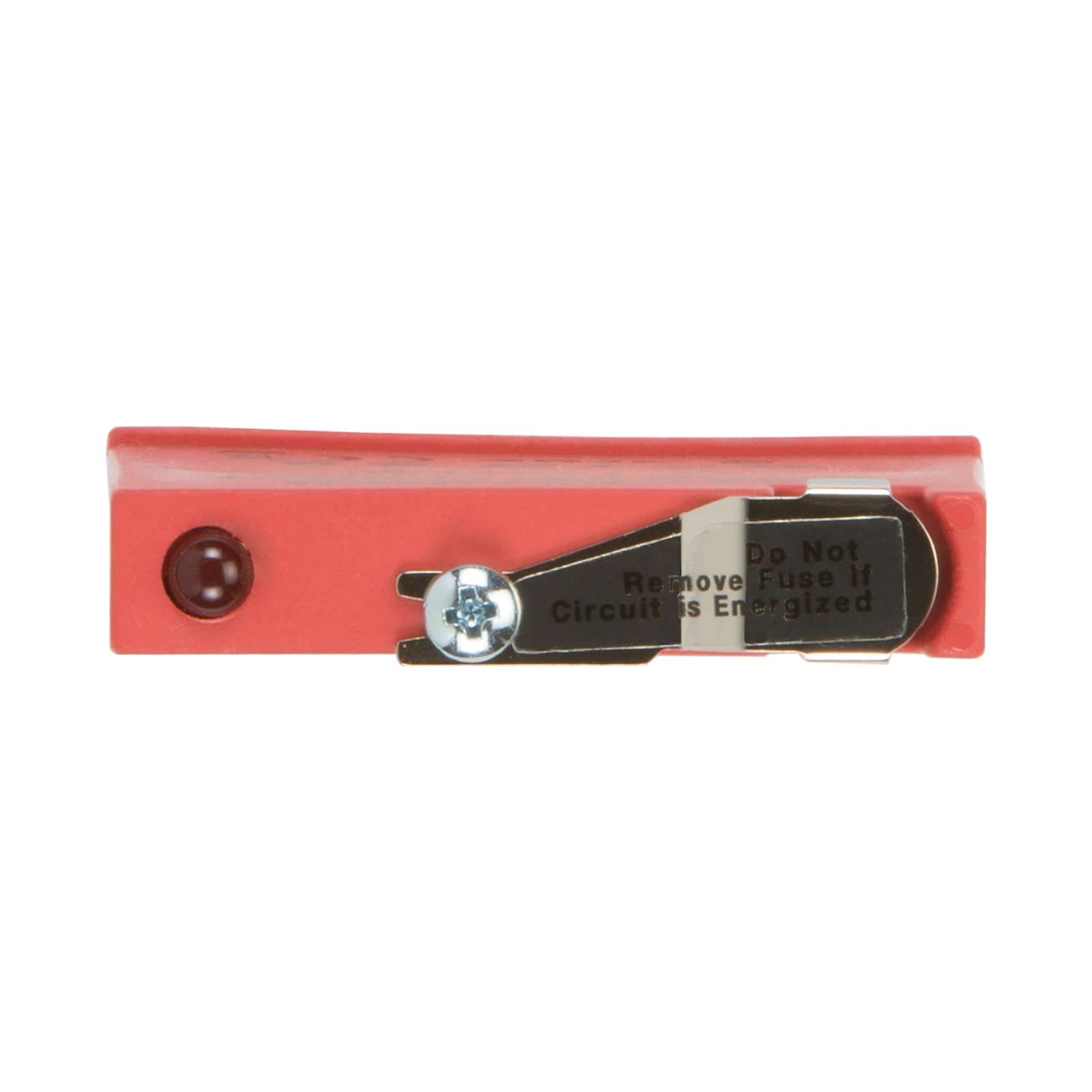

OBSOLETE G4 Low-voltage Mechanical Relay Output, 5 VDC logic, normally closed

Production Specification

*** NOTE: This part is obsolete and no longer available. ***
Please consider
G4ODC5R5 or contact Opto 22 Pre-Sales engineers for more information.

G4 I/O family

The G4ODC5RFM is a low-contact-resistance DC output. It is a single-pole, single-throw, normally closed mechanical relay (Form A, SPST-NC). It was designed for a low-voltage DC load that is purely resistive (no inrush current).

Typical applications for these modules include analog signal and communication line multiplexing. Because of their low 10 VA rating, these modules are not recommended for inductive or capacitive loads (even very small loads) because the inrush current is likely to exceed the 10 VA rating.

IMPORTANT: Applications using 120 VAC are typically NOT suited to this module. If you are considering using this module for any application other than low-voltage purely resistive loads, see the detailed notes and rating curve in the data sheet, and call Pre-sales Engineering for specific guidance.



Units

G4ODC5R
G4ODC5RFM*

G4ODC5R5
G4ODC5R5FM*



Contact form



Form A SPST
mechanical relay

Form B SPST
mechanical relay

NOTE: The application of the dry contact module must not exceed 10 VA under steady-state or momentary in-rush condi­tions.

For voltages at or below 20 volts, the current limit is 0.5 amps. For voltages above 20 volts, the maximum allowable current is deter­mined by the following equation:

Maximum Current =
10 VA / Voltage

Normal position



Open

Closed

Contact rating

VA

10

10

Maximum switching voltage
(see Note)

VDC

100

100

VAC

130

130

Maximum switching current

A

0.5 (see Note)

0.5 (see Note)

Contact resistance

Milliohms

200

200

Turn-on time

microseconds

500

500

Turn-off time

microseconds

500

500

Contact bounce

microseconds

250

250

Mechanical life

cycles

5 million

5 million

Logic voltage range

VDC

4.8–6

4.8–6

Logic OFF voltage range

VDC

0.0–0.8

0.0–0.8

Logic ON voltage range

VDC

3.8–6

3.8–6

Indeterminate range

VDC

0.8–3.8

0.8–3.8

Logic input current at
nominal logic voltage

milliamps

14

14

Isolation voltage (transient)
input-to-output

VDC

1,500

1,500

Ambient temperature:
Operating
Storage



°C
°C



0 to 70
-60 to +105



0 to 70
-60 to +105

Agency Approvals   CE, CSA, UKCA CE, CSA, UKCA

*These parts are no longer available, please contact  Pre-Sales Engineering for more information.
