$44.25 (USA and Canada only)
Units
G4ODC5R G4ODC5RFM*
G4ODC5R5 G4ODC5R5FM*
Contact form
Form A SPST mechanical relay
Form B SPST mechanical relay
NOTE: The application of the dry contact module must not exceed 10 VA under steady-state or momentary in-rush conditions.
For voltages at or below 20 volts, the current limit is 0.5 amps. For voltages above 20 volts, the maximum allowable current is determined by the following equation:
Maximum Current = 10 VA / Voltage
Normal position
Open
Closed
Contact rating
VA
10
Maximum switching voltage (see Note)
VDC
100
VAC
130
Maximum switching current
A
0.5 (see Note)
Contact resistance
Milliohms
200
Turn-on time
microseconds
500
Turn-off time
Contact bounce
250
Mechanical life
cycles
5 million
Logic voltage range
4.8–6
Logic OFF voltage range
0.0–0.8
Logic ON voltage range
3.8–6
Indeterminate range
0.8–3.8
Logic input current at nominal logic voltage
milliamps
14
Isolation voltage (transient) input-to-output
1,500
Ambient temperature: Operating Storage
°C °C
0 to 70 -60 to +105
*These parts are no longer available, please contact Pre-Sales Engineering for more information.

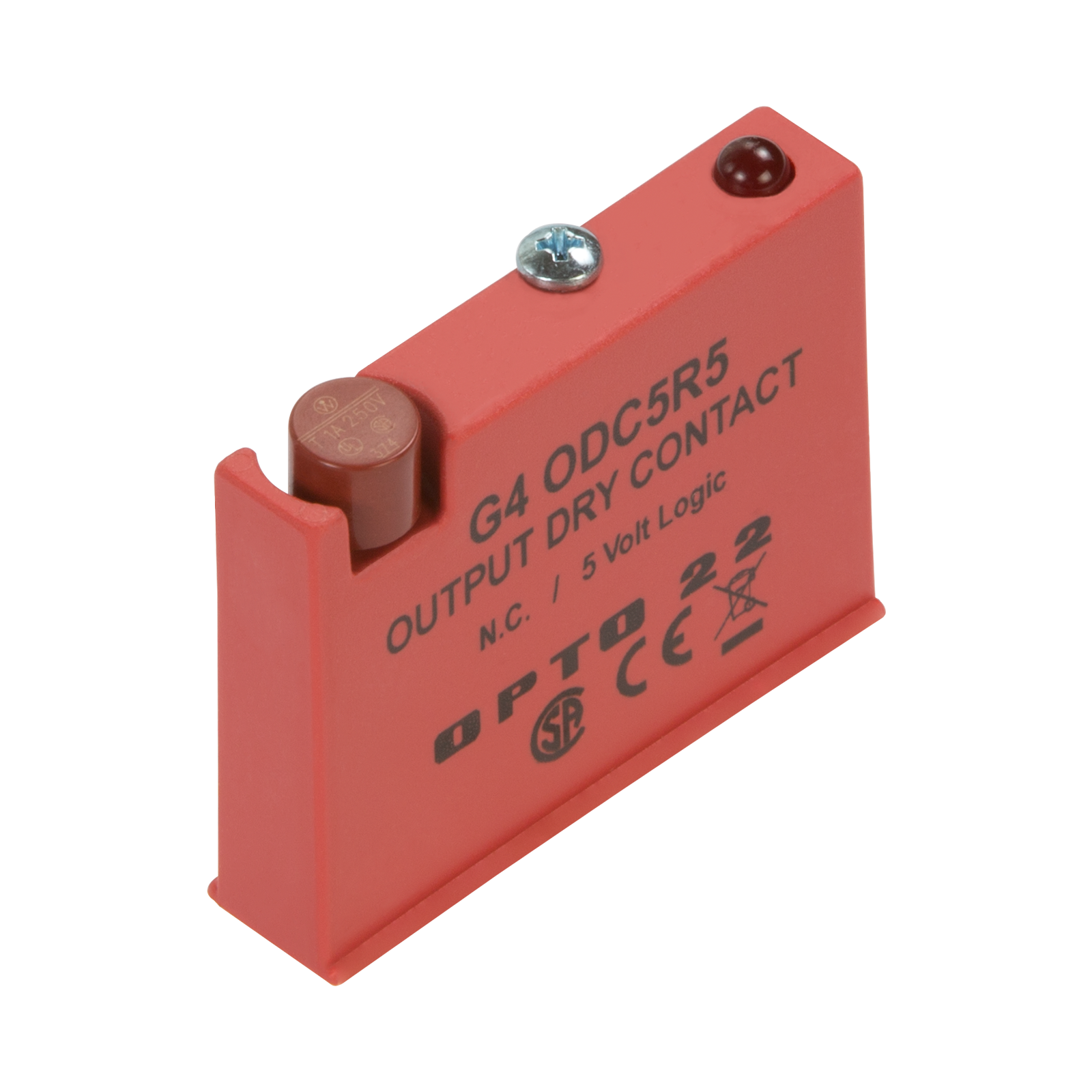

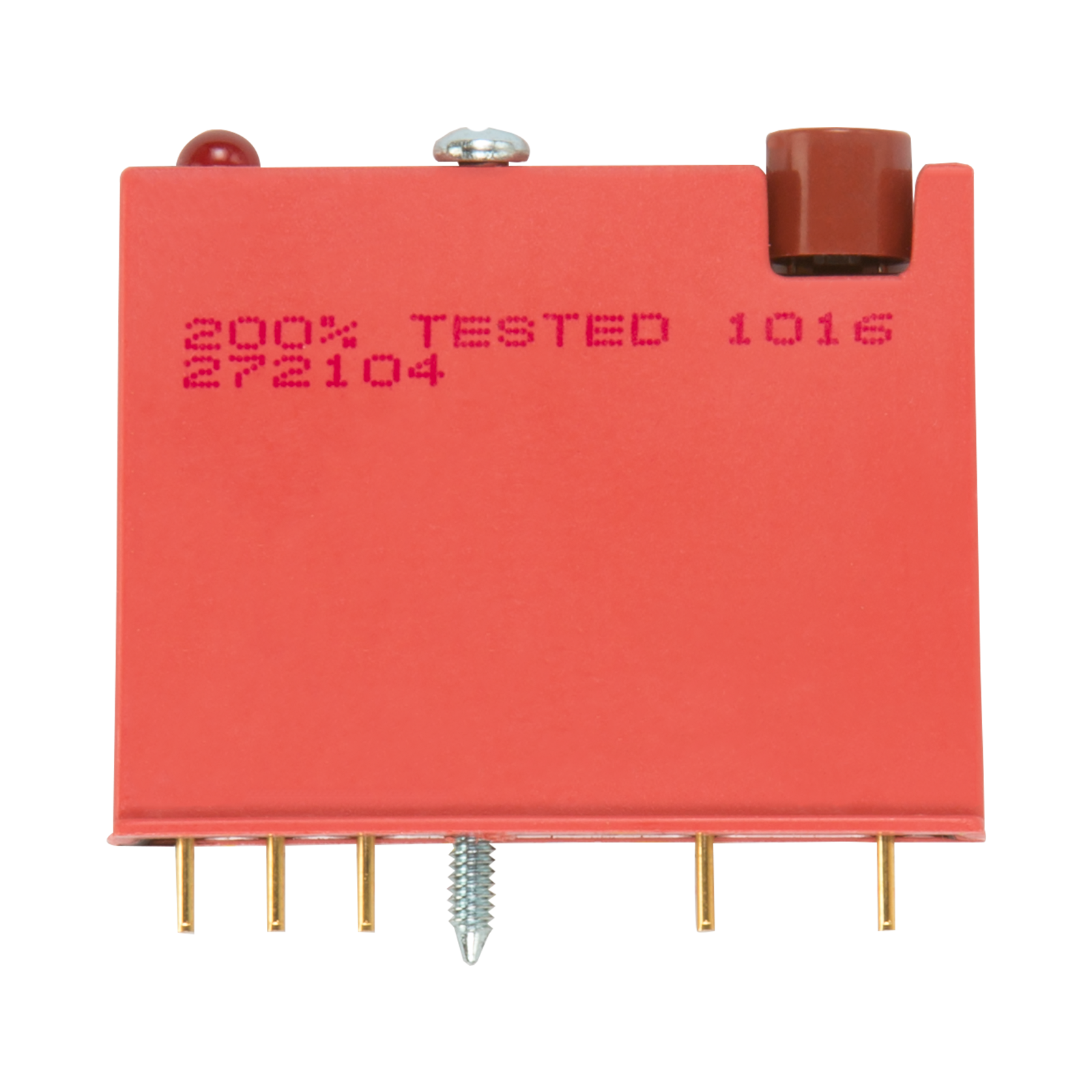

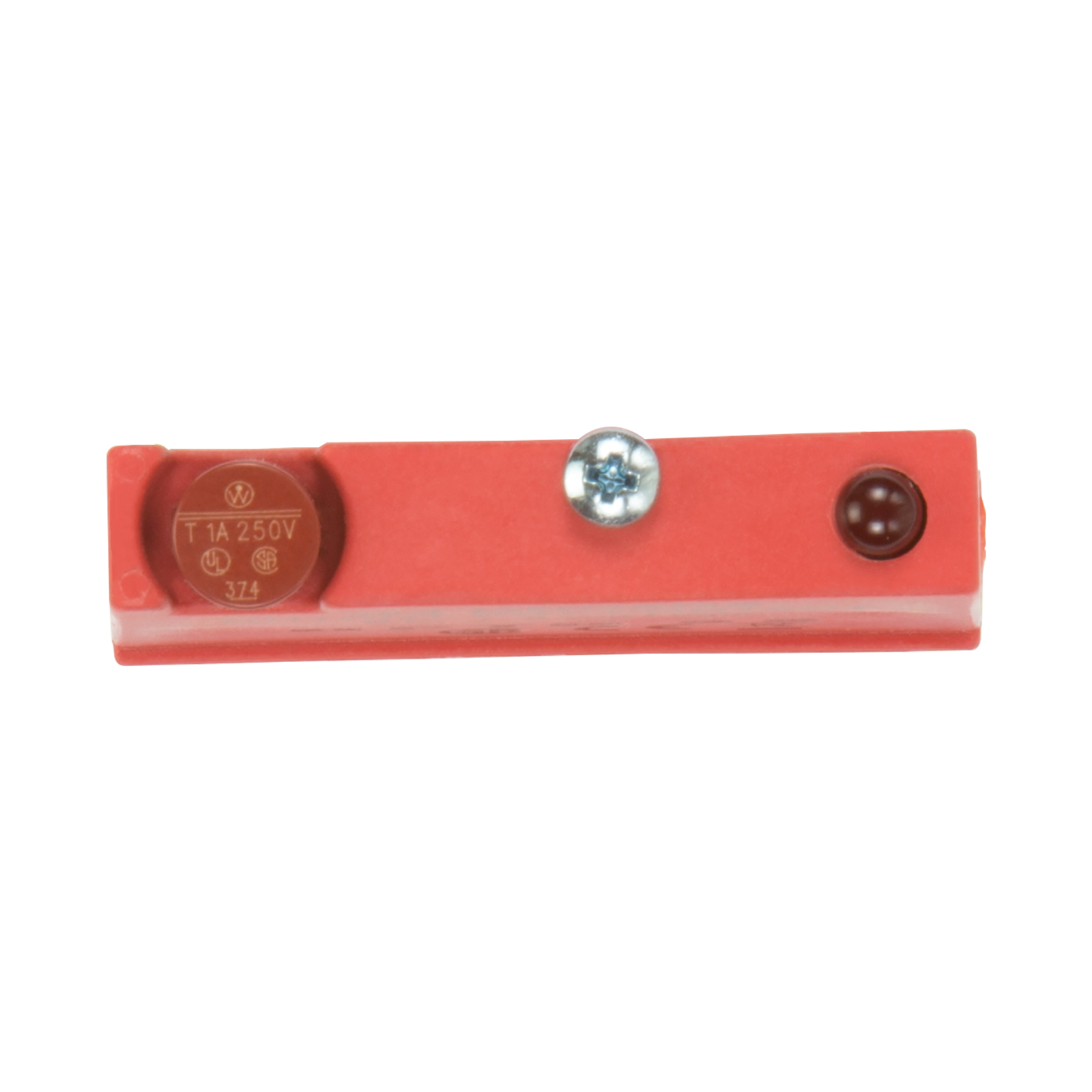

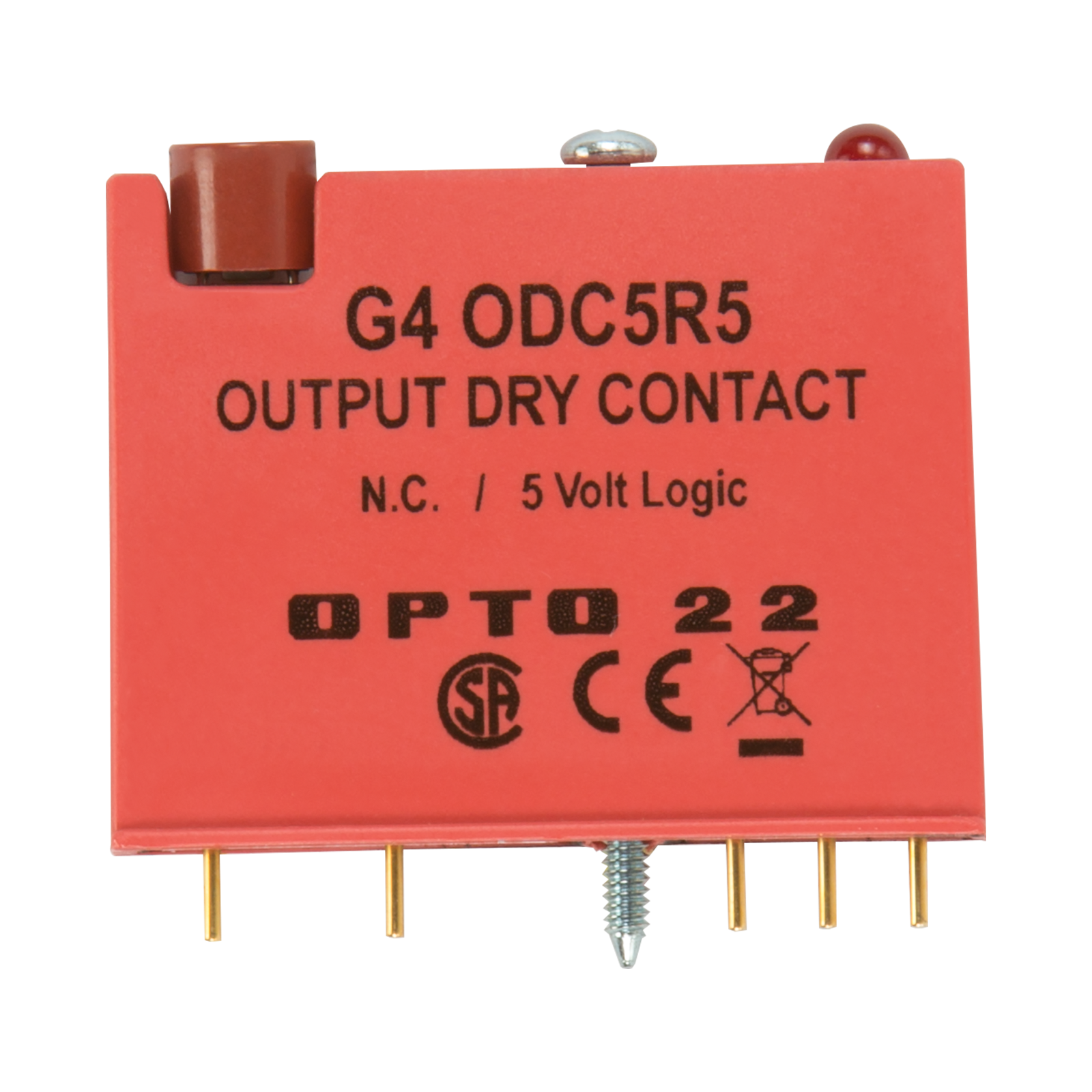

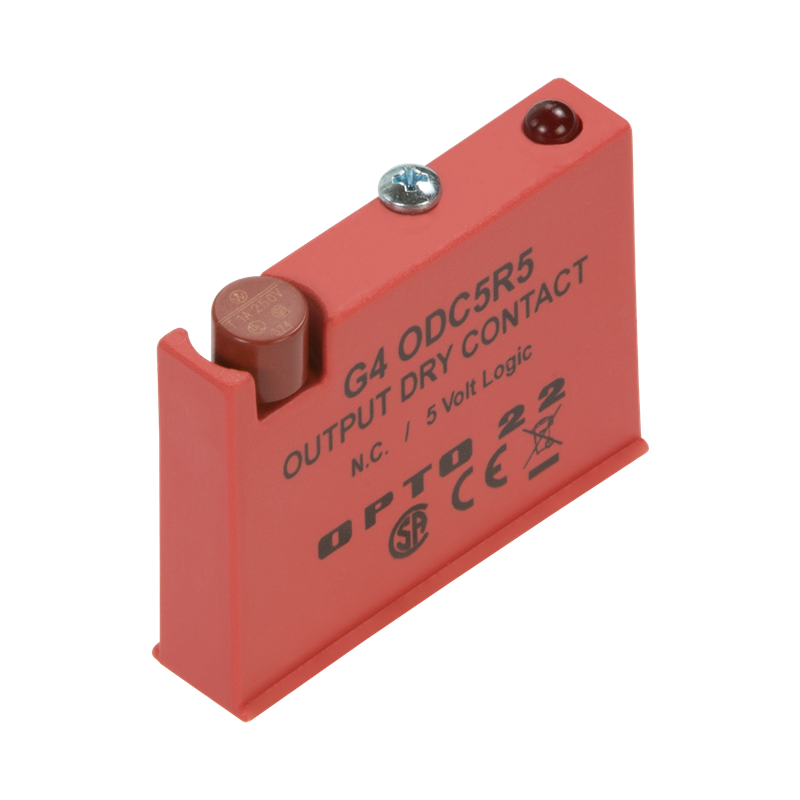

Opto 22’s G4 family of modules includes two dry-contact, low-contact-resistance DC output modules, the G4ODC5R and the G4ODC5R5.
Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O. This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included. For code samples and steps to get started, also see developer.opto22.com.
The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.
