$51.00 (USA and Canada only)
Units
G4ODC5* G4ODC5FM**
G4ODC5A* G4ODC5AFM**

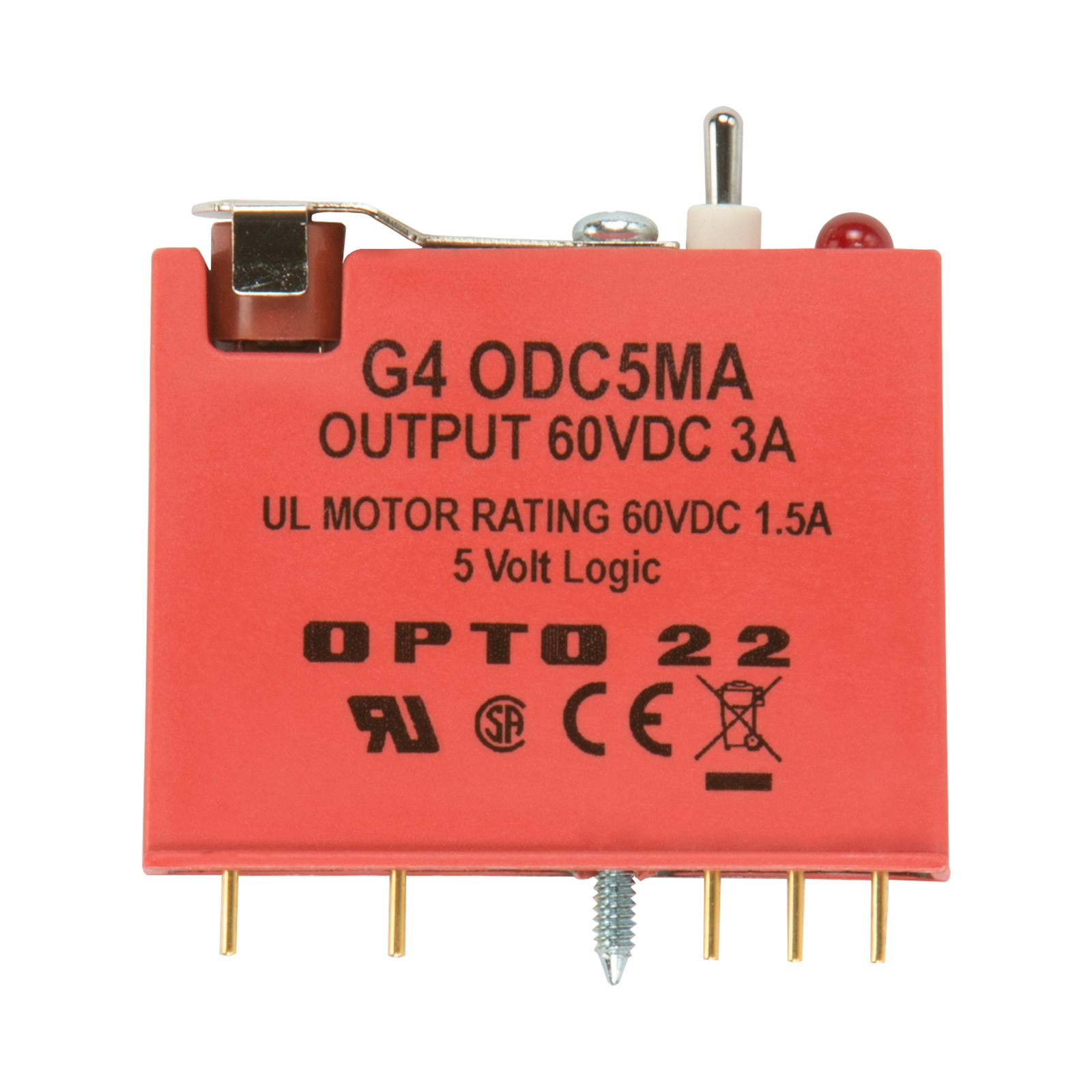

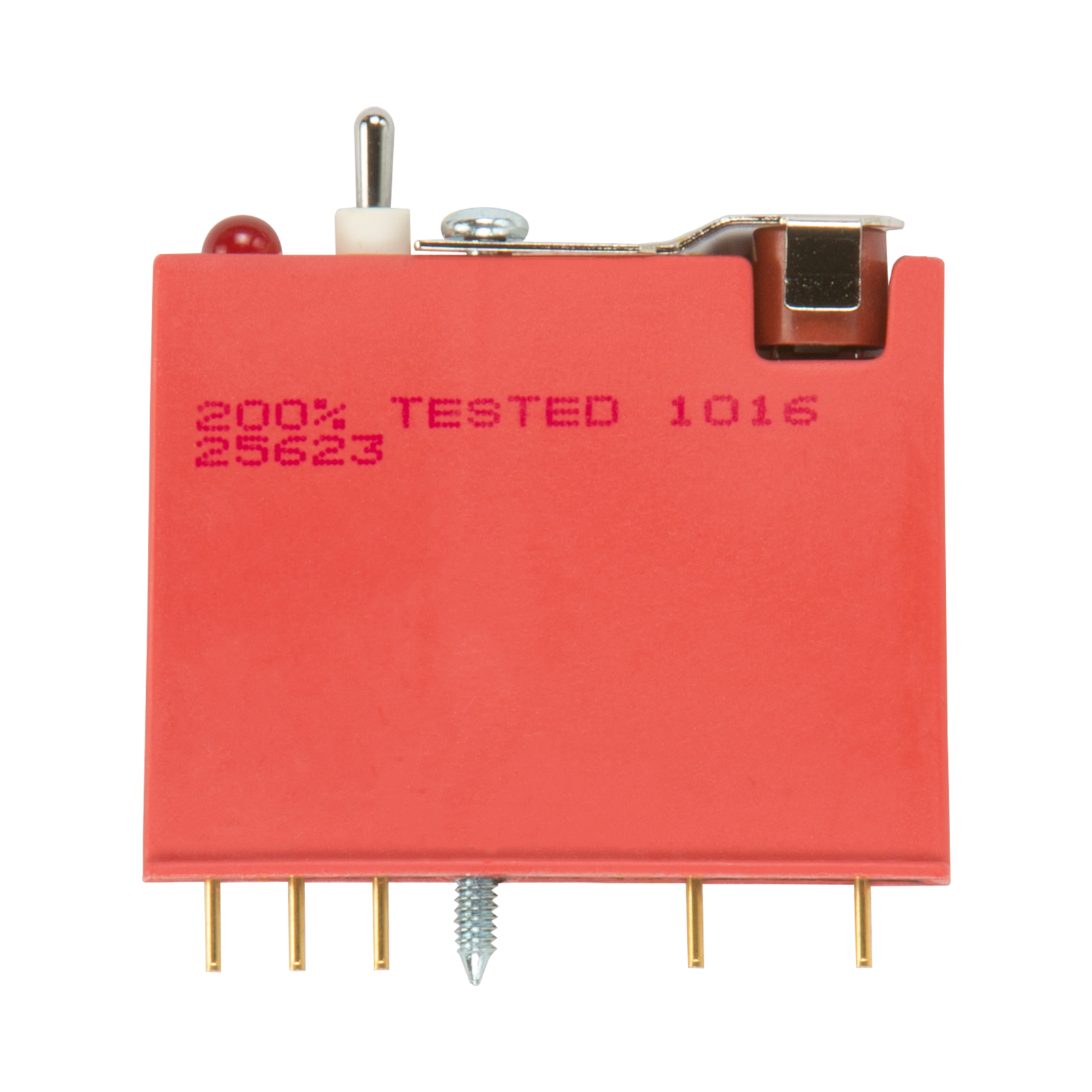

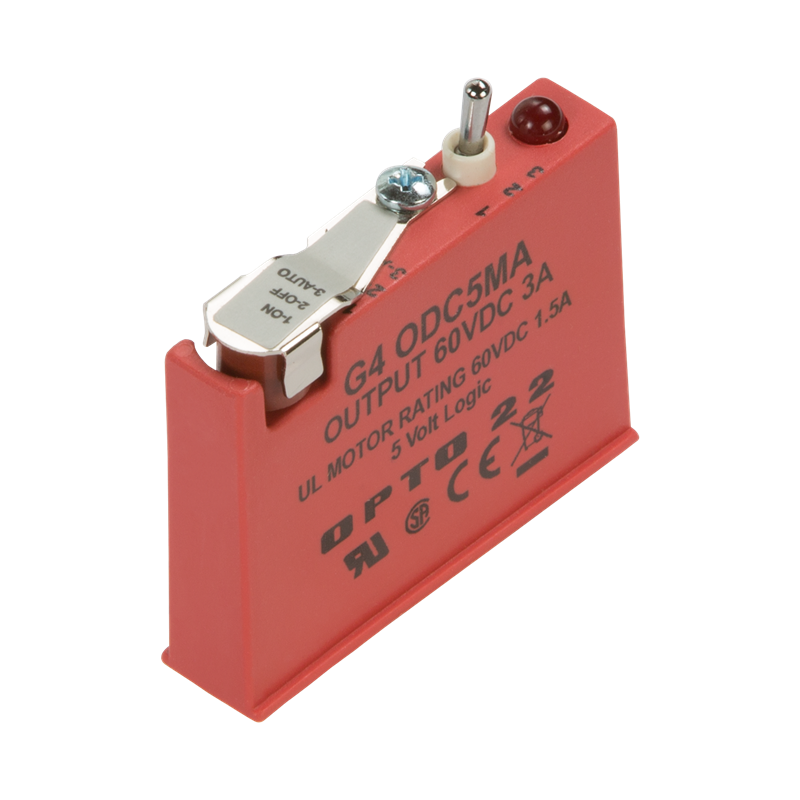

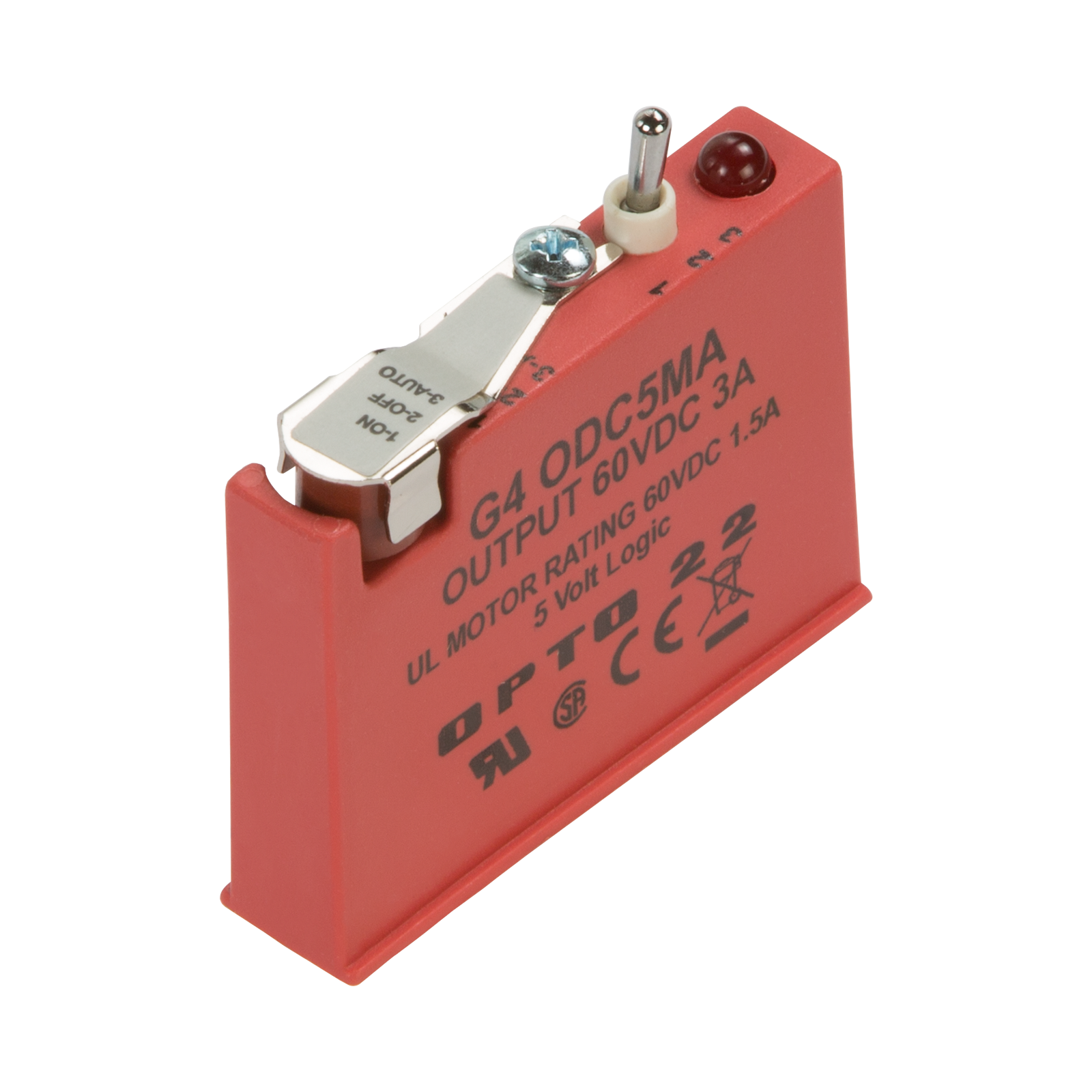

G4ODC5MA*
G4ODC15***
G4ODC24***
G4ODC24A***
Maximum line voltage
VDC
60
200
Output voltage range
5–60
5–200
Key feature
—

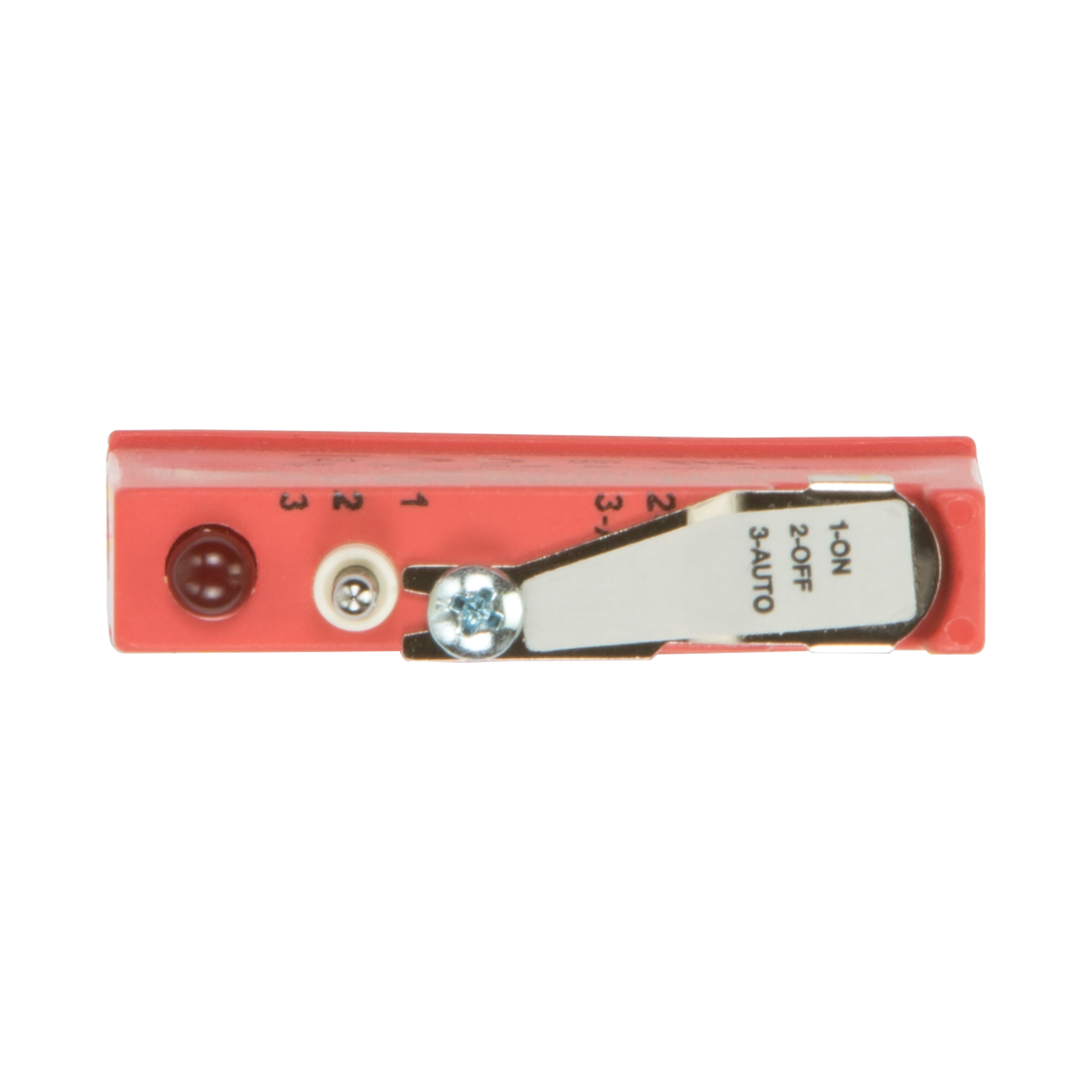

Diagnostic switch
Current rating: At 45 °C ambient At 70 °C ambient
A A
3 2
1 0.55
Isolation input-to-output (transient): 1 ms 1 minute
volts
4000 1500
Off-state leakage at maximum voltage
mA
1
Control resistance (Rc in schematic)
Ohms
220
1 K
2.2 K
One-second surge
A
5
Turn-on time
micro- seconds
100
Turn-off time
750
Output voltage drop maximum peak
V
1.6
Nominal logic voltage
15
24
Logic voltage range
4–8
10.5–16
19.5–32
Logic pickup voltage
4
10.5
19.5
Logic dropout voltage
Logic input current at nominal logic voltage
12
18
Temperature: Operating Storage
°C °C
-30 to +70 -30 to +85
-3- to +70 -30 to +85
* Compatible with Raspberry Pi. ** Part numbers ending in FM are Factory Mutual approved. *** Not for use with Opto 22 brains.
Opto 22’s G4 DC output modules are used to control or switch DC loads.This document includes descriptions, specifications, and wiring and dimensional diagrams for Opto 22’s G4 DC output modules:
