G4OAC5
Hover over image to zoom in

G4OAC5

$27.00 (USA and Canada only)

Availability: In stock
G4 AC Output 12-140 VAC, 5 VDC Logic

Production Specification

G4 I/O family

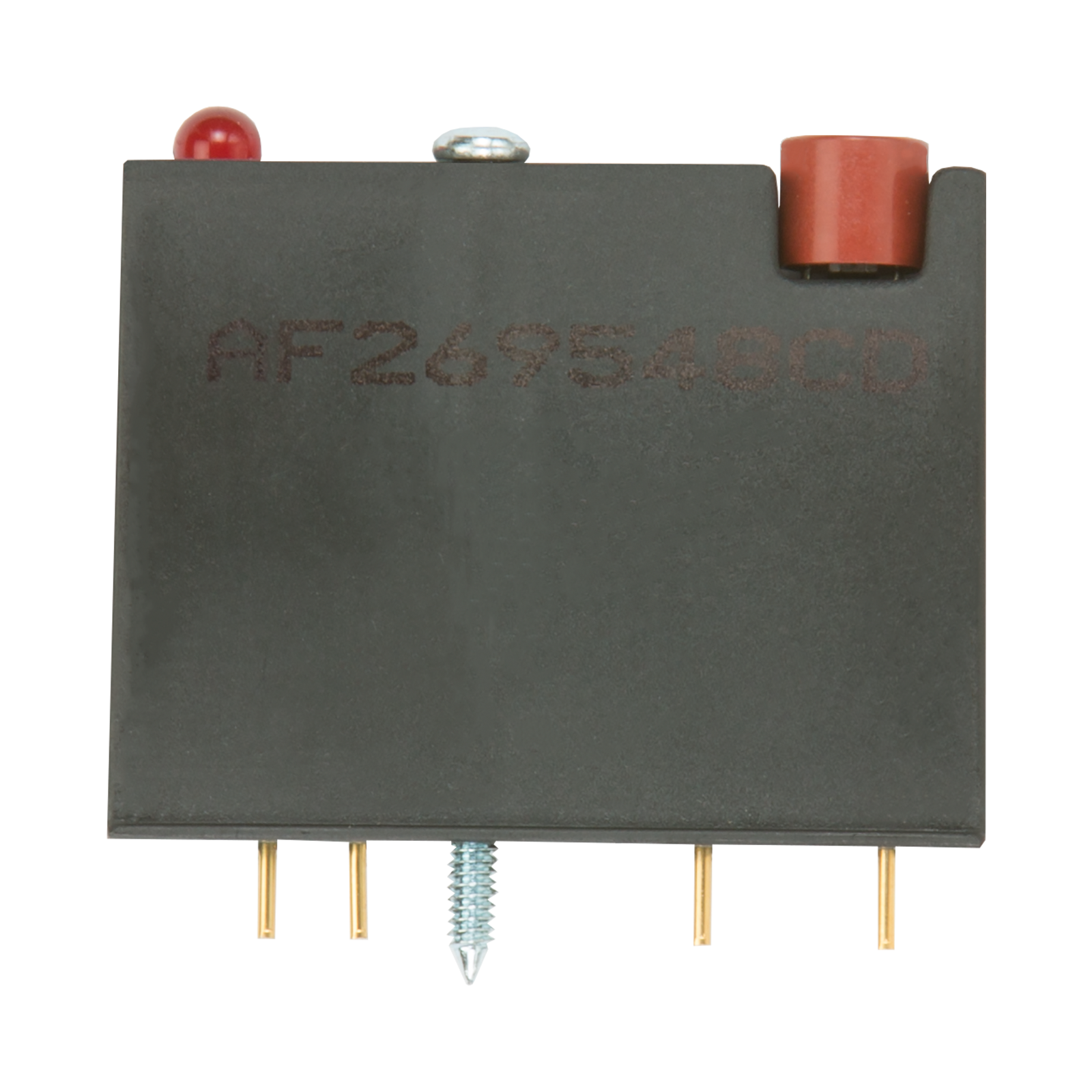

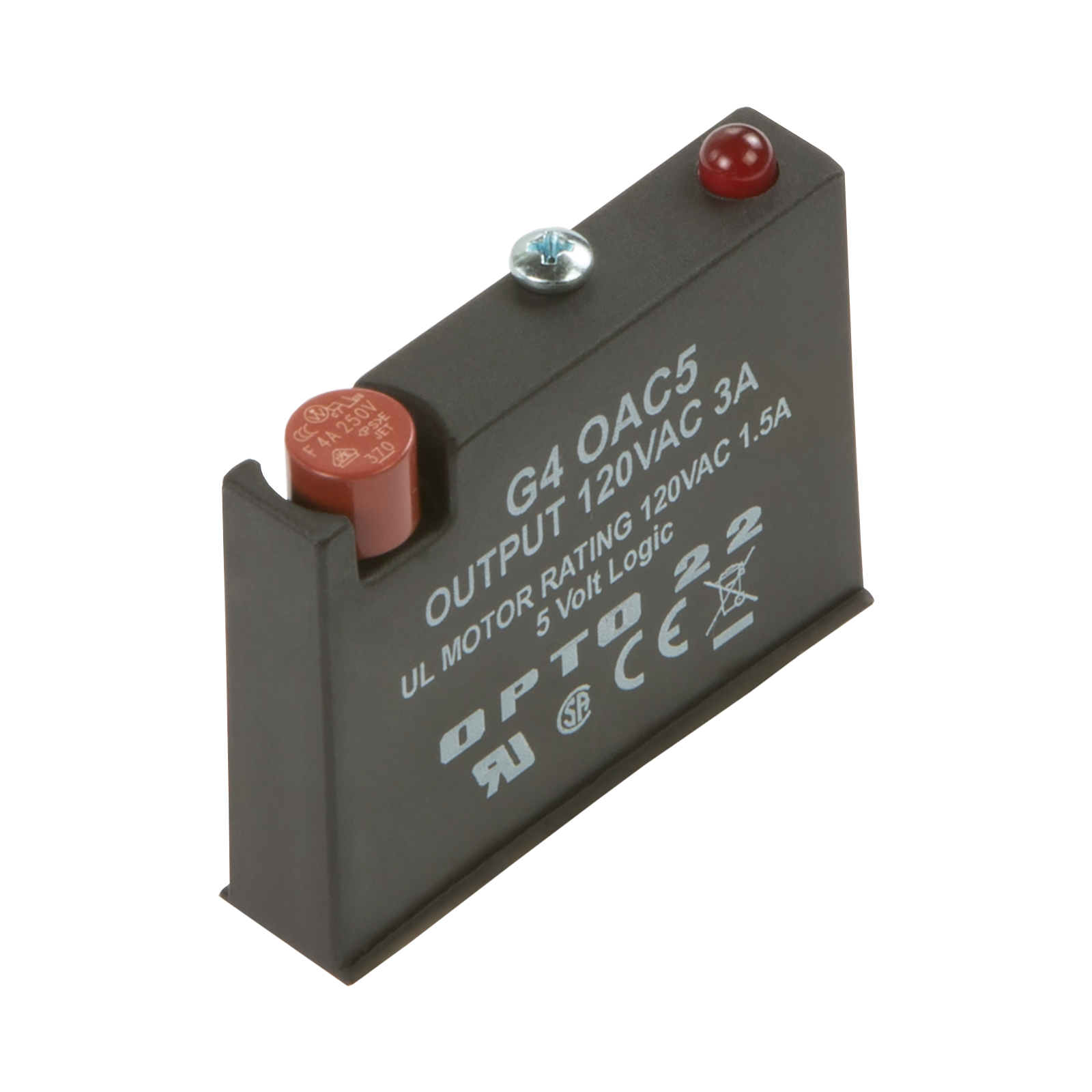

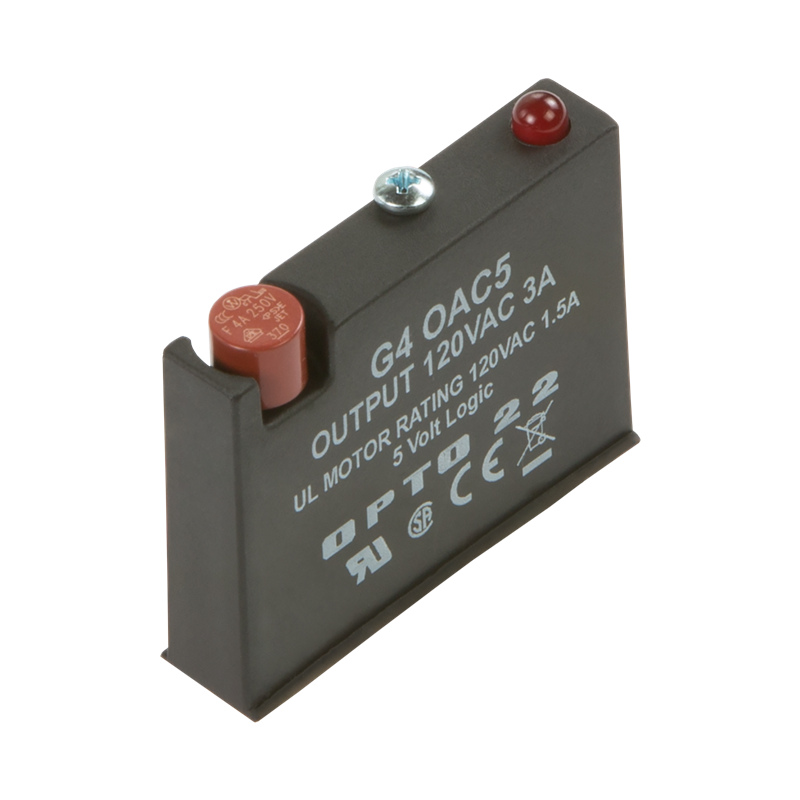

The G4OAC5 is a digital AC output module with an output voltage range of 12–140 VAC, requiring a typical logic voltage of 5 VDC. It is compatible with Opto 22 brains and Raspberry Pi.

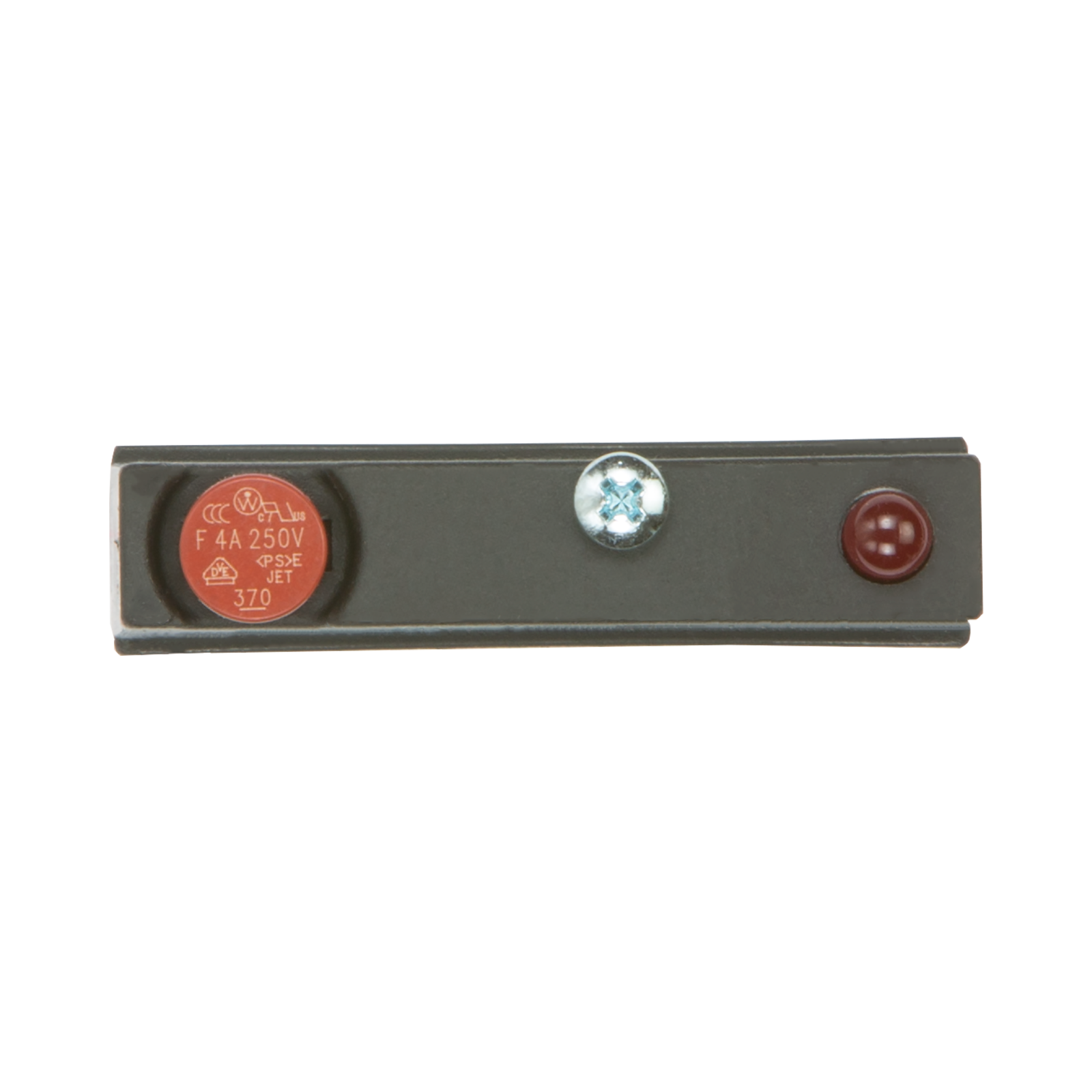

This AC output module is equivalent to a single-pole, single-throw, normally open contact (Form A, SPST-NO). It includes a 4 amp fast-blow fuse.

Opto 22’s G4 AC output modules are used to control or switch AC loads. Each module provides up to 4000 volts of optical isolation (transient) between field outputs and the control side of the circuit, and each features zero voltage turn-on and zero current turn-off.

Typical applications for AC output modules include switching loads such as AC relays, solenoids, motor starters, heaters, lamps, and indicators.

Compatible with Raspberry Pi. The G4OAC5 can be used with the Digital I/O Carrier Board for Raspberry Pi®  (part number OPTO-P1-40P) to monitor and control industrial devices with your Raspberry Pi.



Units

G4OAC5*

G4OAC5A*

G4OAC5A5*

G4OAC5MA*

G4OAC5AMA*

Nominal line voltage

VAC

120

120/240

120/240

120

120/240

Output voltage range

VAC

12–140

24–280

24–280

12–140

24–280

Key feature

Normally closed

Diagnostic
switch

Diagnostic
switch

Current rating:
At 45 °C ambient
At 70 °C ambient



A
A



3
2



3
2



3
2



3
2



3
2

UL Motor Load Rating

A

1.5

1.5

1.5

1.5

1.5

Isolation input-to-
output (transient):
   1 ms
   1 minute

volts



4000
1500



4000
1500



4000
1500



4000
1500



4000
1500

Off-state leakage at
nominal voltage (60 Hz)

mARMS

5

1.25/2.5

1.25/2.5

5

1.25/2.5

Nominal logic voltage

VDC

5

5

5

5

5

Logic voltage range

VDC

4–8

4–8

4–8

4–8

4–8

Logic pickup voltage

VDC

4

4

4

4

4

Logic dropout voltage

VDC

1

1

1

1

1

Logic input current at
nominal logic voltage

mA

12

12

12

12

12

Control resistance
(Rc in schematic)

ohms

220

220

220

220

220

One-cycle surge

A peak

80

80

80

80

80

Turn-on time @ 60 Hz

milliseconds

≤8.3***

≤8.3***

≤8.3***

≤8.3***

≤8.3***

Turn-off time @ 60 Hz

milliseconds

≤8.3****

≤8.3****

≤8.3****

≤8.3****

≤8.3****

Peak repetitive voltage

VAC

500

500

500

500

500

Minimum load current

mA

20

20

20

20

20

Output voltage drop
maximum peak

V

1.6

1.6

1.6

1.6

1.6

Operating frequency

Hz

25–65

25–65

25–65

25–65

25–65

dV/dT-off-state

V/micro-seconds

200

200

200

200

200

dV/dT-commutating

--

snubbed for
0.5 power
factor load

snubbed for
0.5 power
factor load

snubbed for
0.5 power
factor load

snubbed for
0.5 power
factor load

snubbed for
0.5 power
factor load

Temperature
   Operating:
   Storage:



°C
°C



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85

Agency Approvals   UL, CE, CSA; UKCA UL, CE, CSA; UKCA CE, CSA; UKCA

UL, CE, CSA; UKCA UL, CE, CSA, RoHS; UKCA

*** One-half cycle maximum. Module turns on at the zero volt crossing of the AC sine wave.
**** One-half cycle maximum. Module turns off at the zero current crossing of the AC sine wave.

G4 Digital AC Output Modules Data Sheet
