G4LC32ISA-LT
Hover over image to zoom in

G4LC32ISA-LT

Availability: Obsolete

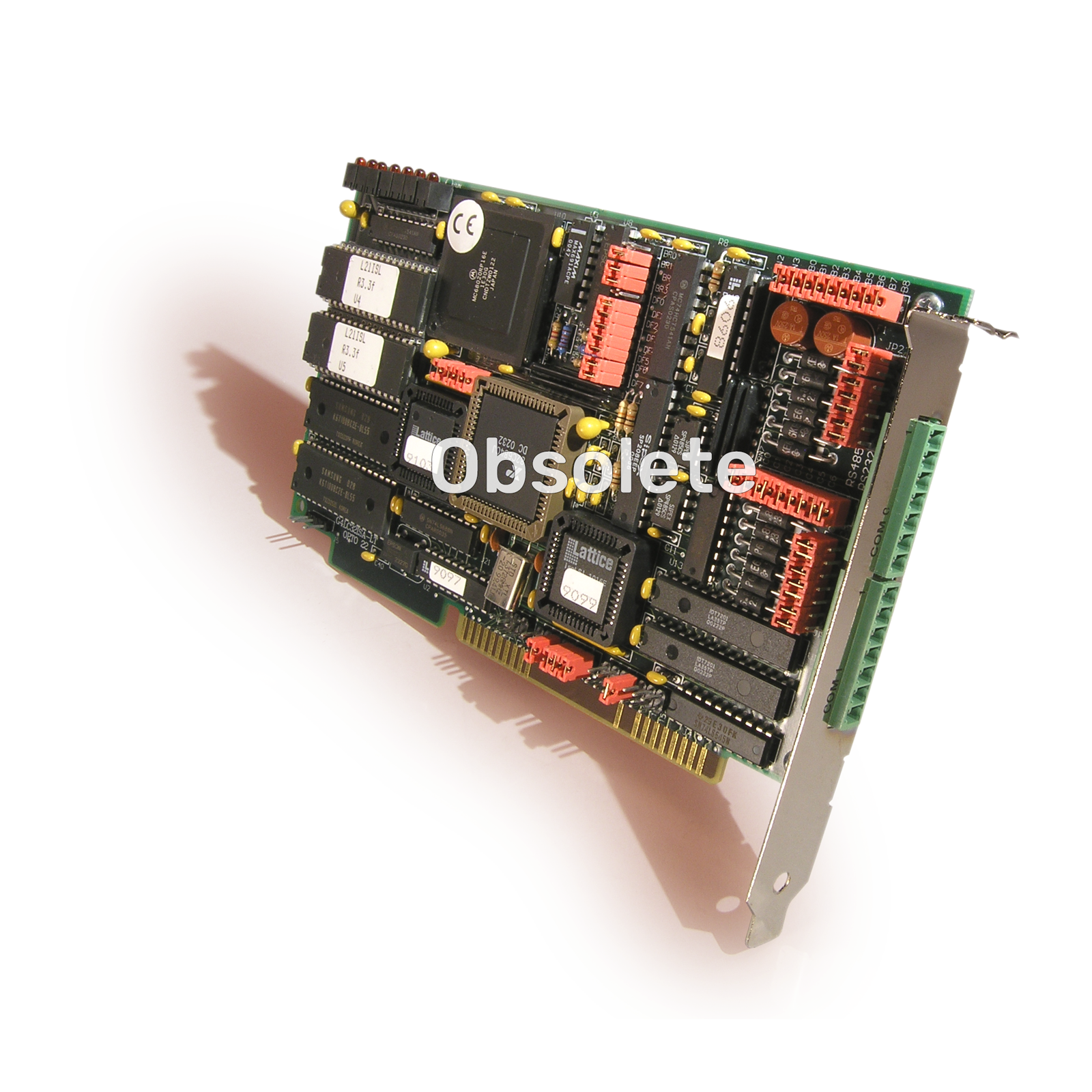

OBSOLETE Opto 22 ISA Lite Controller for FactoryFloor systems.
Data Sheet

Production Specification

The G4LC32ISA-LT controller is ISA-based and designed to fit in the backplane of a PC. The G4LC3ISA-LT controller is designed for use with the FactoryFloor Software suite.

Due to difficulty obtaining parts, this product is obsolete and no longer available.

If you need to replace this part, you may want to migrate to the SNAP PAC System. For migration information, see the FactoryFloor to PAC Project Migration Technical Note. Then contact our Opto 22 Pre-Sales engineers with details about your specific application so they can help recommend parts.
Due to difficulty obtaining parts, this product is obsolete and no longer available.

CPU

32-bit Motorola 68020 processor
16-Bit External Bus
IEEE floating-point math

CPU clock frequency

16.67 MHz

Memory
  RAM
  Flash EEPROM on controller



256 KB with battery backup (user programs and data)
256 KB (firmware and user programs)

RAM/clock battery

3.6-volt lithium, non-rechargeable

I/O

Via RS-485 ports, using Opto 22 (remote) I/O

Communication

2 RS-232 or RS-485/422 ports

Real-time clock

Clock/calendar, Epson 62421A with battery backup

Power requirements

5 VDC ± 0.25V @ 1.5A (maximum)

Typical operating temperature

-20 C to 70 °C

Storage temperature

-40 C to 85 °C

Humidity

5% to 95% relative humidity

Software

FactoryFloor (OptoControl, OptoDisplay, and OptoServer)
Classic Software (Cyrano, Mistic MMI, MDS)

System monitors
  Host communications
  Watchdog timers



Detect communication errors from processor, I/O, etc.
Detect main power supply operation



0734

Low-Cost ISA Bus Controller Data Sheet

The G4LC32ISA-LT (ISA Lite) is a low-cost, general purpose, industrial microcomputer that is mounted on a standard IBM PC ISA bus card.
