G4 I/O family

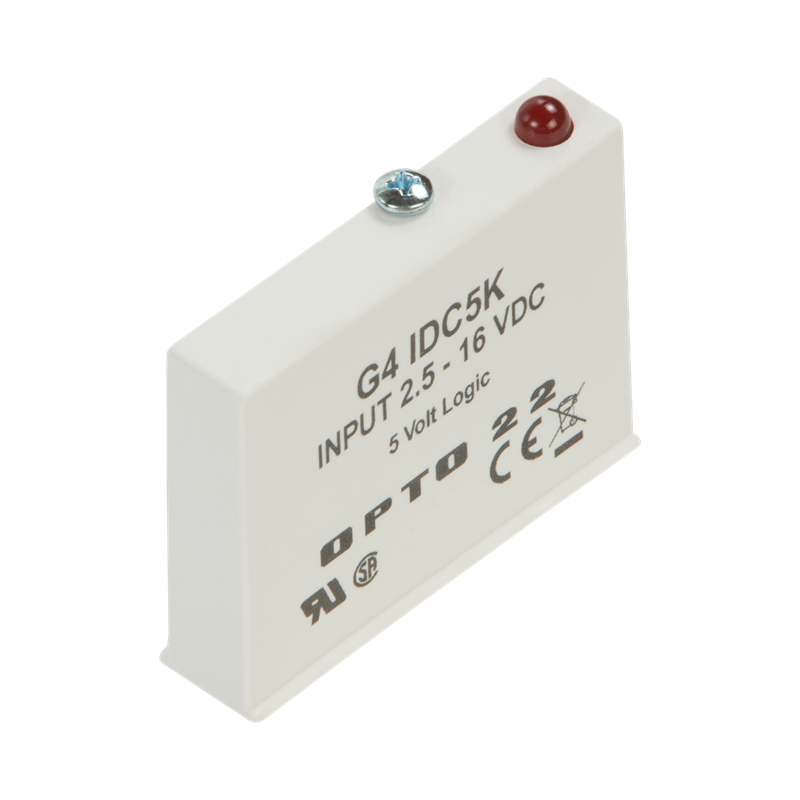

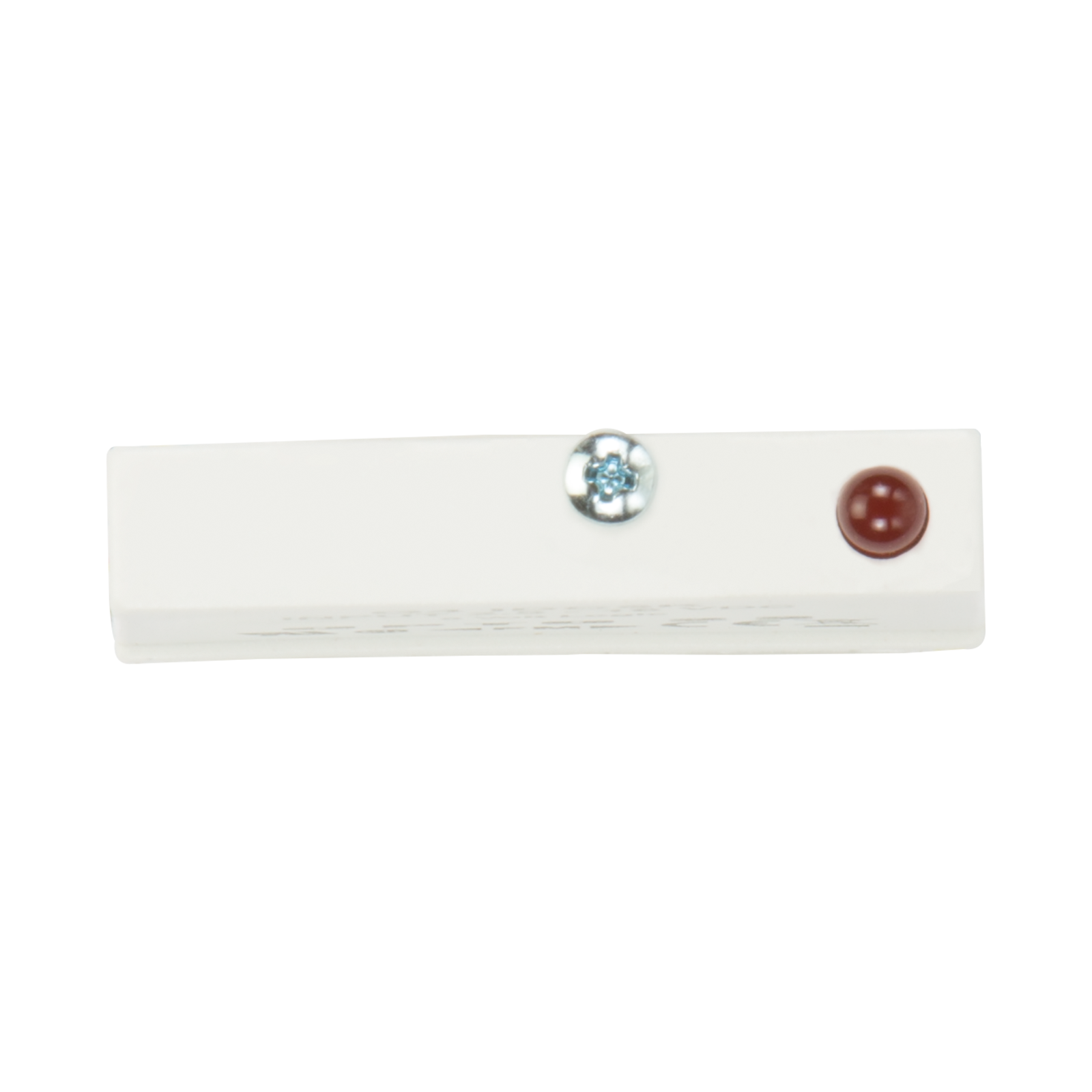

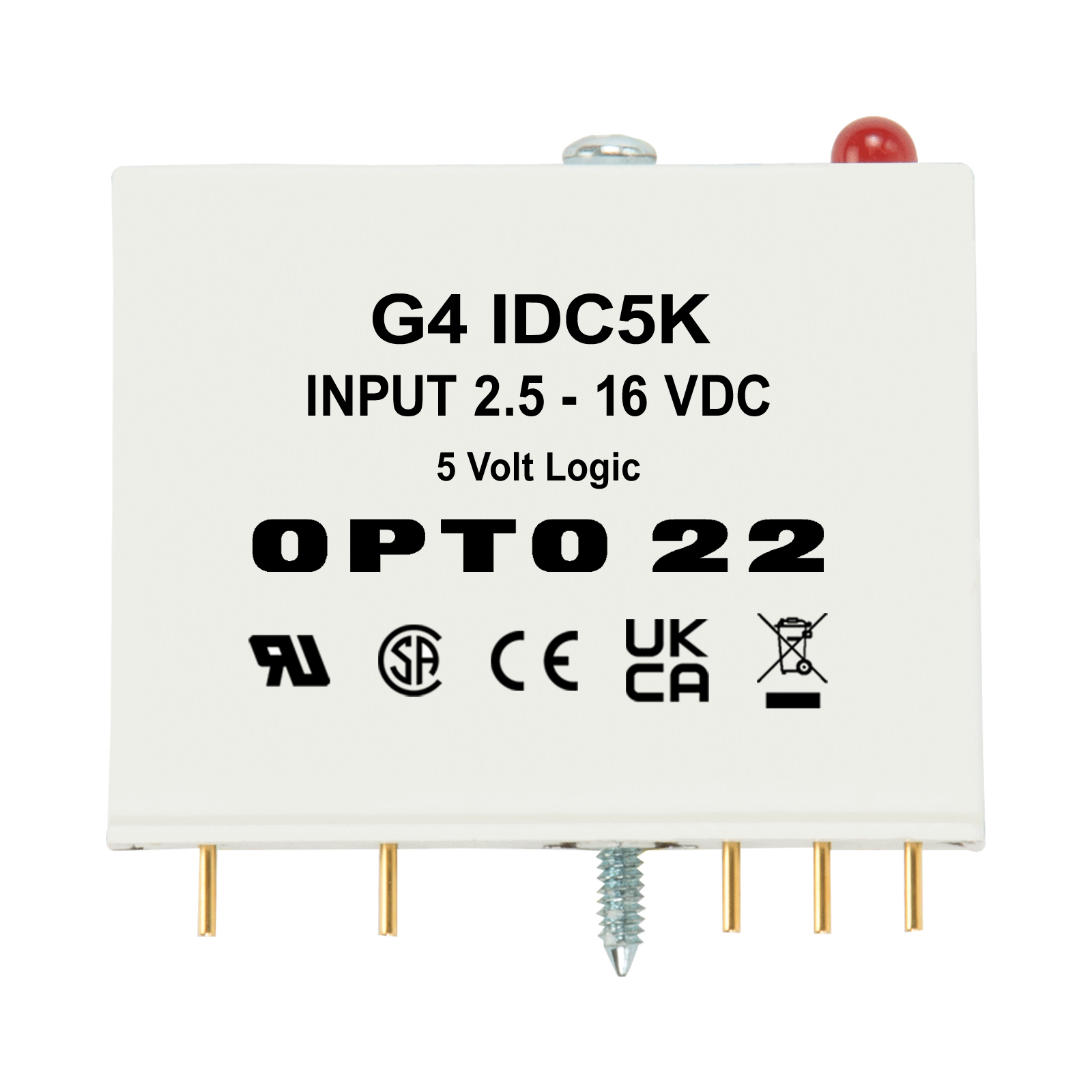

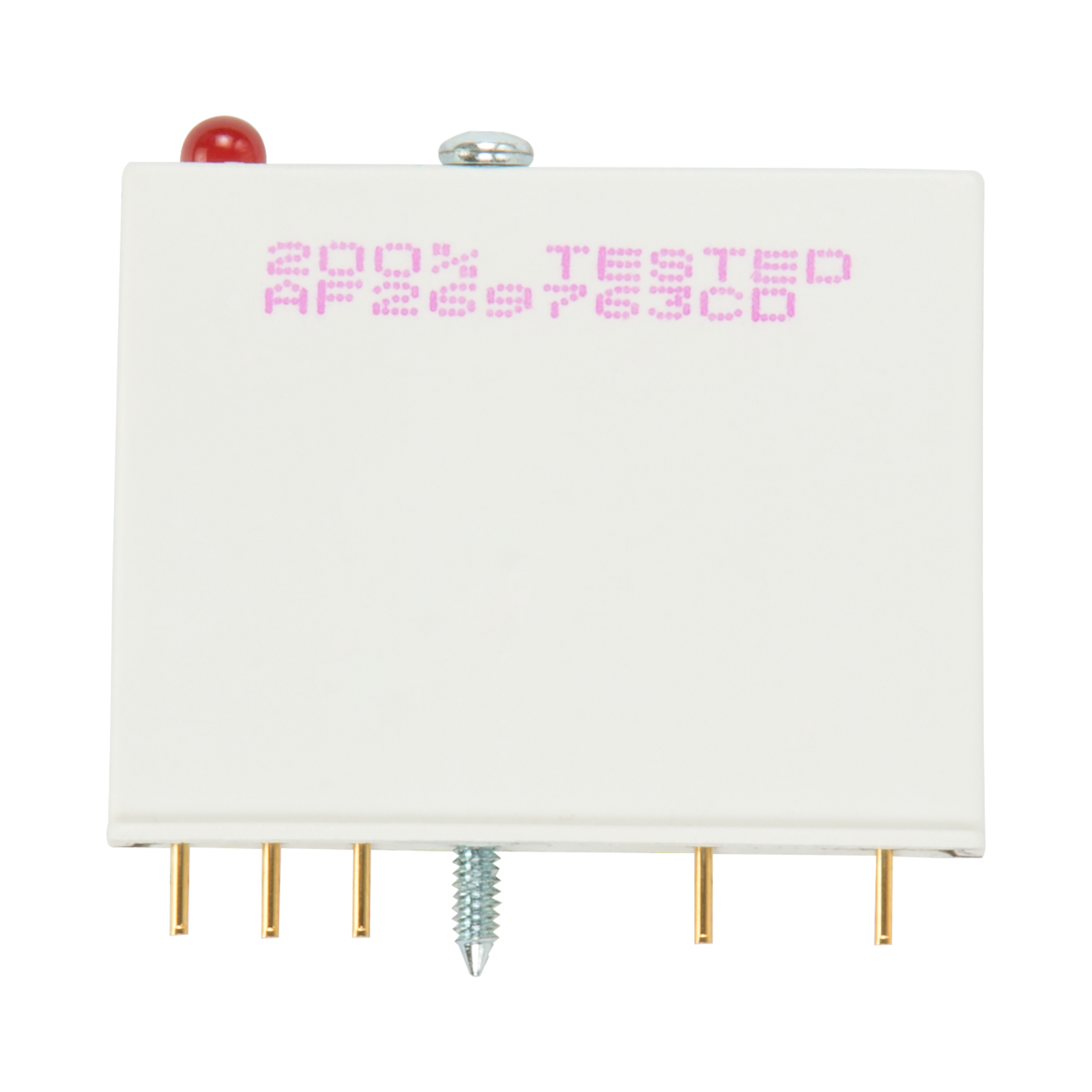

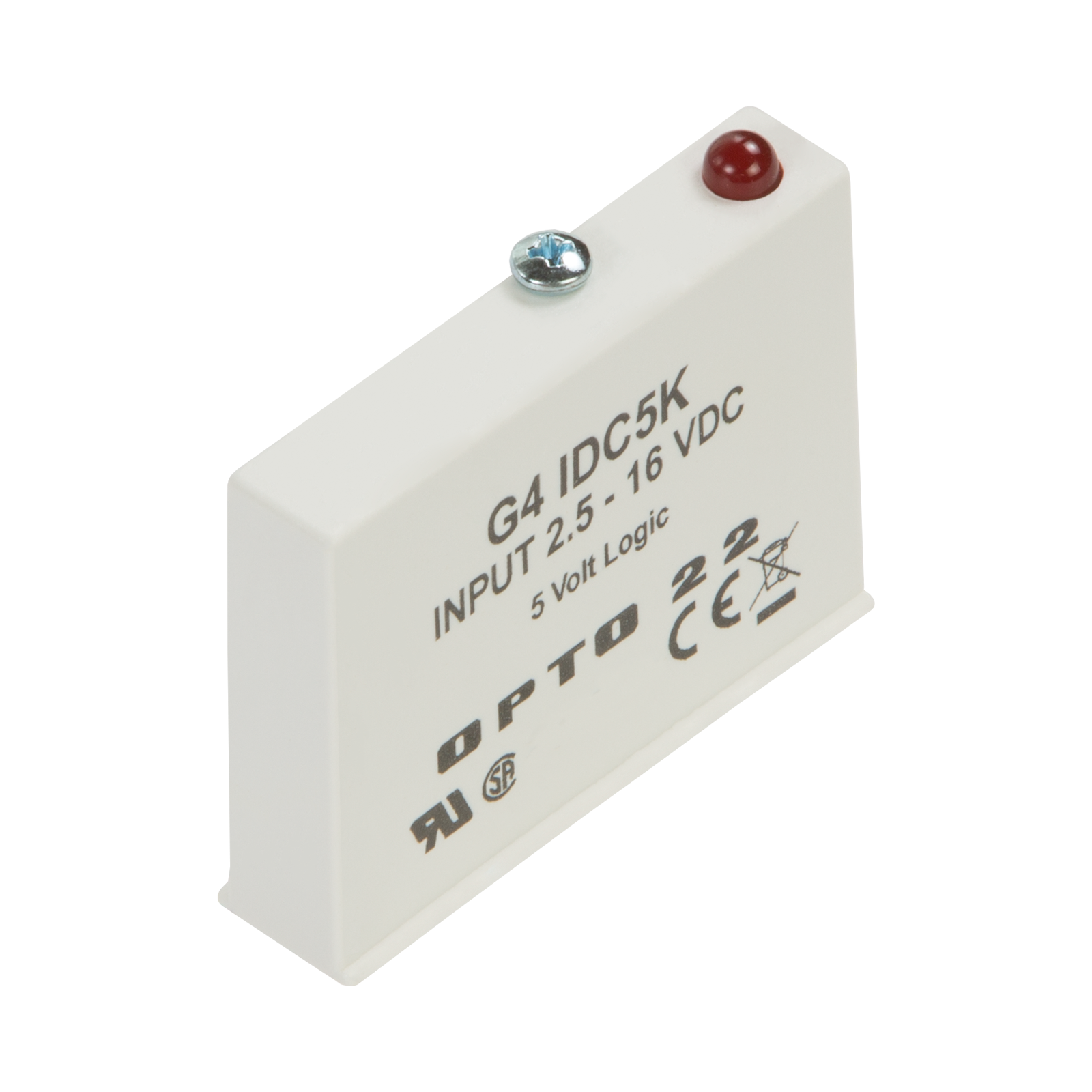

The G4IDC5K is a fast-switching module used to detect signals produced by photoelectric switches and TTL devices. This digital DC input module has an input voltage range of 2.5 to 16 VDC, requiring a typical logic voltage of 5 VDC. This module is compatible with Opto 22 brains.
Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. Each module provides up to 4000 volts (transient) of optical isolation between field inputs and the logic output of the circuit.
Units
G4IDC5K
G4IDC5MA*
G4IDC15**
G4IDC24**
Input voltage range
VDC VAC
2.5–16 —
10–32 12–32
Key feature
Highest speed
Diagnostic switch
—
Input current at maximum line
mA
30
25
Isolation, input-to-output (transient): 1 ms 1 minute
V V
4000 1500
Turn-on time
ms
0.025***
5
Turn-off time
Input allowed for off-state
mA, V
0.2, 1
1, 3
1,3
Nominal output supply voltage
VDC
15
24
Output supply voltage range
4.5–6
12–18
20–30
Output supply current at nominal logic voltage
12
18
Input resistance (R1 in schematic)
ohms
500
1.5 K
Control resistance (Rc in schematic)
220
1 K
2.2 K
Output voltage drop
V @ 50 mA
0.4
Output current (sinking)
50
Output leakage with no input
microamps @ 30 VDC
100
Transistor
V breakdown
Temperature: Operating
Storage
°C °C
–30 to +70 –30 to +85
* Compatible with Raspberry Pi. ** Not for use with Opto 22 brains. *** At 5Vp-p square wave input, 50% duty cycle.
