G4IDC5D
Hover over image to zoom in

G4IDC5D

$27.00 (USA and Canada only)

Availability: In stock

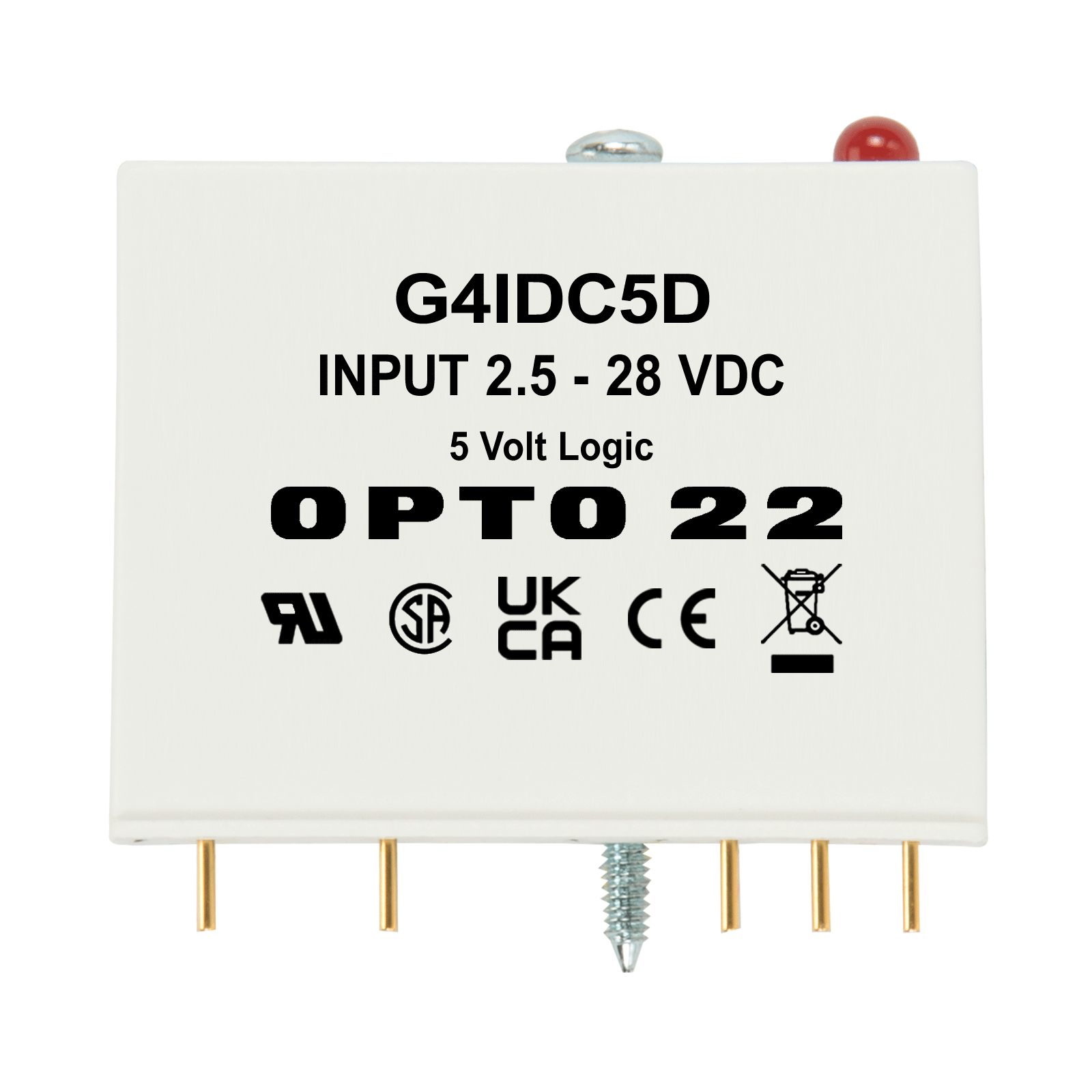

G4 DC Input 2.5-28 VDC, 5 VDC Logic

Production Specification

G4 I/O family

The G4IDC5D is a digital DC input module with an input voltage range of 2.5 to 28 VDC, requiring a typical logic voltage of 5 VDC. This module is compatible with Opto 22 brains and with a Raspberry Pi.

The low-cost G4IDC5D offers higher speed and is used for data acquisition.

Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. Each module provides up to 4000 volts (transient) of optical isolation between field inputs and the logic output of the circuit. Typical applications for DC input modules include sensing the presence or absence of voltage.

Compatible with Raspberry Pi. The G4IDC5D can be used with the Digital I/O Carrier Board for Raspberry Pi® (part number OPTO-P1-40P) to monitor and control industrial devices with your Raspberry Pi.



Units

G4IDC5*

G4IDC5B

G4IDC5D*

G4IDC5G*

Input voltage range

VDC
VAC

10–32
12–32

4–16
4–16

2.5–28

35–60
35–60

Key feature



Higher speed

High speed

Input current at maximum line

mA

25

45

30

6

Isolation, input-to-output (transient):
1 ms
1 minute



V
V



4000
1500



4000
1500



4000
1500



4000
1500

Turn-on time

ms

5

0.05

1

10

Turn-off time

ms

5

0.1

1.5

10

Input allowed for off-state

mA, V

1, 3

0.7, 1

0.2, 1

0.7, 7

Nominal output supply voltage

VDC

5

5

5

5

Output supply voltage range

VDC

4.5–6

4.5–6

4.5–6

4.5–6

Output supply current at
nominal logic voltage

mA

12

12

12

12

Input resistance (R1 in schematic)

ohms

1.5 K

300

900

10 K

Control resistance (Rc in schematic)

ohms

220

220

470

220

Output voltage drop

V @ 50 mA

0.4

0.4

0.4

0.4

Output current (sinking)

mA

50

50

50

50

Output leakage with no input

microamps @ 30 VDC

100

100

10

100

Transistor

V breakdown

30

30

30

30

Temperature:
Operating
Storage



°C
°C



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85



-30 to +70
-30 to +85

Agency Approvals   UL, CE, CSA; UKCA UL, CE, CSA; UKCA UL, CE, CSA; UKCA UL, CE, CSA, RoHS; UKCA
* Compatible with Raspberry Pi

G4 Digital DC Input Modules Data Sheet

Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. This document includes descriptions, specifications, and wiring and dimensional diagrams for Opto 22’s G4 DC output modules:

  • G4IDC5
  • G4IDC5B
  • G4IDC5D
  • G4IDC5G [OBSOLETE]
  • G4IDC5K
  • G4IDC5MA
  • G4IDC5-SW
  • G4IDC5-SWNC [OBSOLETE when current stock is depleted]
  • G4IDC15 [OBSOLETE when current stock is depleted]
  • G4IDC24

Digital I/O for Raspberry Pi Selection Guide

Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.

This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.

For code samples and steps to get started, also see developer.opto22.com.

G4 Digital I/O Data Book

The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

G4 Digital I/O Wiring Diagrams

Wiring diagrams for G4 modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
