G4IDC5-SWNC
Hover over image to zoom in

G4IDC5-SWNC

$55.00 (USA and Canada only)

Availability: In stock

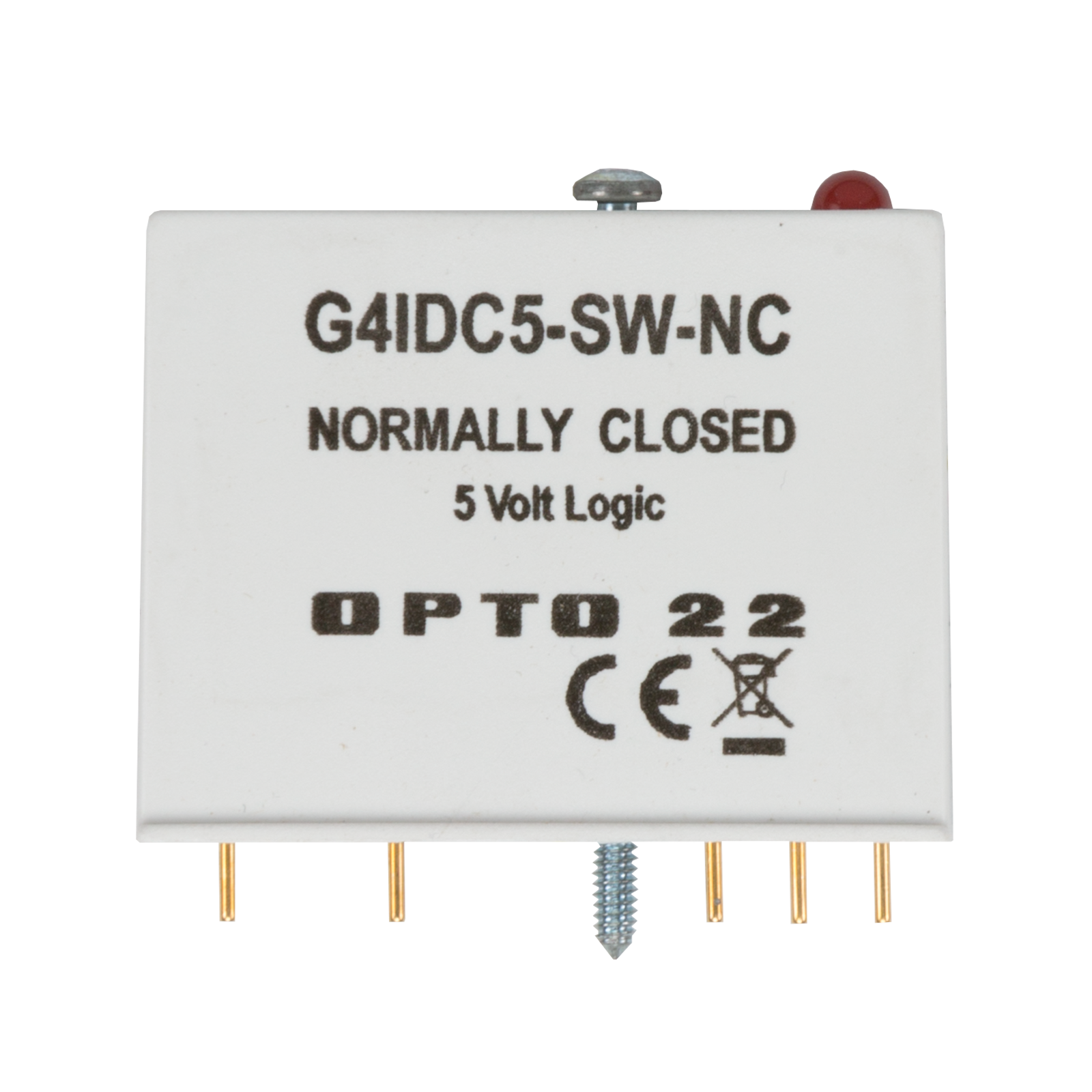

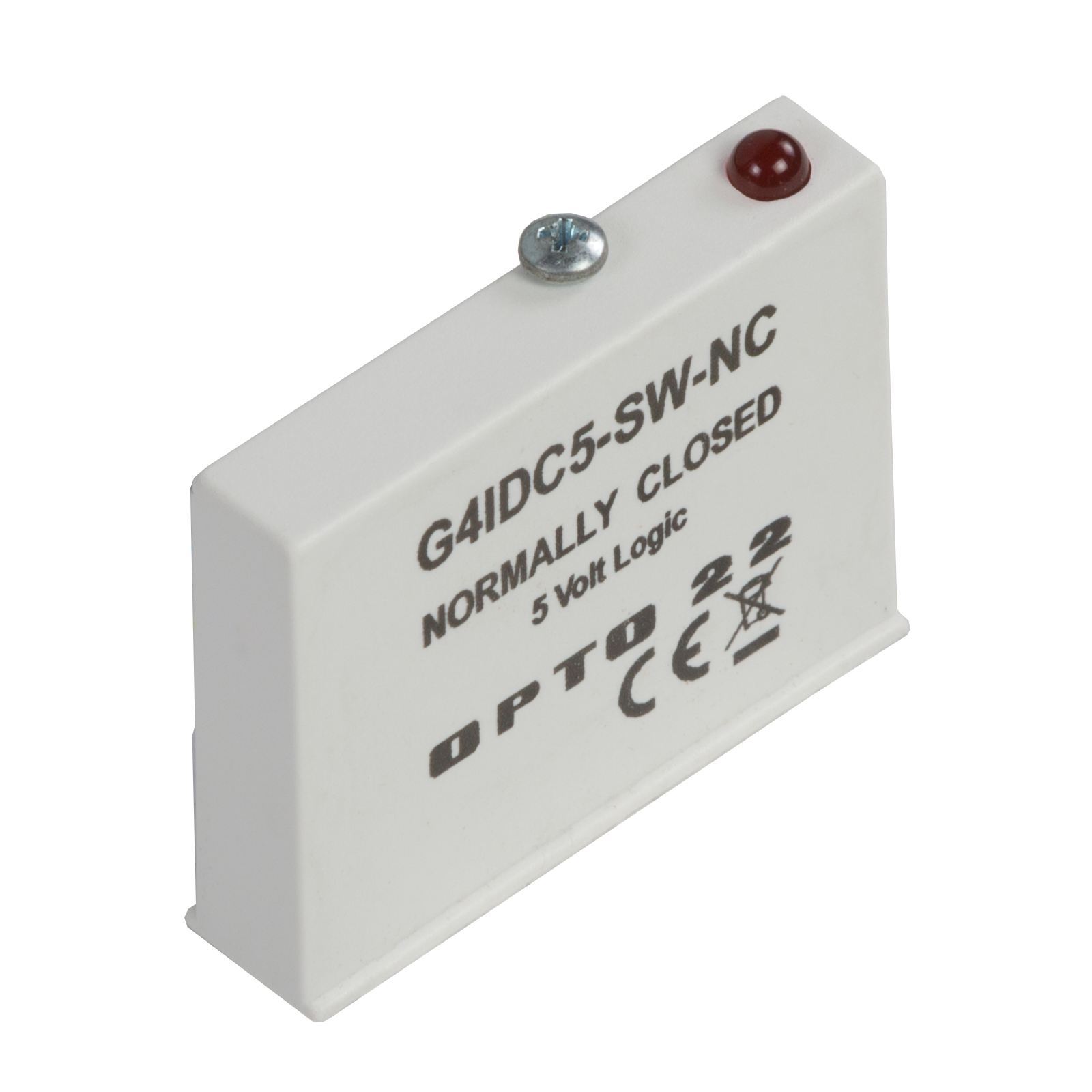

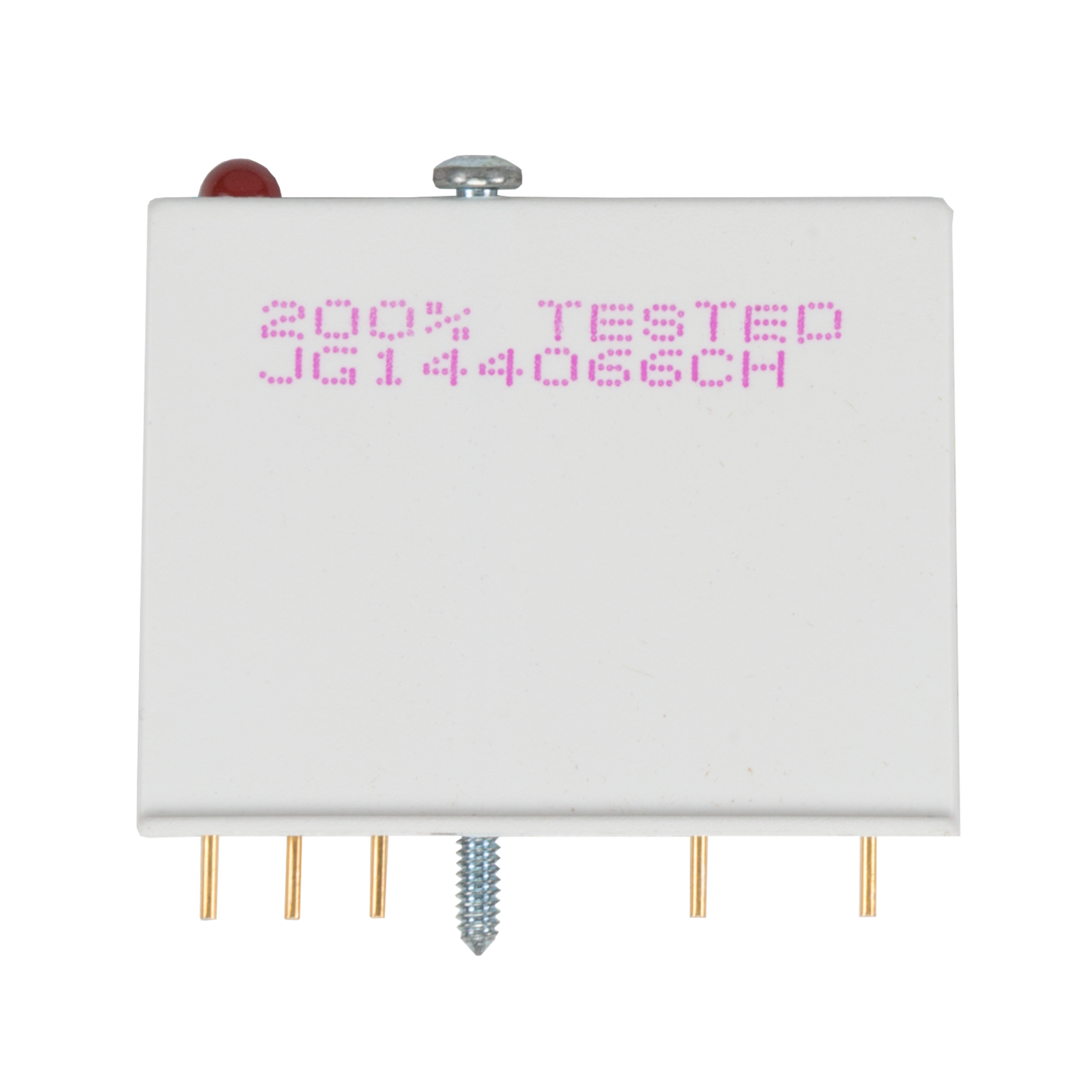

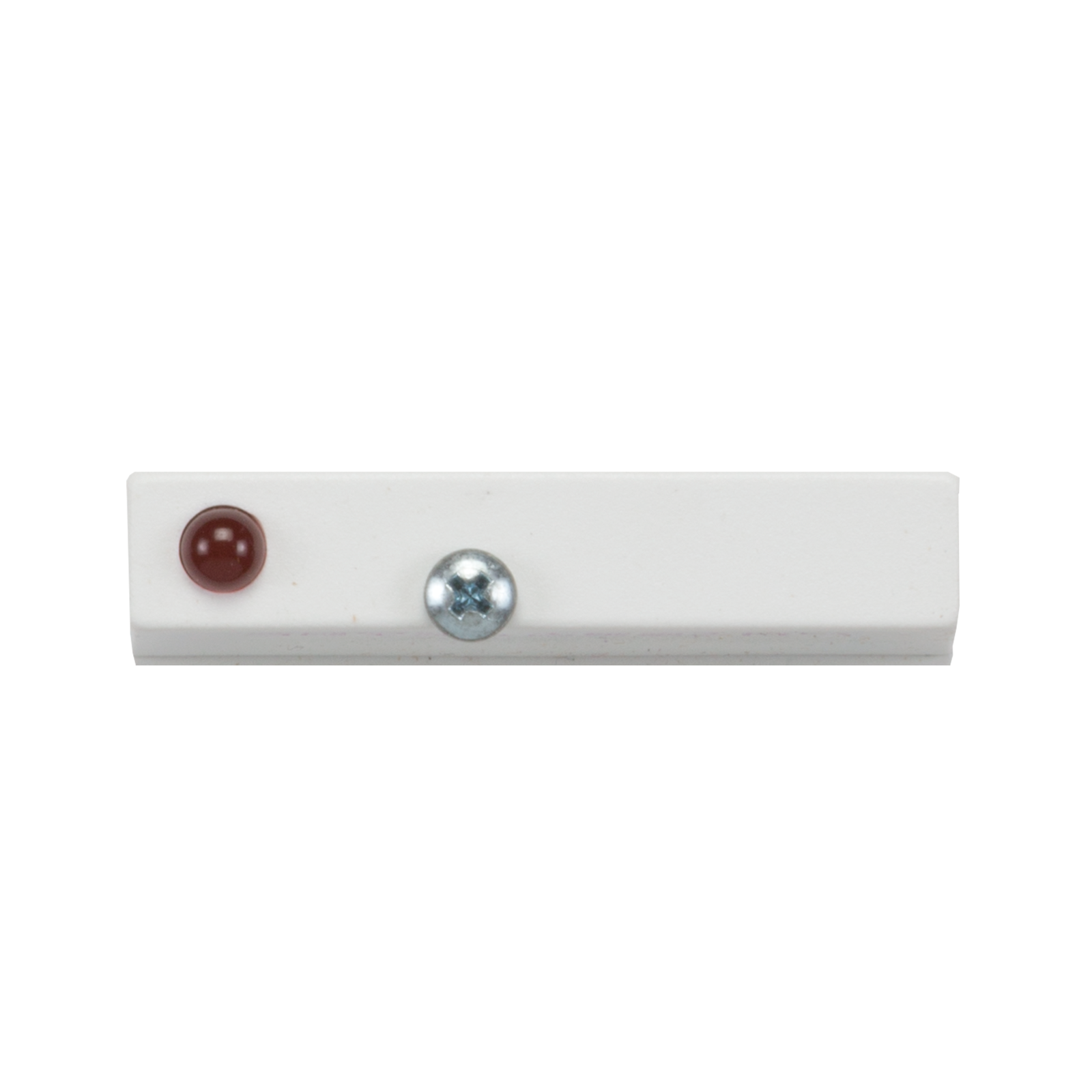

OBSOLETE G4 DC Input - DC voltage, self-powered, normally closed

Production Specification

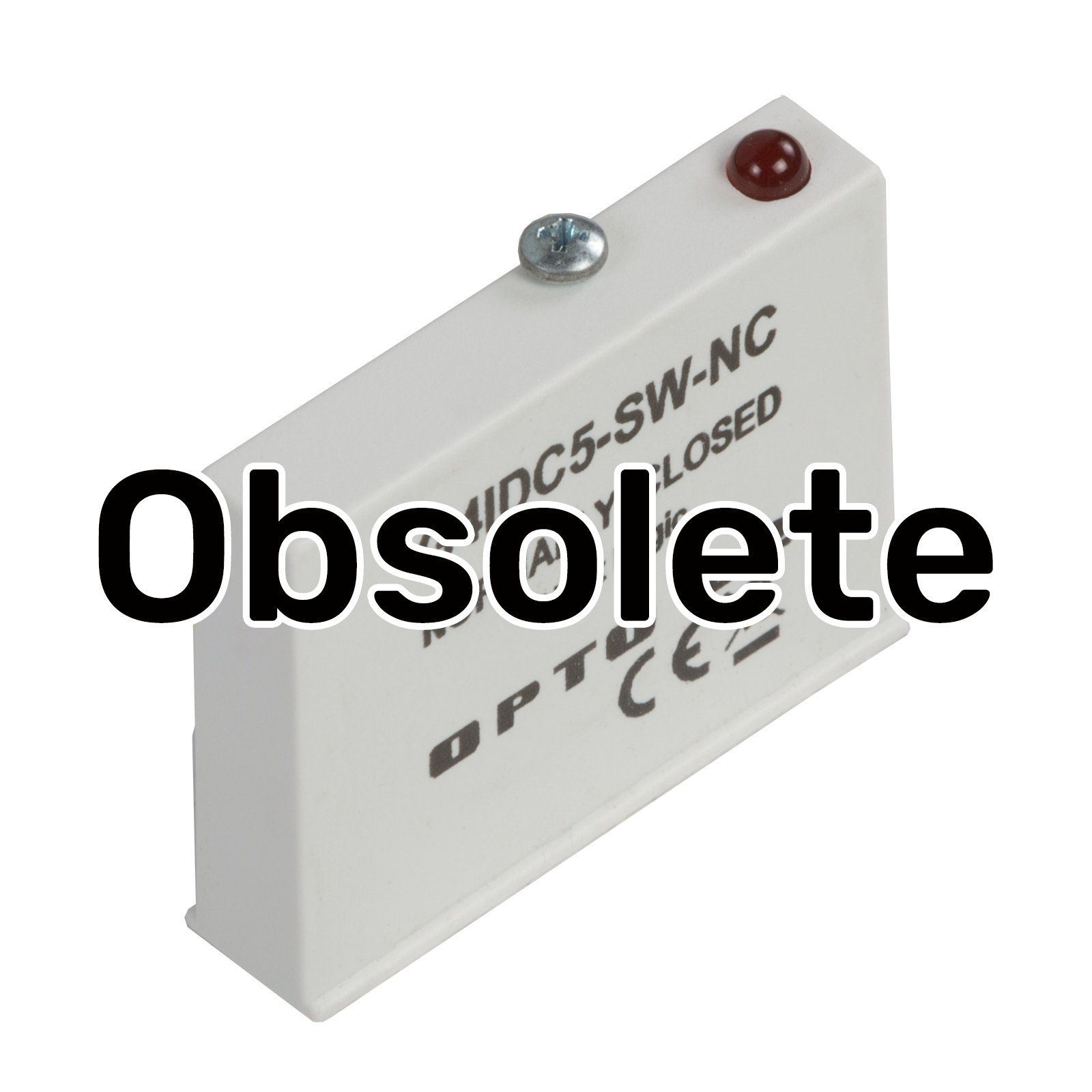

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

G4 I/O family

The G4IDC5-SWNC module provides one isolated channel of contact status input, sensing switch opening. The module supplies 15 volts of power to an external dry contact switch.

Each user-supplied switch is connected with two wires. Because these modules include power for the switch, this module is particularly cost-effective when labor costs for wiring external power are high.

Typical applications for the G4IDC5-SWNC include sensing contact opening from sources such as switched status sensors (level sensors, pressure indicators, etc.), magnetic reed switches (used on doors or windows for burglar alarms), snap-action micro switches, the auxiliary switches on motor starters, and most relay contacts.

CAUTION: G4IDC5-SW and G4IDC5-SWNC inputs are not intended to be used with contacts that are connected to any external user-supplied voltage or current.

This part is obsolete and no longer available when current stock is depleted.

Field Side Ratings

Open Circuit Voltage (Switch Open)

11 VDC min., 13 VDC typical, 15 VDC max.

Short Circuit Current (Switch Closed)

6 milliamps nominal

Minimum Off Resistance

≥20 K ohms

Maximum Allowable On Resistance
(Wire + Contact Resistance)

500 ohms

Logic Side Ratings

Logic Output Voltage for G4IDC5-SW
(normally open)

<0.5 V max. (switch closed; LED on) @ 2 mA sinking
2.7 V min. (switch open; LED off) @ 0.4 mA sourcing

Logic Output Voltage for G4IDC5-SWNC
(normally closed)

<0.5 V max. (switch open; LED on) @ 2 mA sinking
2.7 V min. (switch closed; LED off) @ 0.4 mA sourcing

Maximum Operating Common Mode
Voltage (Field Term to Logic Connector)

250 V

Power Requirements:

5 VDC (±0.25) @ 25 mA nom.

Module Ratings

Number of Channels Per Module

1

Turn-on Time

8 msec typical

Turn-off Time

8 msec typical

Input-to-output Isolation (transient)

4000 V AC/DC

Temperature

0 °C to 70 °C, operating
-30 °C to 85 °C, storage

Agency Approvals RoHS (G4IDC5-SW); CE, RoHS, UKCA (G4IDC5-SWNC)

G4 Digital DC Input Modules Data Sheet

Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. This document includes descriptions, specifications, and wiring and dimensional diagrams for Opto 22’s G4 DC output modules:

  • G4IDC5
  • G4IDC5B
  • G4IDC5D
  • G4IDC5G [OBSOLETE]
  • G4IDC5K
  • G4IDC5MA
  • G4IDC5-SW
  • G4IDC5-SWNC [OBSOLETE when current stock is depleted]
  • G4IDC15 [OBSOLETE when current stock is depleted]
  • G4IDC24

G4 Digital I/O Data Book

The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.

UKCA Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
