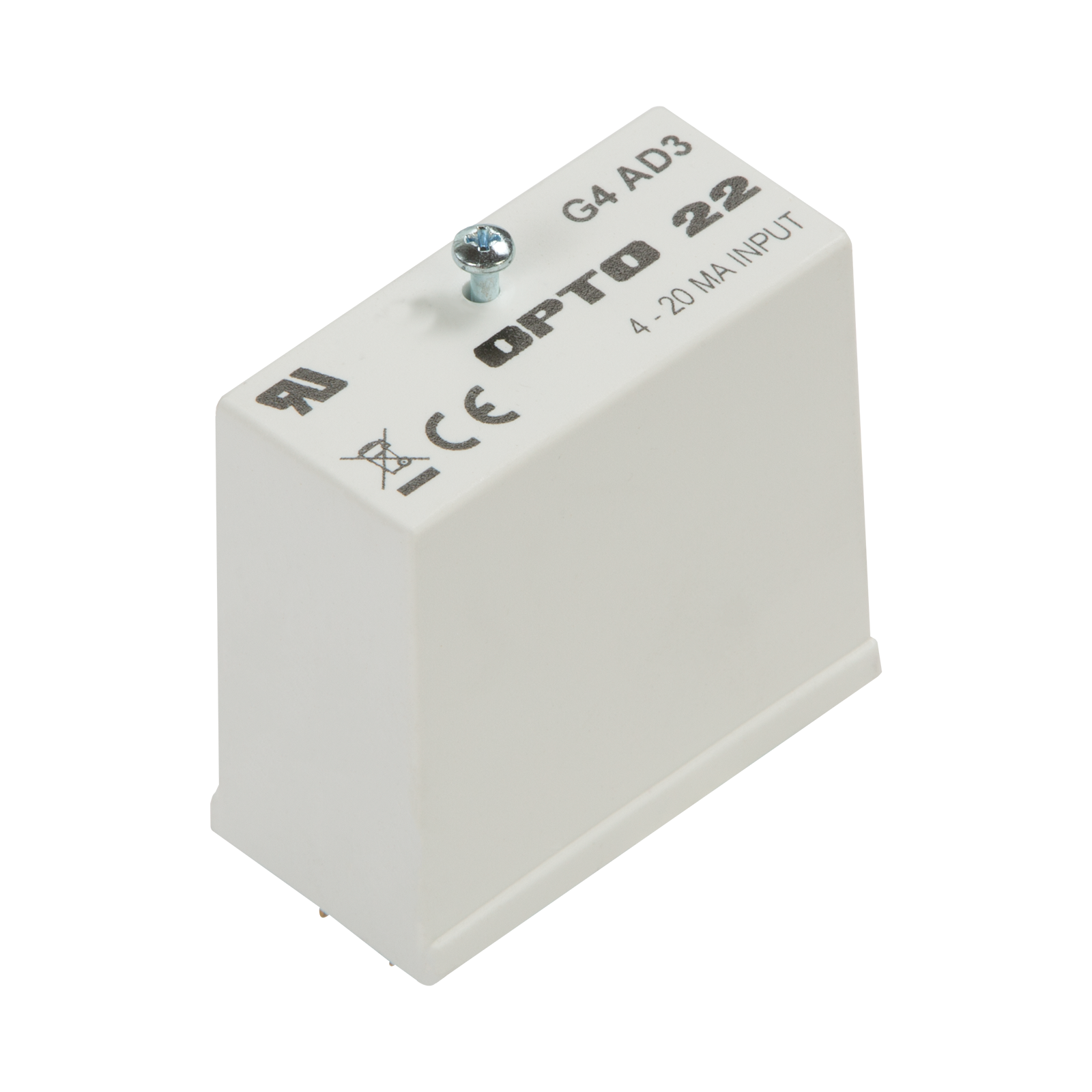

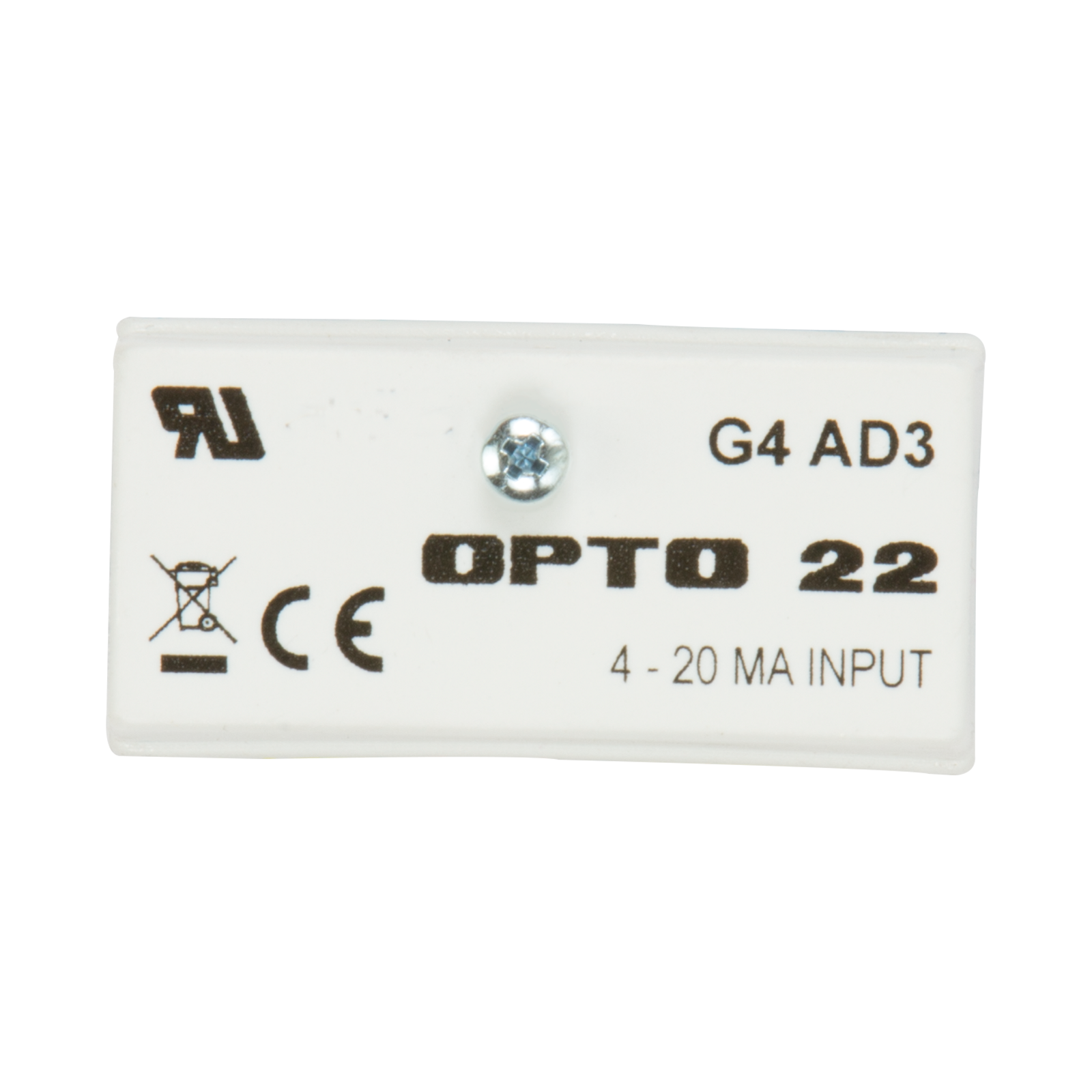

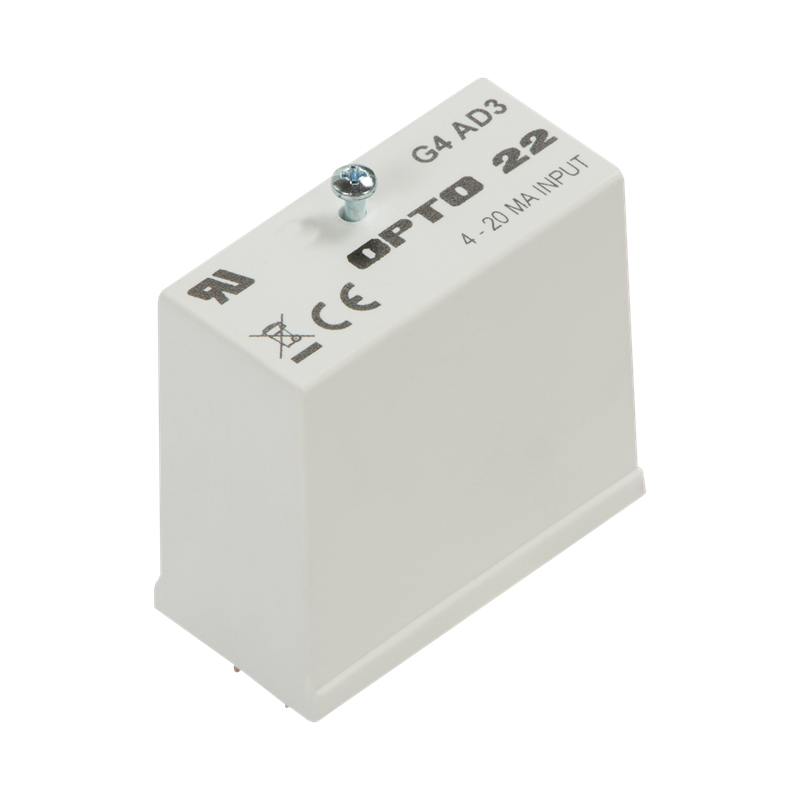

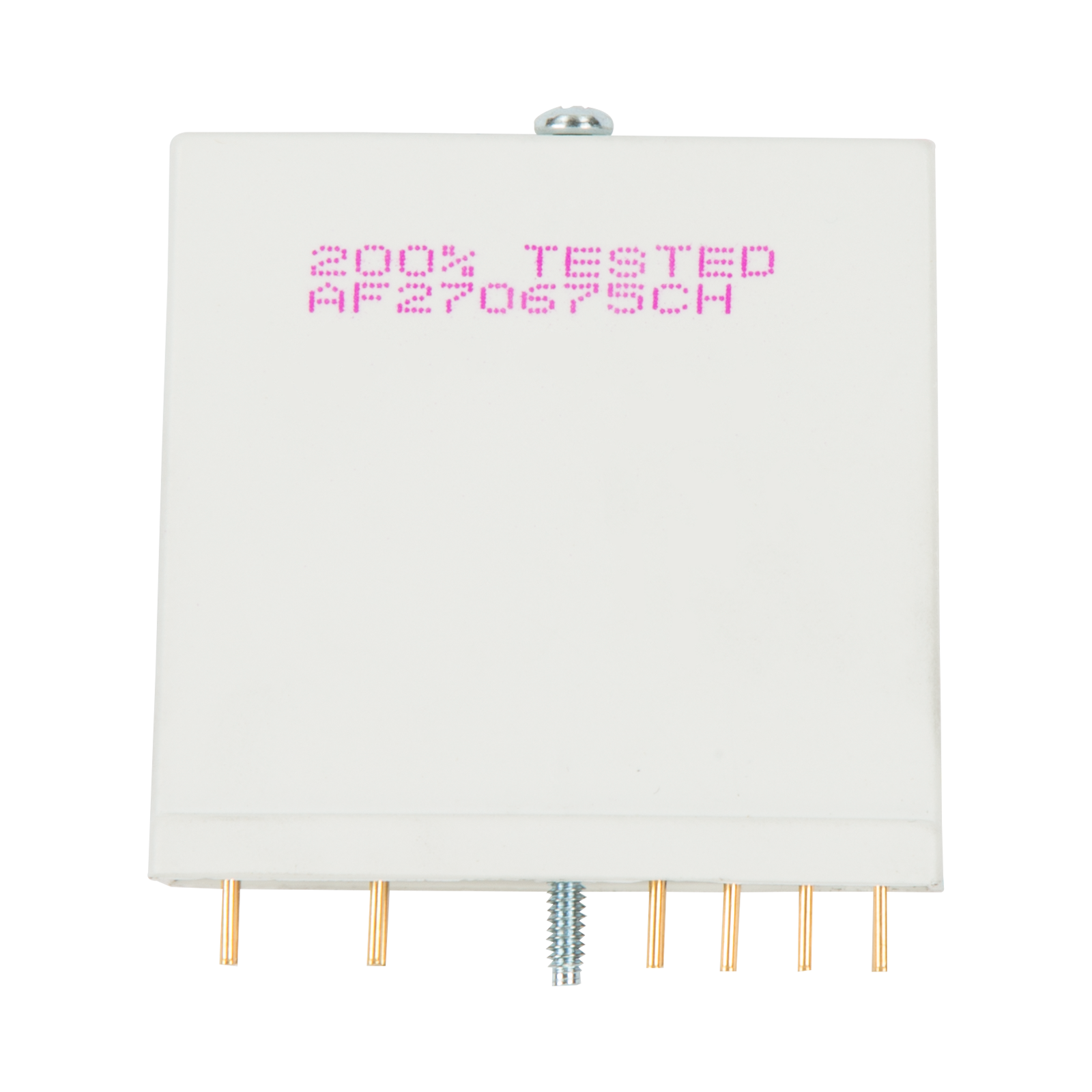

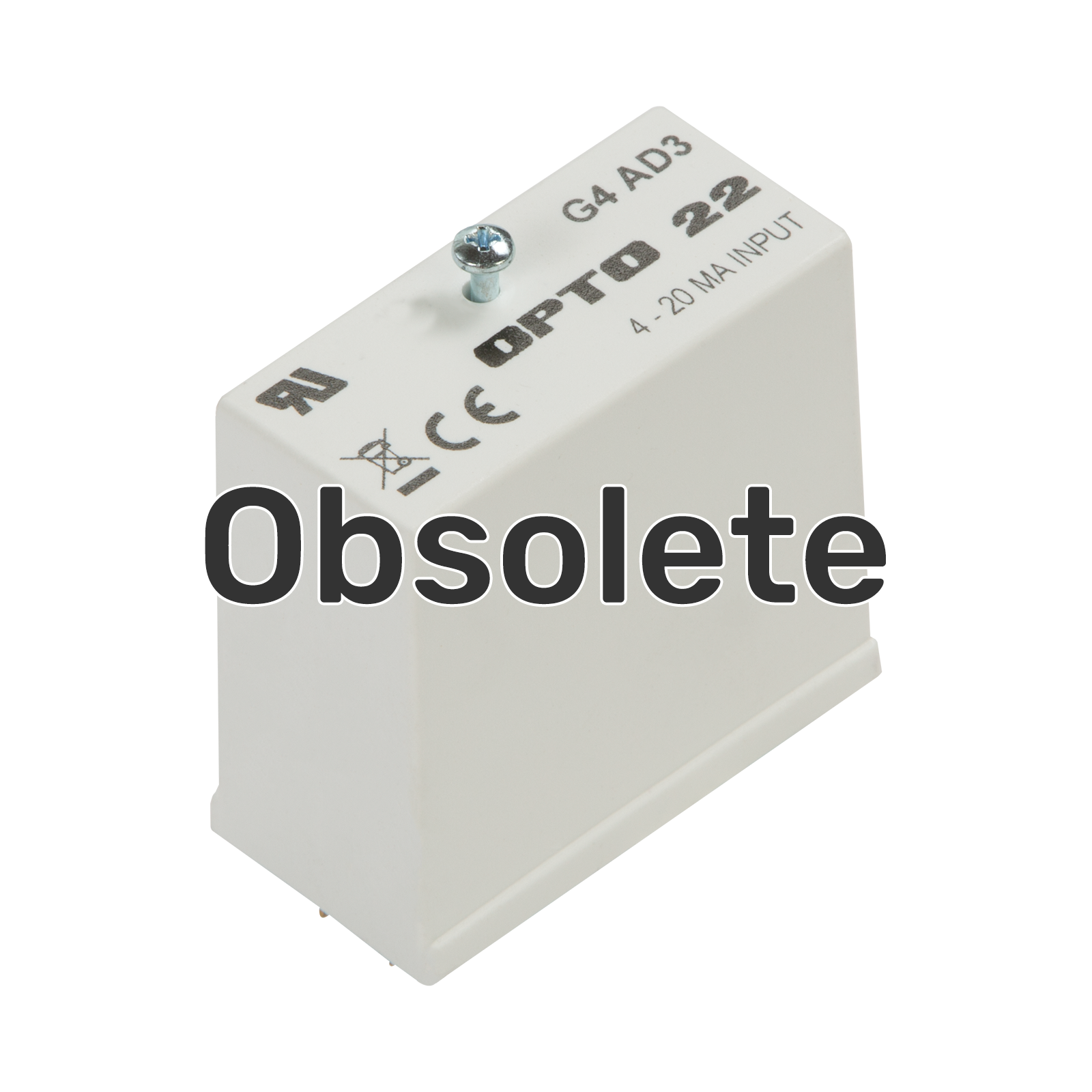

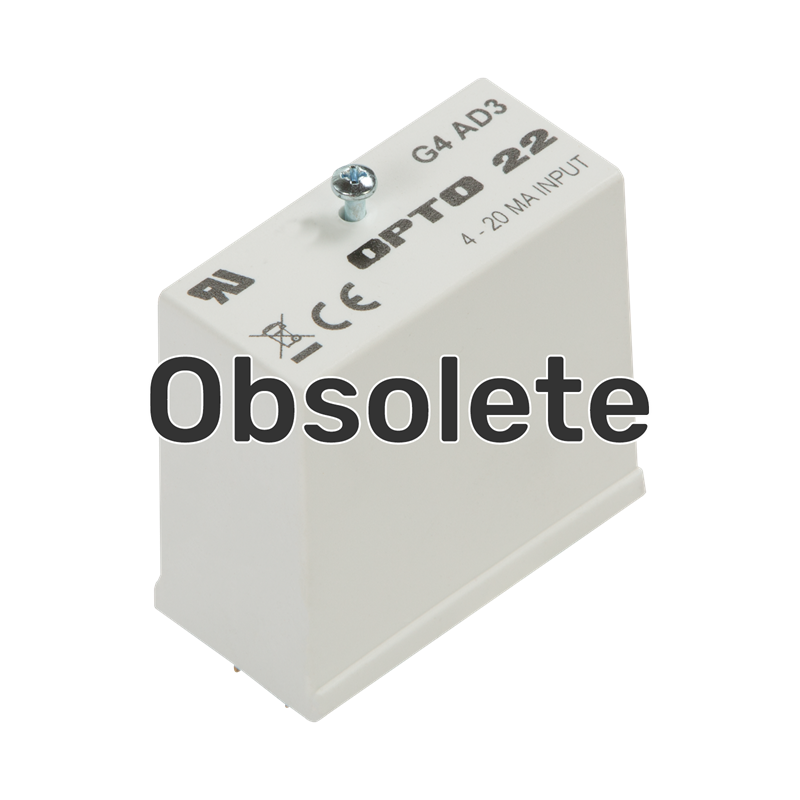

G4AD3
Hover over image to zoom in

G4AD3

$389.00 (USA and Canada only)

Availability: In stock
G4 4 to 20 mA Analog Input

Production Specification

G4 I/O family

The G4AD3 module provides a single channel of transformer and optically isolated current-to-digital conversion. The nominal input range is 4 to 20 milliamps, with an under/over-range capability from less than 3 milliamps to greater than 35 milliamps.

One of the module's unique features is that the isolated loop supply can be provided by the G4AD3. This eliminates the need for you to provide the loop supply (typically 15-48 V) and also saves time and money for the associated wiring and barrier strips. The G4AD3 module also includes complete electrical channel-to-channel isolation, which eliminates ground loop problems.

Nominal input range

4 to 20 mA

Module Input Impedance*

414 Ohms*

Over/under range

3 to 35 mA

Loop supply

28 VDC nominal

Accuracy**

16 µA**

Response time

Full-scale step change in 3 ms

Resolution

12 bits

Isolation (Transient)
Input-to-output
Input-to-analog supply



4,000 Vrms
4,000 Vrms

Ambient temperature
Operating
Storage



-30 °C to 70 °C
-40 °C to 85 °C

Agency Approvals UL, RoHS, CE; UKCA

* This is the equivalent impedance for the G4AD3 at full scale (20mA).
The equivalent impedance is calculated by using the following formula:
Equivalent impedance = 249 Ohms + 3.3V/0.02A = 414 Ohms
The module has an internal resistance of 249 Ohms in series with a
3.3V zener diode. For more information, see form #426.
** Accuracy figure requires use of gain and offset commands.



G4 Analog 4-20 Milliamp Input Module Data Sheet

The G4AD3 module provides a single channel of transformer and optically isolated current-to-digital conversion.
