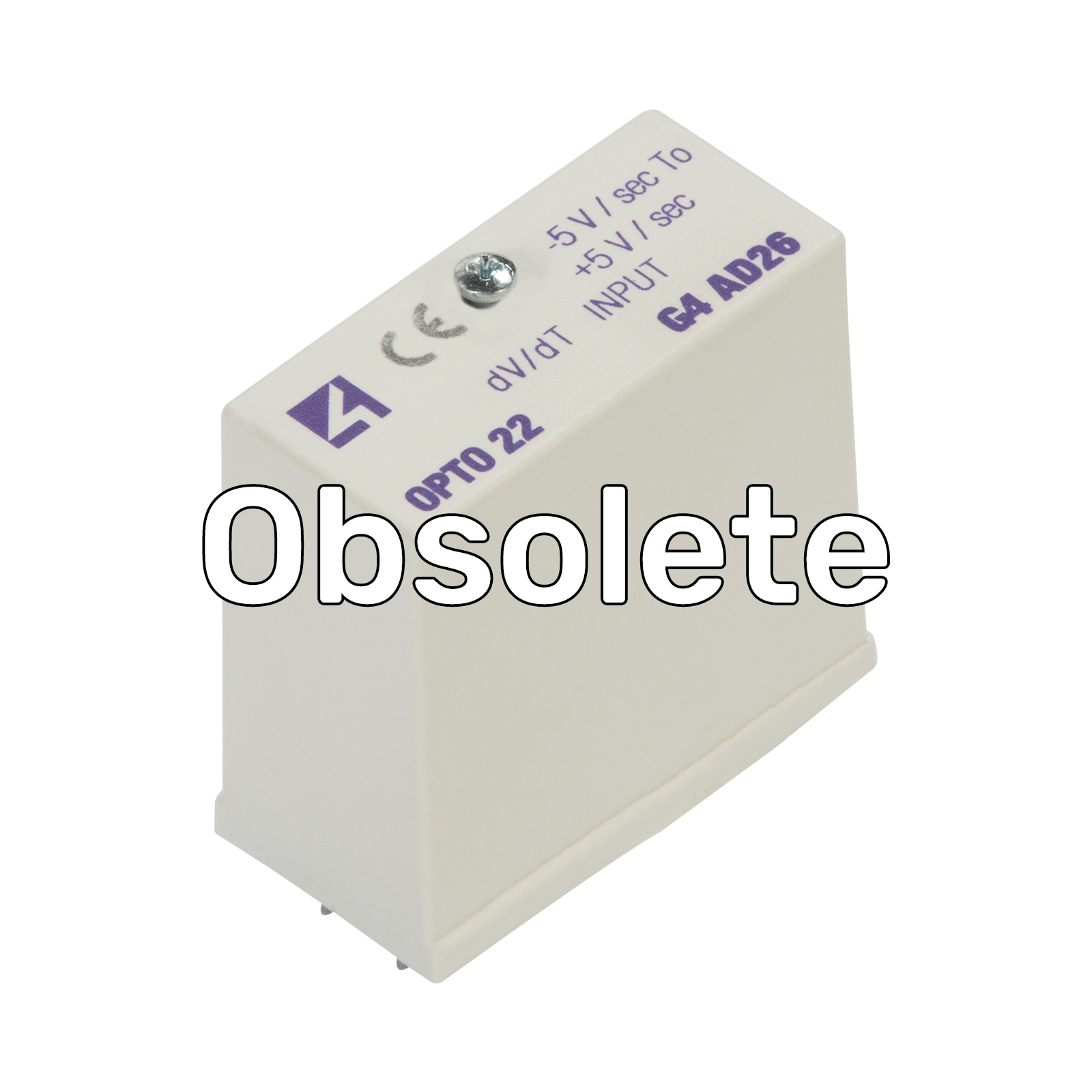

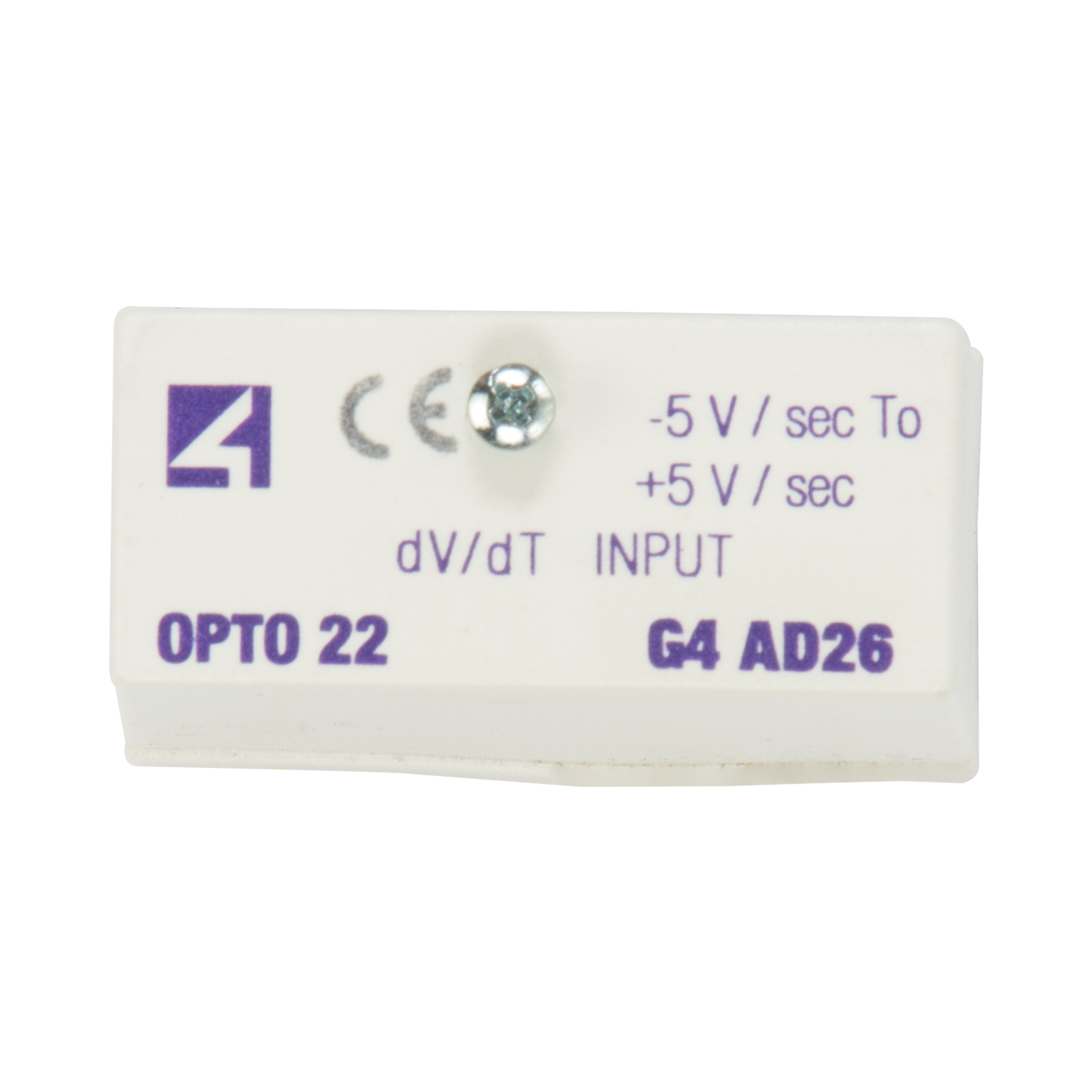

OBSOLETE G4 DV/DT Analog Input Module

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***‚Äč

G4 I/O family

The G4AD26 velocity input module provides a single channel of transformer and optically isolated analog-to-digital conversion. Air/hydraulic cylinders and forward, reversing, or rotating machinery with potentiometer-based transducers are typical inputs for the G4AD26 module. It can measure piston velocity in both forward and reverse directions, or derive acceleration for use in a PID control system.

This module also includes complete electrical channel-to-channel isolation, eliminating troublesome ground loop problems.

Power Requirements

24 VDC (± .5 V) @ 40 mA

Logic Supply

5.5 V max. @ 15 mA

Ambient Temperature
  Operating
  Storage



0 to 70 °C
-25 to 85 °C

Nominal Input Range

-5 to +5 Volts/second

Over/Under Range

-5.6 to +21.37 V/s

Maximum Differential Voltage

±22 Volts

Resolution mV/S

2.4 mV/s from -5 to +5 V/s
4.8 mV/s from 5 to 15 V/s
9.8 mV/s from 15 to 21.37 V/s

Output Accuracy

±5% of Span (V/s)

Input Response Time

63% (3.15 V/s) 15 ms
90% (4.50 V/s) 45 ms

DC Common Mode Rejection

> -120 dB

AC Common Mode Rejection

> -120 dB @ 60 Hz

DC Reversal Error

± 0.2% of Span

Input Resistance
  Differential
  Common Mode



750 kOhms
>1000 mOhms



G4 Analog Rate Input Module Data Sheet

The G4AD26 module provides a single channel of transformer and optically-isolated analog-to-digital conversion.
