G4AD25

Availability: Obsolete
OBSOLETE G4 0 to 100 VDC/VAC Analog Input

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

G4 I/O family

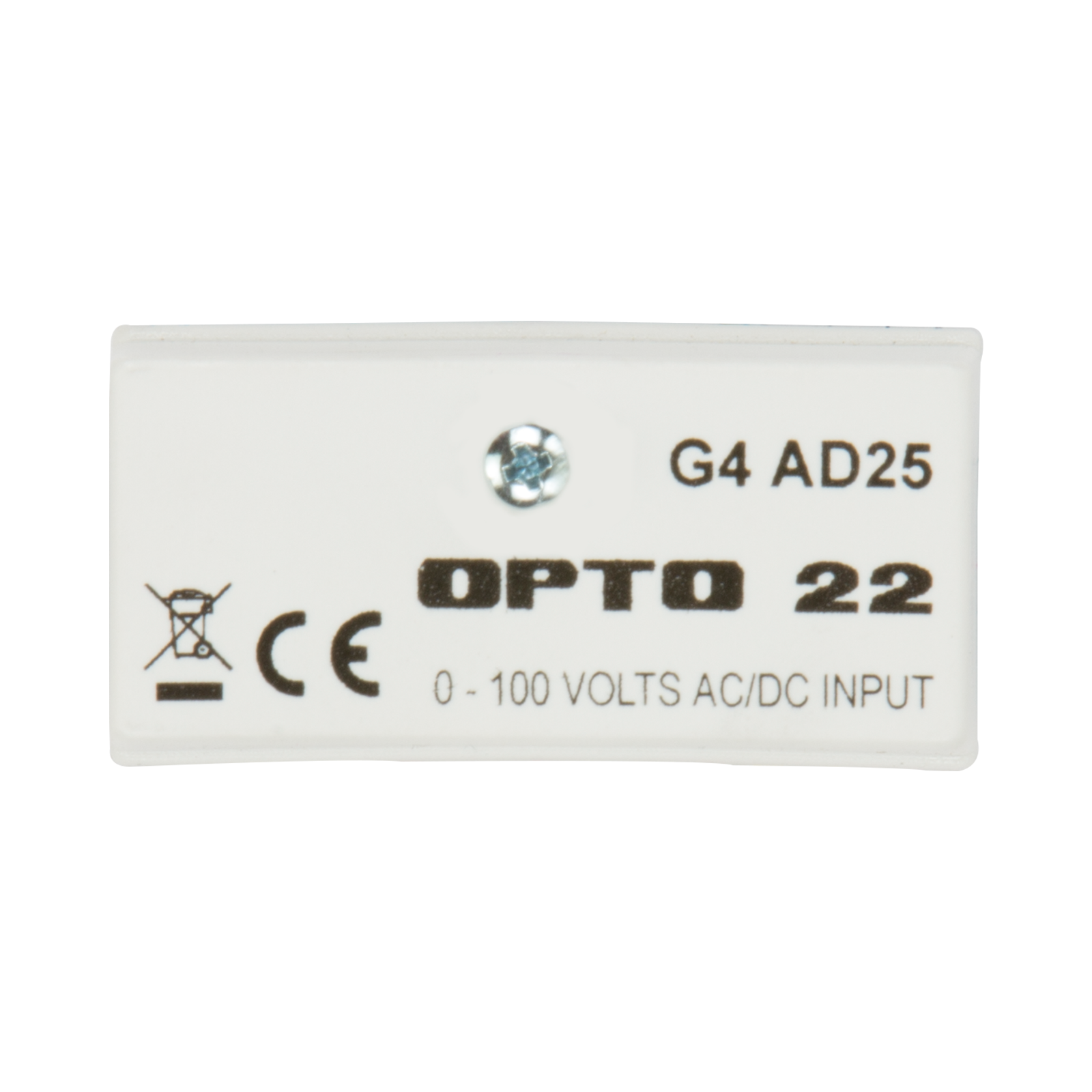

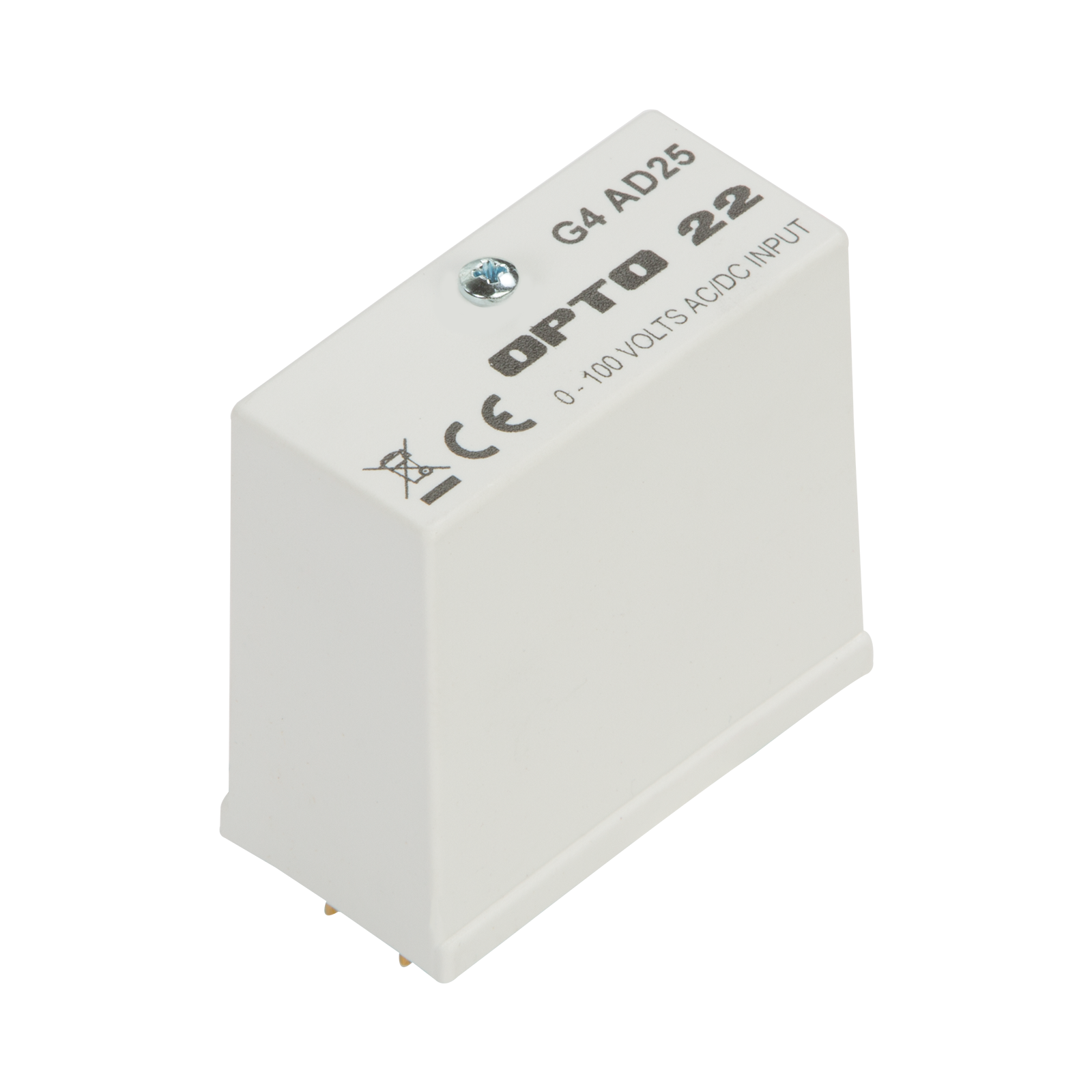

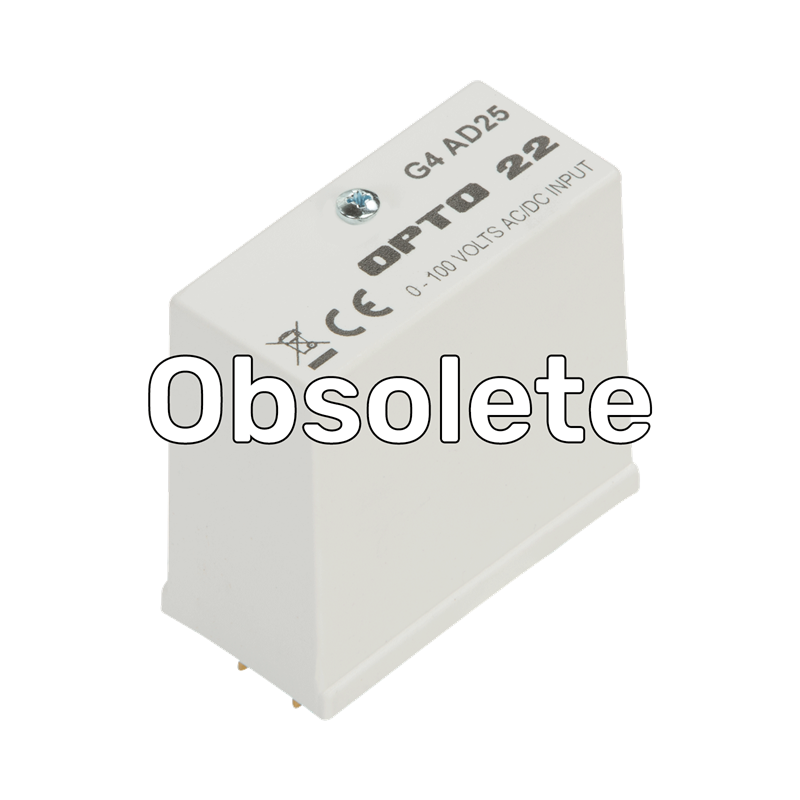

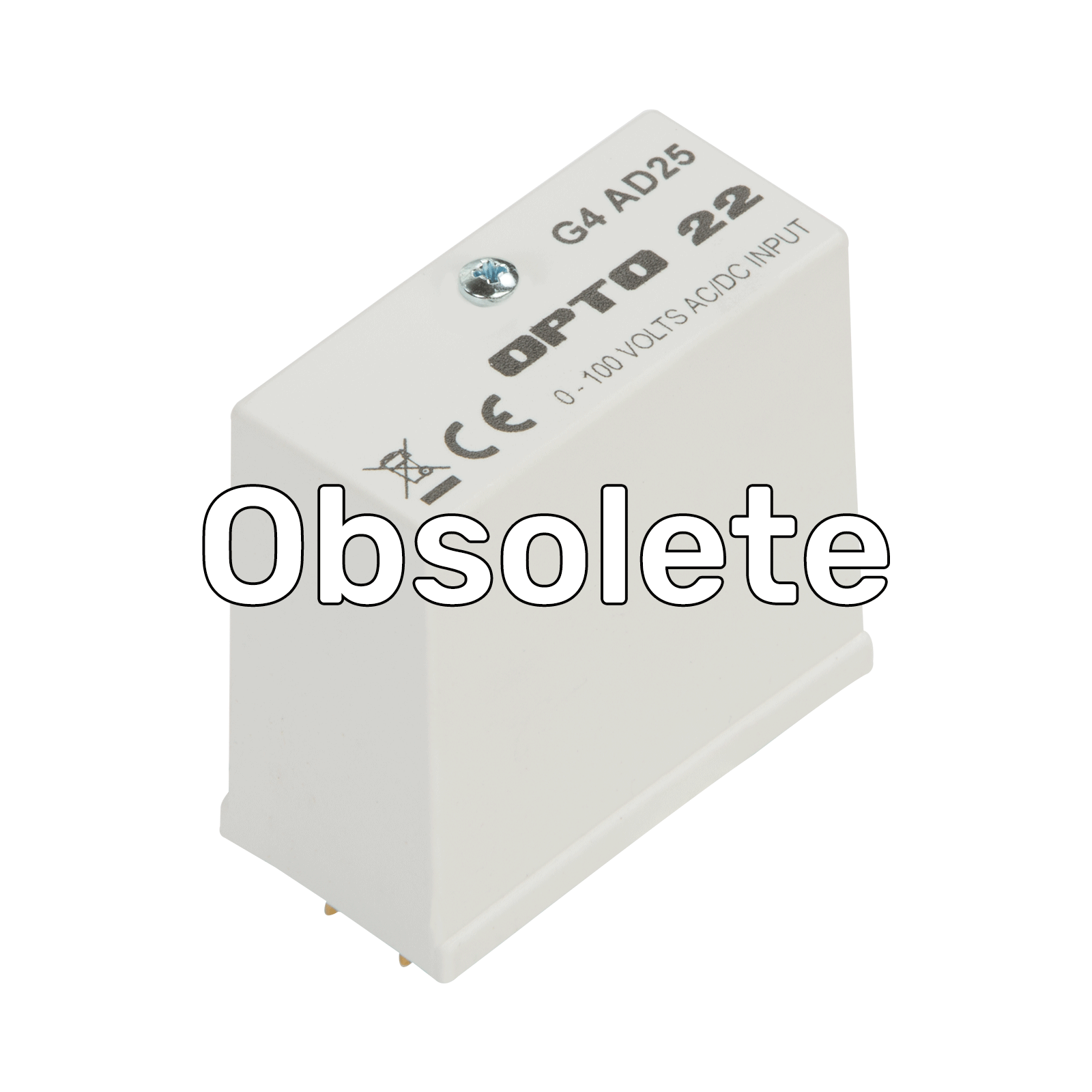

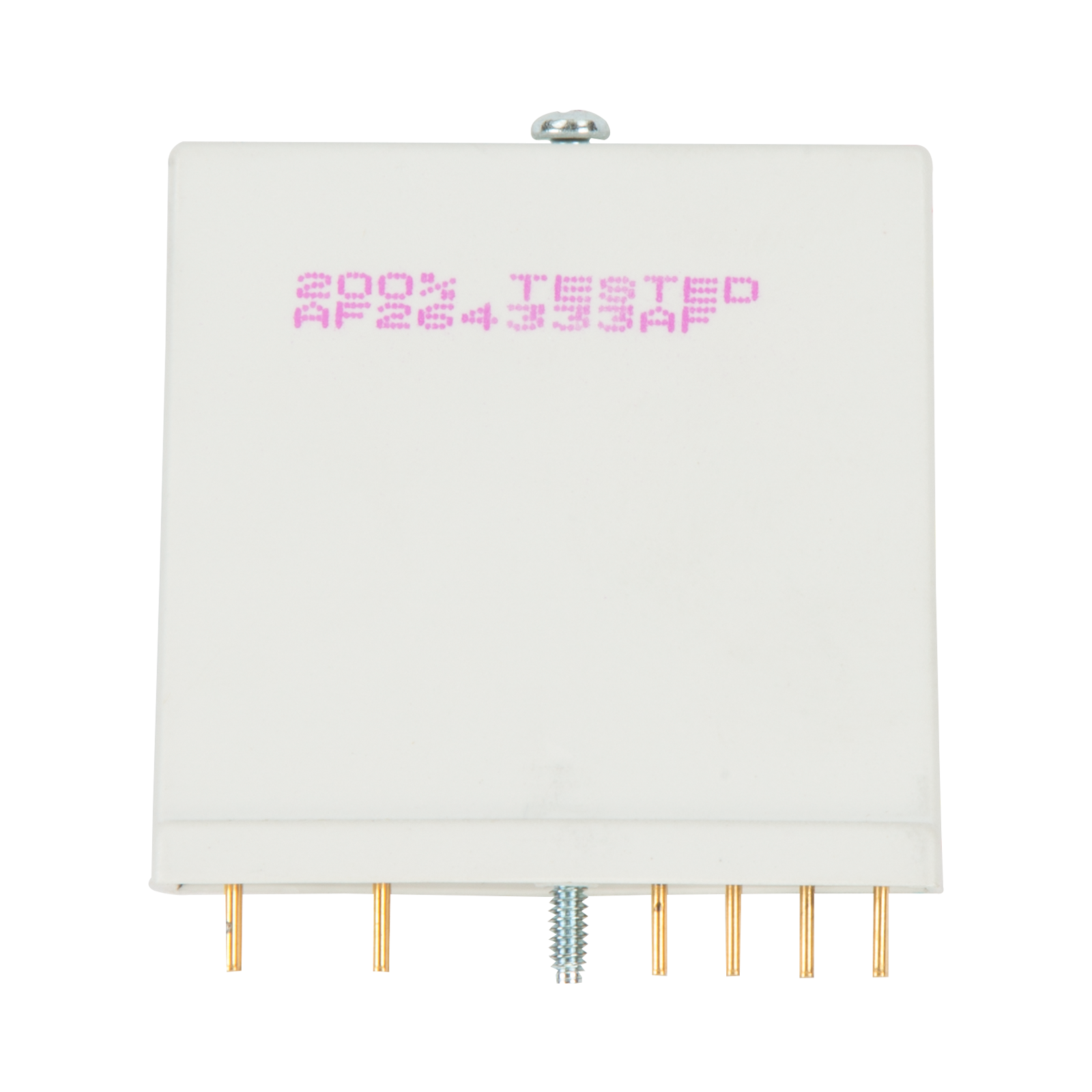

The G4AD25 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to 100 VDC or VAC, but with an over-range capability to 263 volts, the G4AD25 may be used to monitor 120/240 volt AC/DC and 12/24/48 volt AC/DC system voltage.

Nominal Input Range

0 to 100 V true rms AC/DC

Input Over Range

100 V to 263 V

Resolution

24.4 mV from 0 to 100 V
48.8 mV from 100 to 200 V
97.7 mV from 200 to 263.7 V

Input Response Time

5% of scale change
63.2% of scale change
99.9% of scale change

5 Volts/millisecond
63.2 Volts/200 milliseconds
99 Volts/1200 milliseconds

DC Common Mode Rejection

-120 dB

AC Common Mode Rejection

-120 dB @ 60 Hz

Maximum Operating Common
  Mode Voltage

750 VDC or peak AC

Input vs Output
  Zero Scale (1,920 Hz)
  Full Scale (9,600 Hz)



0 V
100 V

Accuracy

0.5 V (0.5%)

DC Reversal

± 0.3 V (0.3%)

Power Requirements

24 VDC (± 0.5 V) @ 40 mA logic supply
5.5 V maximum @ 15 mA

Input Resistance
  Differential
  Common Mode



1 megohm
1,000 megohms

Ambient Temperature
  Operating
  Storage



0 to 70 °C
-25 to 85 °C

Agency Approvals  CE; UKCA



G4 Analog Voltage Input 0-100 Volt AC/DC Module Data Sheet

*** This product is obsolete and no longer available. ***
The G4AD25 module provides a single channel of transformer and optically-isolated analog-to-digital conversion.
