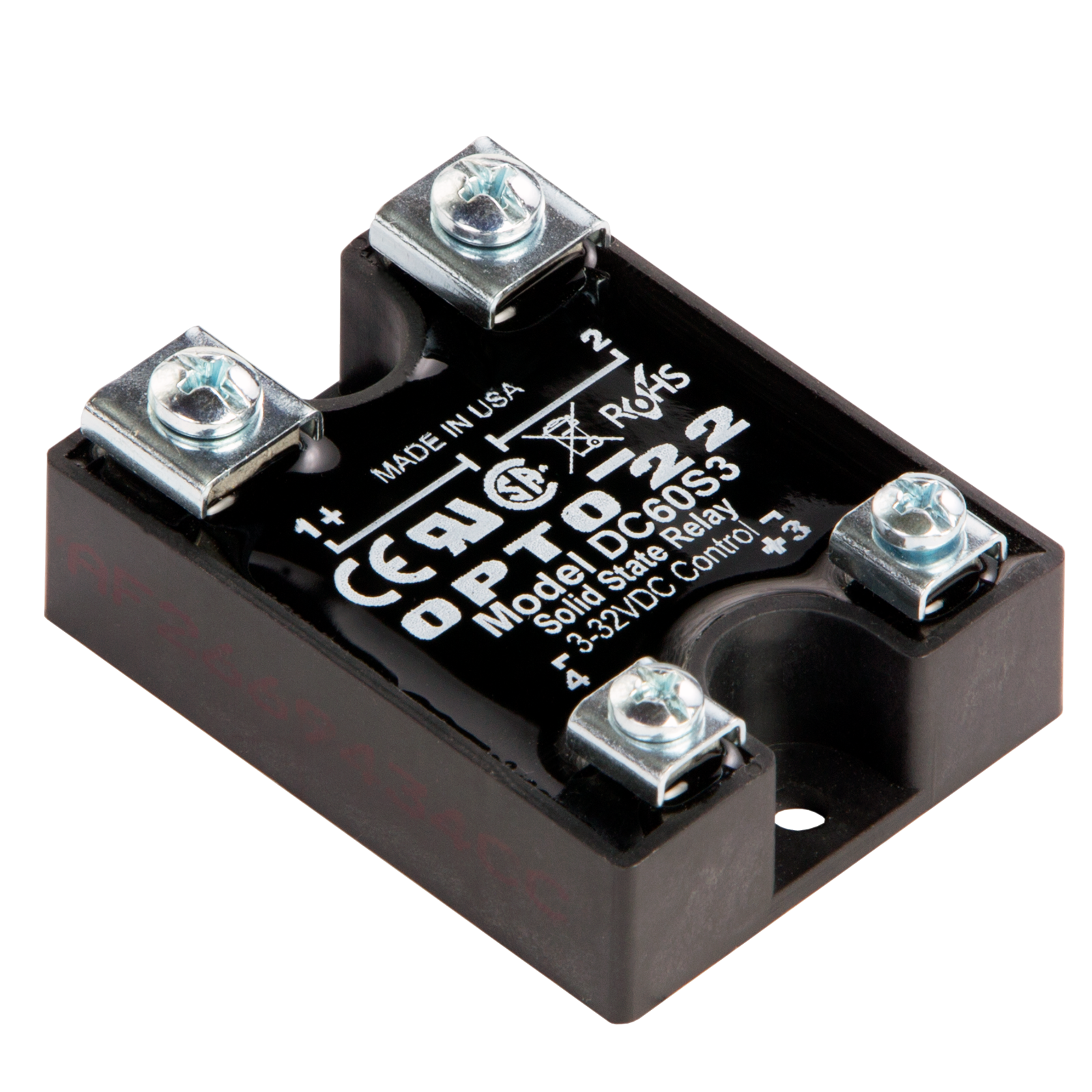

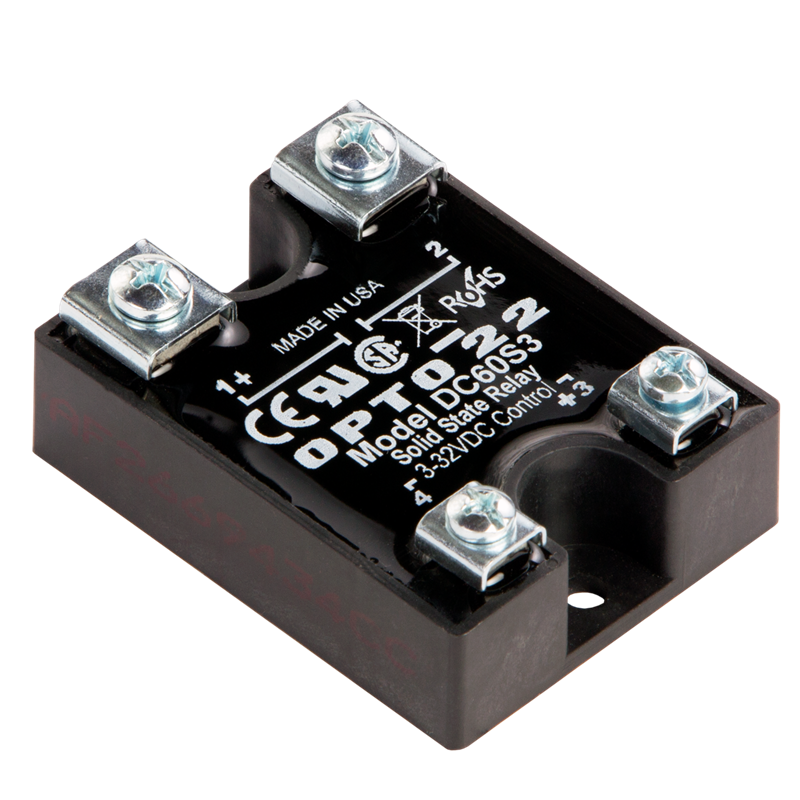

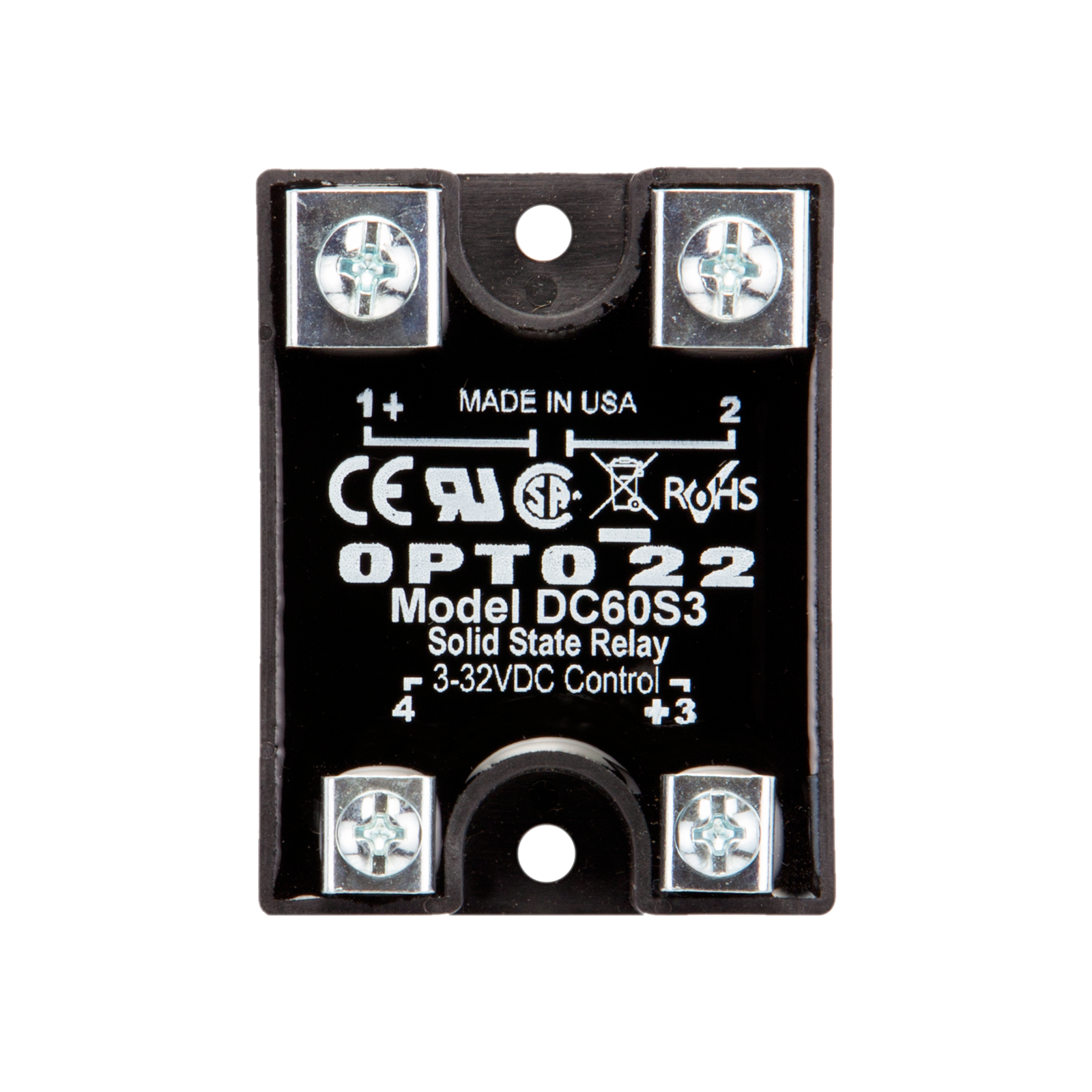

The DC60S3 is a DC-controlled Power Series relay that switches 60 VDC at up to 3 A.
Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component.
Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list. This SSR carries a lifetime warranty.
NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height from one terminal to another and from one SSR to another. Use the MP or P series SSRs for PCB mounting.
DC60P or DC60MP
DC200P or DC200MP
DC60S3
DC60S5
Operating Voltage Range
5–60 VDC
5–200 VDC
Forward Voltage Drop
1.5 volts at 3 amps
1.5 volts at 1 amp
1.5 volts at 5 amps
Nominal Currrent Rating (Amps)
3*
1*
5*
Off-State Blocking
60 VDC
250 VDC
Signal Pickup Voltage
3 VDC 32 Volts** allowed
3 VDC 32 Volts allowed
Signal Dropout Voltage
1 VDC
Signal Input Impedeance
1,000 ohms
1 Second Surge
5 amps
2 amps
10 amps
Operating Temp. Range
–40 °C to 100 °C
Isolation Voltage
4,000 VRMS
Off-State Leakage
1 mA maximum
Package Type
P/MP series
Power series
Turn-on Time
100 microseconds
Turn-off Time
750 microseconds
Notes: * Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859). ** MP series maximum allowed control signal is 24 VDC.
For more information, see the Solid State Relays Data Sheet (form 0859).
