$21.00 (USA and Canada only)

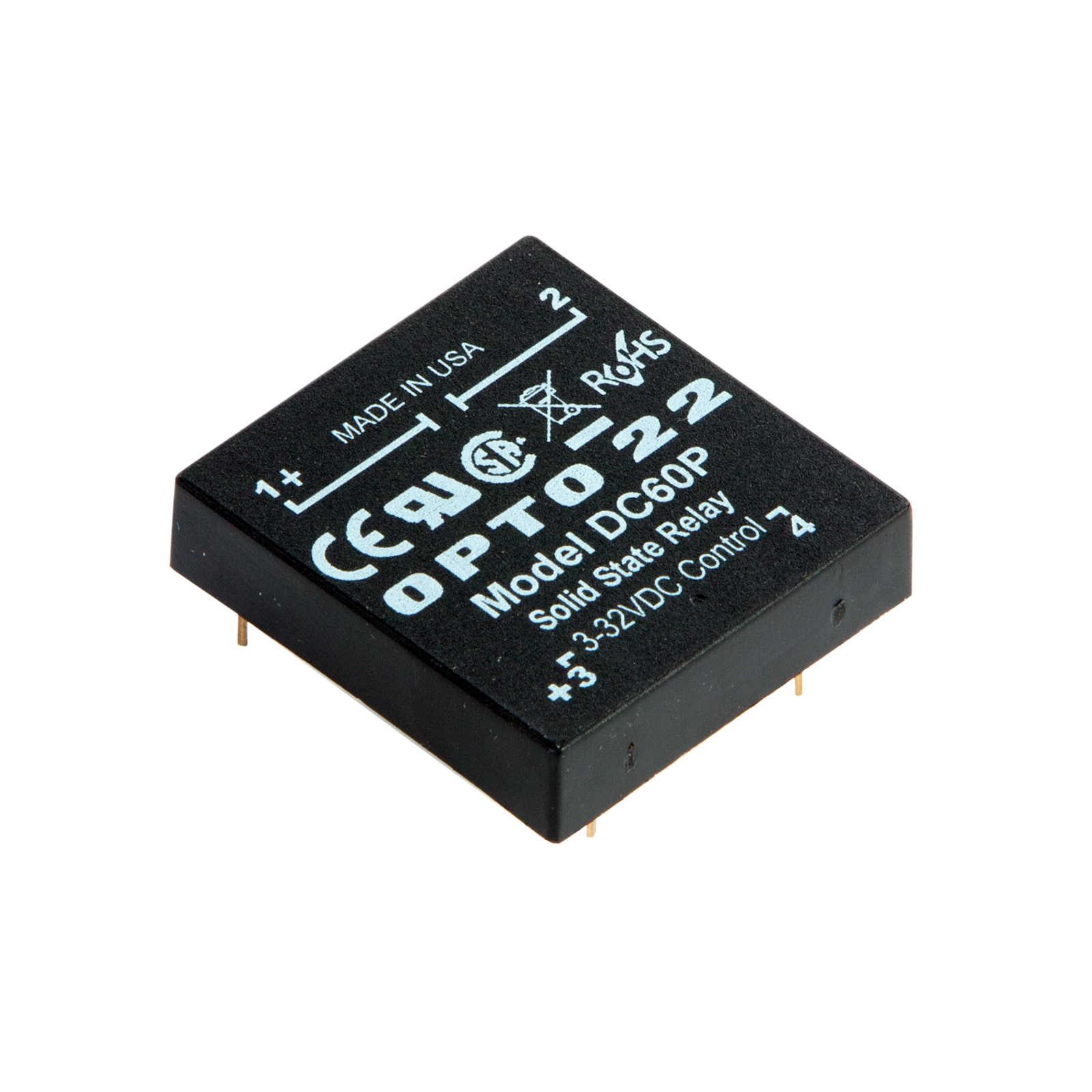

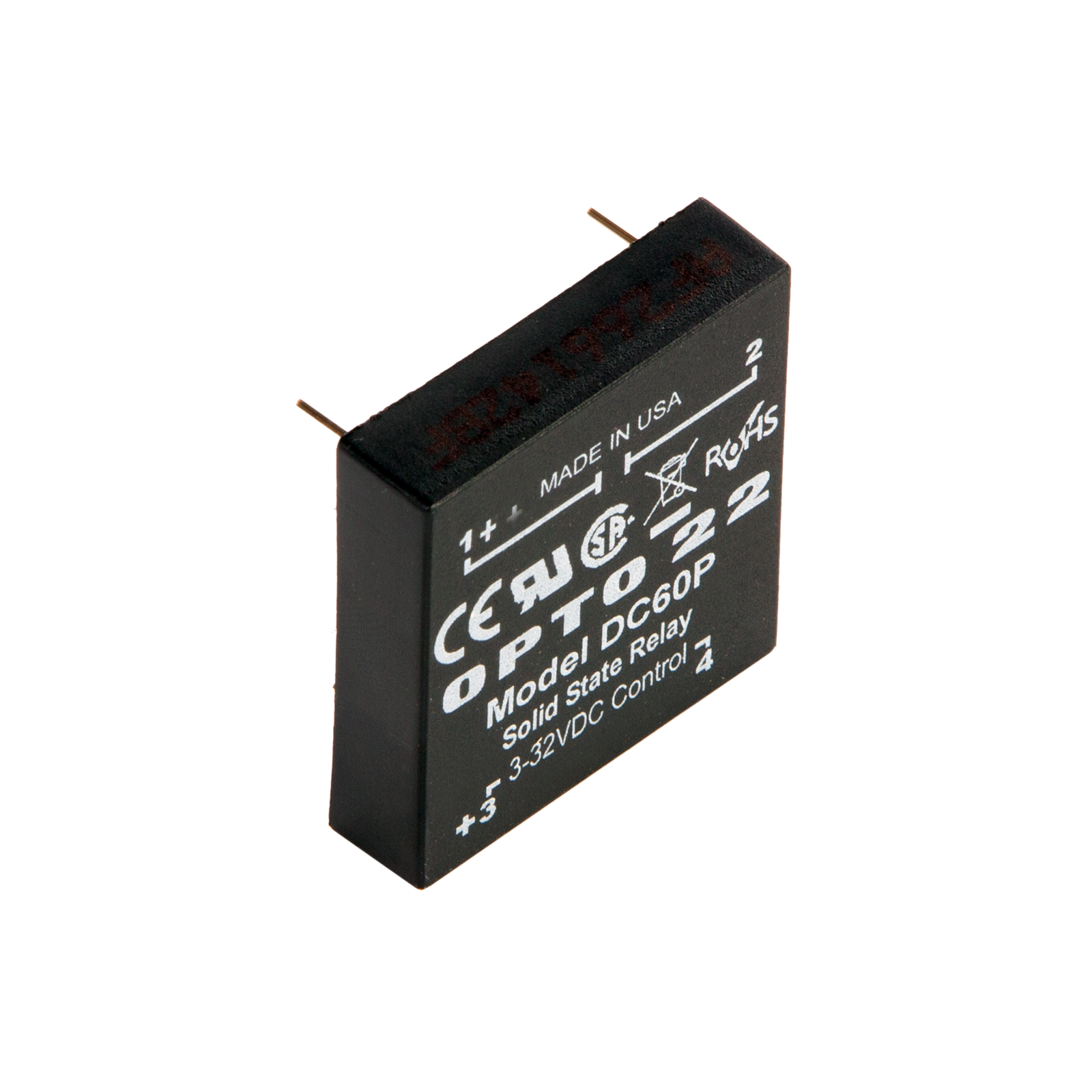

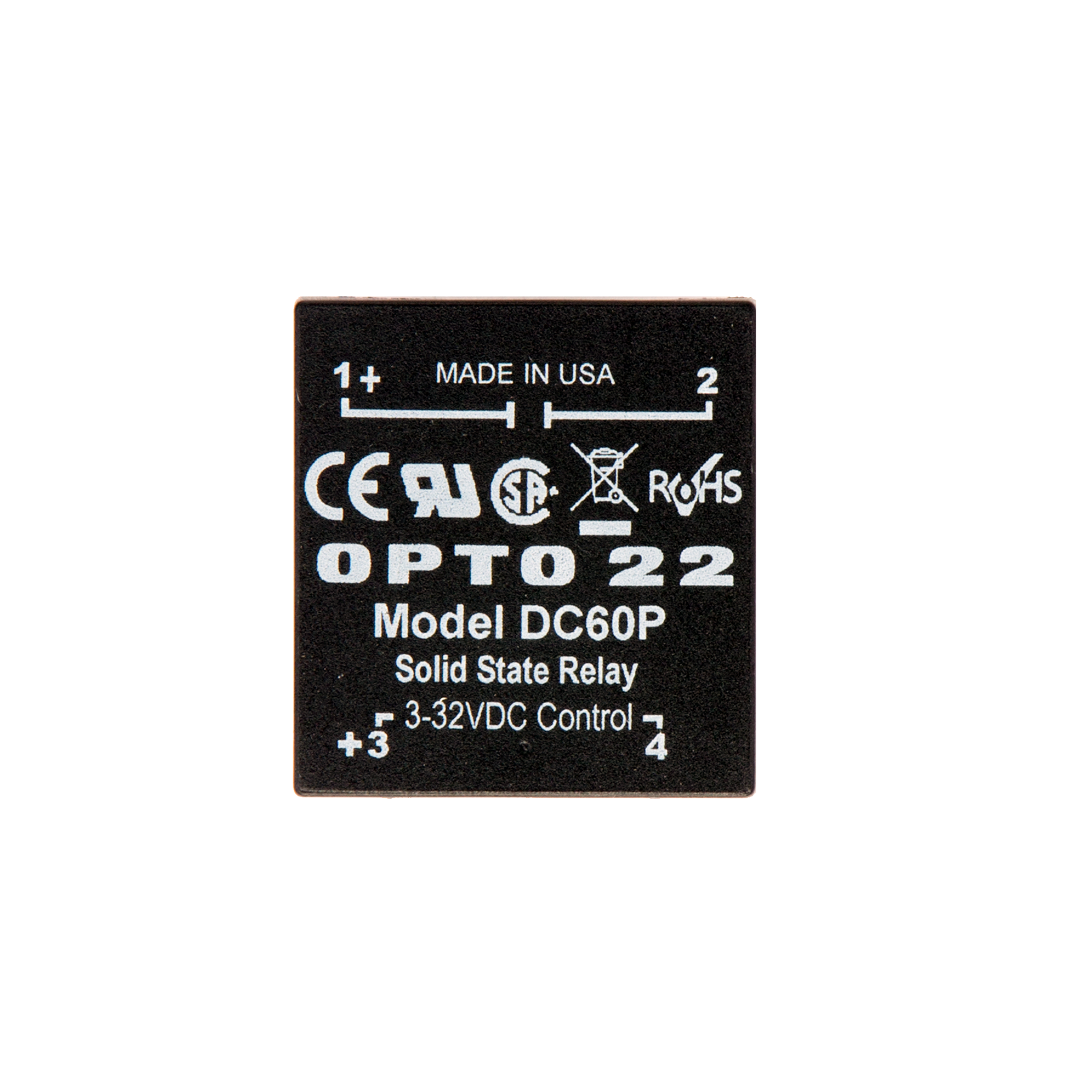

DC60P or DC60MP
DC200P or DC200MP
DC60S3
DC60S5
Operating Voltage Range
5–60 VDC
5–200 VDC
Forward Voltage Drop
1.5 volts at 3 amps
1.5 volts at 1 amp
1.5 volts at 5 amps
Nominal Currrent Rating (Amps)
3*
1*
5*
Off-State Blocking
60 VDC
250 VDC
Signal Pickup Voltage
3 VDC 32 Volts** allowed
3 VDC 32 Volts allowed
Signal Dropout Voltage
1 VDC
Signal Input Impedeance
1,000 ohms
1 Second Surge
5 amps
2 amps
10 amps
Operating Temp. Range
–40 °C to 100 °C
Isolation Voltage
4,000 VRMS
Off-State Leakage
1 mA maximum
Package Type
P/MP series
Power series
Turn-on Time
100 microseconds
Turn-off Time
750 microseconds
Notes: * Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859). ** MP series maximum allowed control signal is 24 VDC.
For more information, see the Solid State Relays Data Sheet (form 0859).
Opto 22 provides a full range of reliable solid-state relays (SSR). This data sheet includes descriptions, specifications, dimensional drawings, and application information for these parts:
