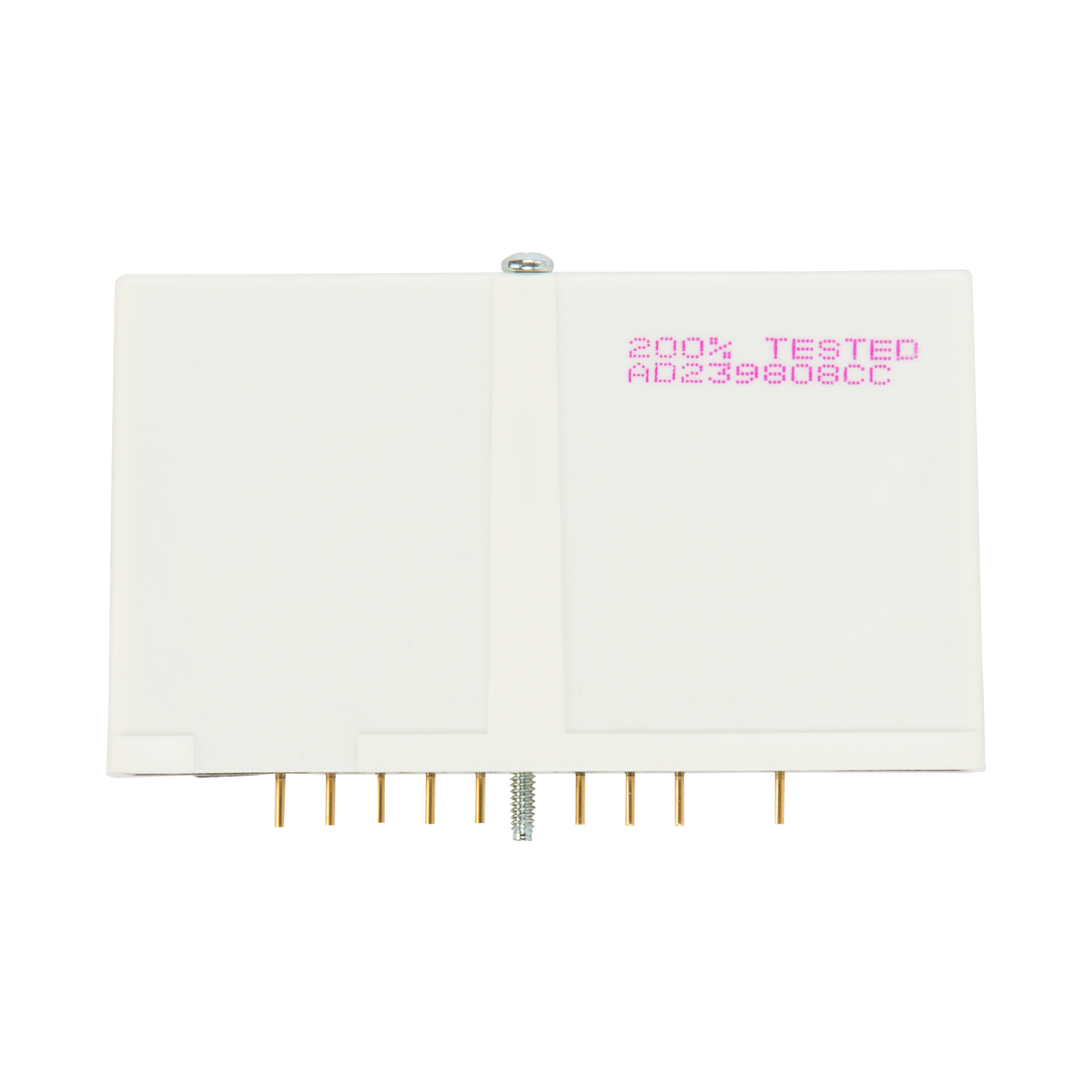

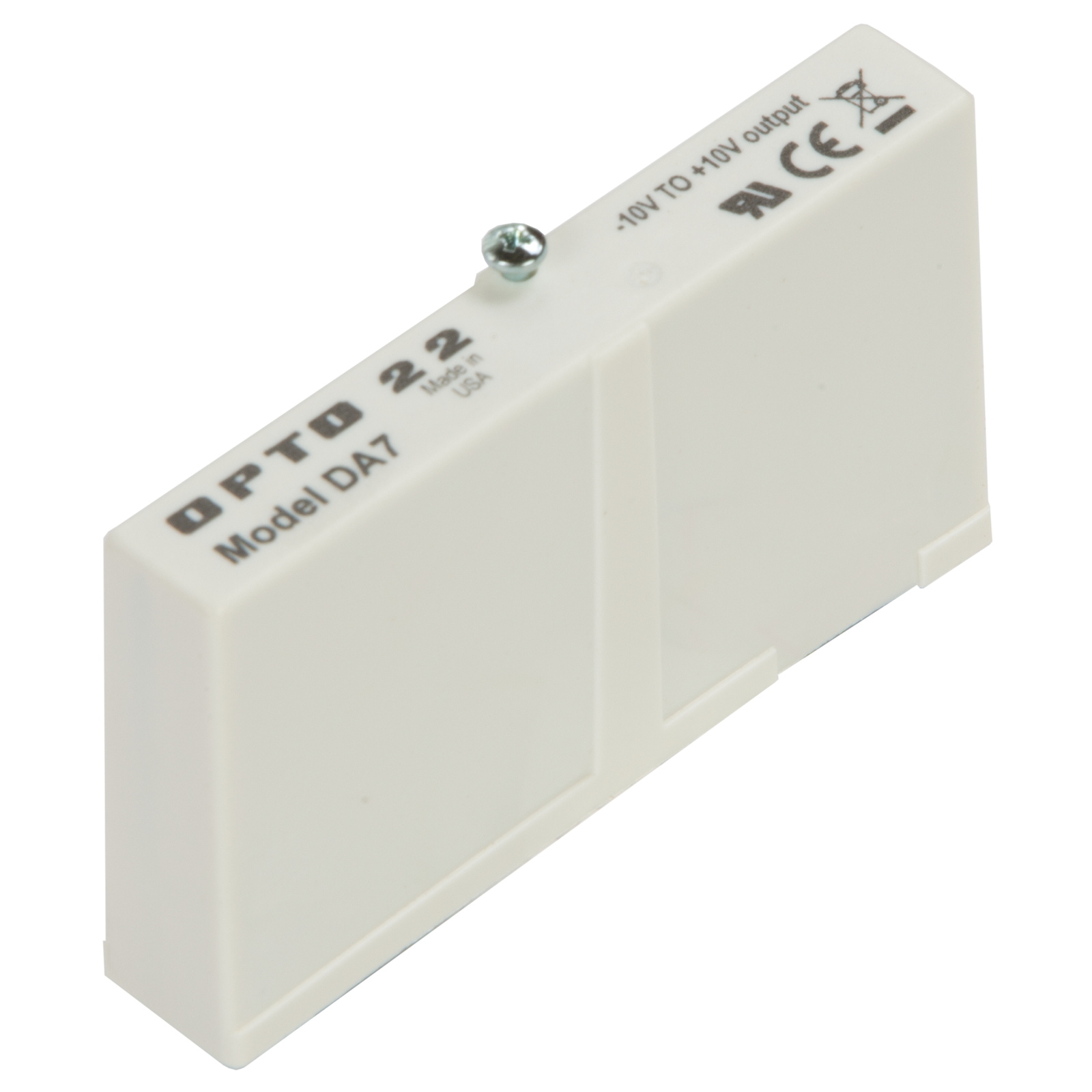

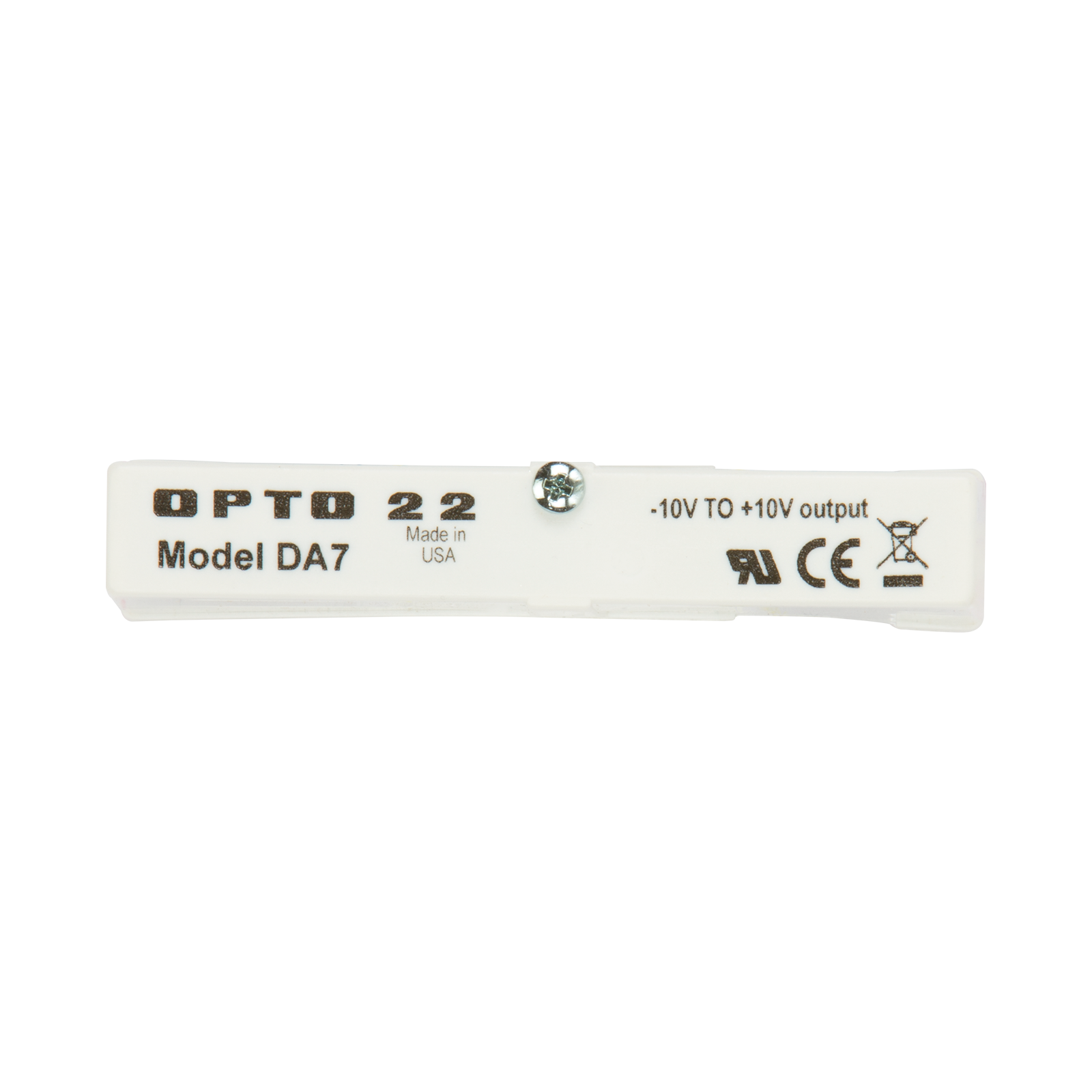

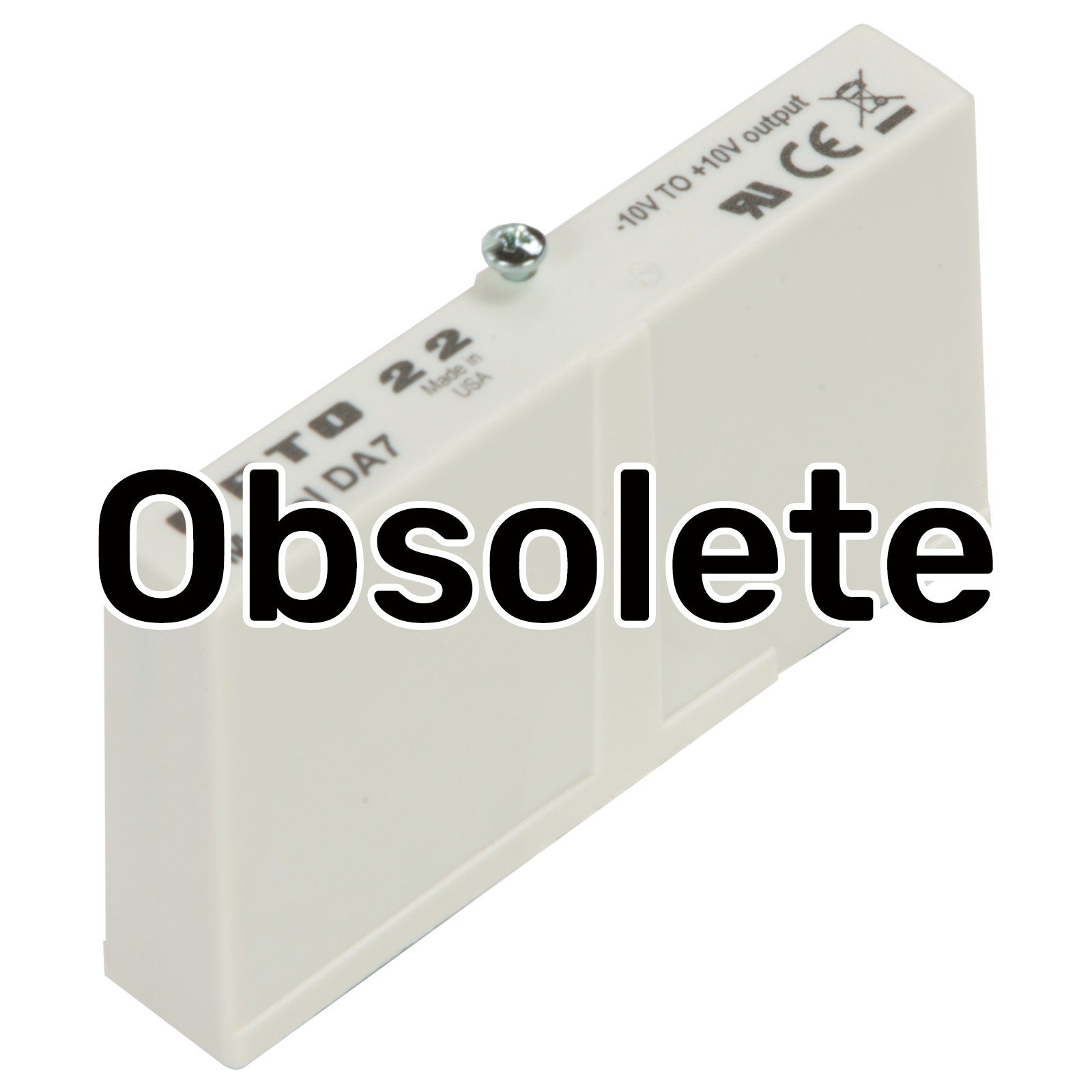

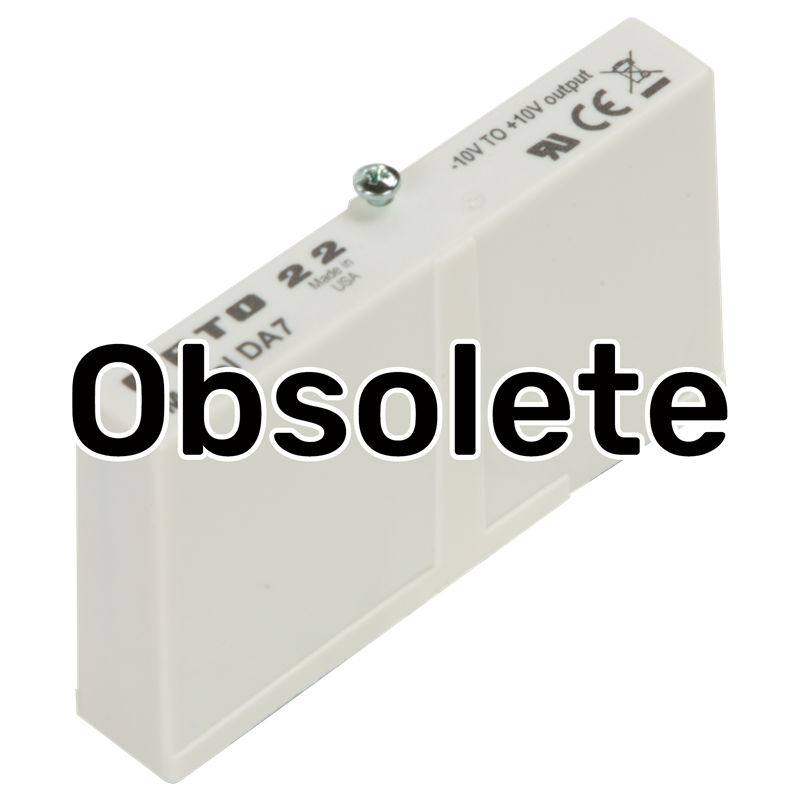

DA7

$231.00 (USA and Canada only)

Availability: In stock
OBSOLETE G1 -10 to +10 VDC Analog Output

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

G1 I/O family

The DA7 provides a single channel of optically-isolated digital-to-voltage conversion. Output voltage is -10 to +10 VDC.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



DA4 [Obsolete]

DA4T

DA5

DA6

DA7 [Obsolete]

DA7T

Output Voltage

0 to 5 VDC

0 to 5 VDC

0 to 10 VDC

-0 to +5 VDC

-10 to +10 VDC

-10 to +10 VDC

Accuracy

±5 mV

±5 mV

±10 mV

±10 mV

±20 mV

±20 mV

Power Requirements

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

Agency Approvals UL, CE; UKCA CE, UKCA UL, CE; UKCA UL, CE, RoHS;
UKCA
CE, RoHS; UKCA CE, RoHS; UKCA



Output Current
  DA4, DA5, DA6, DA7
  DA4T, DA7T



70 mA
25 mA

Output Response Time

Full-scale step change in 3 ms

Resolution

12 bits

Isolation
  Input-to-Output
  Input-to-Analog Supply



4,000 Vrms (Transient)
4,000 Vrms

Temperature
  Operating
  Storage



0 °C to 70 °C
- 25 °C to 85 °C

Standard Voltage Output Modules Data Sheet

The voltage output analog module provides a single channel of optically-isolated digital-to-voltage conversion.This data sheet provides information about these standard voltage output modules: DA4, DA4T, DA5, DA6, DA7, and DA7T.
