DA5
Hover over image to zoom in

DA5

$193.00 (USA and Canada only)

Availability: In stock
G1 0-10 VDC Analog Output

Production Specification

G1 I/O family

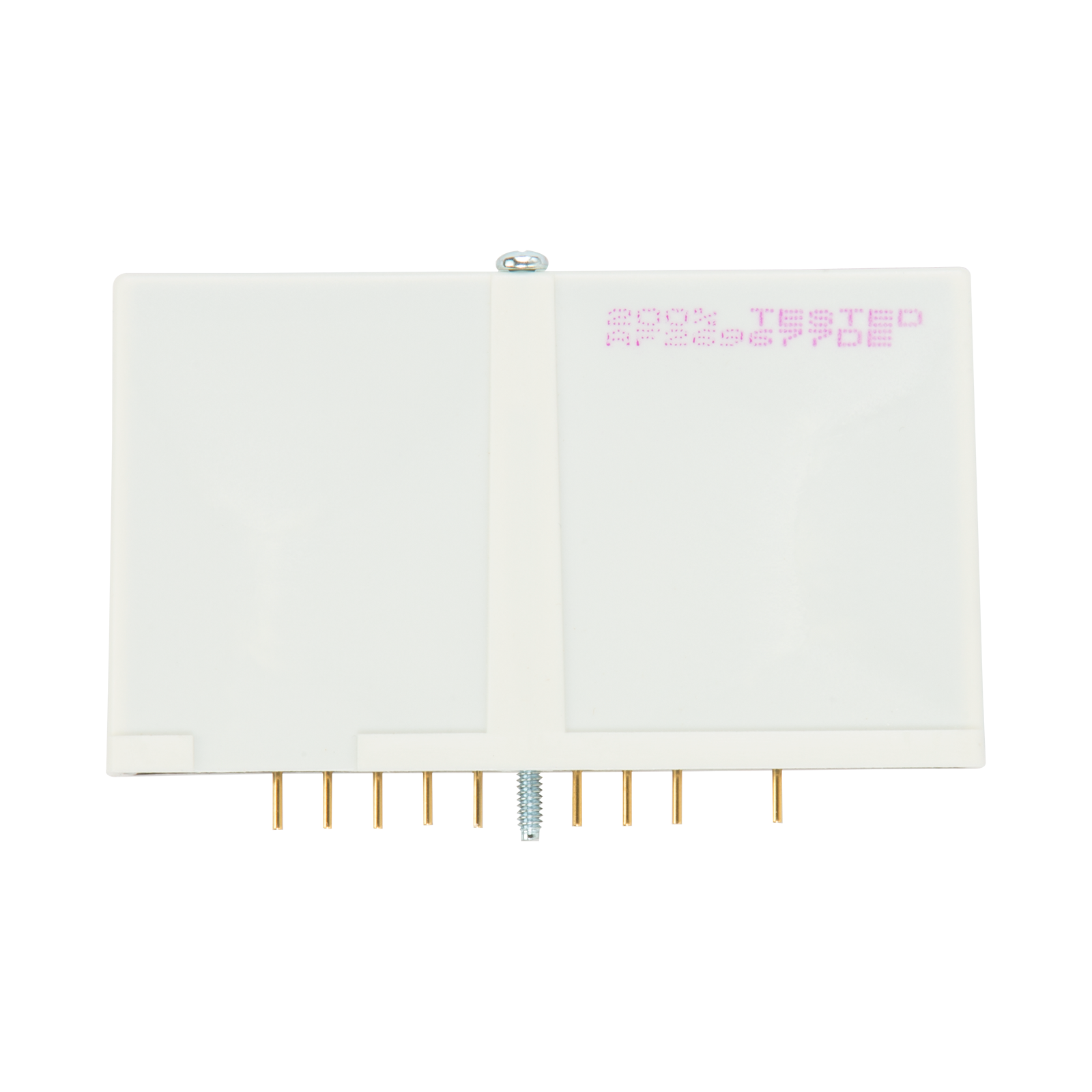

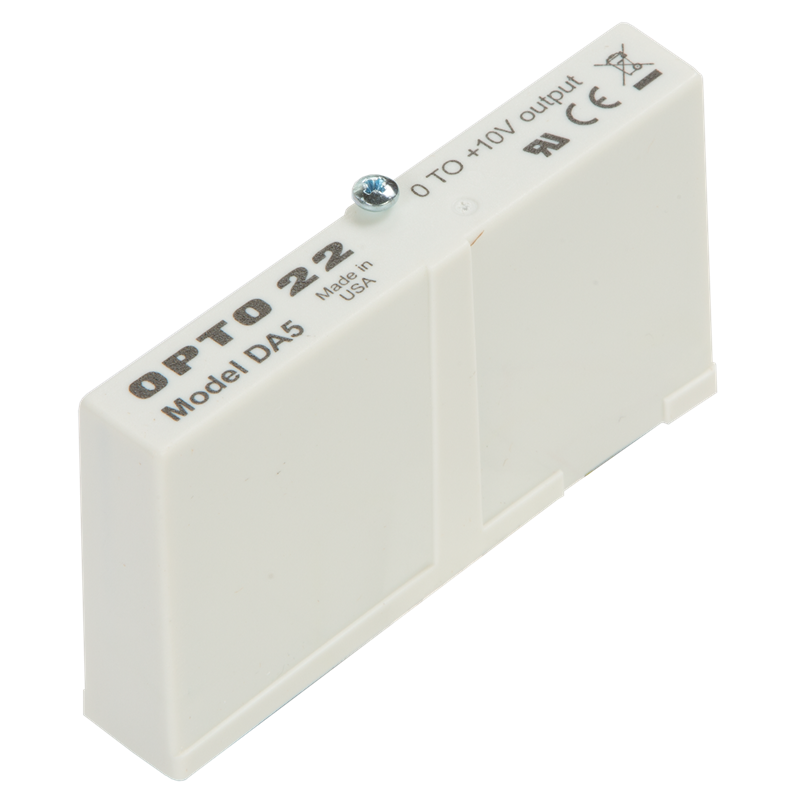

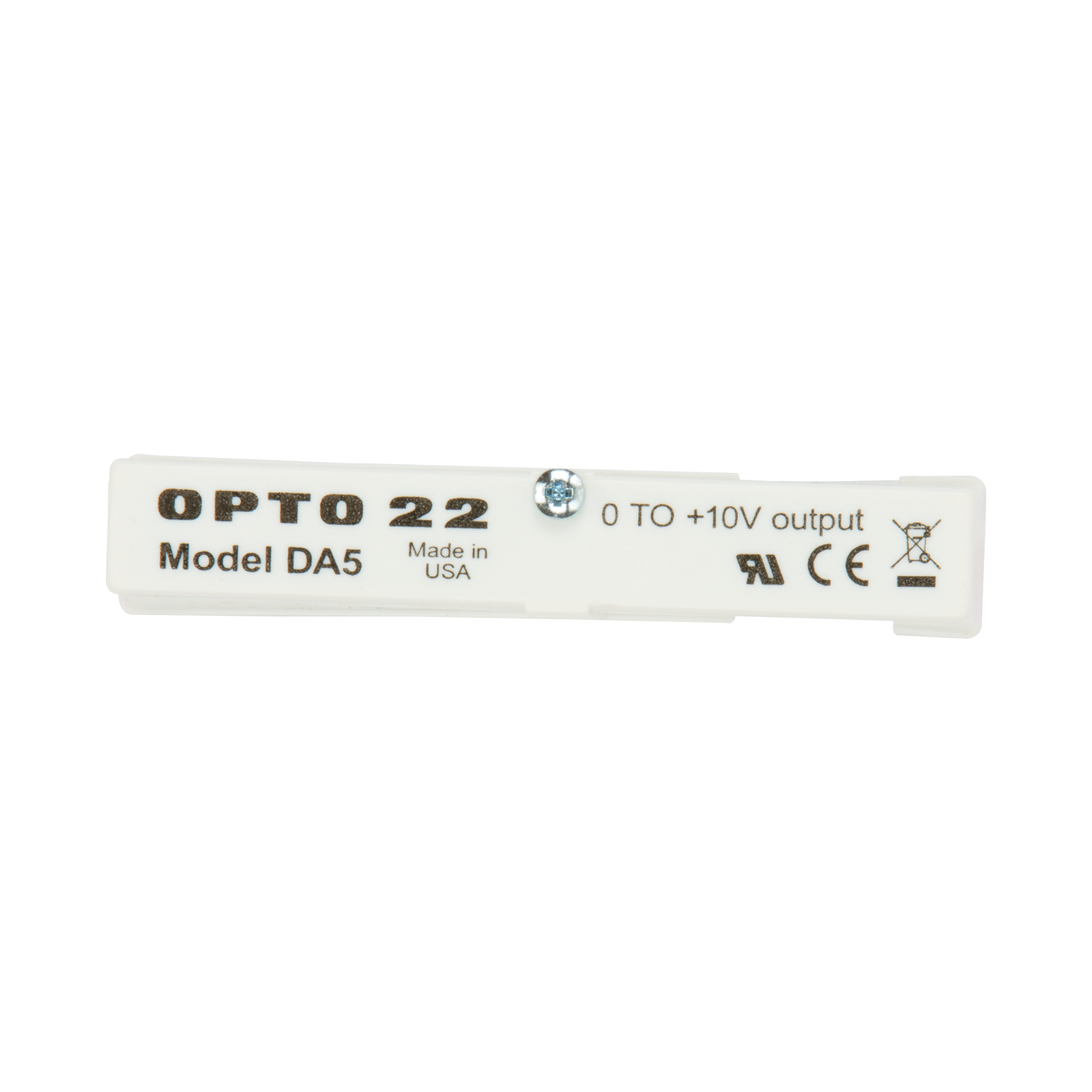

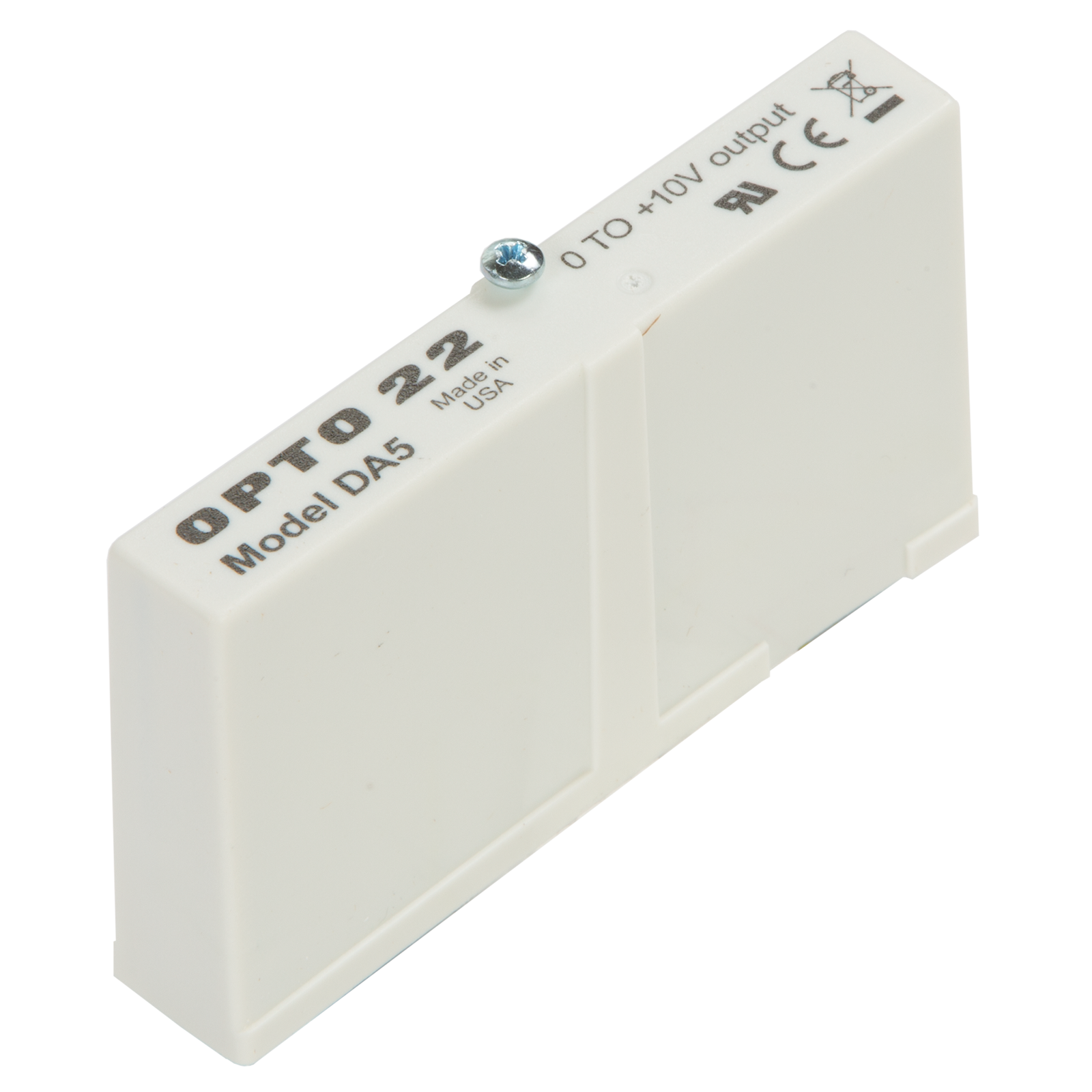

The DA5 provides a single channel of optically-isolated digital-to-voltage conversion. Output voltage is 0-10 VDC.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



DA4

DA4T

DA5

DA6

DA7

DA7T

Output Voltage

0 to 5 VDC

0 to 5 VDC

0 to 10 VDC

-0 to +5 VDC

-10 to +10 VDC

-10 to +10 VDC

Accuracy

±5 mV

±5 mV

±10 mV

±10 mV

±20 mV

±20 mV

Power Requirements

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC

Agency Approvals UL, CE; UKCA CE, UKCA UL, CE; UKCA UL, CE, RoHS;
UKCA
CE, RoHS; UKCA CE, RoHS; UKCA



Output Current
  DA4, DA5, DA6, DA7
  DA4T, DA7T



70 mA
25 mA

Output Response Time

Full-scale step change in 3 ms

Resolution

12 bits

Isolation
  Input-to-Output
  Input-to-Analog Supply



4,000 Vrms (Transient)
4,000 Vrms

Temperature
  Operating
  Storage



0 °C to 70 °C
- 25 °C to 85 °C

Standard Voltage Output Modules Data Sheet

The voltage output analog module provides a single channel of optically-isolated digital-to-voltage conversion.This data sheet provides information about these standard voltage output modules:

  • DA4 [Obsolete]
  • DA4T
  • DA5
  • DA6
  • DA7
  • DA7T [Obsolete]

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
