B6

$408.00 (USA and Canada only)

Availability: Call for Availability
OBSOLETE 16-channel Analog Brain, Pamux Protocol

Please call (800) 321-6786 to order.

Data Sheet
B6

Production Specification

The B6 is obsolete and no longer available. There is no direct or similar replacement. Our SNAP-PAC-R series family of controllers or SNAP-PAC-EB series brains are often used as part of a redesign, but both the hardware and software interfaces for these are completely different from those for the B6.

Please contact Opto 22 Pre-Sales engineers with details about your specific application so they can help recommend parts for a redesign.

--------------------

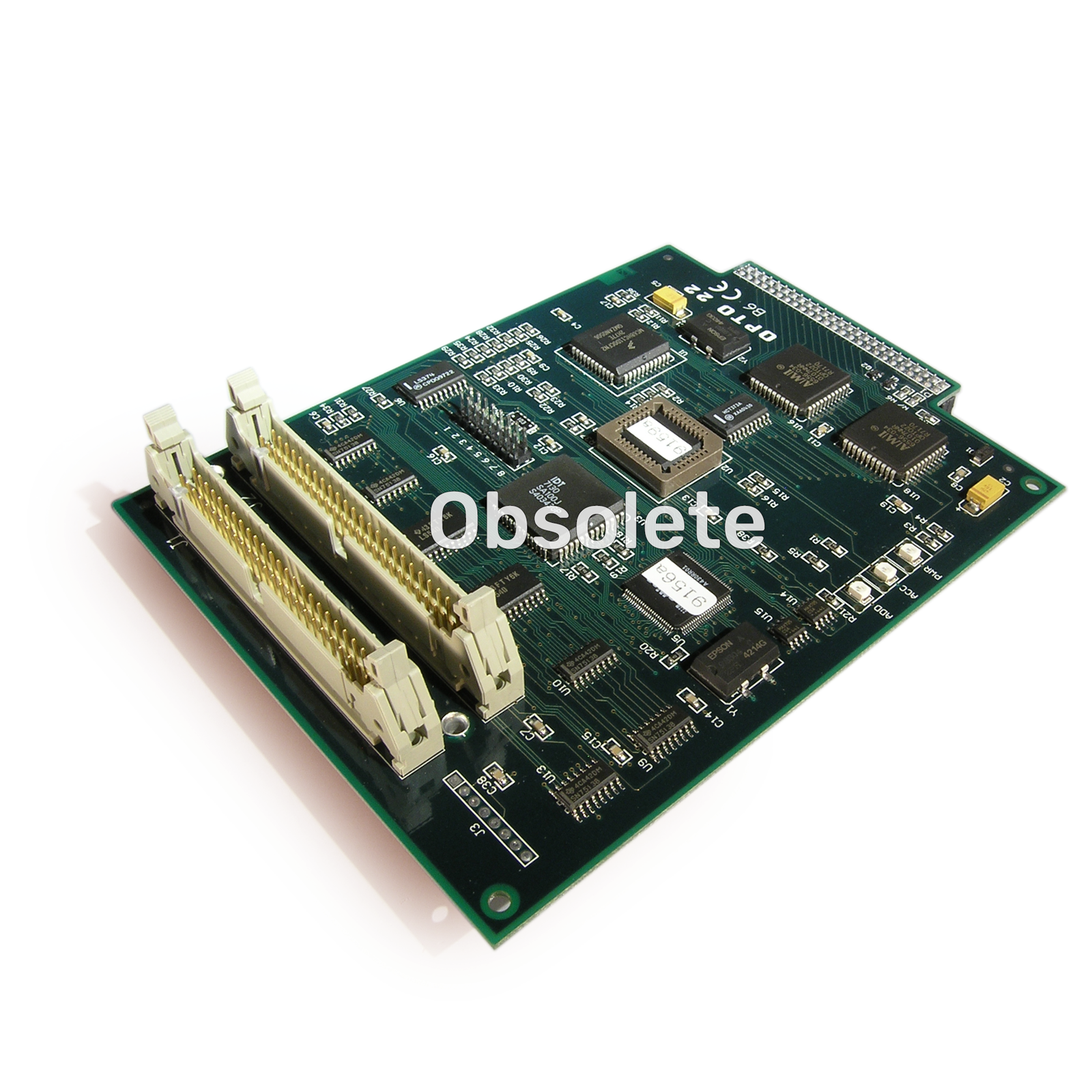

The B6 brain board is an addressable processor that controls up to 16 analog input and output points using the Pamux protocol. For PC-based control, the B6 links to an Opto 22 PCI-AC51 adapter card in a host computer through a 50-pin header connector.

For stations on a Pamux bus to operate correctly, both ends of the bus must be terminated. Use part number TERM 1 or TERM 2 (shielded cable) for termination. See the Pamux User's Guide for more details.

The PAMUX Systems SDK is used to develop a control program for use with the B6.

NOTE: Older PCs with an ISA slot used the AC28 adapter card and the AC28 and PCI-AC48 Adapter Card Toolkit.

The B6 was designed for use with Standard (G1) analog I/O modules and the following Opto 22 I/O mounting racks: PB4AH, PB8AH, and PB16AH.
Specifications are not currently available for this product.

0739

B6 Analog Brain Board Data Sheet and Installation Notes

The Pamux B6 is an addressable analog brain board that can control up to 16 input and output points in distributed I/O applications. The B6 is designed for use with Opto 22 mounting racks.

View

0726

Pamux User's Guide

This manual provides all the information you will need to set up and use a Pamux system. It features complete descriptions of all Pamux components, including the B4, B5, and B6 brain boards and the AC28 and AC36 adapter cards.

View

2273

Declaration of Conformity (LVD)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

0891

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View

PamScan for MS-DOS

PamScan for MS-DOS is a software utility for troubleshooting Pamux hardware.

Before you download, read the Legal Agreement.

View

PamScan for Windows 8/7/Vista (32-bit)

PamScan for Windows 8/7/Vista (32-bit) is a software utility for troubleshooting PAMUX hardware.

Before you download, read the Legal Agreement.

View

PamScan for Windows 8/7/Vista (64-bit)

PamScan for Windows 8/7/Vista (64-bit) is a software utility for troubleshooting Pamux hardware.

Before you download, read the Legal Agreement.

View

PamScan PCI for Windows XP/2000

PamScan PCI Windows XP/2000 is a software utility for troubleshooting PAMUX hardware.

Before you download, read the Legal Agreement.

View
No videos or demos are available for this product.
