AD7
Hover over image to zoom in

AD7

$163.00 (USA and Canada only)

Availability: In stock
G1 0 to +10 VDC Analog Input

Production Specification

G1 I/O family

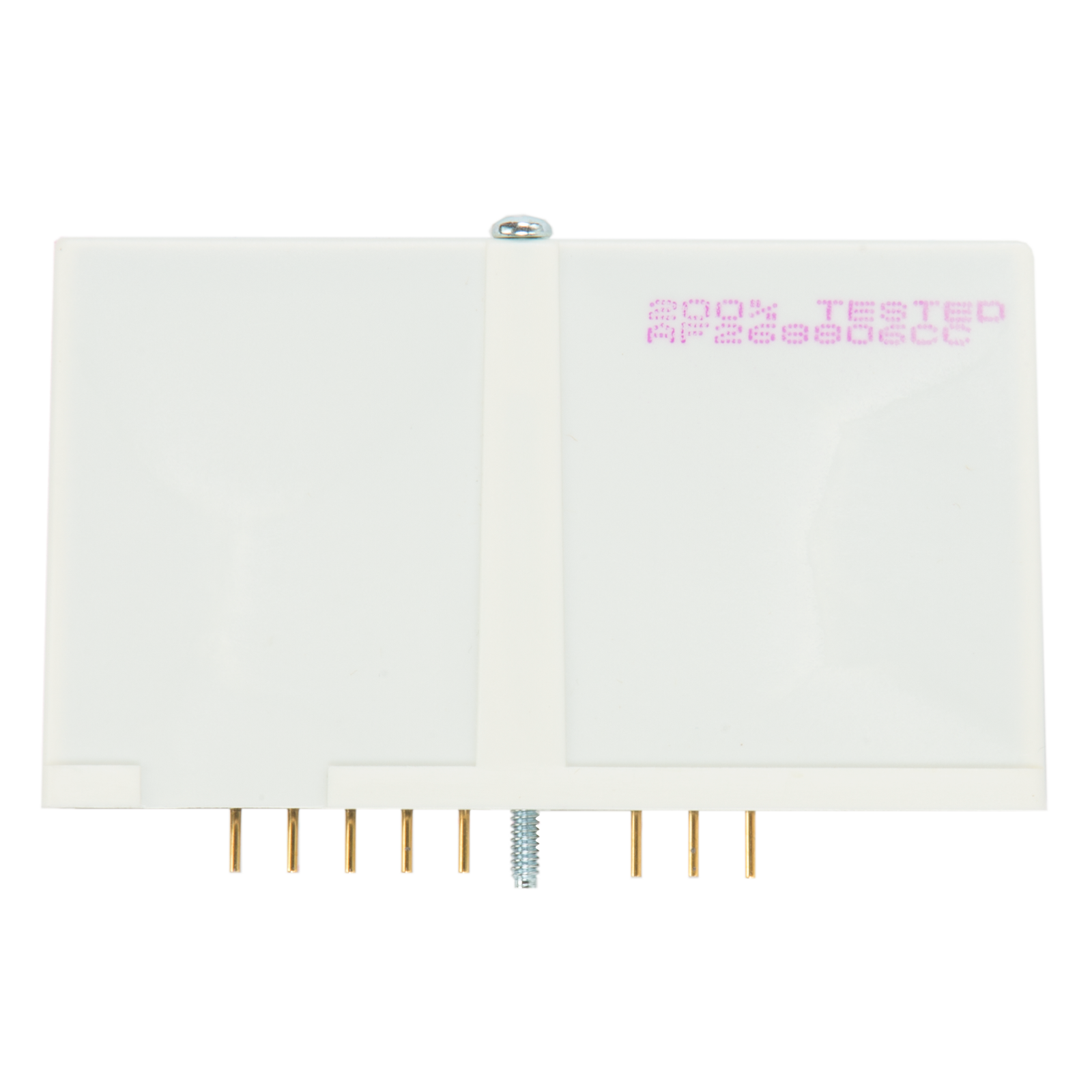

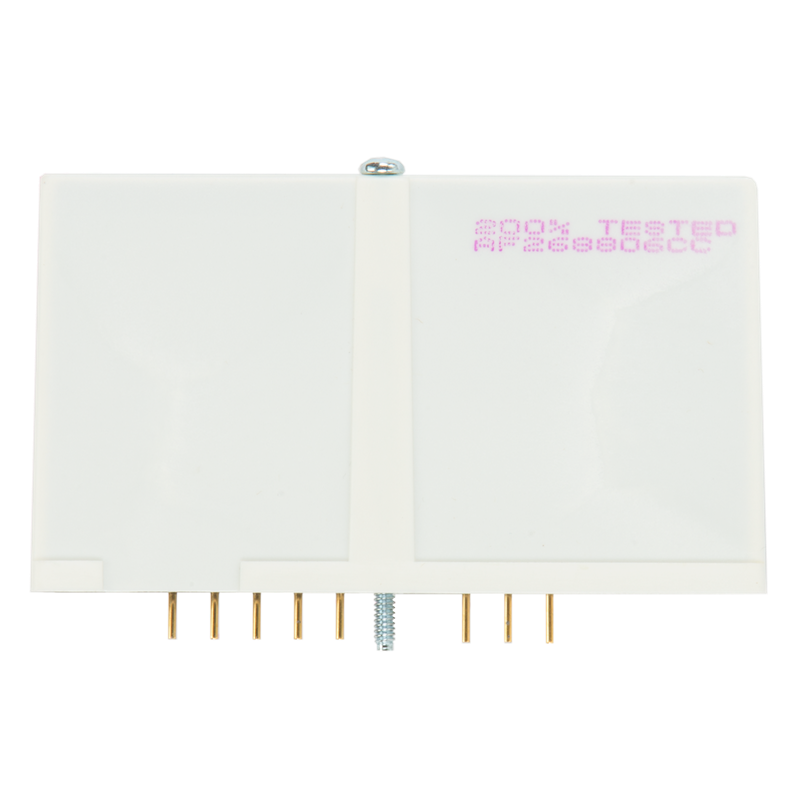

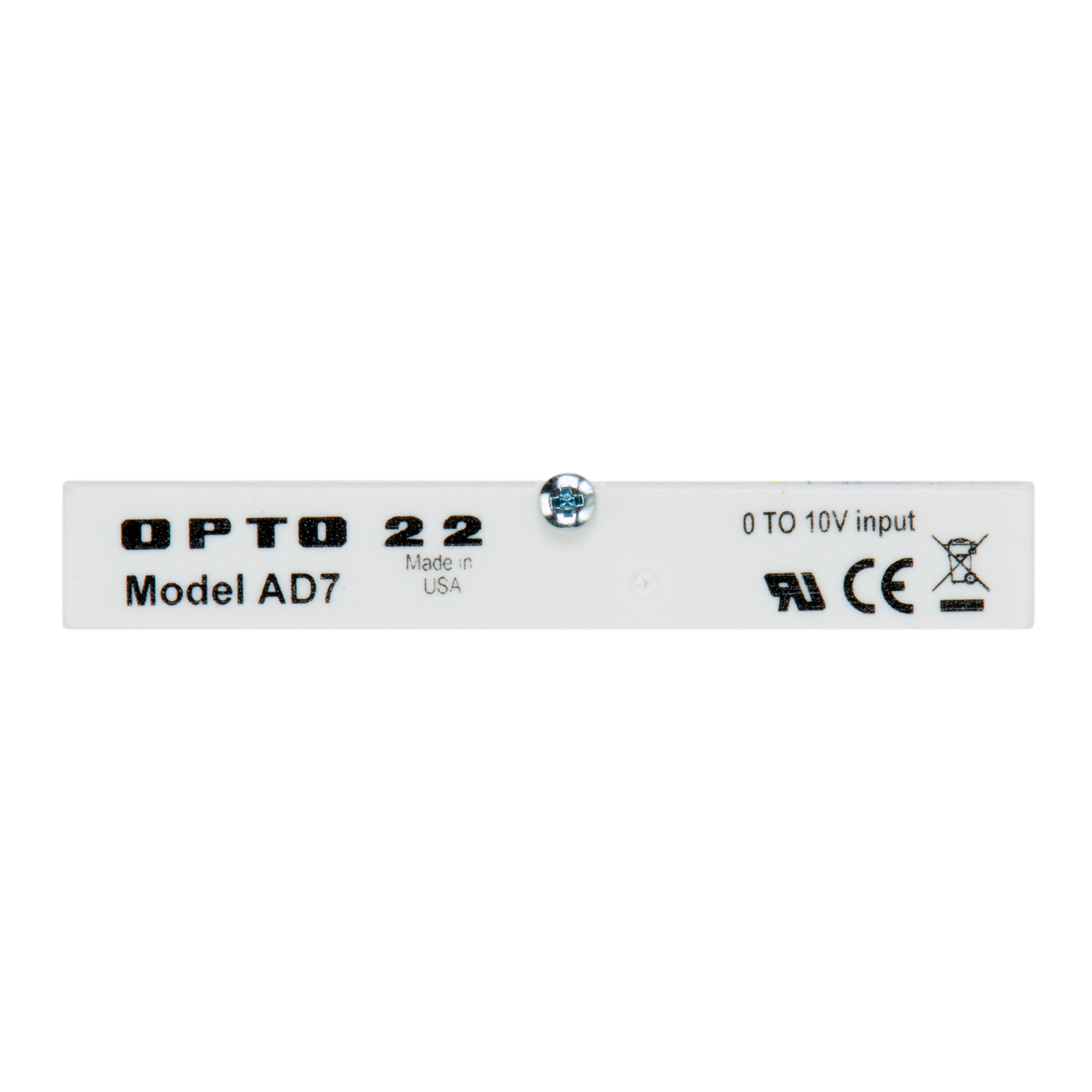

The AD7 analog input module provides a single channel of optically isolated voltage-to-digital conversion. Nominal voltage input is 0 to +10 VDC.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



AD6
AD6HS

AD6T

AD7

AD9T

Nominal Voltage Input

0 to 5 VDC

0 to 5 VDC

0 to 10 VDC

0 to 50 mVDC

Over/Under
Range Capability

-.125 to 11 VDC

-.125 to 11 VDC

-.250 to 11 VDC

-.125 to 110 mVDC

Accuracy*

± 5 mV

± 5 mV

± 10 mV

± 100 mV

Power Requirements

16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

16 mA at +15 (+/- 0.25) VDC
11 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

Agency Approvals CE; UKCA CE; UKCA CE; UKCA CE; UKCA

*May be improved by the use of the "Set Offset" or "Set Gain" commands in the OPTOMUX command set.



Input Response Time*

5% of scale change in 8.5 ms 63% of scale change in 165 ms

Resolution

12-bits

Isolation
  Input-to-Output
  Input-to-Analog Supply ("T" Modules)



4,000 VRMS
4,000 VRMS

Temperature
  Operating
  Storage



0 to 70 °C
-25 to 85 °C

*AD6HS input response 100% step change in less than 3 milliseconds.
