$304.00 (USA and Canada only)
AD17T
AD18T
AD19T
Thermocouple Type
R
S
T
E
Nominal Temperature Range °C
0° to 960°
0° to 1034°
-200° to 224°
-100° to 435°
Nominal Temperature Range °F
32° to 1760°
32° to 1893°
-328° to 435°
-148° to 815°
Over/Under Range Capability °C
-50° to 1768°
-200° to 400°
-100° to 900°
Over/Under Range Capability °F
-58° to 3214°
-328° to 752°
-148° to 1652°
Average Resolution
0.23 °C (200 to 960 °C) 0.35 °C (960 to 1768 °C)
0.25 °C (200 to 1034 °C) 0.48 °C (1034 to 1768 °C)
0.1 °C (-200 to 244 °C) 0.14 °C (244 to 400 °C)
0.13 °C (-100 to 435 °C) 0.23 °C (435 to 900 °C)
Accuracy*
± 5 °C (200 to 960 °C) ± 3.5 °C (960 to 1768 °C)
± 5.2 °C (200 to 1034 °C) ± 4.2 °C (1034 to 1768 °C)
± 3 °C (-100 to 224 °C) ± 2 °C (224 to 400 °C)
± 3 °C
Repeatability
± 2.5 °C (200 to 960 °C) ± 1.8 °C (960 to 1768 °C)
± 2.6 °C (200 to 1034 °C) ± 2.1 °C (1034 to 1768 °C)
± 1.0 °C (-100 to 0 °C) ± 0.6 °C (0 to 224 °C) ± 0.4 °C (224 to 400 °C)
± 0.8 °C (-100 to 0 °C) ± 0.6 °C (0 to 435 °C) ± 0.5 °C (435 to 900 °C)
Power Requirements
30 mA at +15 (+/- 0.25) VDC 30 mA at -15 (+/- 0.25) VDC
*Accuracy may be improved by the use of "Set Offset" and "Set Gain" commands in the OPTOMUX command set.

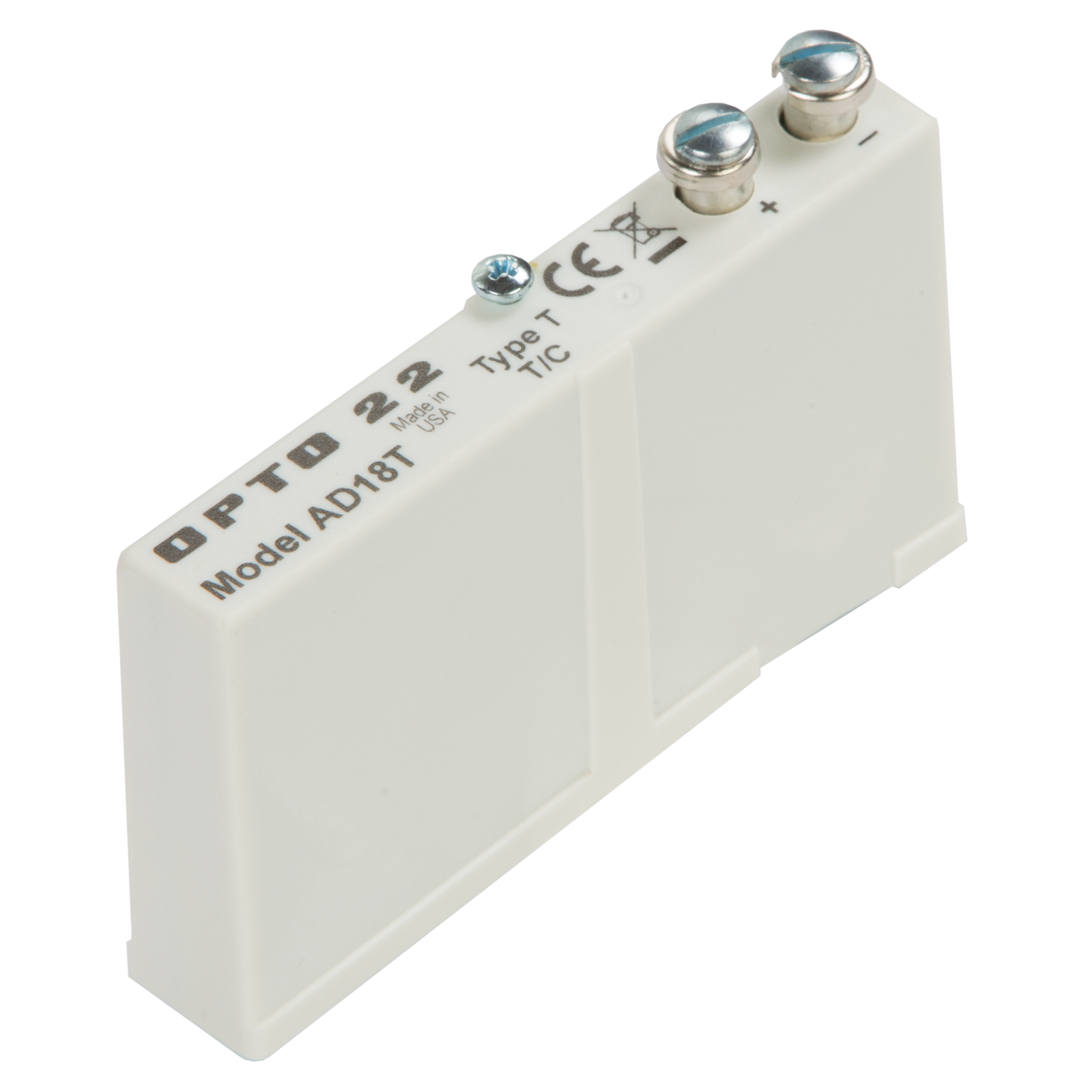

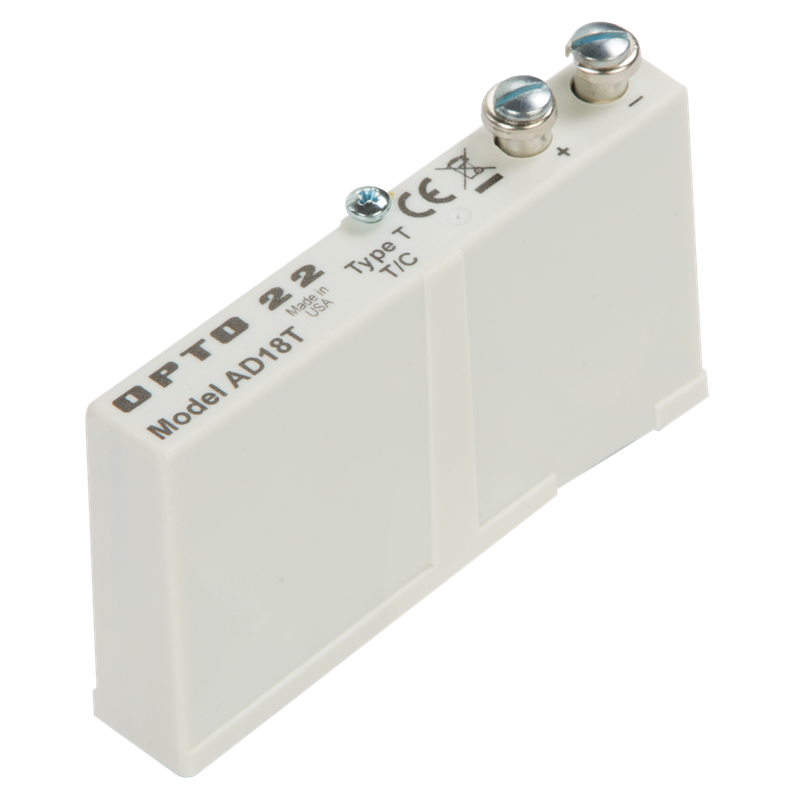

The thermocouple analog modules provide a single channel of optically isolated temperature-to-digital conversion.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
