AD16T
Hover over image to zoom in

AD16T

$250.00 (USA and Canada only)

Availability: In stock
G1 0 to 5 Amp Analog Input, Isolated

Production Specification

G1 I/O family

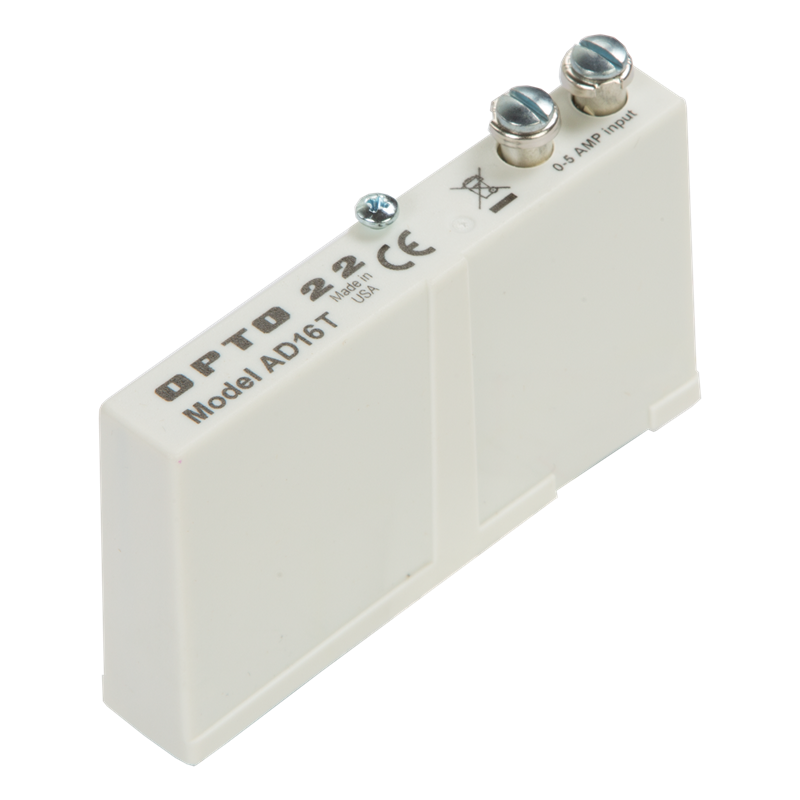

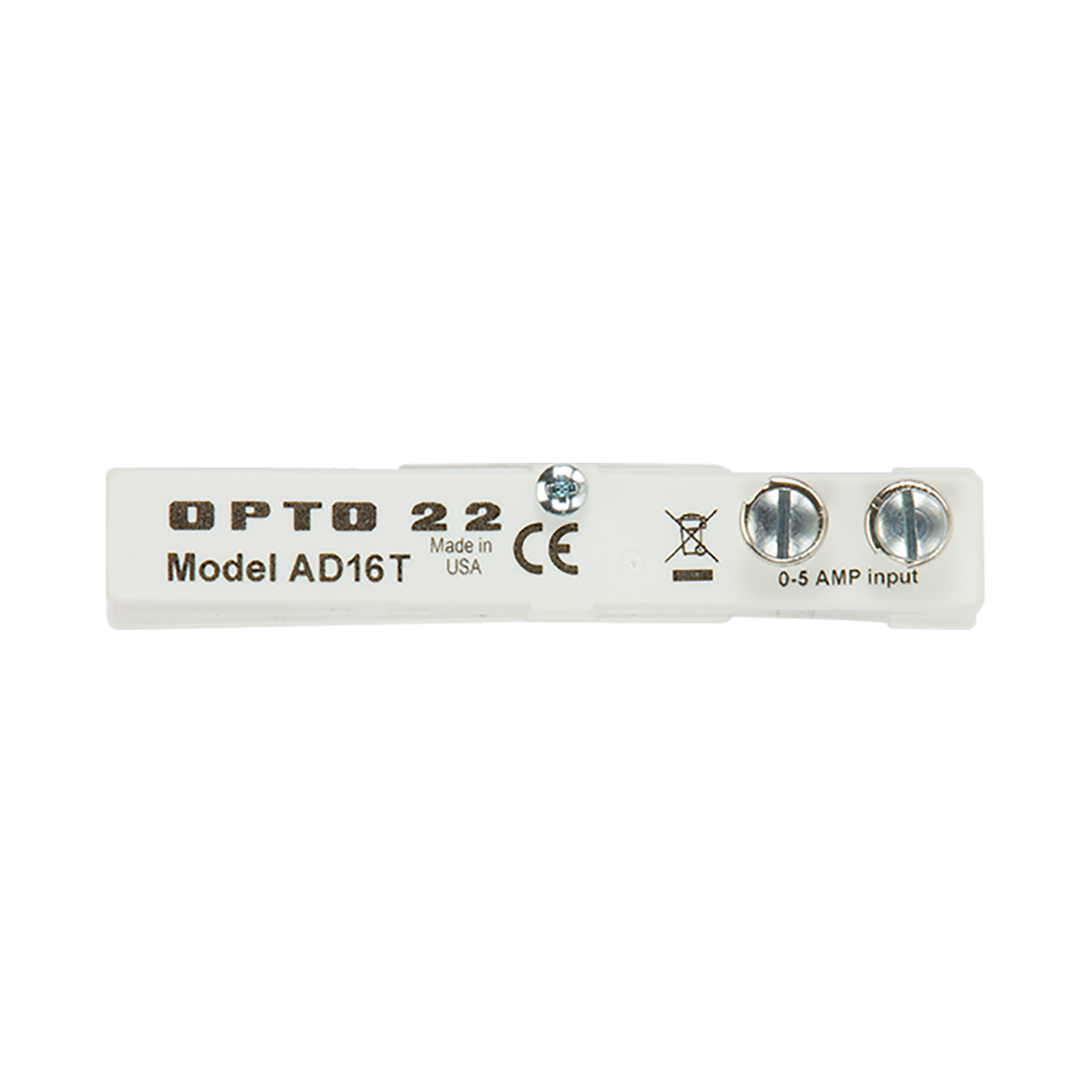

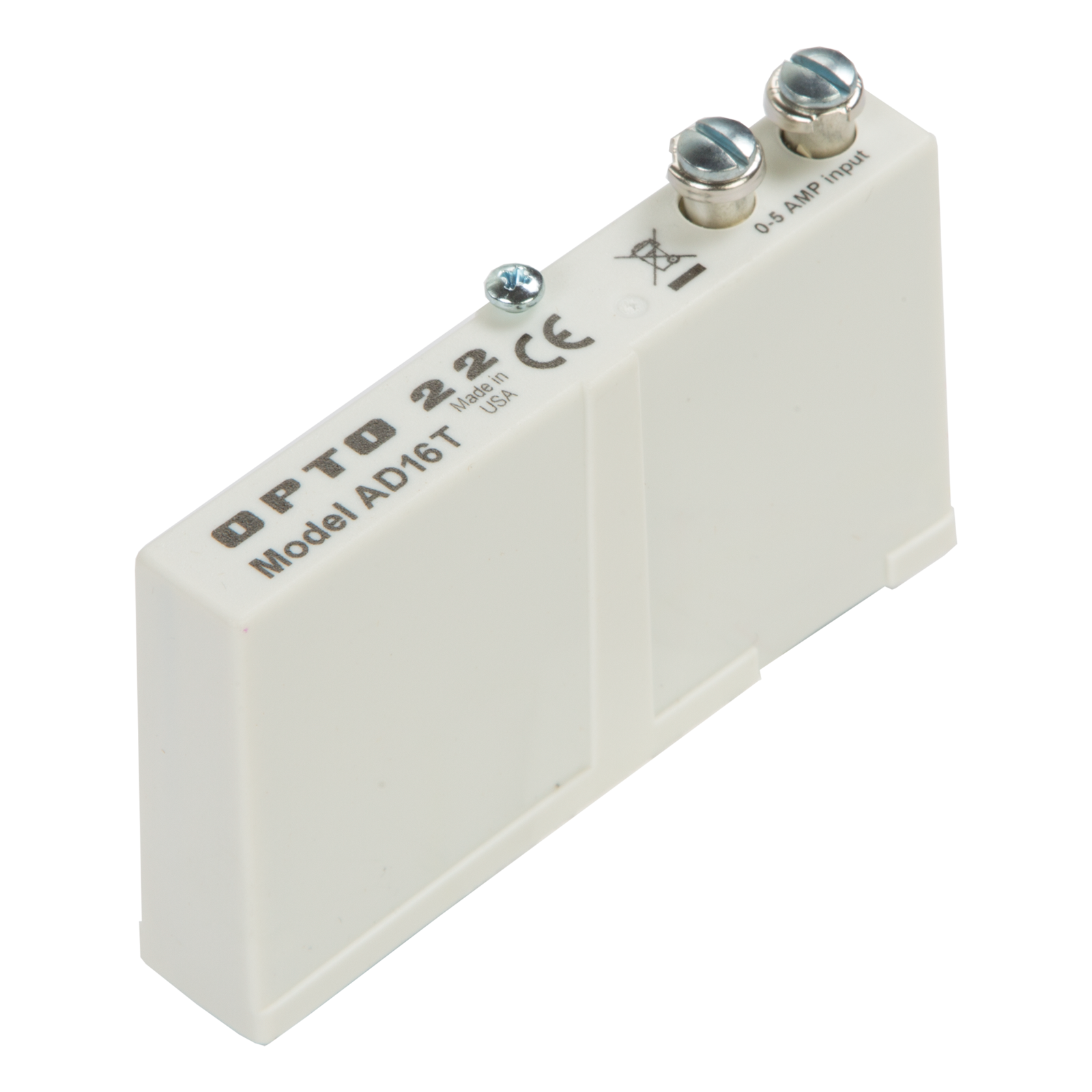

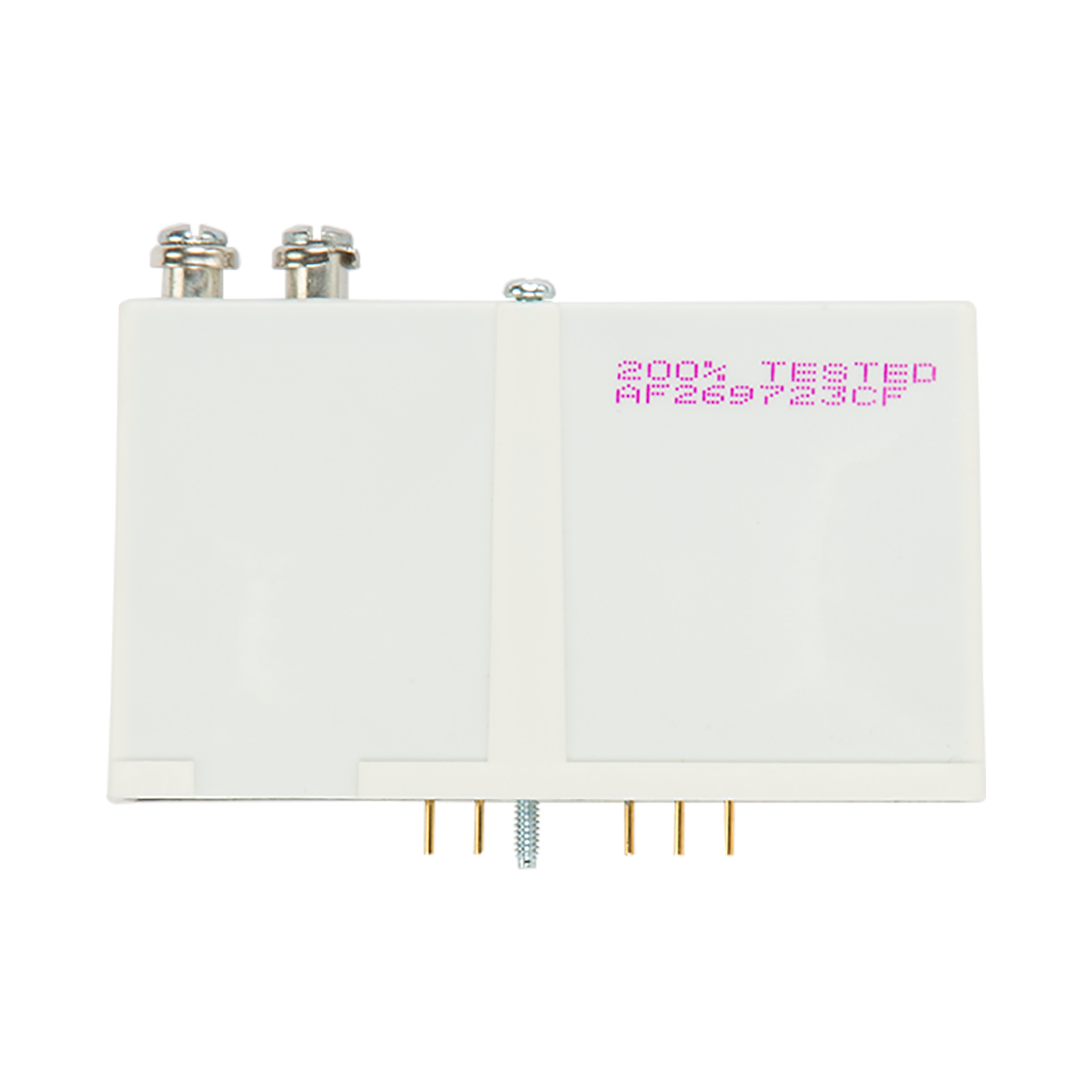

The AD16T analog input module provides a single channel of optically isolated true RMS current-to-digital conversion. This module also provides transformer isolation to eliminate any ground loop problems. Nominal input is 0 to 5 amps. An ideal input is the 5-amp secondary of a standard current transformer used to monitor AC line current.

This module mounts on a G1 analog mounting rack, for example the  PB16AH.

Input

0–5 amps AC/DC

Input Impedance

.02 Ohms

Maximum Input

8 amps AC/DC

Accuracy

±25 mA

Resolution

12 bits

Response Time

Full-scale step change in 100 ms

Isolation
  Input-to-Analog Supply
  (T model)



4,000 VRMS
4,000 VRMS

Power Requirements

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

Ambient Temperature:
  Operating
  Storage



0 to 70 °C
- 25° to 85 °C

Standard 0-5 Amp AC/DC Current Input Module Data Sheet

The AD16T module provides a single channel of optically-isolated true RMS current-to-digital conversion.
