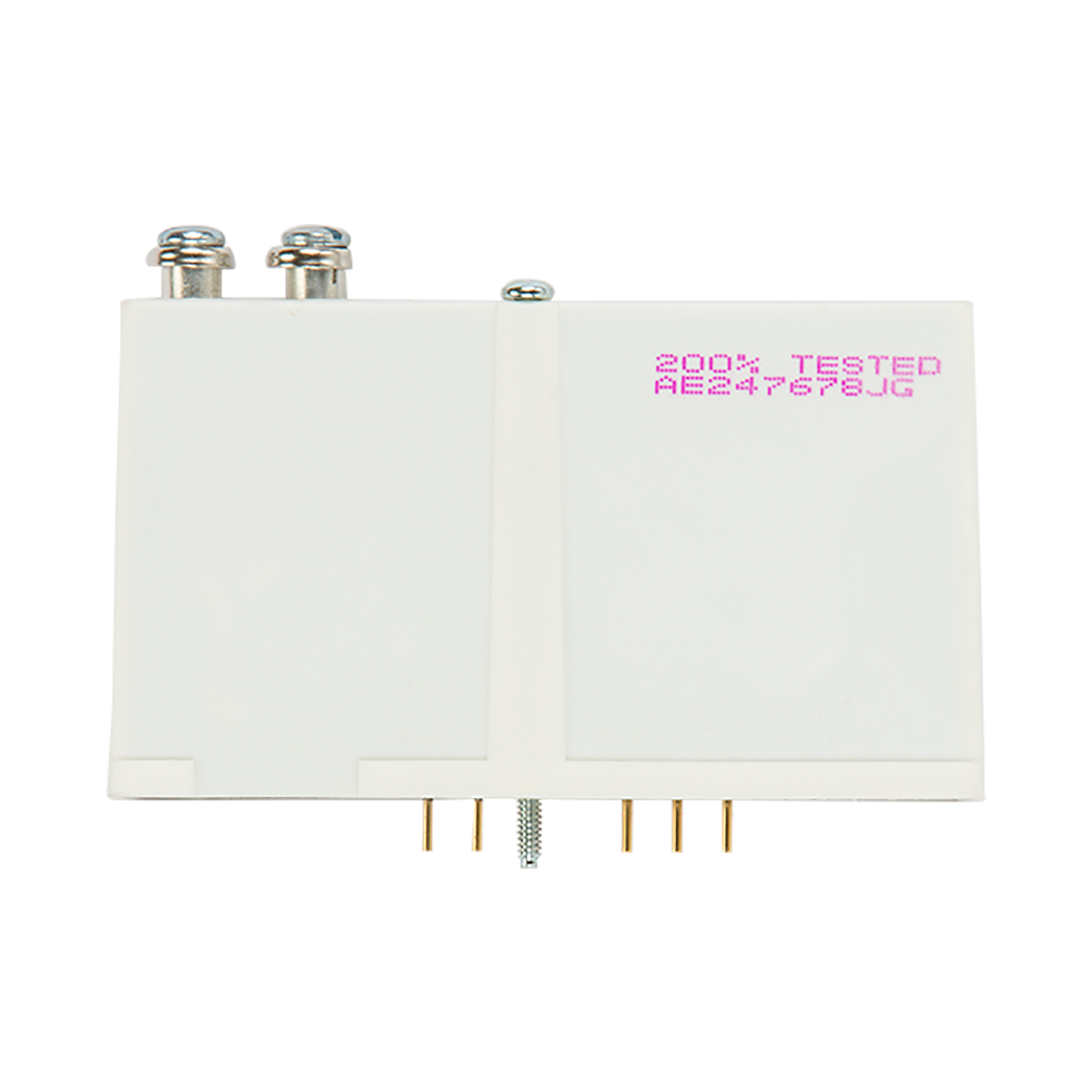

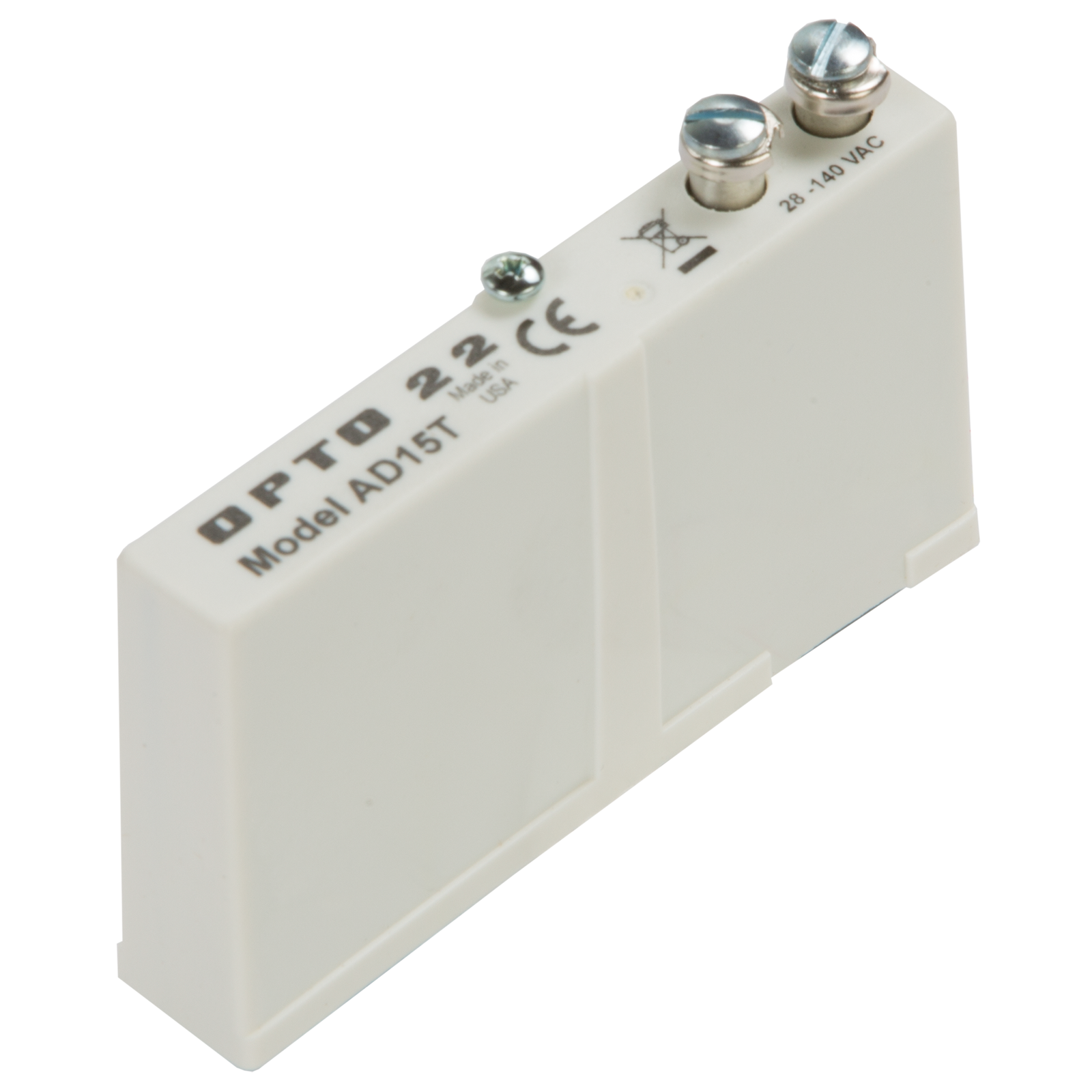

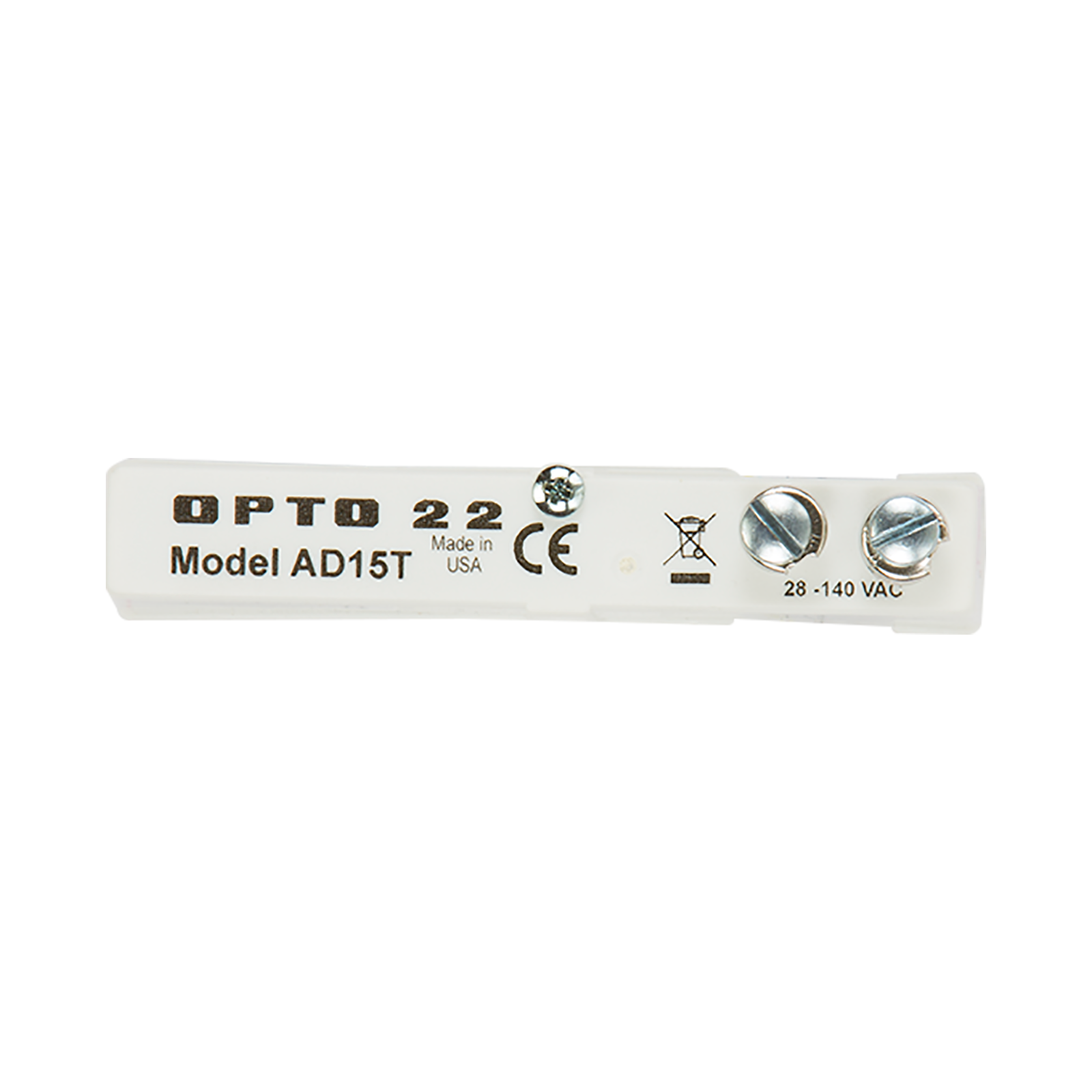

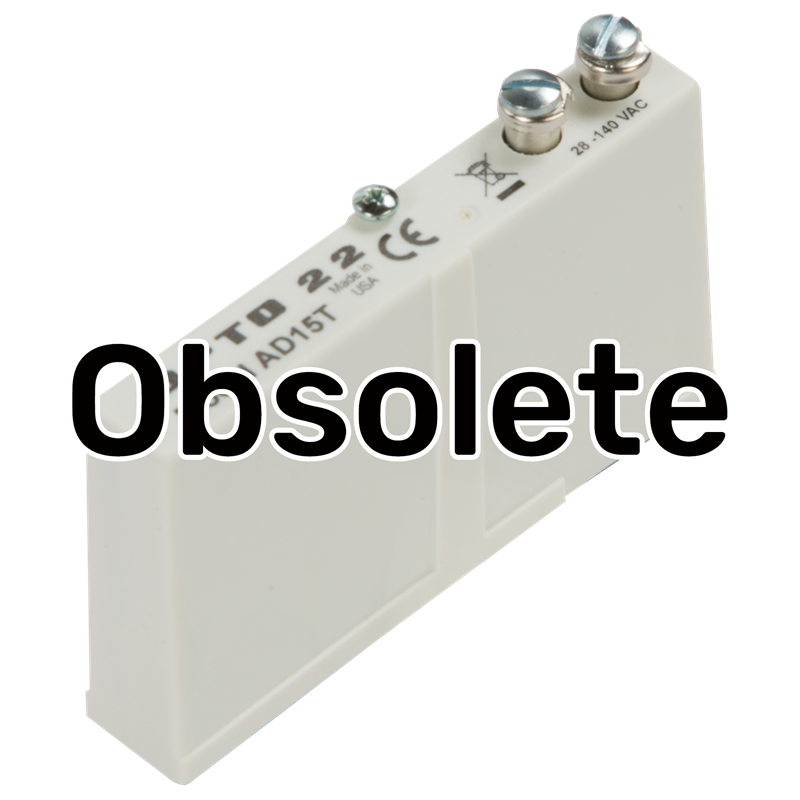

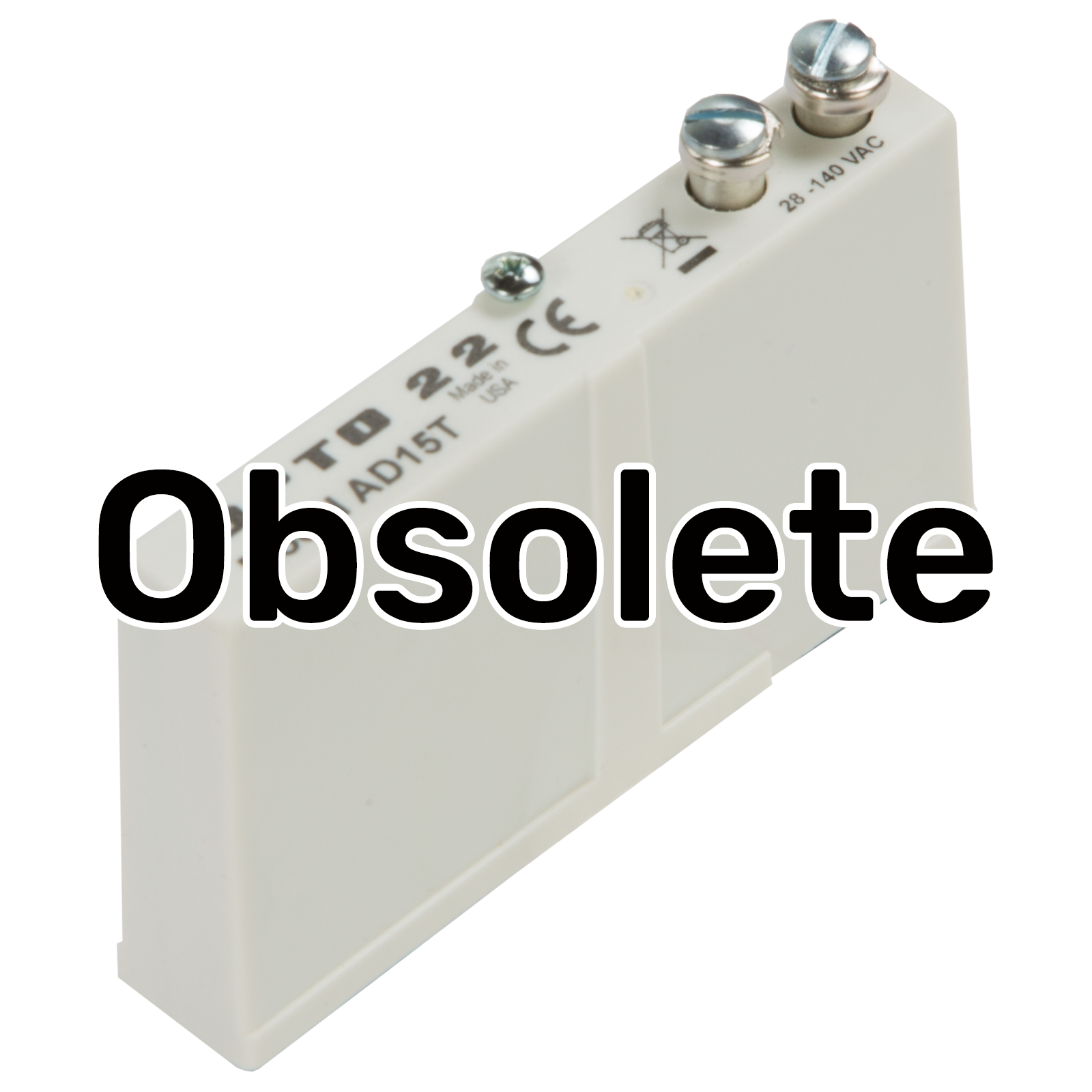

AD15T
Hover over image to zoom in

AD15T

$222.00 (USA and Canada only)

Availability: In stock
G1 28 to 140 VAC Analog Input, Isolated

Production Specification

G1 I/O family

The AD15T analog input module provides a single channel of optically isolated and channel-to-channel isolated voltage-to-digital conversion. Nominal voltage input is 28 to 140 VAC. The module's 4,000 Vrms channel-to-channel isolation eliminates ground loop problems.

This module mounts on a G1 analog mounting rack, for example the  PB16AH.

Input Range

28 to 140 VAC

Input Under/Over Range

25 to 280 VAC

Resolution

27 mVAC

Input Response Time

full scale step change in 1.5 seconds

Input Impedance

270 k ohms

Maximum Differential Input

280 VAC

Accuracy

0.5%

Isolation:
  Input-to-Logic Output
  Module-to-Module



4,000 Vrms (optically coupled)
1,500 Vrms (transformer coupled)

Power Requirements

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

Ambient Temperature:
  Operating
  Storage



0 to 70 °C
- 25 to 85 °C

Standard Analog 28-140 VAC Input Module Data Sheet

The AD15T module provides a single channel of optically-isolated voltage-to-digital conversion with 4,000 V rms transient-isolation.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
