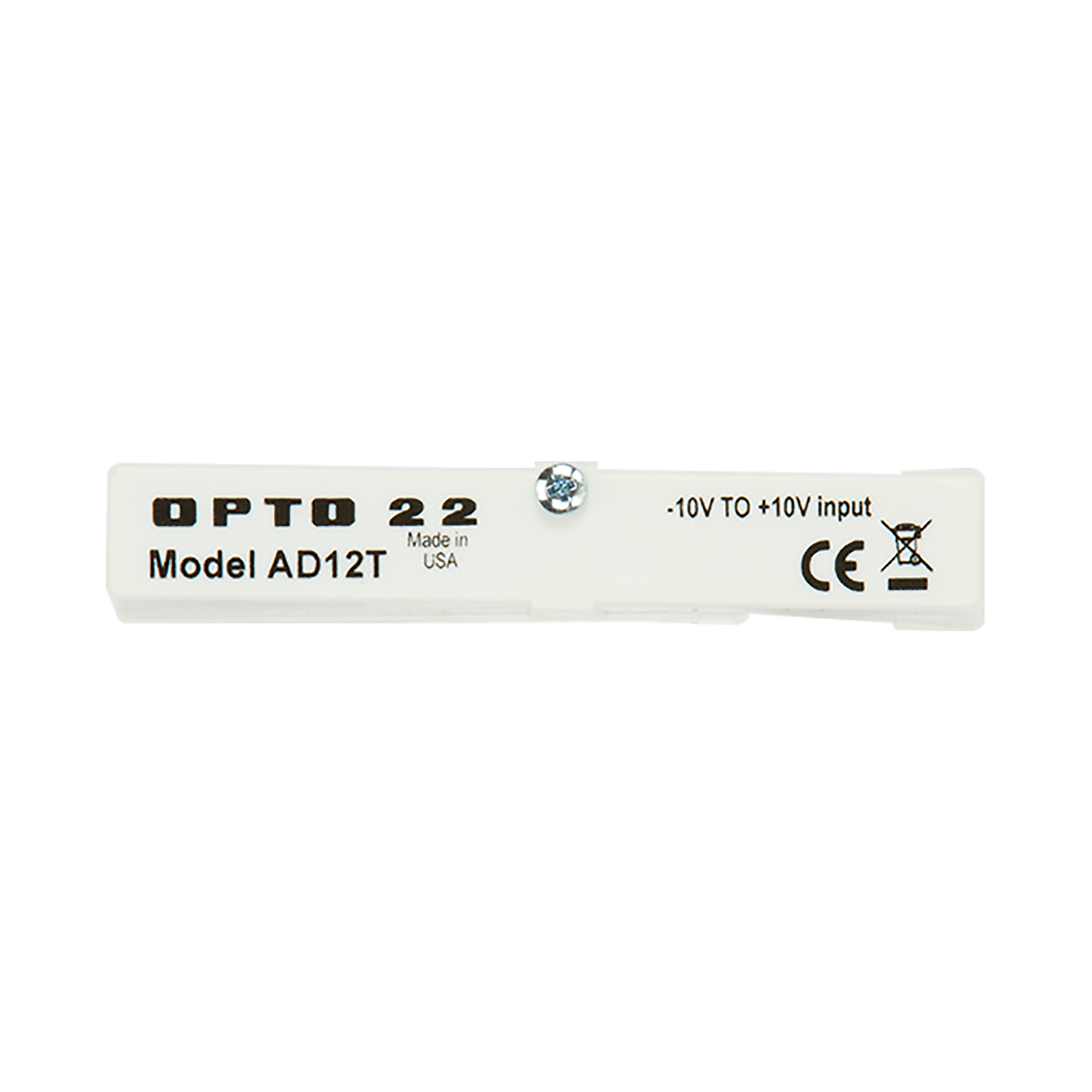

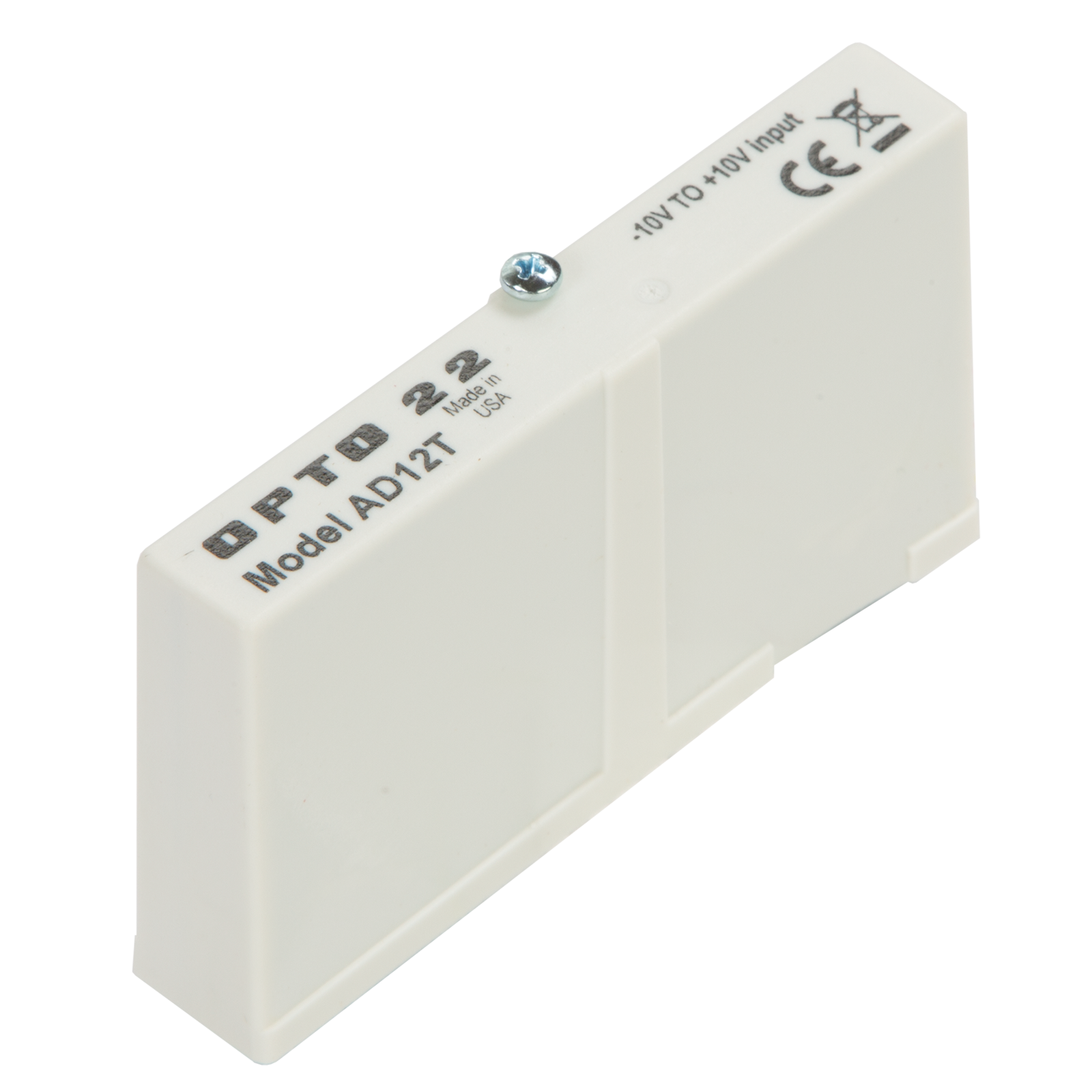

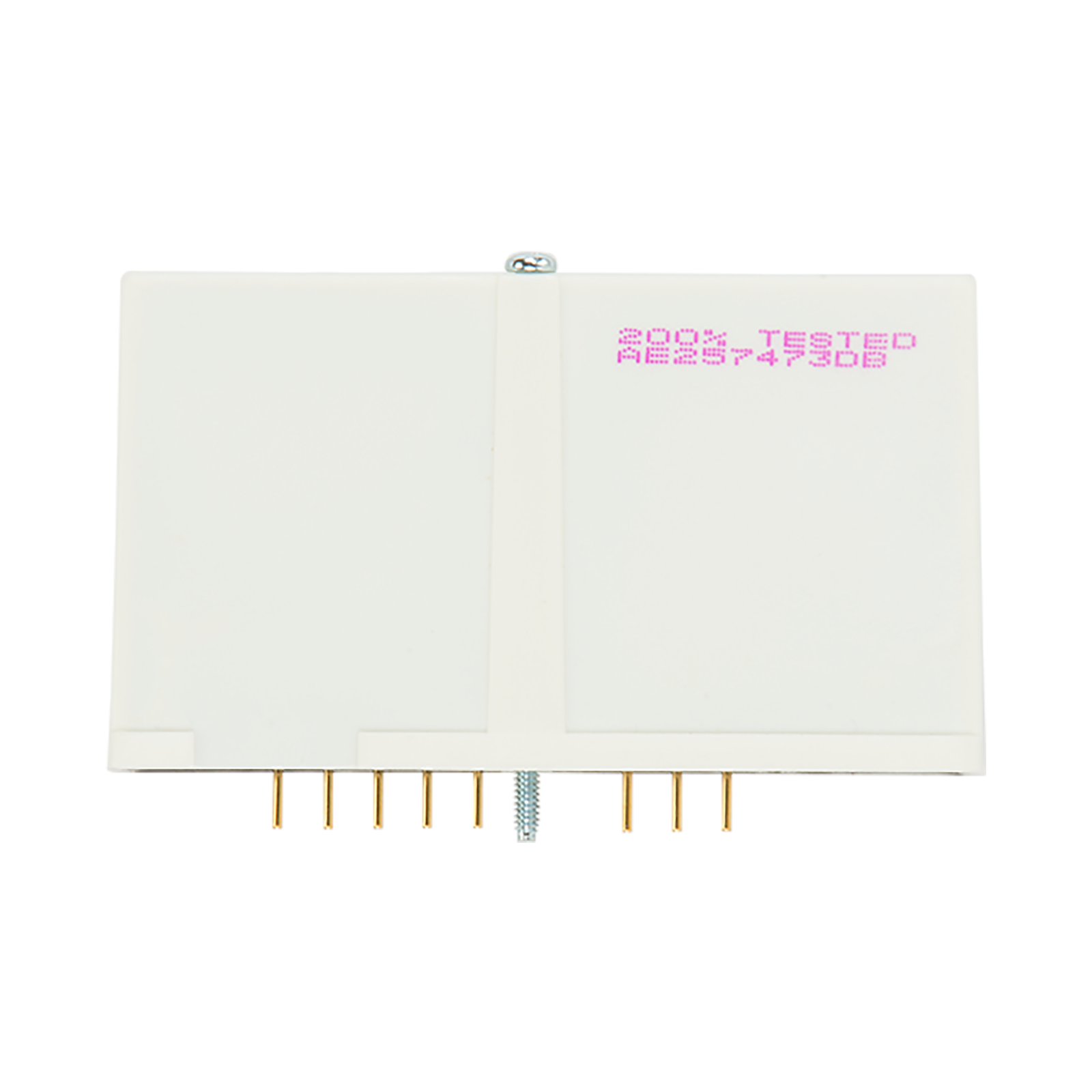

AD12T
Hover over image to zoom in

AD12T

$220.00 (USA and Canada only)

Availability: In stock
G1 -10 to +10 VDC Analog Input, Isolated

Production Specification

G1 I/O family

The AD12T analog input module provides a single channel of optically isolated and channel-to-channel isolated voltage-to-digital conversion. Nominal voltage input is -10 to +10 VDC. The module's 4,000 Vrms channel-to-channel isolation eliminates ground loop problems.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



AD11

AD12

AD12T

AD13T

Nominal Voltage Input

-5 to + 5 VDC

-10 to 10 VDC

-10 to 10 VDC

0 to 100 mV DC

Over/Under Range Capability

-5.25 to 11 VDC

-10.5 to 11 VDC

-10.5 to 11 VDC

-0.250 to 220 mV DC

Accuracy*

± 10 mV

± 20 mV

± 20 mV

± 100 µV

Power Requirements

15 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC

15 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC

*May be improved by the use of the "Set Offset" or "Set Gain" commands in the OPTOMUX command set.



Input Response Time*

5% of scale change in 8.5 ms 63% of scale change in 165 ms

Resolution

12-bits

Isolation
  Input-to-Output
  Input-to-Analog Supply ("T" Modules)



4,000 VRMS
4,000 VRMS

Temperature
  Operating
  Storage



0 to 70 °C
-25 to 85 °C

*AD6HS input response 100% step change in less than 3 milliseconds.

Standard Voltage Input Modules Data Sheet

Voltage input analog modules provide a single channel of optically isolated voltage-to-digital conversion.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
