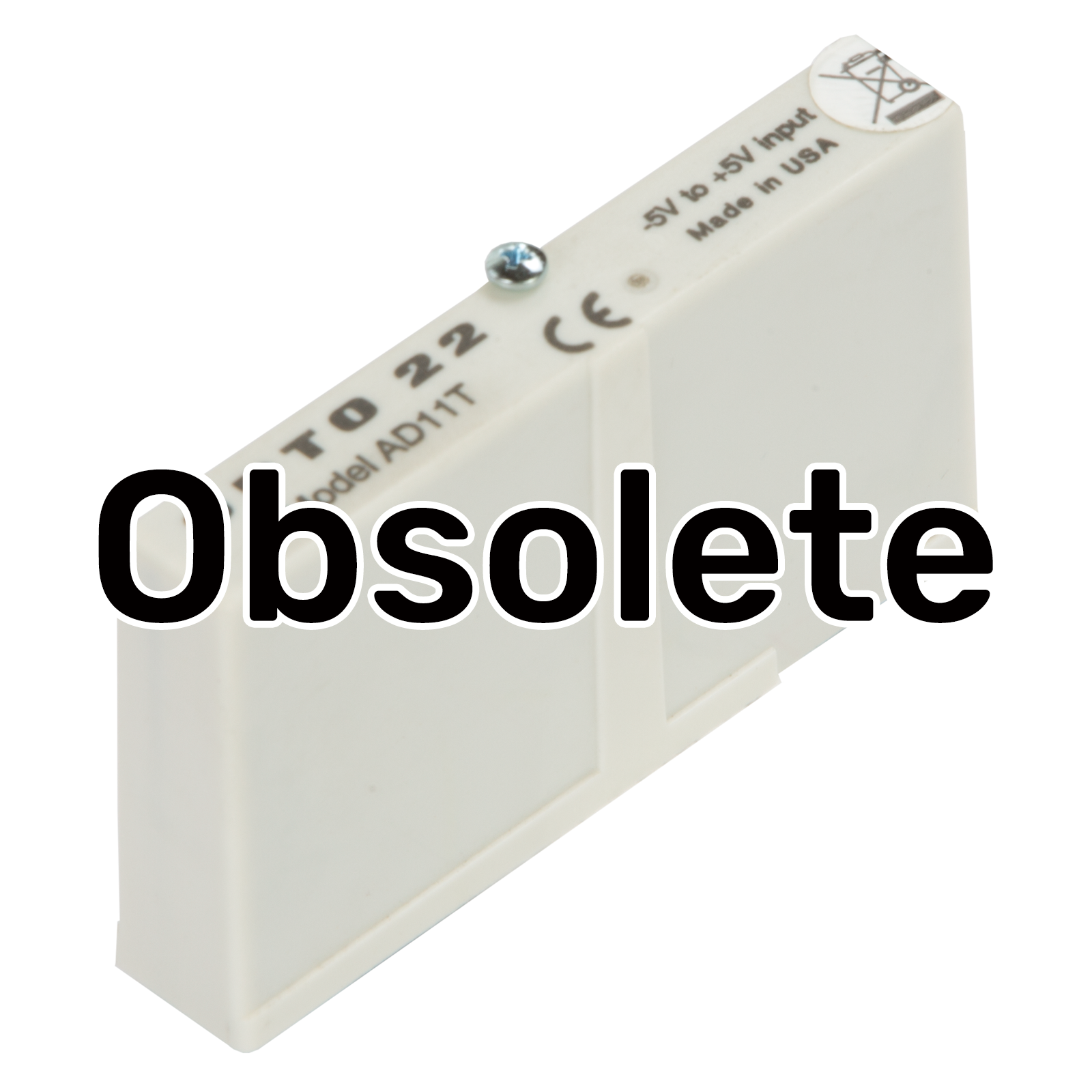

*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.
G1 I/O family

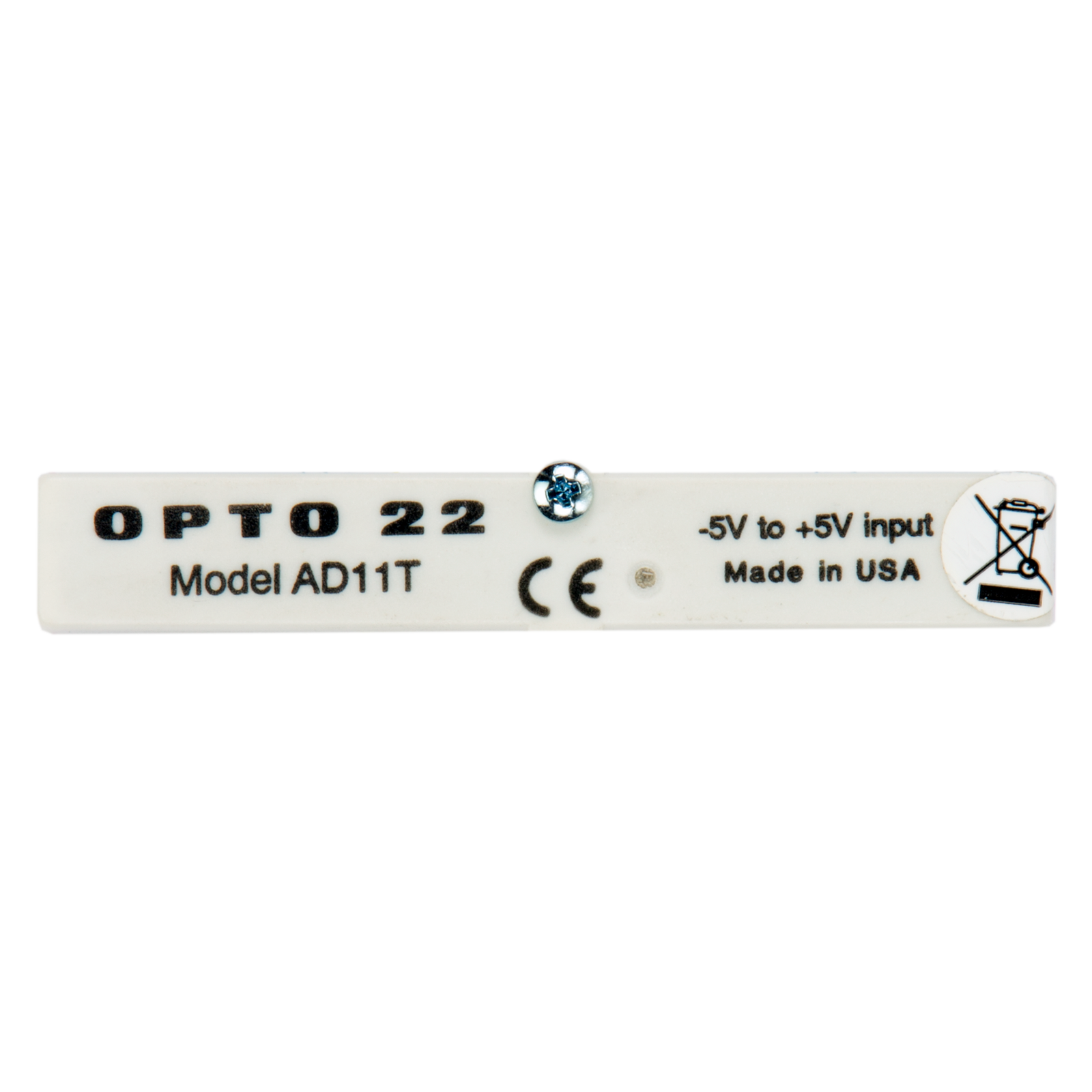

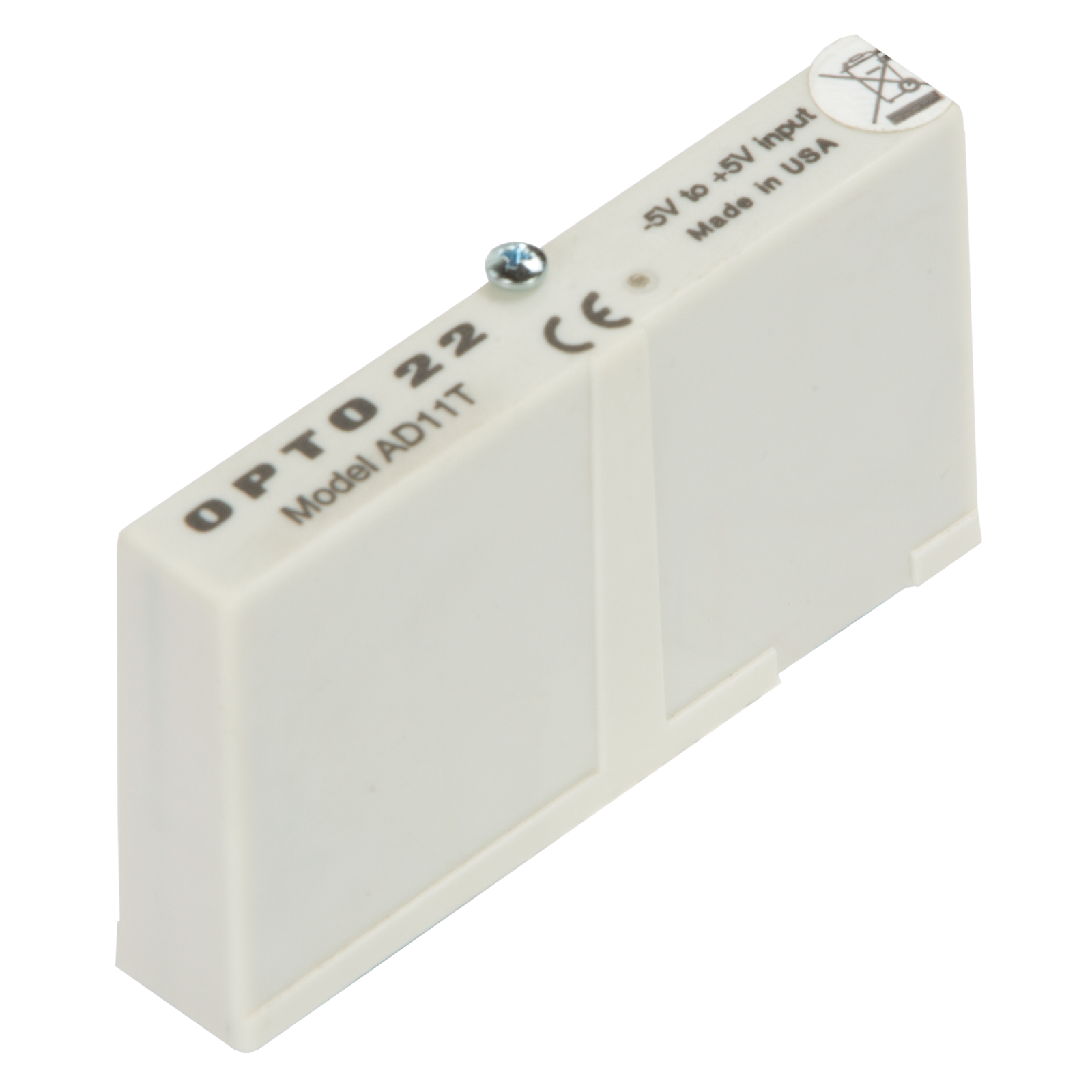

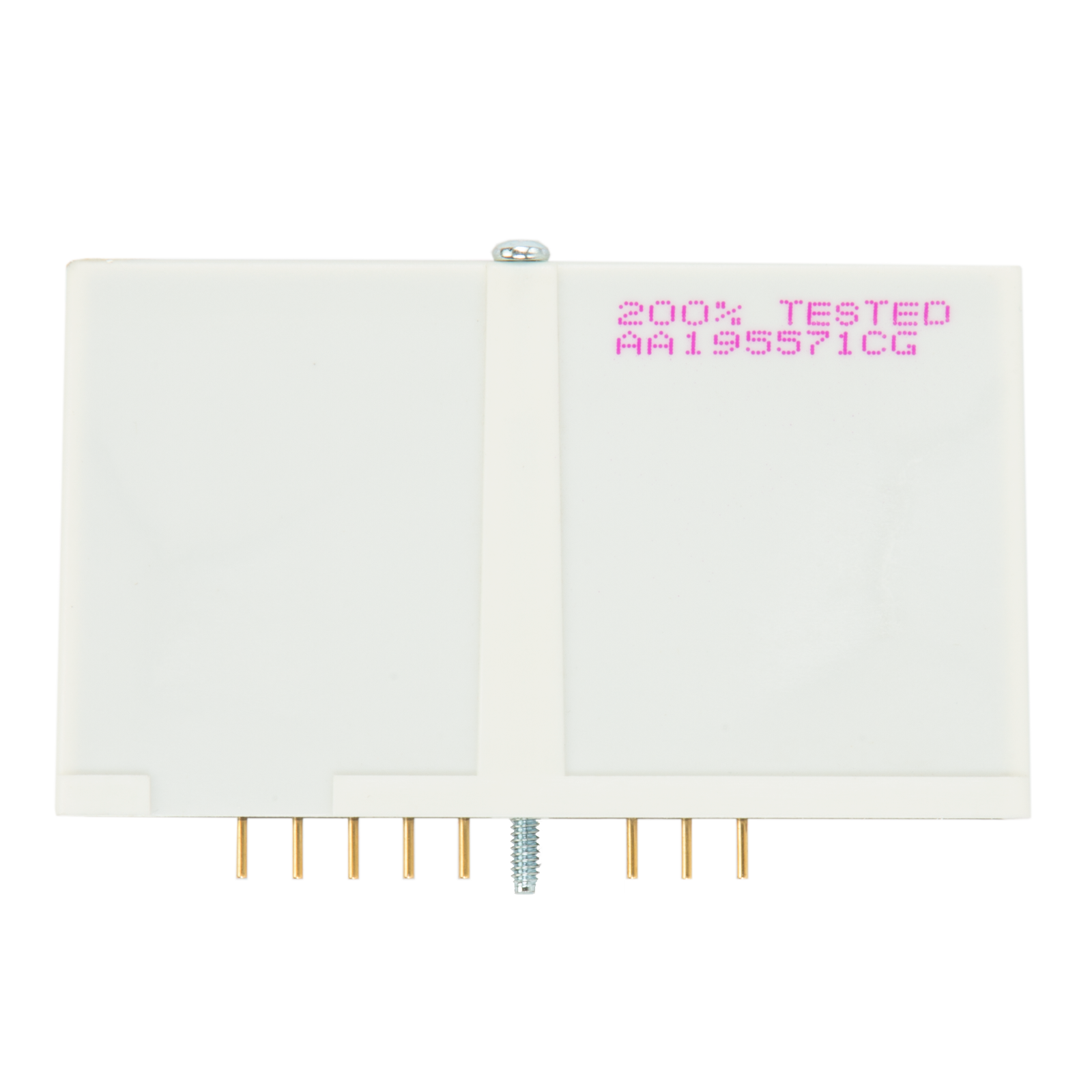

The AD11T analog input module provides a single channel of optically isolated and channel-to-channel isolated voltage-to-digital conversion. Nominal voltage input is -5 to +5 VDC. The module's 4,000 Vrms channel-to-channel isolation eliminates ground loop problems.
This module mounts on a G1 analog mounting rack, for example the PB16AH.
|
|
AD11T
|
|
Nominal Voltage Input
|
-5 to + 5 VDC
|
|
Over/Under Range Capability
|
-5.25 to 11 VDC
|
|
Accuracy*
|
± 10 mV
|
|
Power Requirements
|
15 mA at +15 (+/- 0.25) VDC
12 mA at -15 (+/- 0.25) VDC
|
|
Input Response Time
|
5% of scale change in 8.5 ms 63% of scale change in 165 ms
|
|
Resolution
|
12-bits
|
|
Isolation
Input-to-Output
Input-to-Analog Supply
|
4,000 VRMS
4,000 VRMS
|
|
Temperature
Operating
Storage
|
0 to 70 °C
-25 to 85 °C
|
| Agency Approvals |
CE; RoHS; UKCA |
|
*May be improved by the use of the "Set Offset" or "Set Gain" commands in the OPTOMUX command set.
|
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
