240D30-HS
Hover over image to zoom in

240D30-HS

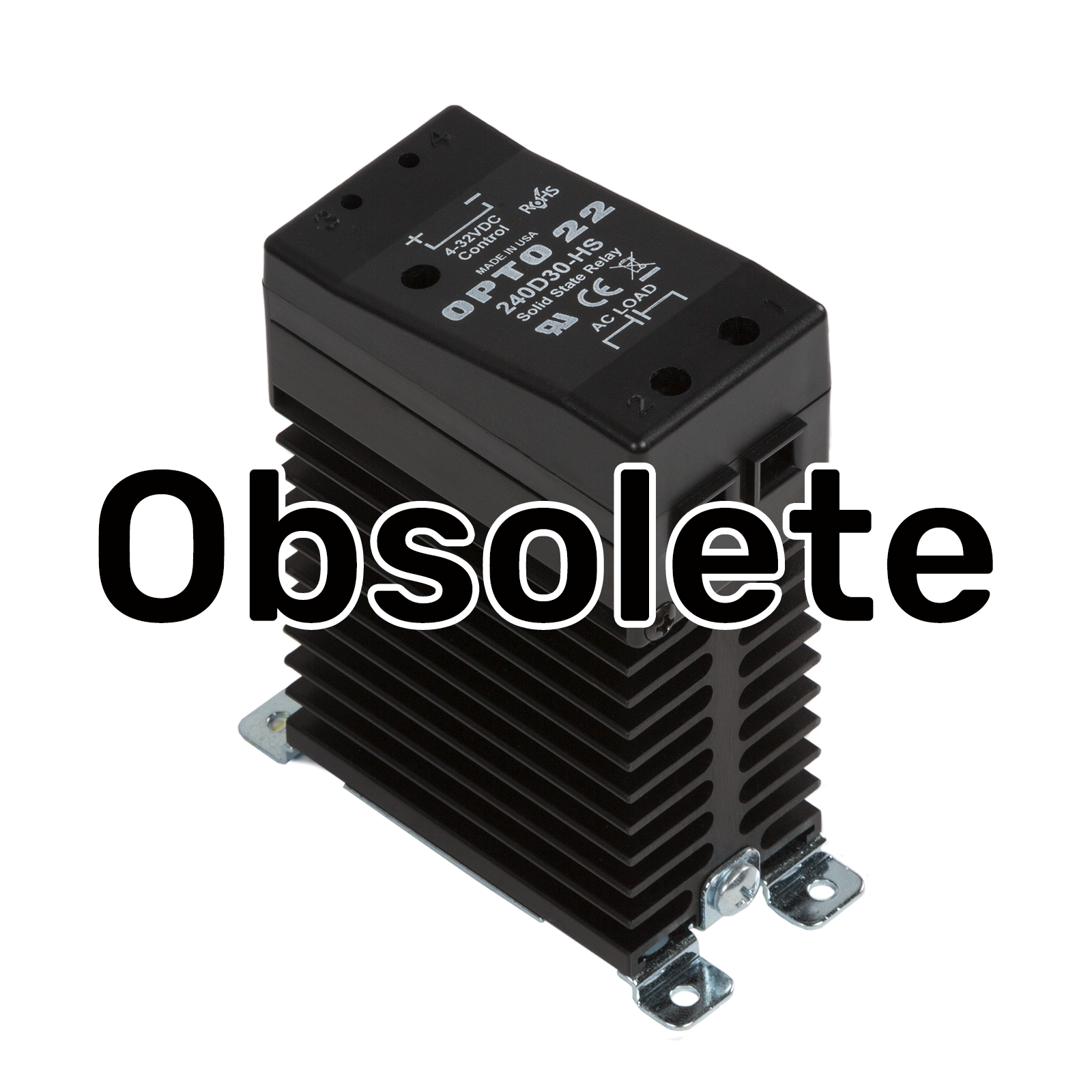

Availability: Obsolete
OBSOLETE 240 VAC, 30 Amp, DC Control Solid State Relay (SSR), with integrated heatsink

Production Specification

*** NOTE: This part is obsolete and no longer available. Please contact Pre-Sales Engineering for assistance."***

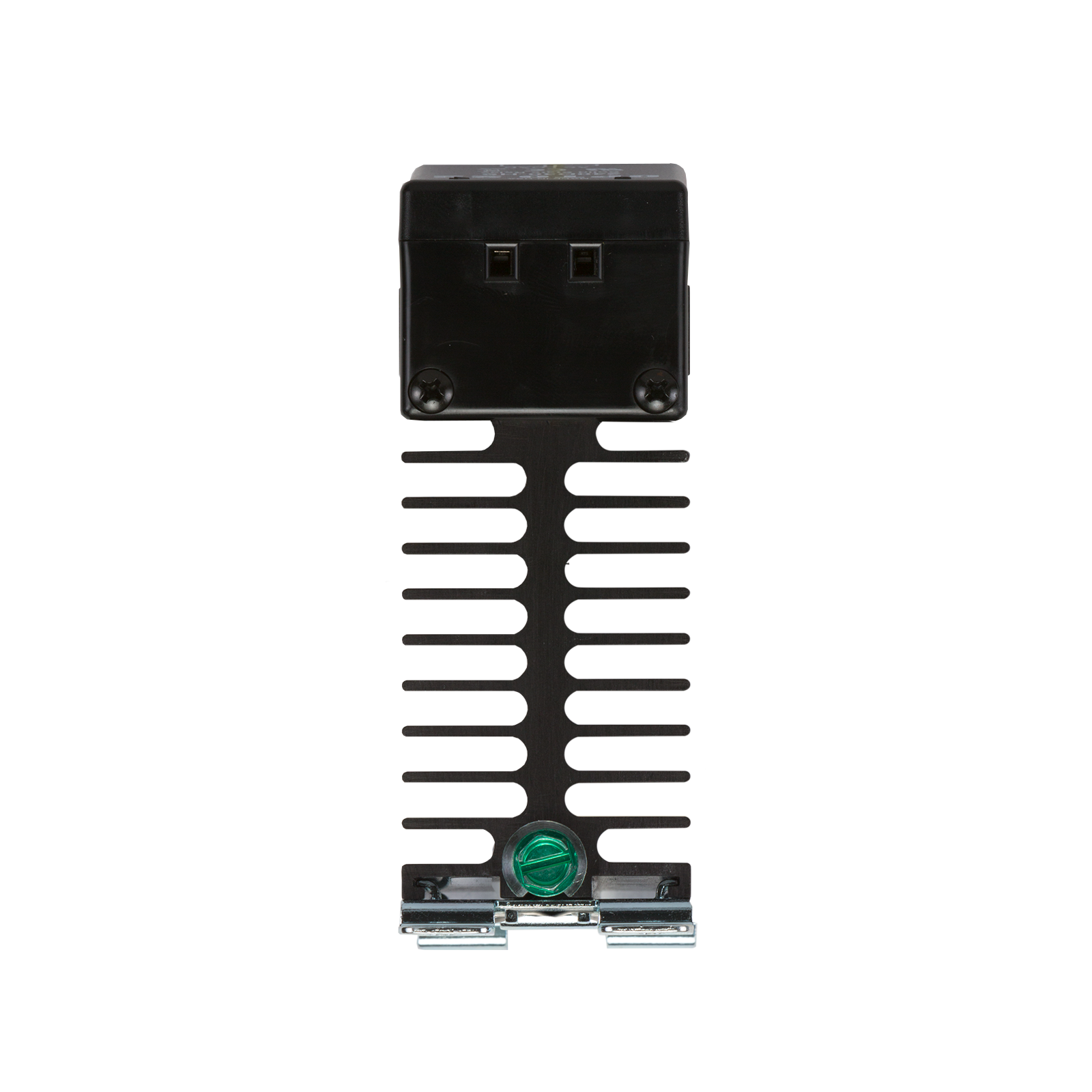

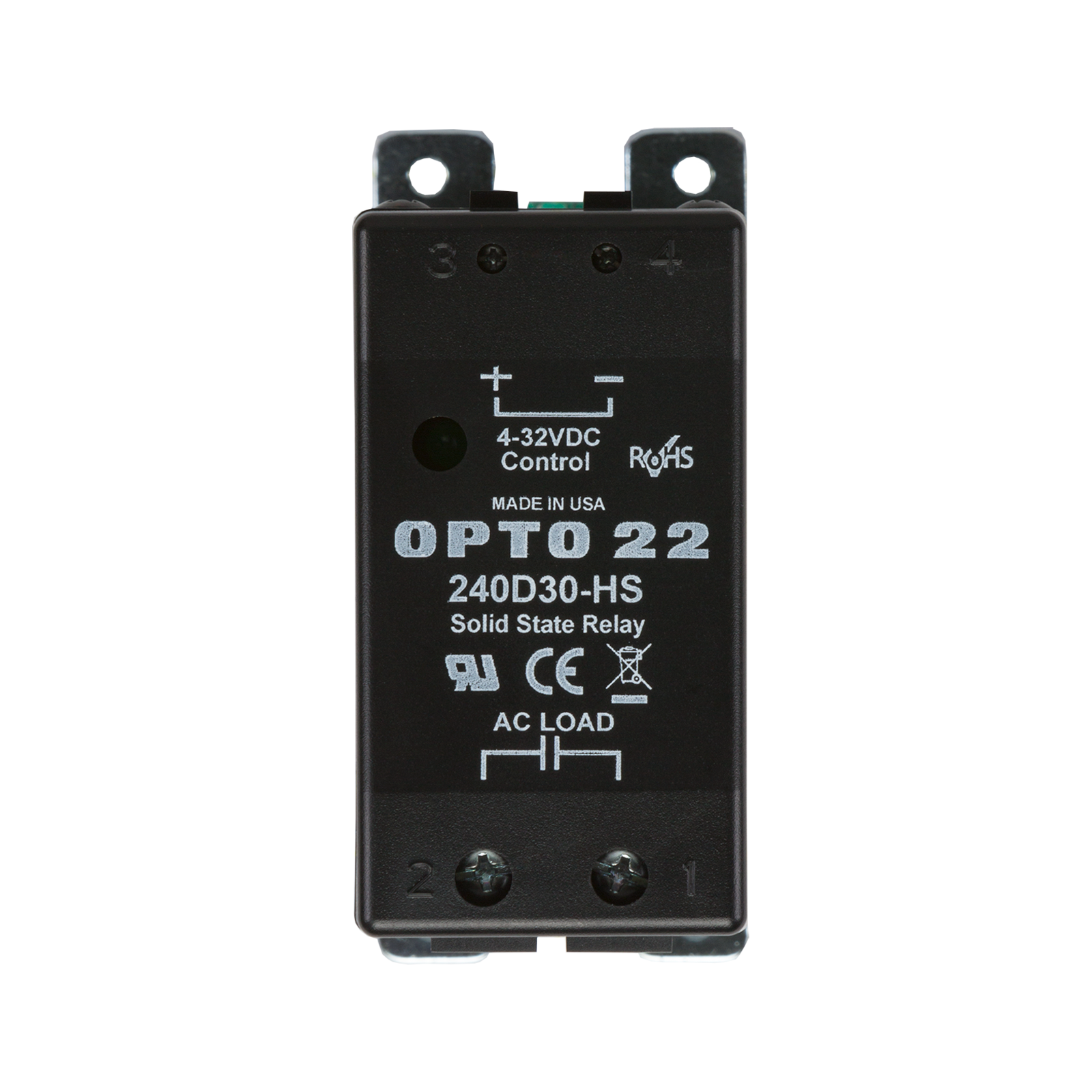

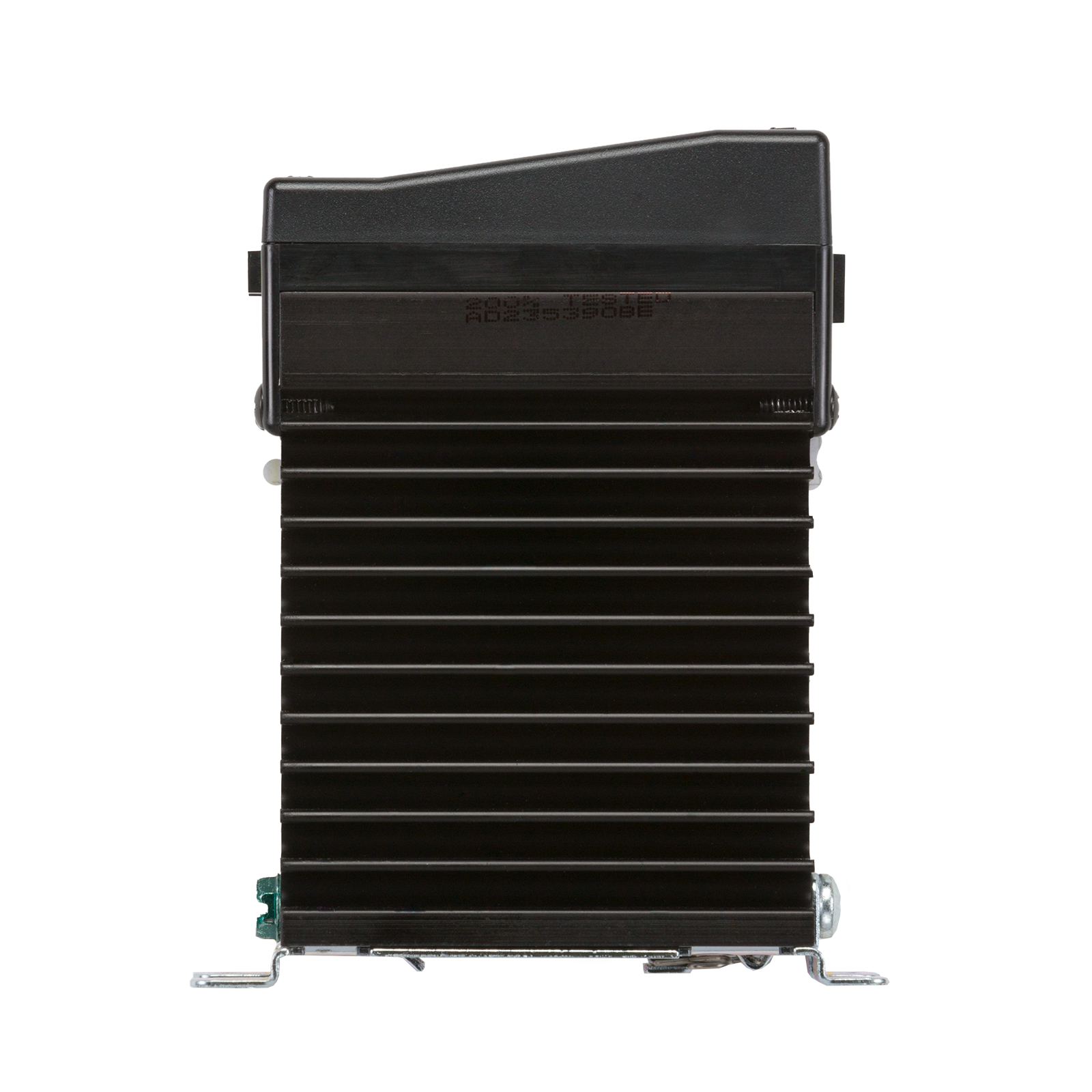

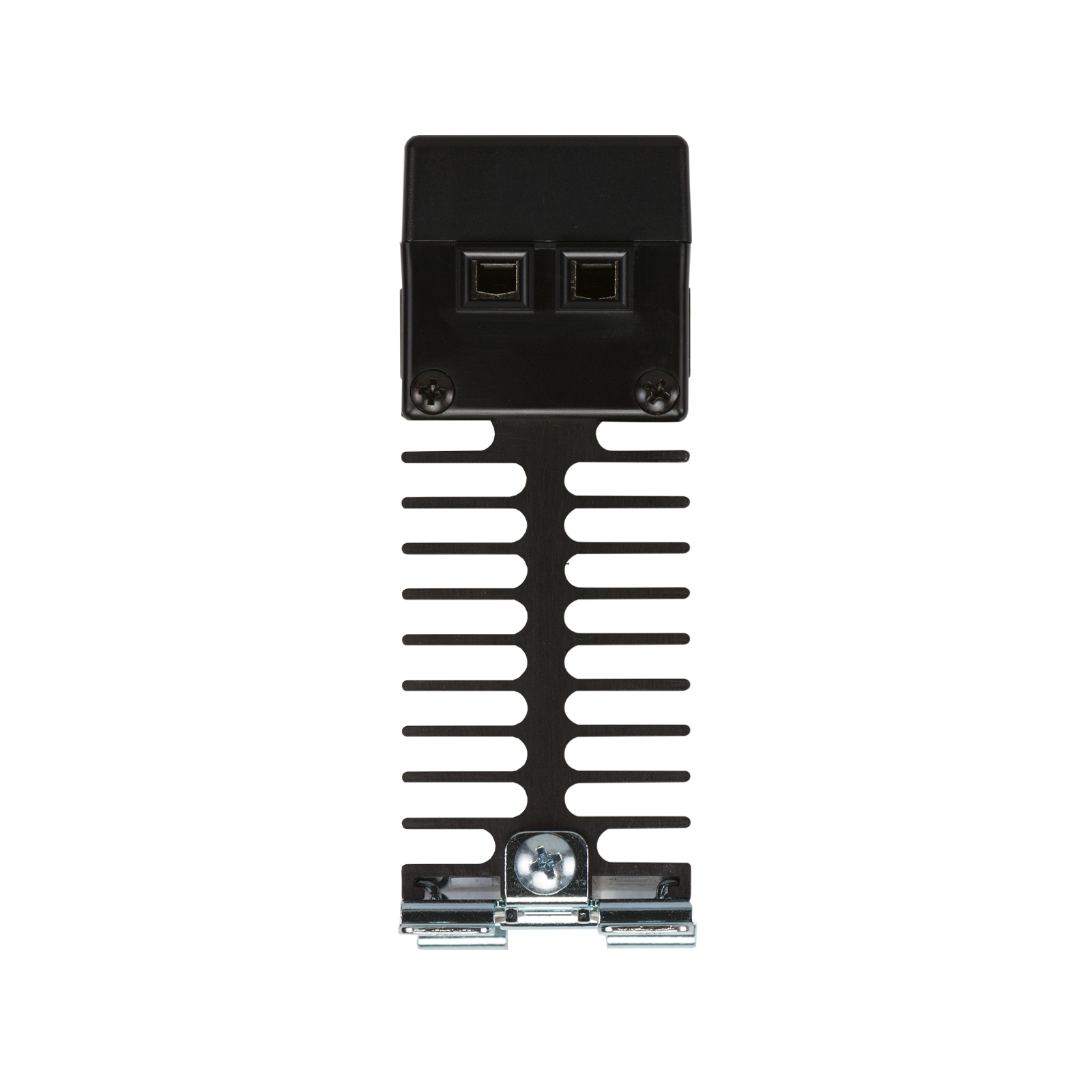

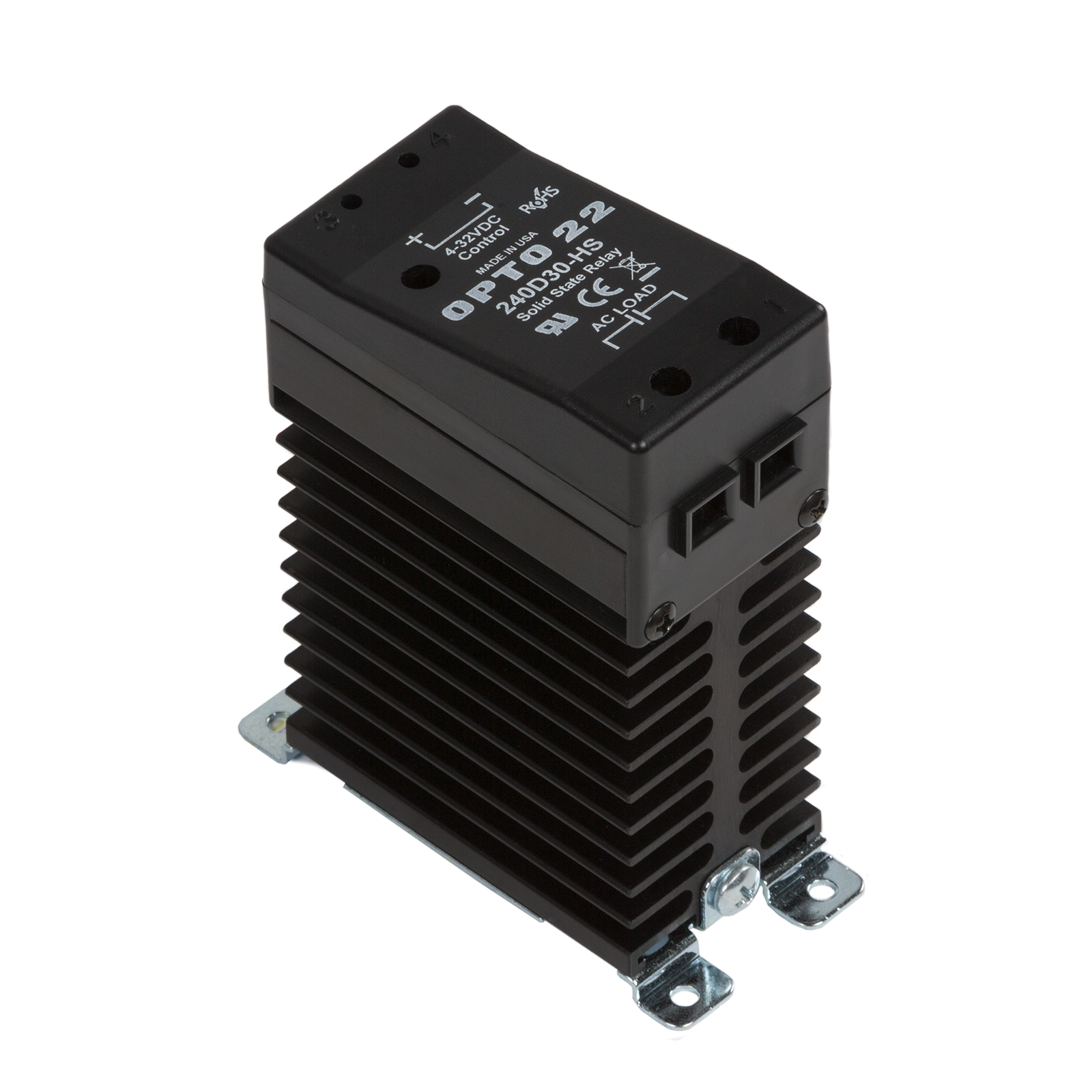

The 240D30-HS is a DC-controlled HS Series relay that switches 240 VAC at up to 30 A. This SSR features an integrated heatsink. Because there is less thermal resistance internal to the unit than in a standard SSR mounted to the same heat sink, heat dissipates more easily. The built-in heatsink means you don't have to select a heatsink, and installation is much easier.

Each HS-series SSR has built-in hardware for screw mounting and a built-in DIN-rail adapter clip for mounting to a 35mm DIN rail.

HS Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL recognized and are a CE component.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

This SSR carries a lifetime warranty.

Model Number

240D30-HS
[Obsolete]

480D25-HS
[Obsolete]

575D30-HS
[Obsolete]

Nominal AC Line Voltage

240

480

575

Operating Voltage Range (Volts AC)

24–280

100–530

100–600

Peak Repetitive Voltage Maximum

600

1000

1200

Off-State Leakage (mA) Maximum*

5 mA

10 mA

12 mA

Nominal Output Voltage Drop (RMS)

1.0 volts

1.0 volts

1.0 volts

Nominal Current Rating (Amps)

30**

25**

30**

1 cycle Surge (Amps) Peak

610

610

610

I2t Rating t=8.3 (ms)

1550

1550

1550

Isolation Voltage (transient 4KV)

2,500VRMS

2,500VRMS

2,500VRMS

Dissipation (Nominal Watts/Amp)

1.0

1.0

1.0

Signal Pick-up Voltage

4VDC
(32V allowed)

4VDC
(32V allowed)

4VDC
(32V allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

1 VDC

Nominal Signal Input Resistance (Ohms)

730

1000

1000

θja*** (°C/Watt)

2.2

2.2

2.2

Warranty

Lifetime

Lifetime

Lifetime

Agency Approvals UL, CE, RoHS UL, CE, RoHS; UKCA UL, CE; UKCA

Notes:
* Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
** Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
***θja = Thermal resistance junction to ambient. Maximum junction temperature is 110 °C.

Solid-State Relays (SSRs) Data Sheet

Opto 22 provides a full range of reliable solid-state relays (SSR). This data sheet includes descriptions, specifications, dimensional drawings, and application information for these parts:

  • 120A10
  • 120A25
  • 240A10
  • 240A25
  • 240A45
  • 120D3
  • 120D10
  • 120D25
  • 120D45
  • 240D3
  • 240D10
  • 240Di10
  • 240D25
  • 240Di25
  • 240D30-HS [Obsolete]
  • 240D45
  • 240Di45
  • 380D25
  • 380D45
  • 480D10-12
  • 480D15-12
  • 480D25-12
  • 480D25-HS [Obsolete]
  • 480D45-12
  • 575D15-12
  • 575D45-12
  • 575D30-HS  [Obsolete]
  • 575Di45-12
  • DC60P or DC60MP
  • DC200P or DC200MP
  • DC60S-3
  • DC60S-5
  • MP120D2 or P120D2
  • MP120D4 or P120D4
  • MP240D2 or P240D2
  • MP240D4 or P240D4
  • MP380D4
  • SAFETY COVER
  • SSR-HS
  • SSR-THERMOPAD
  • Z120D10
  • Z240D10

Opto 22 SSR Overview

A quick overview of Opto 22 solid-state relays (SSRs).

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

Solid State Relay Cross-Reference Product List

Guaranteed-for-life Opto 22 solid state relays can often be substituted for other manufacturers' relays. This technical note lists part number matches and notes differences with other manufacturers' products.

For more information on SSRs, see Form 0859, Solid State Relays Data Sheet.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CAD 3D Drawing: 240D30-HS Solid State Relay

This CAD file contains a 3-dimensional drawing of the 240D30-HS solid state relay, which includes an integrated heat sink.

No videos or demos are available for this product.
