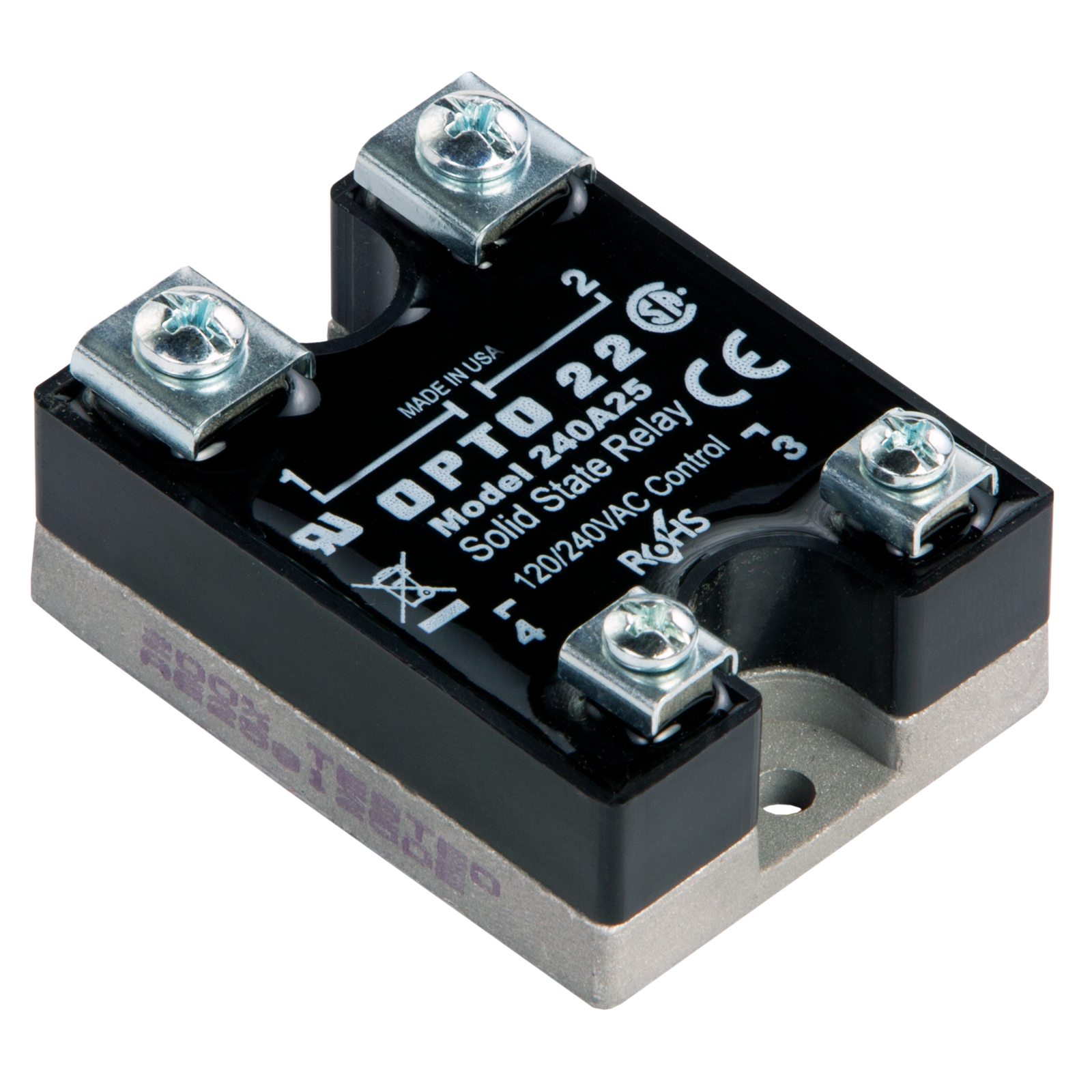

240A25
Hover over image to zoom in

240A25

$57.00 (USA and Canada only)

Availability: In stock
240 VAC, 25 Amp, AC Control Solid State Relay (SSR)

Production Specification

The 240A25 is an AC-controlled Power Series relay that switches 240 VAC at up to 25 A.

Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component, UKCA certified.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

This SSR carries a lifetime warranty.

NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height from one terminal to another and from one SSR to another. Use the MP or P series SSRs for PCB mounting.

Optical Isolation Input to Output

4,000 V

Turn-on Time

½ cycle maximum

Turn-off Time

½ cycle maximum

Operating Frequency

25 to 65 Hz (operates at 400 Hz with six times
off-state leakage)

Coupling Capacitance Input to Output

8 pF maximum

DV/DT Off-state

200 volts per microsecond

DV/DT Commutating

Snubbed for rated current at 0.5 power factor

Agency Approvals UL, CSA, RoHS, CE; UKCA





380D25

380D45

120A10

120A25

240A10

240A25

240A45

Nominal AC Line Voltage

380

380

120

120

240

240

240

Nominal Current Rating (Amps)

25*

45*

10*

25*

10*

25*

45*

1 cycle Surge (Amps) Peak

250

650

110

250

110

250

650

Nominal Signal Input Resistance (Ohms)

1000

1000

33K

33K

33K

33K

33K

Signal Pick-up Voltage

3VDC (32V allowed)

3VDC (32V allowed)

85 VAC (280 allowed)

85 VAC (280 allowed)

85 VAC (280 allowed)

85 VAC (280 allowed)

85 VAC (280 allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

10 VAC

10 VAC

10 VAC

10 VAC

10 VAC

Peak Repetitive Voltage Maximum

800

800

600

600

600

600

600

Maximum Output Voltage Drop

1.6 volts

1.6 volts

1.6 volts

1.6 volts

1.6 volts

1.6 volts

1.6 volts

Off-State Leakage (mA) Maximum

12 mA

12 mA

7 mA

7 mA

14 mA

14 mA

14 mA

Operating Voltage Range (Volts AC)

24–420

24–420

12–140

12–140

24–280

24–280

24–280

I2t Rating t=8.3 (ms)

250

1750

50

250

50

250

1750

Isolation Voltage

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

θjc** (°C/Watt)

1.2

0.67

1.3

1.2

1.3

1.2

0.67

Dissipation (Watts/Amp)

1.3

0.9

1.6

1.3

1.6

1.3

0.9

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
**
θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
