GRV-EPIC-PSDC

$525.00 (USA and Canada only)

Availability: Call for Availability
groov EPIC power converter, 22-50 VDC input

Production Specification

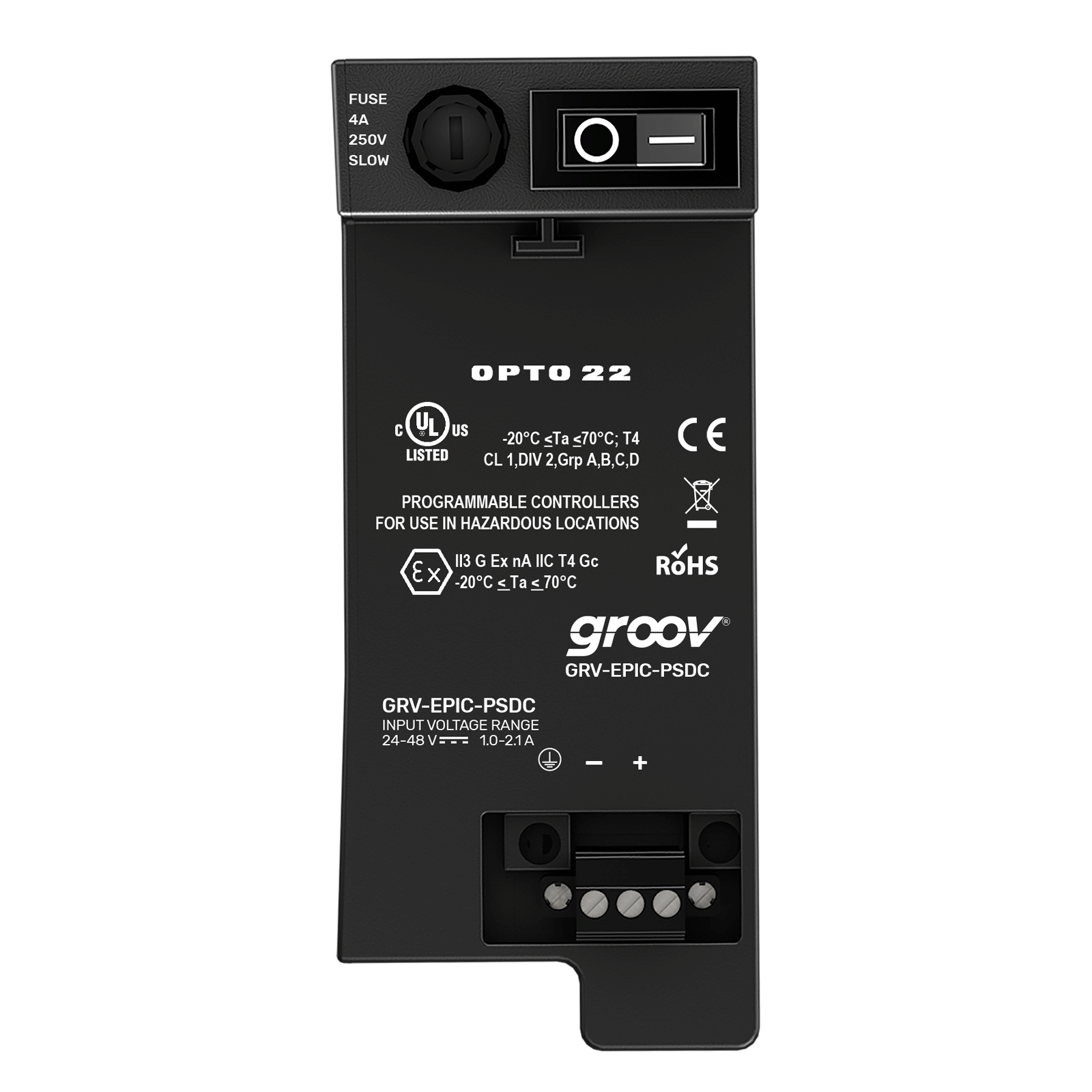

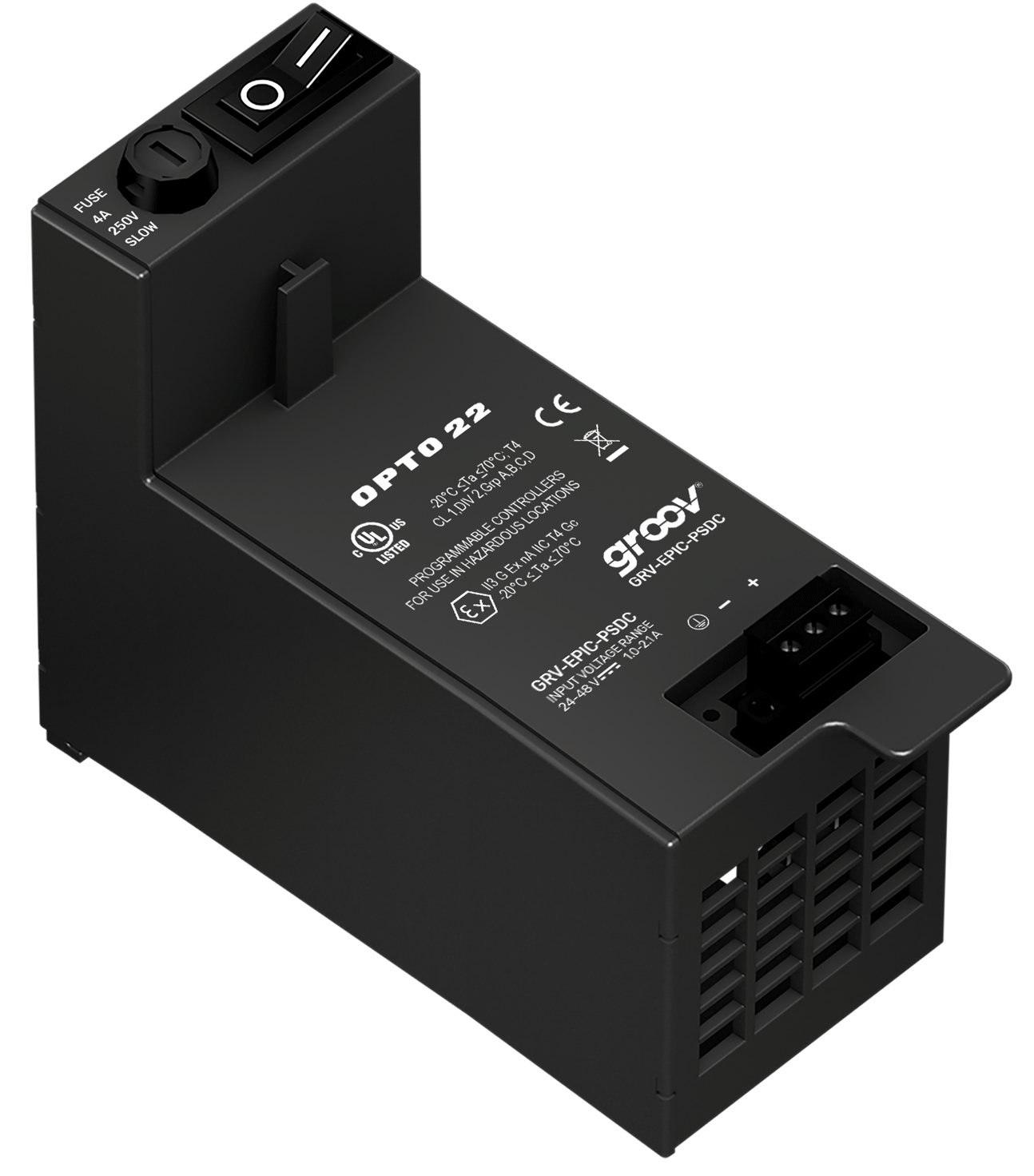

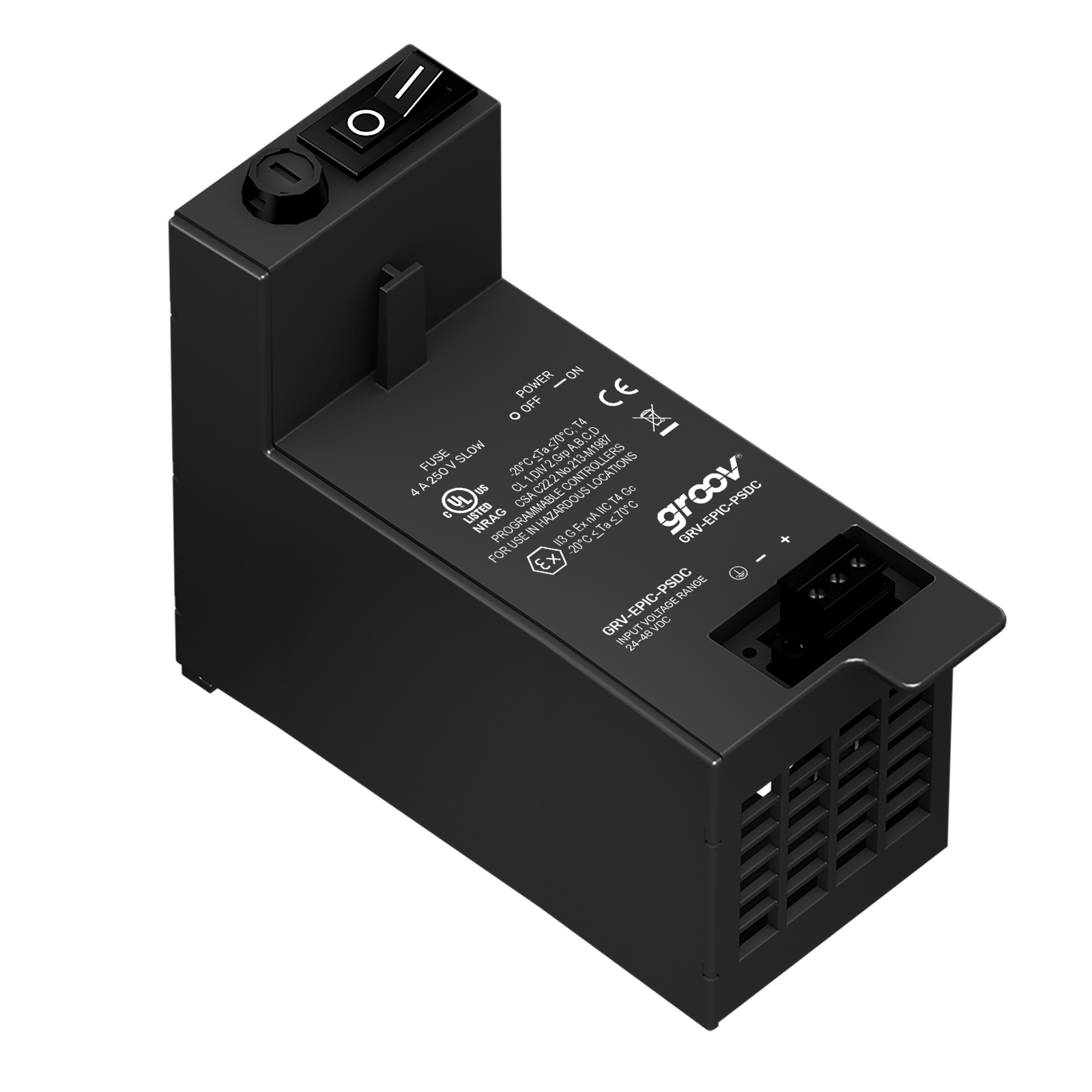

The GRV-EPIC-PSDC power converter provides power for your Opto 22 groov® EPIC system from a DC power source of 22-50 volts. Packaged in a modern and sturdy housing, the GRV-EPIC-PSDC includes a built-in fuse and an ON/OFF power switch for ease of use.

The GRV-EPIC-PSDC is designed to provide power for a groov EPIC chassis with a GRV-EPIC-PR1 or GRV-EPIC-PR2 processor and groov I/O modules mounted on the chassis.

NOTE: For an AC power supply, see the GRV-EPIC-PSAC.
If you have your own power supply of the correct voltage, see the GRV-EPIC-PSPT pass-through power adapter.

Specification

GRV-EPIC-PSAC

GRV-EPIC-PSDC

GRV-EPIC-PSPT

Max Output Power

60 W (-20 °C ≤ Ta ≤ 50 °C)

50 W (50 °C < Ta ≤ 70 °C)

50 W (-20 °C ≤ Ta ≤ 70 °C)

108 W from external 12 VDC supply,

(-20 °C ≤ Ta ≤ 70 °C)

Input Voltage Range

110 to 240 VAC nominal,

100 to 264 VAC max.

24 to 48 VDC nominal,

22 to 50 VDC max.

10 to 15 VDC

Typical Input Current (max load)

0.6 A at 115 VAC

3.5 A at 22 VDC

9 A at 12 VDC

Inrush Current

30 A at 115 VAC

2.5 I2t (A2s)

2.5 I2t (A2s)

Input Frequency Range

50 Hz to 60 Hz

n/a

n/a

Power Factor

>0.98 at 115 VAC, full load

n/a

n/a

Wire size

28-12 AWG

28-12 AWG

28-12 AWG

Torque (connector screw)

4.4 in-lb

4.4 in-lb

4.4 in-lb

Fuse

2 A 250 V Slow

Opto 22 PN: GRV-EPIC-PSAC-FUSE

4 A 250 V Slow

Opto 22 PN: GRV-EPIC-PSDC-FUSE

10 A 125 V Fast

Opto 22 PN: GRV-EPIC-PSPT-FUSE

Operating Ambient Temperature

-20 °C to 70 °C

-20 °C to 70 °C

-20 °C to 70 °C

Altitude Temperature Derating

5 °C per 1000 m over 2000 m

5 °C per 1000 m over 2000 m

n/a

MTBF (minimum, 25 °C)

650 khrs

1.9 Mhrs

4.5 Mhrs

Agency Approvals

UL/cUL(Class 1 Div. 2), CE, ATEX(Category 3, Zone 2), RoHS, DFARS; UKCA

Warranty

30 months

30 months

30 months

groov EPIC Power Supplies, Converters, and Adapters Data Sheet

groov EPIC® power supplies, converters, and adapters provide AC or DC power for your Opto 22 groov EPIC System.

This document provides information, specifications, and dimensional diagrams for:
GRV-EPIC-PSAC (AC power supply)
GRV-EPIC-PSDC (DC power converter)
GRV-EPIC-PSPT (power adapter)

UKCA Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

ATEX Letter of Conformity for groov EPIC

This ATEX Letter of Conformity is provided to support CE Declaration of Conformity (groov EPIC and groov RIO), form 2261.

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CAD Drawing: groov EPIC power supplies

This CAD file includes drawings in a variety of file formats (pdf, dwg, stp) that can represent any of the groov EPIC power supply models:

  • GRV-EPIC-PSAC
  • GRV-EPIC-PSDC
  • GRV-EPIC-PSPT

CAD Drawings: groov EPIC System

This ZIP file contains drawings in a variety of file formats for groov EPIC products, including the groov EPIC processor, chassis, groov I/O modules, power supplies, and more, all in one download.

NOTE: This is a very large file (55+ MB) and may take awhile to download. If this file is too large or you need drawings only for a specific product, you may prefer the following:

No videos or demos are available for this product.
