G4PB16T
Hover over image to zoom in

G4PB16T

$208.00 (USA and Canada only)

Availability: In stock

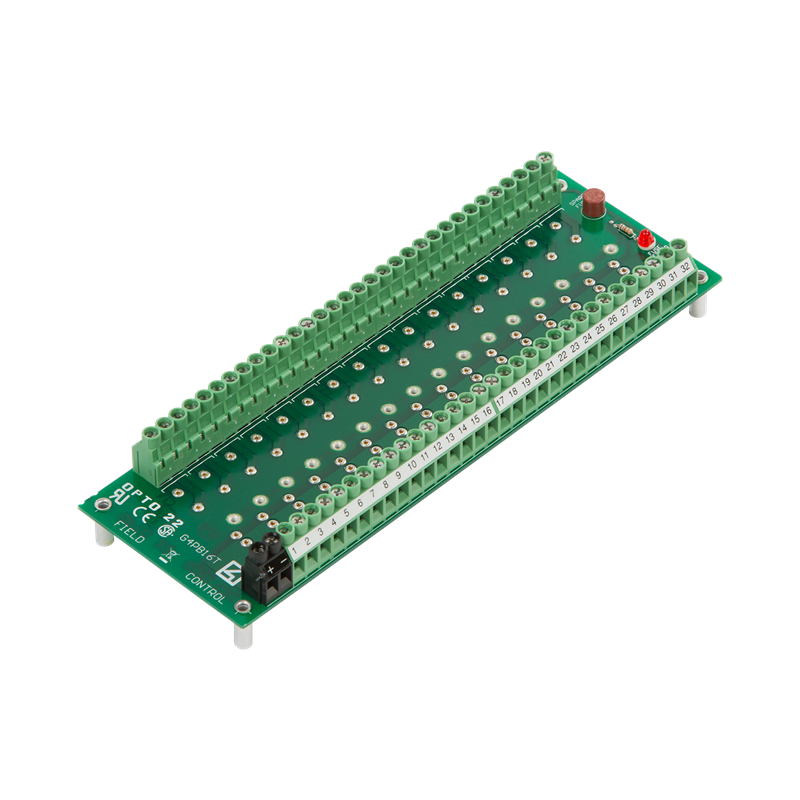

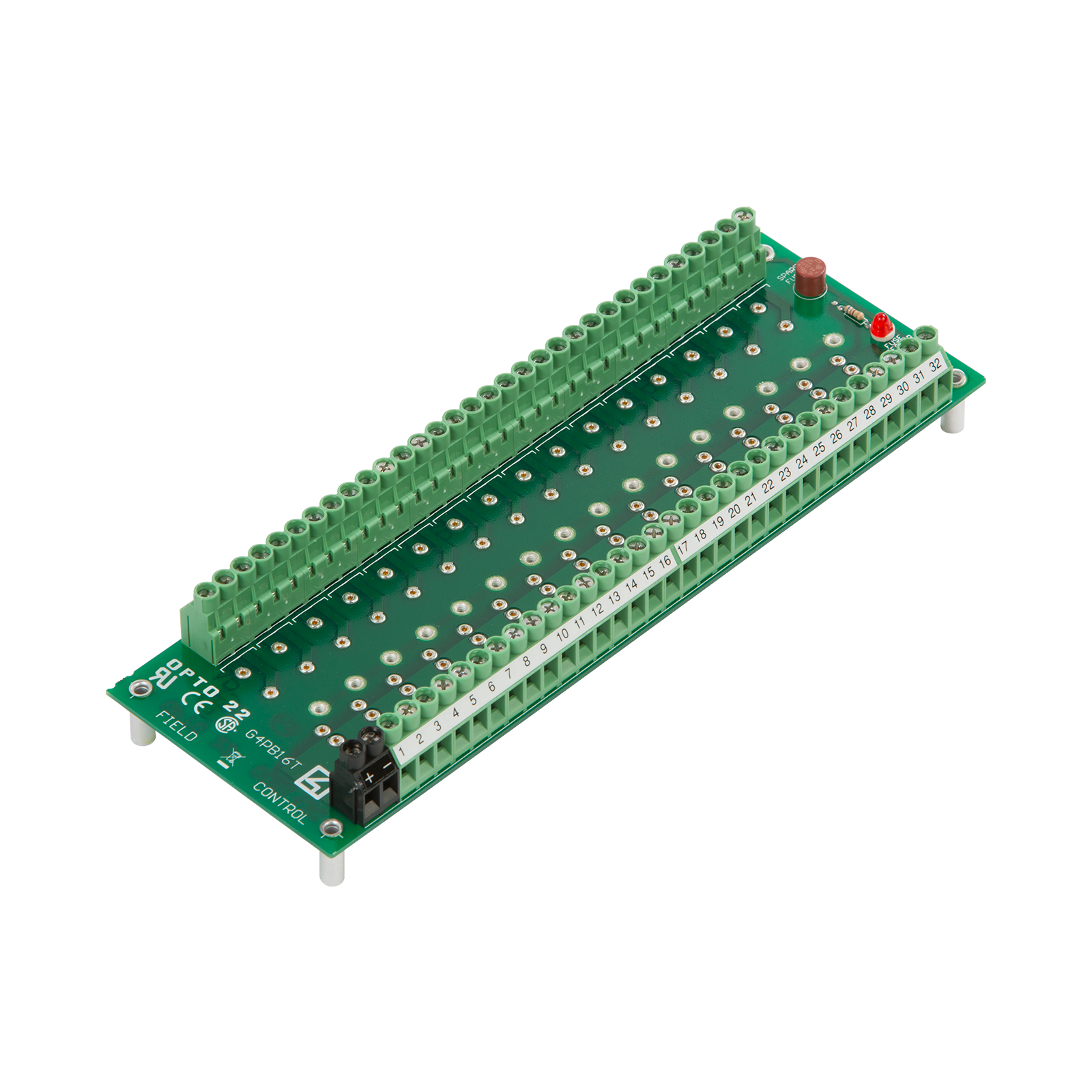

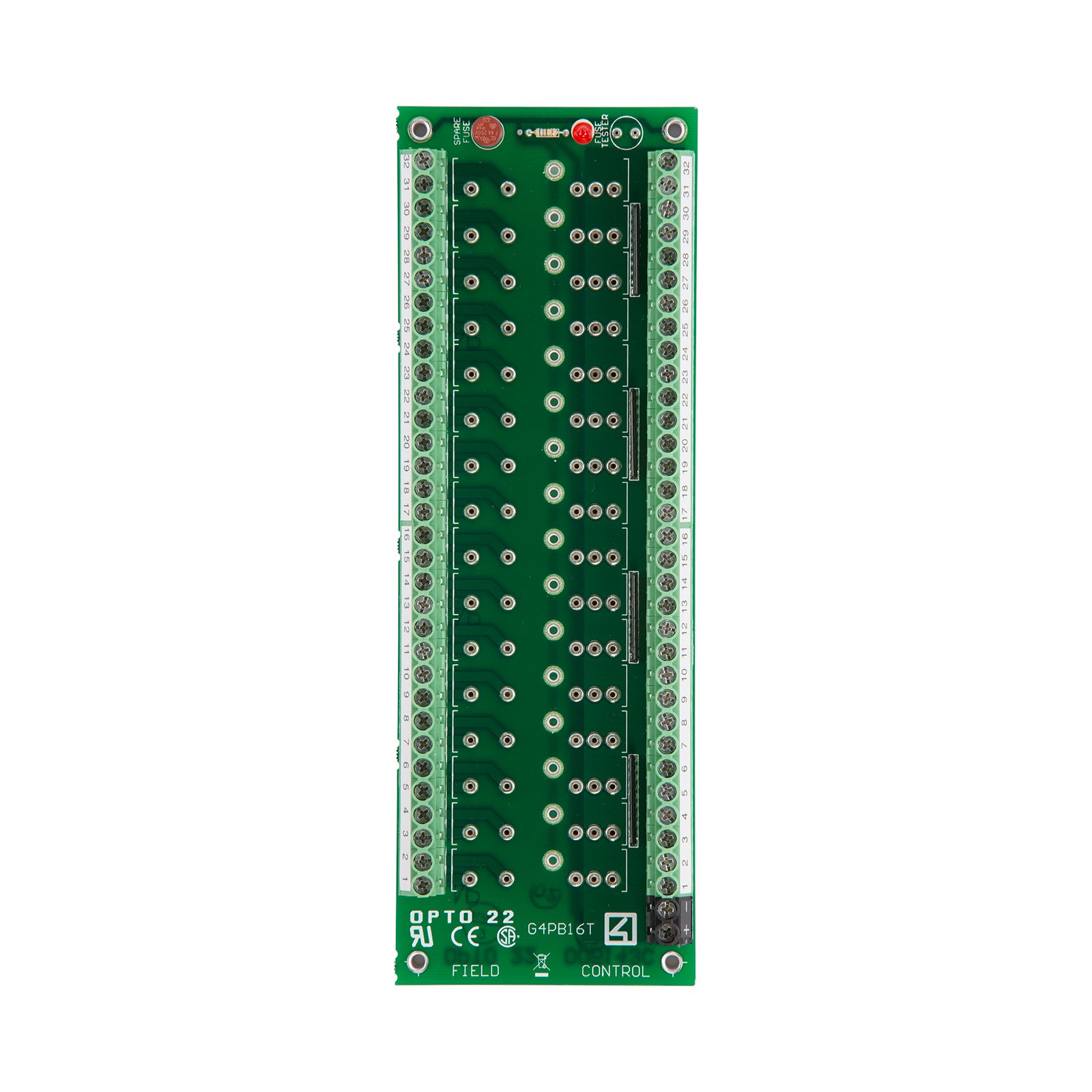

G4 16-channel I/O Module Rack with Terminal Strip

Production Specification

G4 I/O family

The G4PB16T rack holds 16 G4 digital I/O modules, both AC and DC. Single-channel G4 I/O gives you maximum flexibility. All modules on the rack must use the same logic voltage (5 VDC, 15 VDC, or 24 VDC). You can insert and remove modules easily and quickly without disturbing field wiring. Modules are securely attached with a threaded captive hold-down screw.

Barrier strips with screw terminals provide the field, control, and mounting rack power connections. A spare module fuse is included with the rack. For easier field wiring,use the G4STRAPB.

This rack supports negative-true logic only (zero voltage = ON, and Vcc = OFF).

Operating
temperature:

0 to 70 °C
95 percent relative humidity, non-condensing

Interface connector
Field:
Control:



Screw-type barrier strip accommodates up to 10 AWG wire
Screw-type barrier strip accommodates up to 10 AWG wire

Torque, terminal strip

5.5 in-lb (0.6 N-m)

Agency approvals:

UL, CSA, CE, RoHS, DFARS; UKCA

Warranty:

30 months from date of manufacture

G4 Digital 16-Channel Mounting Rack with Terminal Strip

The G4PB16T I/O mounting rack accommodates up to 16 G4 I/O modules and features an extra terminal strip.

G4 Digital I/O Data Book

The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

G4 Digital I/O Wiring Diagrams

Wiring diagrams for G4 modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
